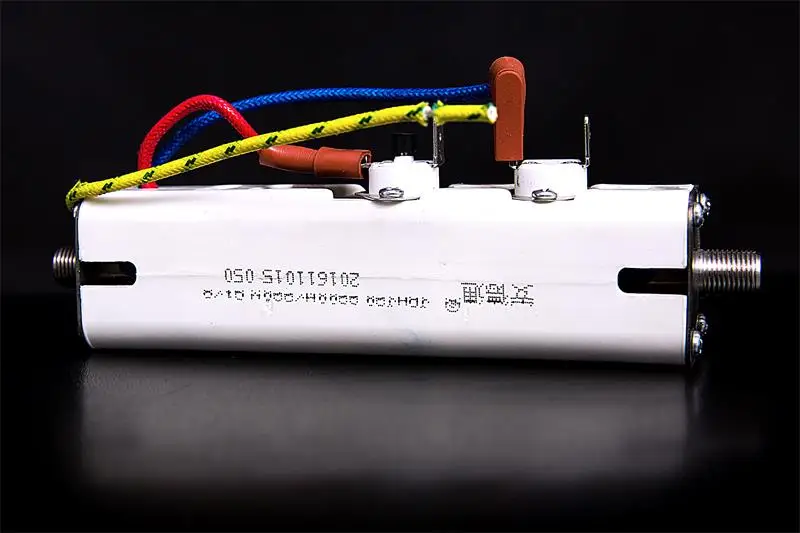

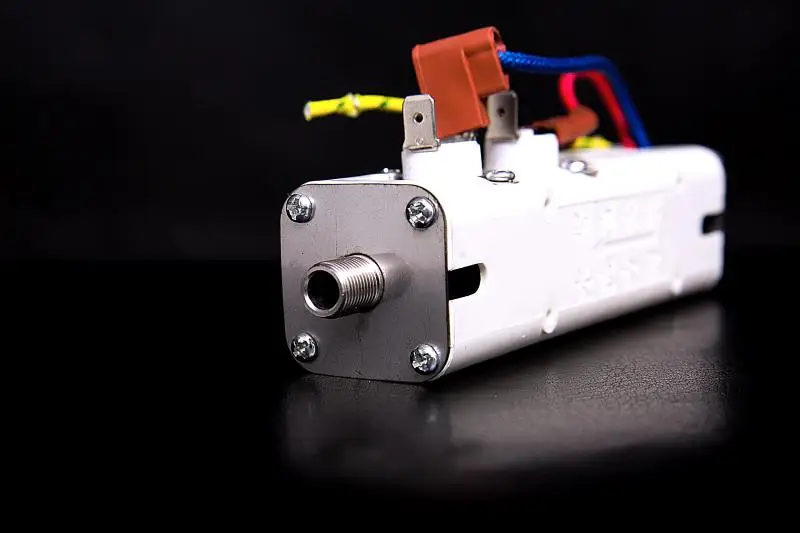

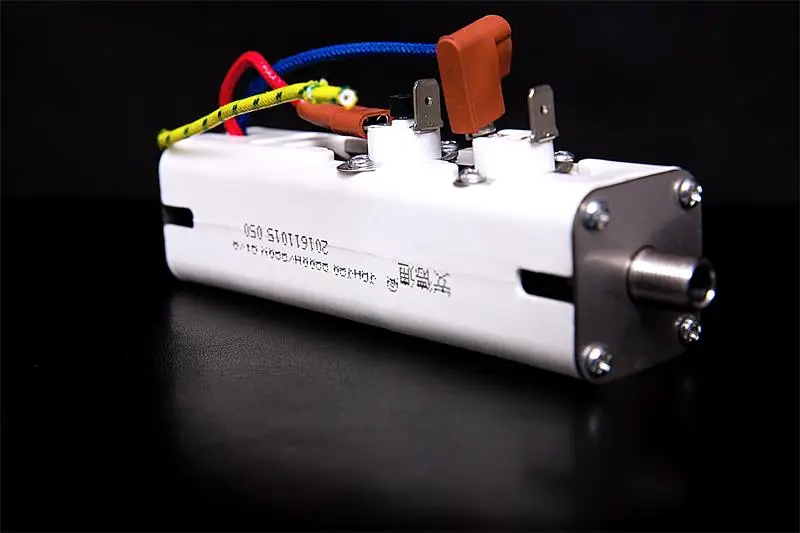

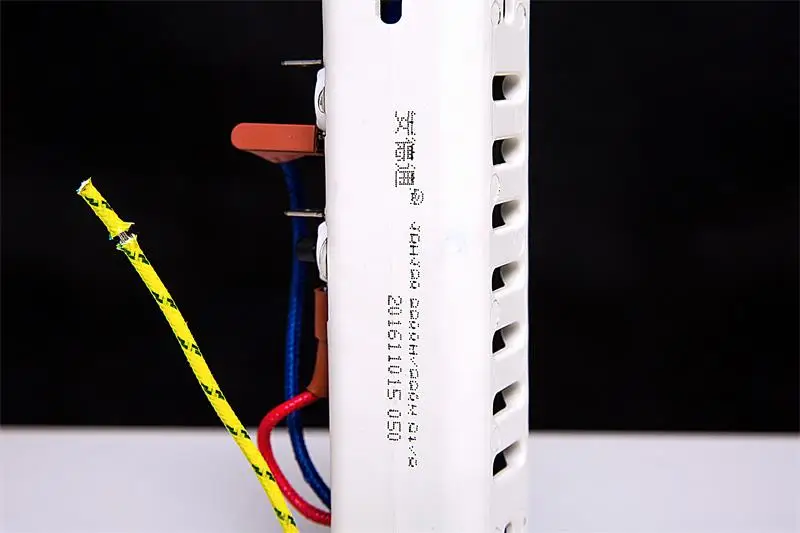

Instant type Immersion Liquid Heater Element

With the tubular structure. it can instant heating water flow inside tube, by the electric circuit printed on tube surface.

It is advanced in power density(>60W/cm), quick temperature ramp-up rate(80℃/S) and high thermal transfer(96%). You can get boiling water(≥95℃) in 3 seconds around.

For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass)

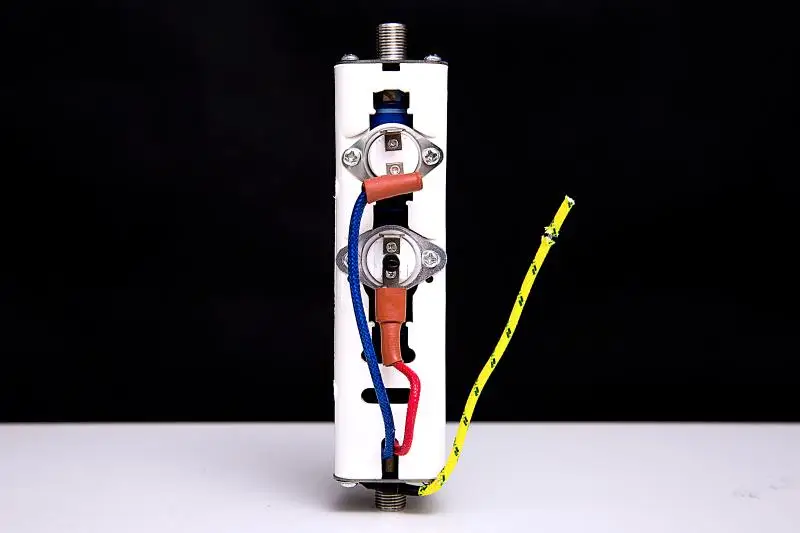

This electric heating element can be matched with thermostats (automatic reset and/or manual reset) and circuit control board.

Thermostat can directly access heating power supply circuit to control it connection or disconnection. Circuit Control Board can adjust the outlet water in multiple temperature levels.

Due to its tubular structure, the electric circuit on the tube surface heat water flow inside the tube. The thermal transfer rate is up to 98%. With its high power density (60W/cm²), you can get boiling water (above 95℃) in 3 seconds. 400mL/Minute.



For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass). Instant Coffee Maker just require such a electric heating element in simple& compact profile and instant temperature response



The available power is 2.2kw and 3kw.

Features:
1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications.

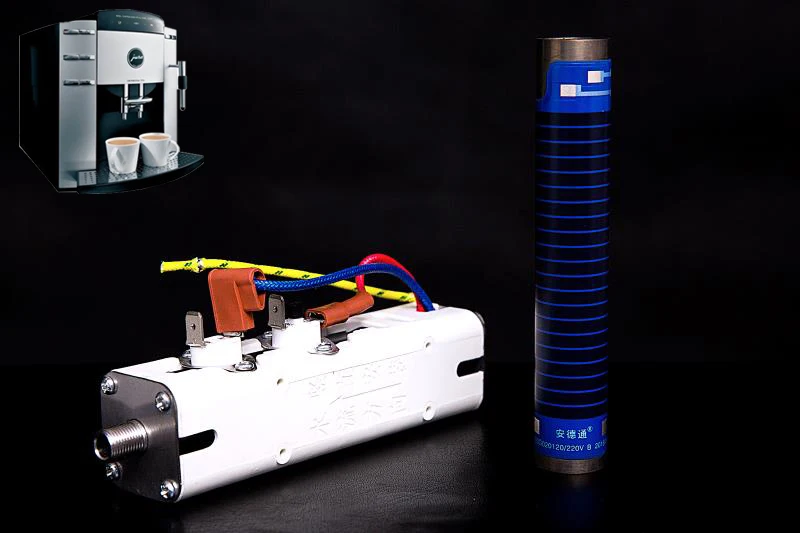

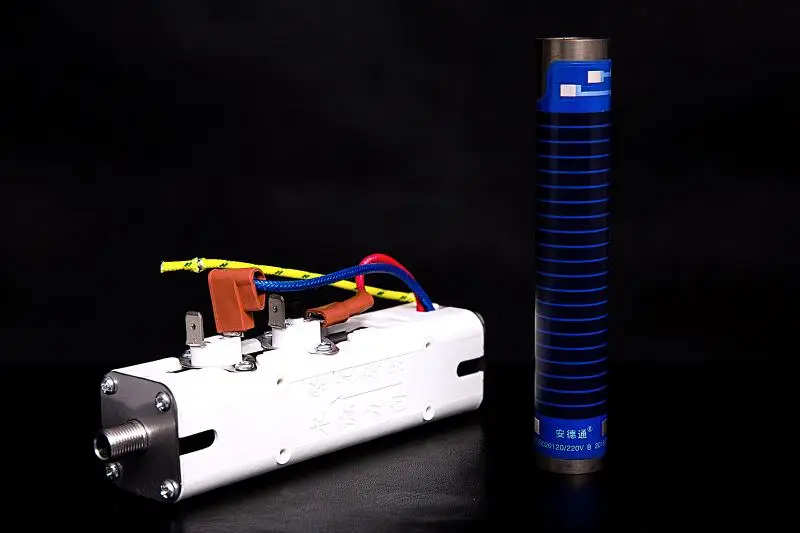

Thick Film Stainless Steel Tube:
1). Electric Circuit printed on tube surface, to heating the water flow inside. Complete isolation and safety.
2). Compact size, high heat utilization
3). Available Power 2.2KW,3KW or Customized
4). SUS430 Stainless Steel





Our Advantages

Experience

Founded in 2012, 5 years experience in Thick Film Electric Heating Tube Design & Research.

ADVANTAGES

Equipments

10000 Grade Purification Workshop
Self-Design Screen Print Machine & Sinering Furnaces

Key Materials

Silver Conductor
Pd Ag Alloy Resistor
Micro Crystalline Glass Insulation

Quality Control

Electric Strength Test(1500V)
Power Deviation Measuring(-10% ~ 5%)
Visual Inspection

Certifications

CQC
RoSH

Related Products

2.2KW Thick Film Electric Water Heating Tube

PTC Instant Heating Element for Water Dispenser

Electric Boiling Water Heating Element

Electric Heating Element with Temperature and Water Flow Control



• Tube Diameter,Length,Power,Voltage,Thermostat,PCB board,Inlet & Outlet port,etc are available for customer design

• Standard Power:2,2kw,3kw,3.5kw,3.8kw,4kw,5.5kw,6kw

• We supply heating element kit with temperature and flow control, to quickly test on thick film heating element/tube

Packaging & Shipping

 Shipping

INTERNATIONAL AIR MAIL

 Payment

 Fast Delivery

Different amount of time will be required for different

Applications

The most compact instant type heating element is the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.



Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
