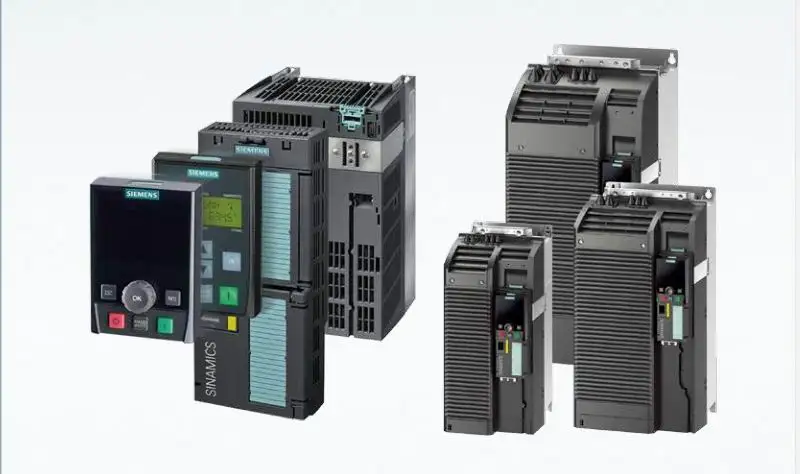

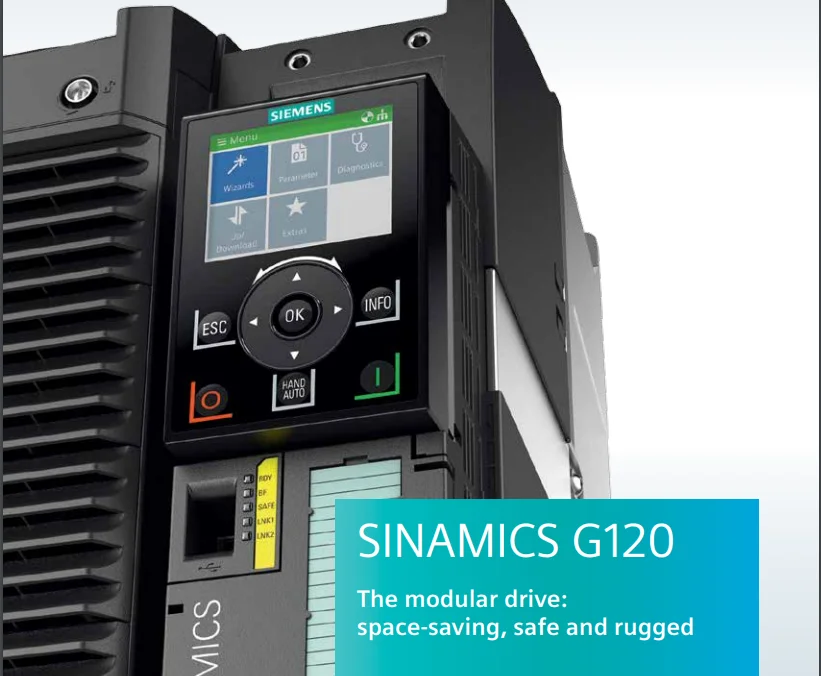

SIEMENS G120 series 22kw space saving, safe and rugged ac modular drive

SINAMICS G120 - Standard Inverter - Power Module

SINAMICS G120 is a modular inverter system that essentially comprises two function unit: Power Module (PM) and Control Unit (CU).
The Control Unit controls and monitors the Power Module and the connected motor in several different modes. It supports communication with a local or central controller and monitoring devices.
The CU240 Control Units are suitable for a wide range of applications in general machine construction, such as conveyor belts, mixers and extruders.

SINAMICS G120 - Standard Inverter - Control Units

Size: 5000mm Wide × 4000mm High × 7500mm Deep. IP20.
Weight: 45kg

Operation: VxF, Sensorless Flux Vector.
Speed Control Range - 48~63Hz

Analogue Inputs: 1
Analogue Outputs: 1
Digital Inputs: 4
Digital/Relay Outputs: 1

Siemens Sinamics G120 Range

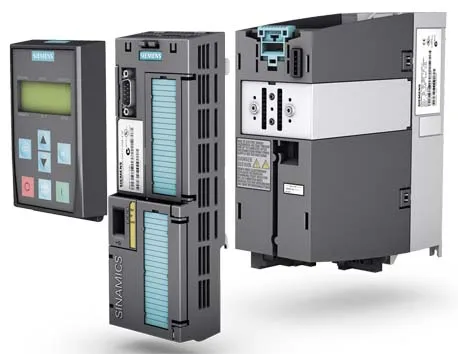

SINAMICS G120 is a modular drive inverter system that comprises various function units. These are the Control Unit (CU) and the Power Module (PM).
The CU controls and monitors the PM and the connected motor in several operating modes that can be selected. It supports communications to a local control as well as to monitoring devices and equipment. The PMs has a power range from 0.37 kW to 250 kW.
