800AL automatic computerized rotogravure aluminum foil printing machine

Share on (60813569030):


Price:$270,000.00

Quantity:


Product Overview

Description


Product Description

800AL automatic computerized aluminum foil rotogravure printing machine is a high quality and high cost performance product which designed by our company according to the market requirement.This machine is suitable for multi-color continuous printing. Seven motor and four floating roller automatic tension control system, shaft-less and pneumatic lock up, unwind and rewind automatically connect material, pneumatic

air shaft, register by computer lengthways, reasonable structure, easy operation, quick printing speed, high accuracy, less waste and other advantages. Imported famous brand spare parts ensure the machine high reliability and stability.

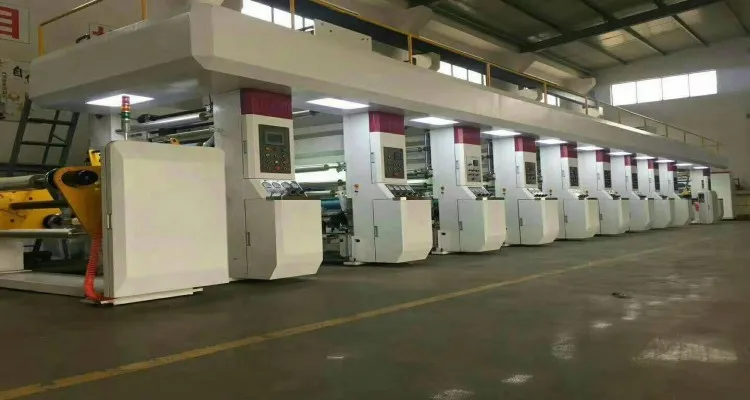

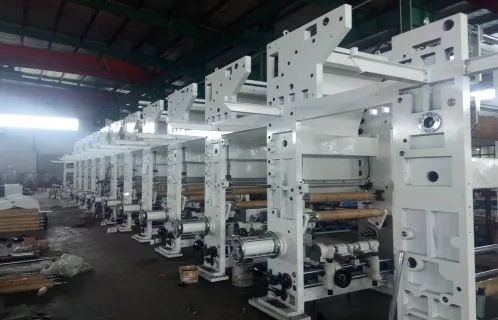

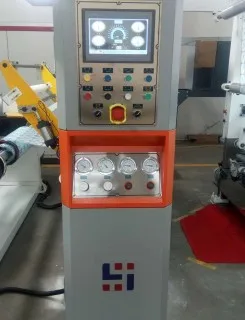

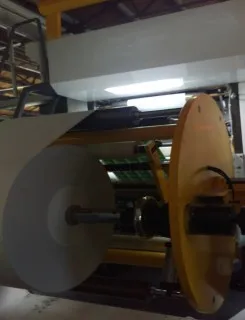

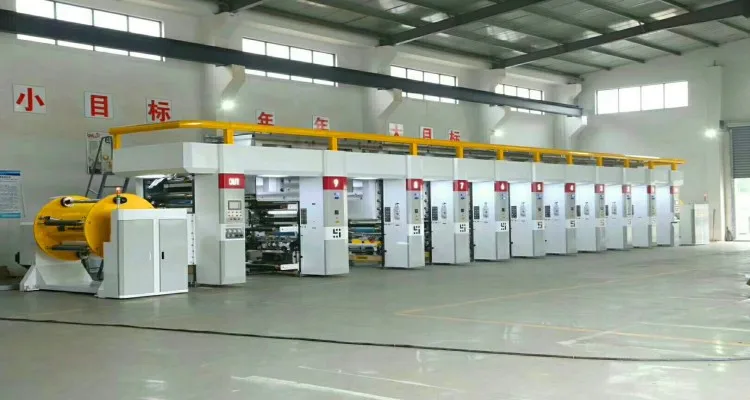

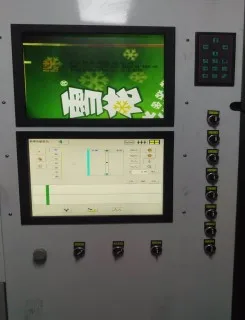

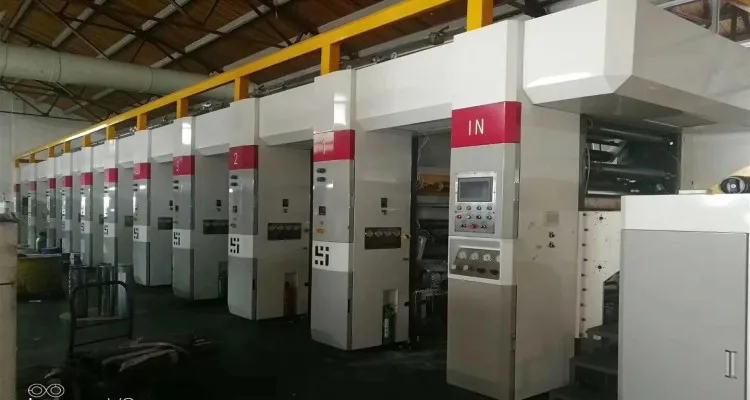

Detailed Images
\t
Roll type
\t
All kinds of soft aluminum foil
\t











Main description
\t
Flow direction :from left to right
\t
Print colors:8colors(7colors front print+1color can print both front+back ,the Eighth color has individual drive motors)
\t
Web with :max750mm( roller width:800mm)
\t
Mechanical speed :200m/min(print roller dia:Ф170㎜
\t
Printing speed :180m/min(print roller diaФ170㎜)
\t
Printing cylinder dia :Ф120mm-Ф280mm
\t
Installation: shaftless (range:500-800mm)
\t
Web width :450-750mm
\t
Registration precision: longitudinal ≤±0.1mm
\t
Elongation : ≤0.25%
\t
Unwinding dia : max800mm
\t
Rewinding dia:max800mm
\t
Unwinding &rewinding paper core:Ф76mm or Ф150mm
\t
Doctor blade vibrate:10mm
\t
Drying way :Infrared heating tube heating (27KW/UNIT)
\t
Main motor power supply:15KW
\t
Total supply:250kw(27KW X 6 =162KW,fan3KWX6=18KW,motors power 55KW)
\t
Footprint: 21000×4800×3680(mm)
\t
Weight 38000kg
\t
Ink supply :Pneumatic diaphragm pump
\t
Multiple frequency strobe after out-feeding
