Product Overview
Description

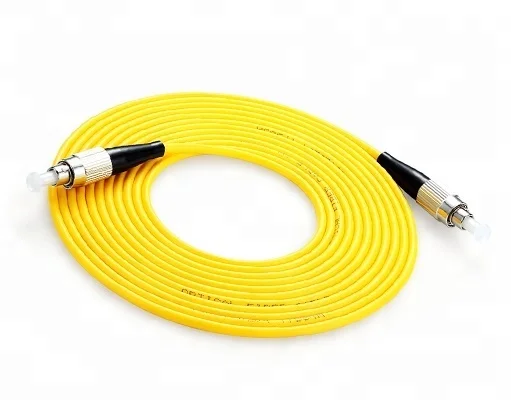

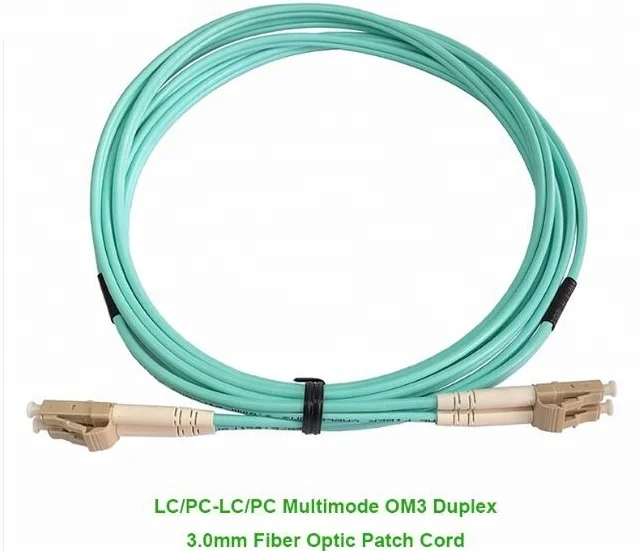

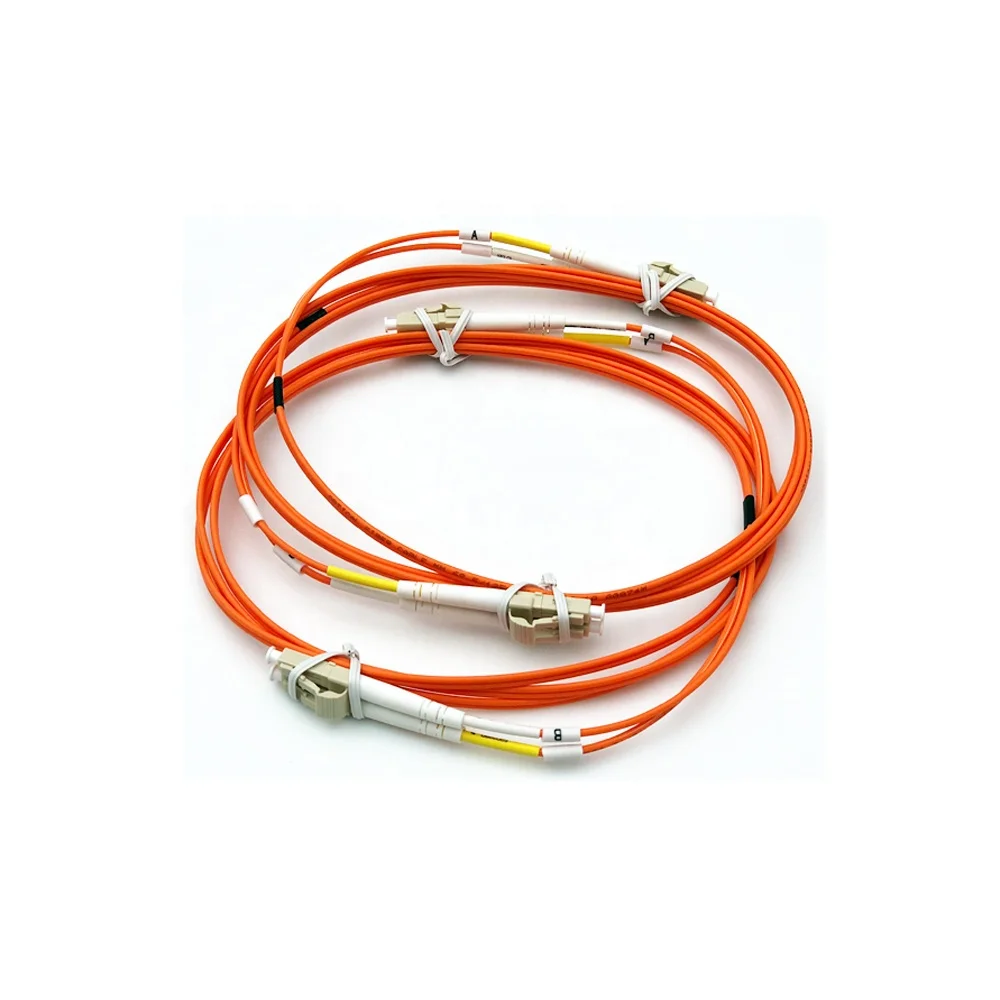

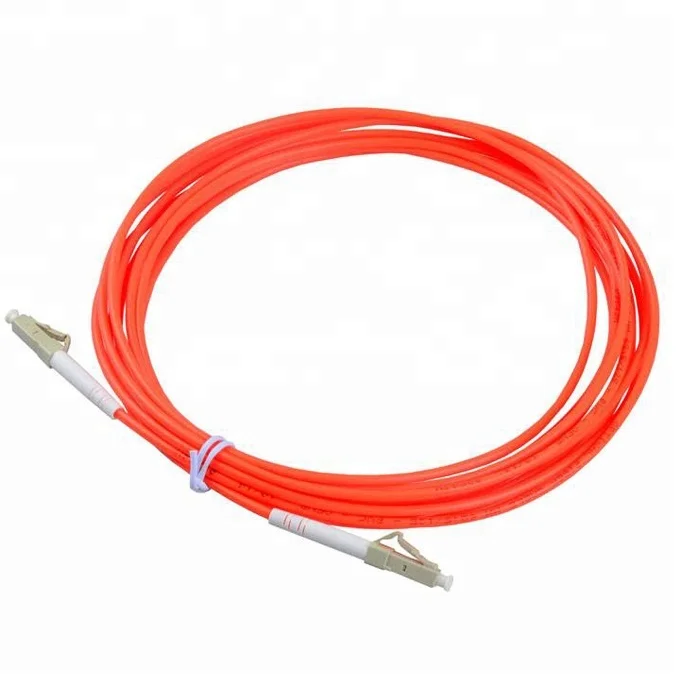

China FTTH LC-LC ,SC-SC,FC-FC SM MM SC-LC ftth patch cord customized Jacket Fiber Optic Patch Cord Fiber

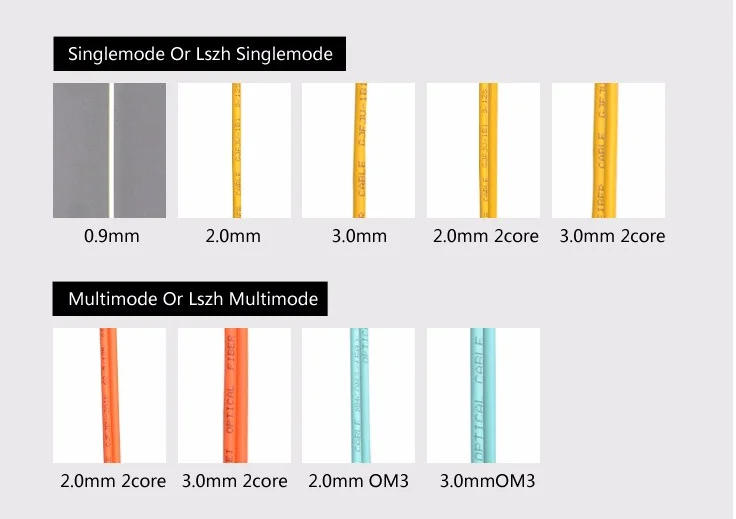

FTH LCYellow Jacket Fiber Optic Patch Cord Color Code
Product Description
Key Features:
1.Screw-thread coupling mechanism
2.Ceramic ferrules
3.Low insertion loss, high return loss
4.Good in repeatability and exchangeability

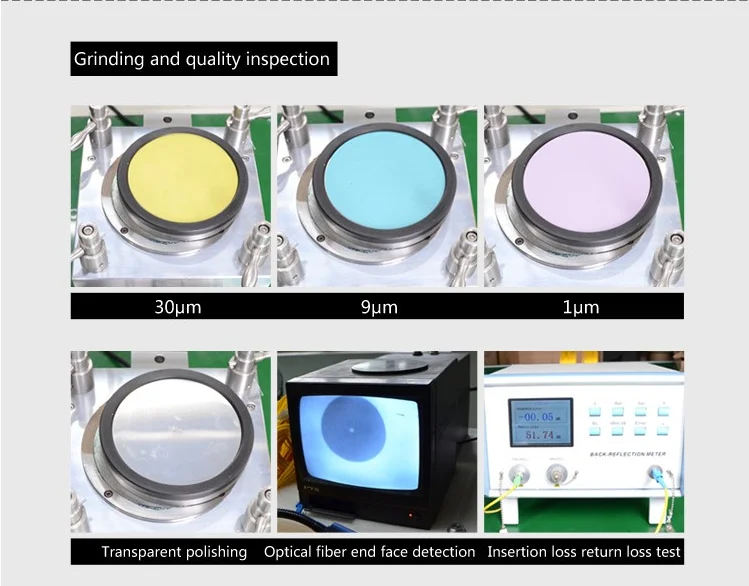

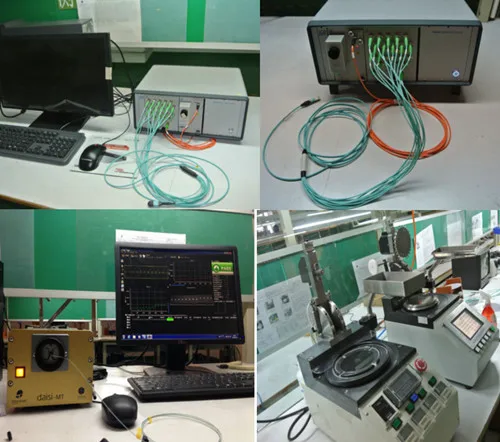

5.100% Insertion, Return Loss, End Face and Interference inspection
6.Excellent mechanical endurance
7.High credibility and stability
8.Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
Ordering options:

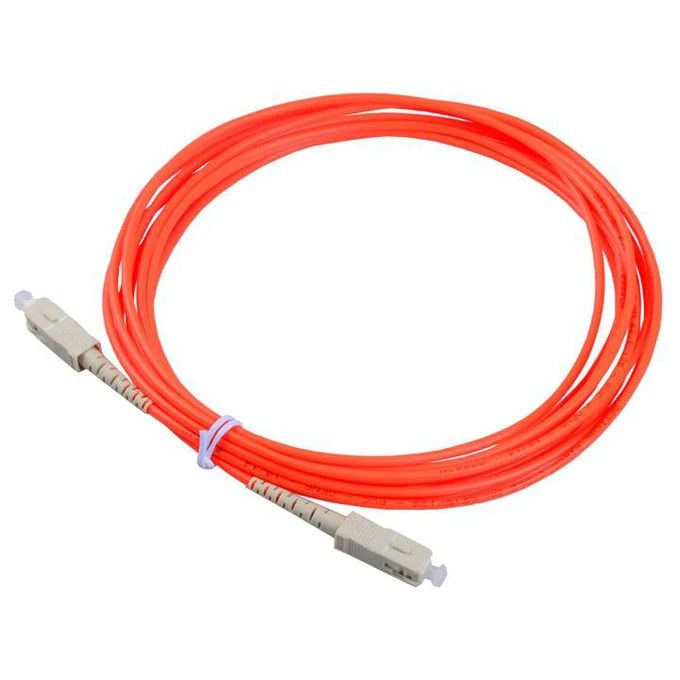

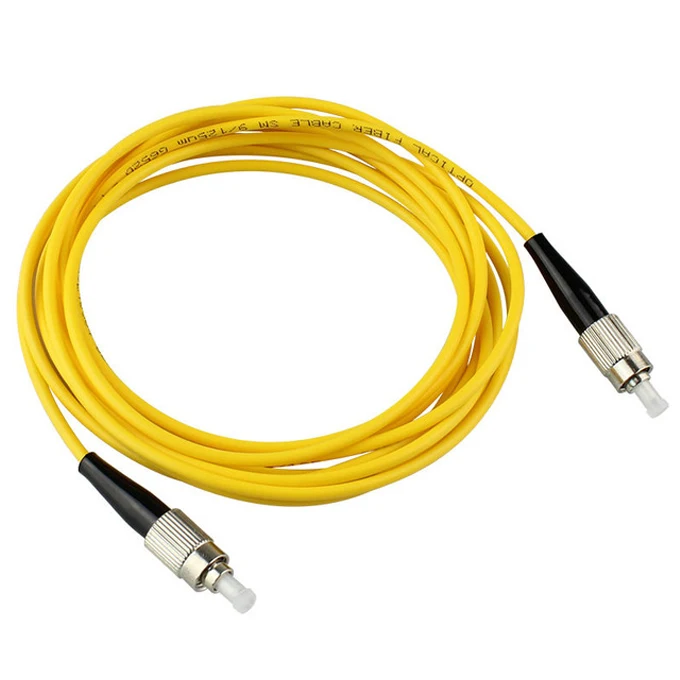

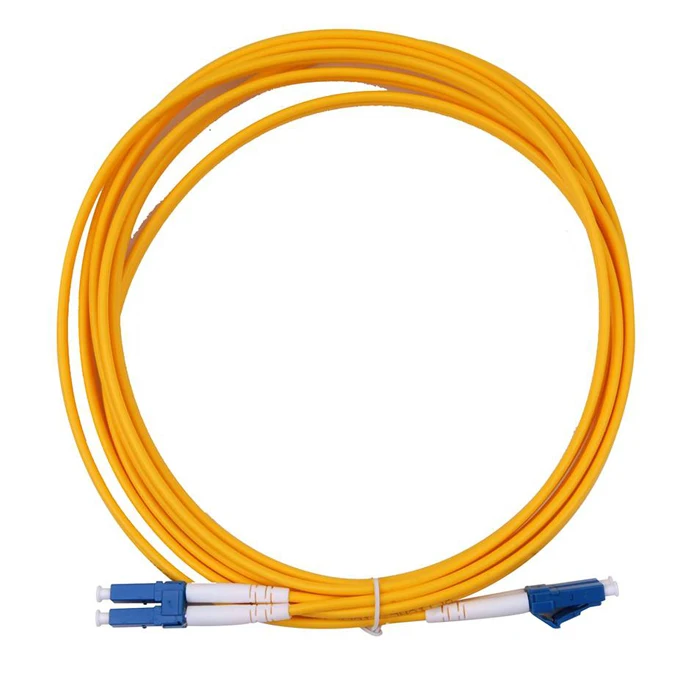

1) Connector type: FC, SC, LC, ST SM SX Fiber Optic Patch Cord
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH
Specification:
Mode | SM | MM | |
Polish | UPC | APC | PC |
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
Return Loss | ≥50dB | ≥65dB | ≥35dB |
Interchangeability | ≤0.2dB | ||
Repeatability | ≤0.1dB | ||
Durability | ≤0.2dB (1000 times mating) | ||
Tensile Strengh | > 10kg | ||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Application :
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems
