This series of machine is developed by introduced special technology from Japan Mitsubishi heavy industry,
which adopts international advanced technology of the late 90s, in the position of top among like products
at home. This mixer is suitable for all kinds of carbonated drinks’ mixing, and also, it is suitable for mixing
processing of pulpiness beverage, fermented beverage and other beverage.
Features
1. Good material, perfect processing: Place of meeting beverage(such as container, pipeline and so on) is
all made of imported 306 excellent low carbon stainless steel. Both inside and outside are polished
sophisticatedly, which exactly is up to requirements regulated by international food sanitation.
2. Easy operation and debugging: This machine is easy to operate. So long as rotating knobs as per
approved procedure, normal operation can be realized. Without changing any part, you can debug the
production capacity, water, syrup match and the gas content, and so on.
3. Complete mixing, correct match: This machine adopts advanced technique, so it can mix completely.
The mulling ratio of water and syrup is seriously controlled by measure pin valve, with precision up to 5%.
4. Selfcleaning, high cleanliness: This machine is compounded with CIP system. It can automatically clean
and sterilize inside of mixer and filling machine without tearing down any part.
5. Beverage produced by this machine, reproducibility of germ of each milliliter is below 5%, colon bacillus
is 0, which exactly is up to requirements regulated by international food sanitation.
Technical Parameter
Material: SUS304 Mirror surface
Water pump: Stainless steel multistage pump
Capacity: 6T/h
Mixing precision: ≤2%
Model
QHS-1500
QHS-3000
QHS-4000
QHS-6000
Production capacity
1500kg/h
3000kg/h
4000kg/h
6000kg/h
Carbon dioxide content
>2.6
Inlet temperature of the chilled water
0-4℃
Power
1.1kw
2.42kw
3.5kw
5.1kw
Overall dimensions
1.03*1.18*1.93m
1.55*1.05*2m
1.65*1.3*2m
1.9*1.3*2.25m
Weight(kg)
600
800
1300
2500
Detailed Images

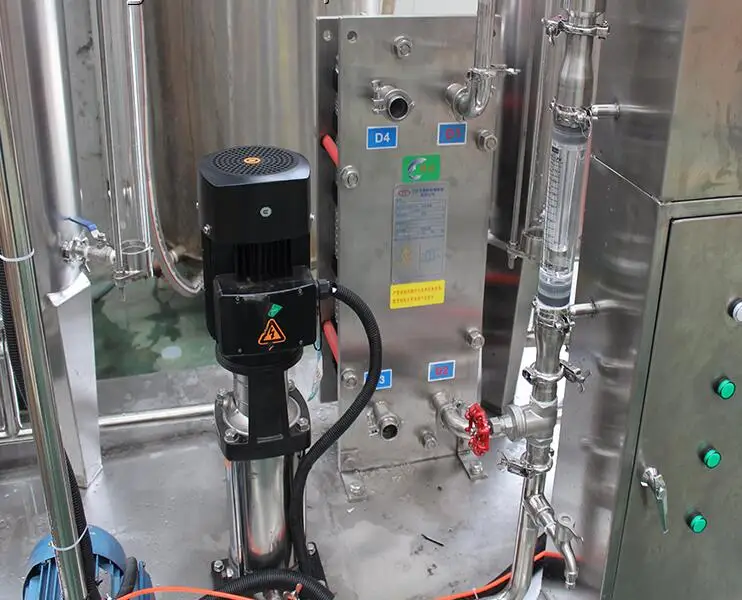

Flow meter and NanFang pump

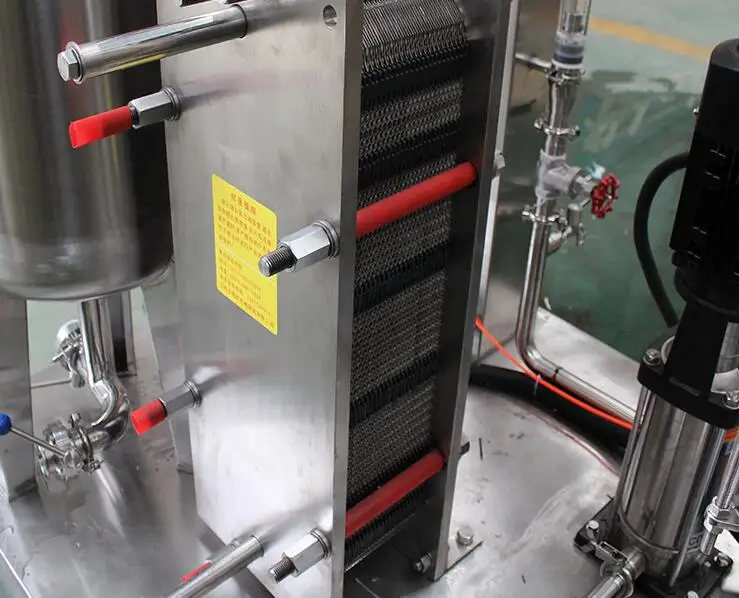

Heat plate exchanger
FAQ
Q:How about the spare parts ?
A:We will send two years easy broken spare parts for free together with machine, shipping together.
Q:How long time for installation ?
A:According your machine order, we will send one or two engineers to your plant, it will take about 7days to 20days.
Q:How to install my machines when it arrives ? how much the cost ?
A:We will send our engineer to your factory to install the machines and train your staff how to operate the machines. Customer pays for air tickets go and back, accommodation and USD100/day/person.
Q:When can I get my machine after I paid ?
A: The delivery time is around 30-45 working days.
Q:What's your guarantee or the warrantly of the quality if we buy your machines ?
A:We offer you high quality machines with 2 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufactory ?
A:We are a manufactory, we supply the factory price with good quality, welcome to visit !
