1280x1024 Resolution AUO M190ETN01.0 19 inch LCD Panel 60Hz
- Category: >>>
- Supplier: Shenzhen Top-Willing Technology Co. Limited
Share on (60813799052):
Product Overview
Description
1280x1024 Resolution AUO M190ETN01.0 19 inch LCD Panel 60Hz
Product Description
Model:M190ETN01.0
Size from 7" to 32" panels are available,please contact us for details.

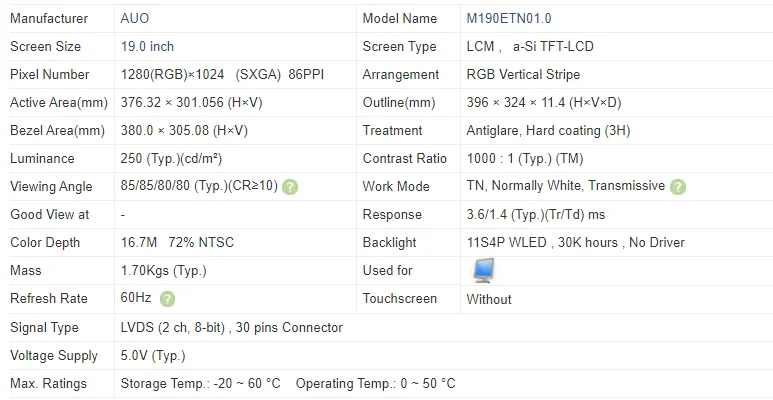

Specification:
| Brand | AUO | ||
| Model | M190ETN01.0 | ||
| Panel Size | 19 inch | ||
| Panel Type | a-Si TFT-LCD | ||
| Resolution | 1280×1024 | ||
| Pixel Format | RGB Vertical Stripe | ||
| Display Area | 376.32(W)x301.056(H) mm | ||
| Outline Size | 396(W)×324(H) ×11.4(D) mm | ||
| Treatment | Antiglare, Hard coating (3H) | ||
| Brightness | 250 cd/m² | ||
| Contrast Ratio | 1000:1 | ||
| Viewing Angle | 85/85/80/80 | ||
| Display Mode | TN, Normally White, Transmissive | ||
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) | ||
| Display Colors | 16.7M 72% NTSC | ||
| Lamp Type | WLED [9S4P] , 30K hours , W/O Driver | ||
| Frequency | 60Hz | ||
| Touch Screen | Without | ||
| Panel Weight | 1.7Kgs | ||
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector | ||
| Input Voltage | 5.0V | ||
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||

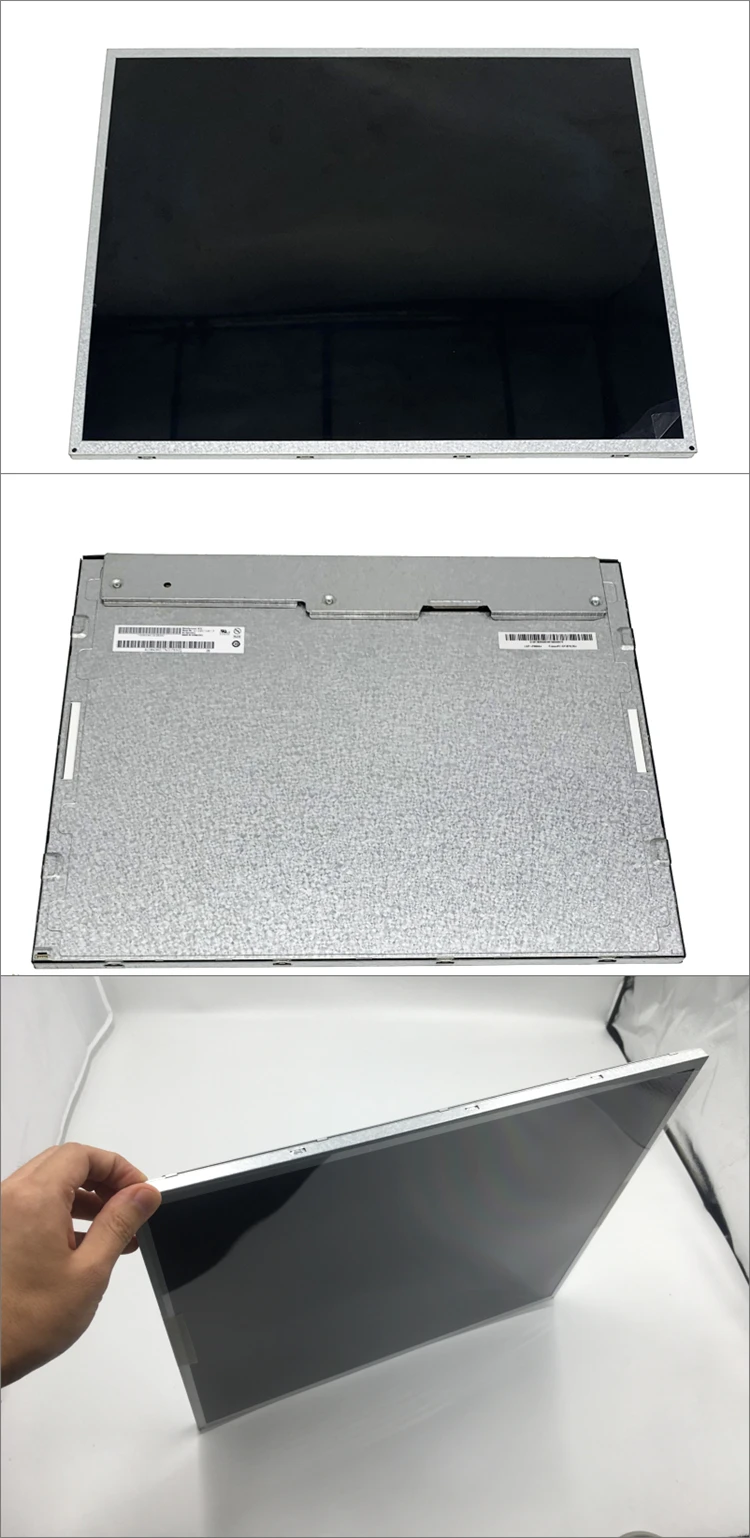

Pictures:
Packaging & Shipping
Neutral Package or OEM
