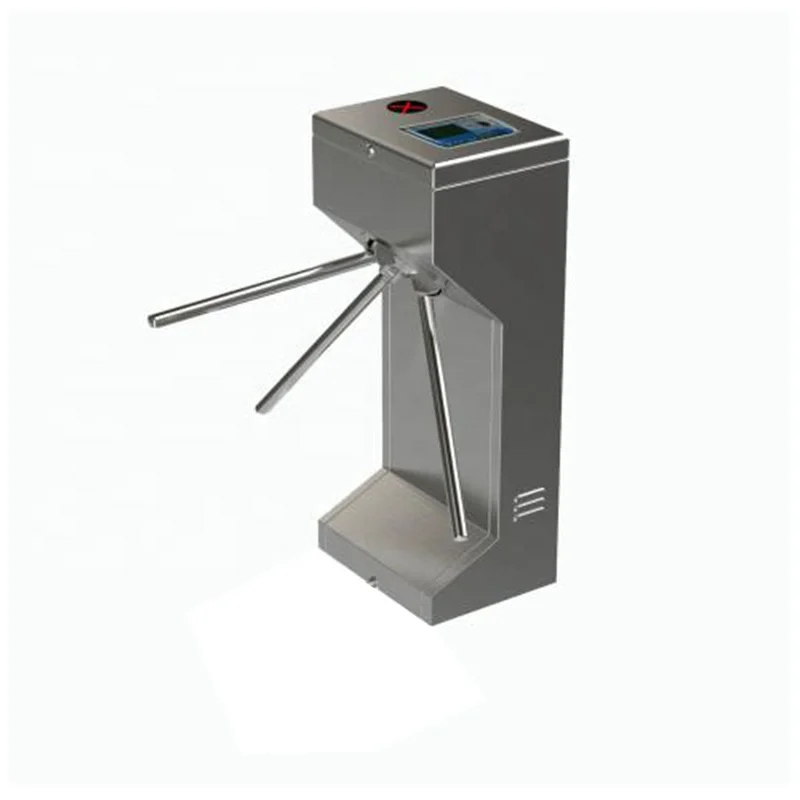

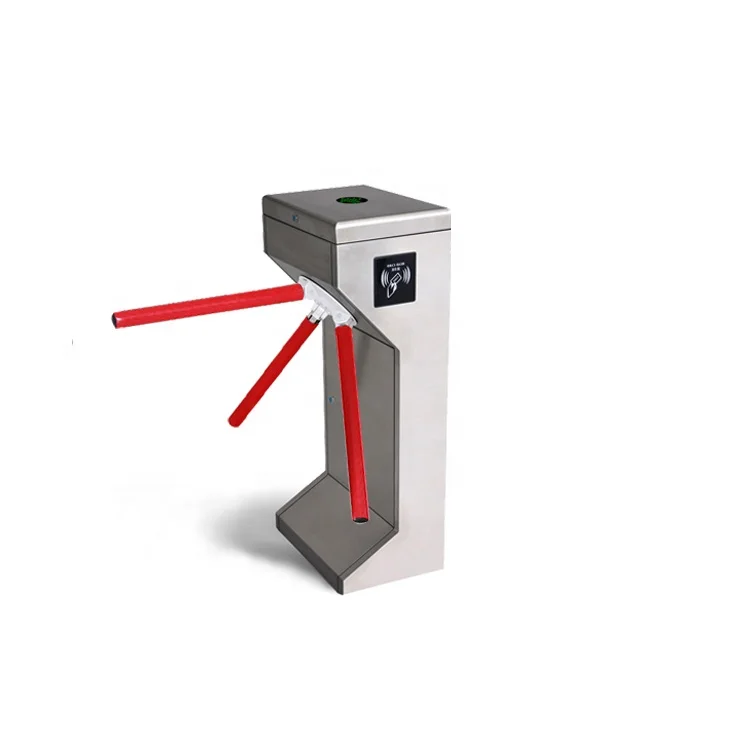

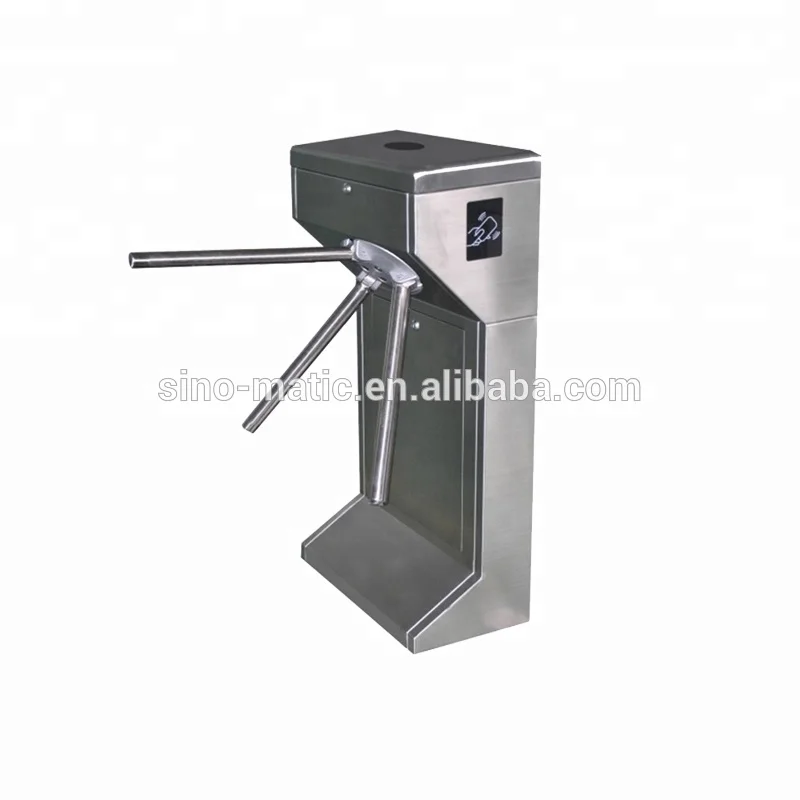

Compact design portable Bi directional RFID card reader supported CE certificate tripod turnstile gate
- Category: Turnstile >>>
- Supplier: Shenzhen Sinomatic Technology Co. Limited
Share on (60813829830):
Product Overview
Description
General description
Optimized economical solution bus station automatic tripod turnstile barrier
Sinomatic triopd turnstile SN-TT01 is an electro mechanical turnstile. Its unique mechanical drive design allows the
arm to be pushed effortlessly and auto-rotate back without any expensive electric motor.
Sinomatic triopd turnstile SN-TT01 can effectively control high volume human traffic (up to 30 people per minute) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, ESD, RFID access control or time attendance system (access controller needed).
Application
Sinomatic triopd turnstile SN-TT01 is better for indoor application. If needed to be installed outdoor, must with tent or shelter.
They are optimized economical solution for railway, bus station, factory, colleges, commercial building, stadium, game park, banks and etc.

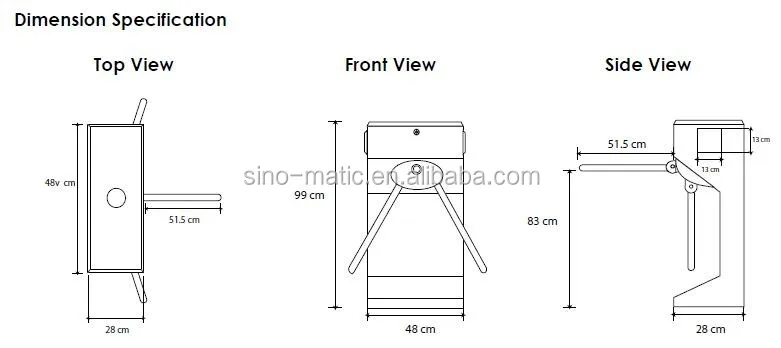

Dimensions
Features
1. Mechanical drive unit eliminate the use of expensive electric motor and reduce maintenance cost.
2. Lock mechanism is based on heavy duty solenoid to ensure longer life time and lesser maintenance.
3. Turnstile can be configured to be bi-directional or uni-directional.
4. Built in acrylic or plastic plate for easy integration with other devices.
5. If arm rotate more than half, It will auto-rotate to the next idle position If arm rotated less than half, it will
auto-rotate back to the current idle position.
6. Built in adjustable tension spring to control auto-rotate force of arm and minimize auto-rotation.
7. DC operation, built in circuit breaker to protect against mild electric surge.
8. Anti-tailgating. Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back
after 1 person pass through. Also support time delay 5 sec, 10 sec, 15 sec and 60 sec.
9. During power failure, arm will drop automatically allowing free pass through.
10. Internal parts inside the housing are locked via a key to avoid tampering.
11. Built in LED to indicate direction.
12. Once unlock, arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
Technical specs
Description | Parameter |
Power Supply Input | AC230 ± 10V |
Power Voltage | 24 V DC |
Power Consumption During Idle | AC : 0.07 Amp DC : 0.16 Amp |
Power Consumption During operation | AC : 0.02 Amp DC : 0.72 Amp |
Passage width | 60 cm |
Response Time | 0.3 second |
Pass Speed | 25 to 30 person per minute |
Housing / Arm | Stainless Steel |
Internal Mechanism | Mild Steel |
Arm Disc | Alloy chromed |
Working temperature | -25 ℃ to + 55 ℃ |
