automatic CNC 6 six sides boring drilling machine with double sided grooving and routing for woodworking furniture
F
Features of six sides drilling machine

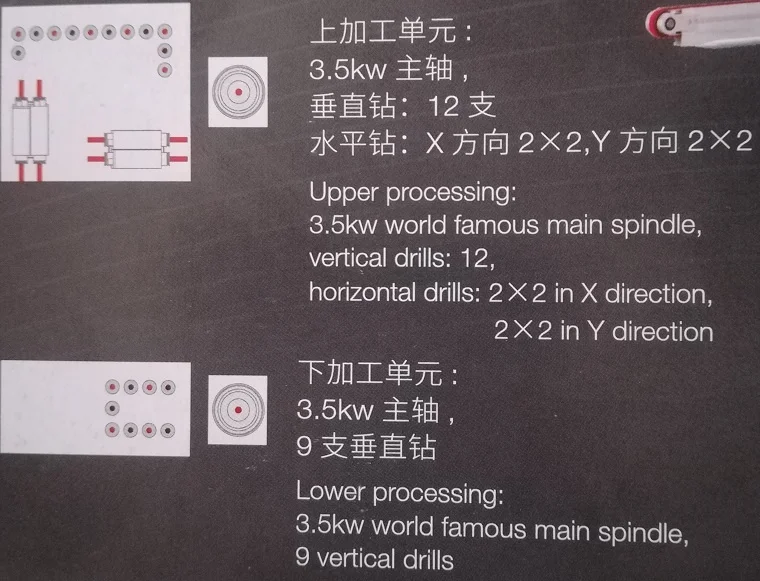

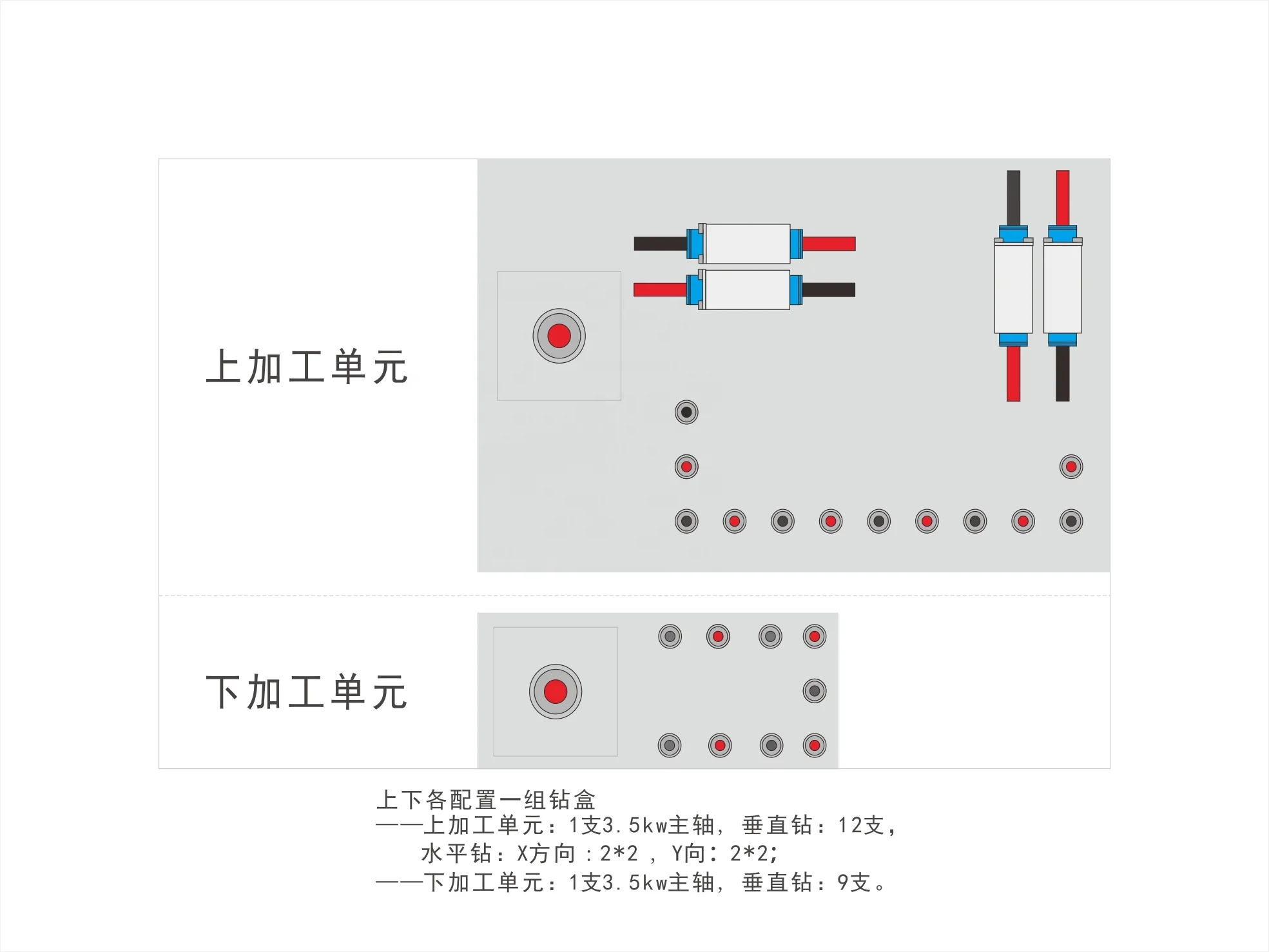

Upper boring unit:
1pcs 3.5kw rout spindle
Vertical drills: 12
Horizontal drills: X: 2+2 pcs, Y: 2+2 pcs
Under boring unit:
1pcs 3.5kw rout spindle
Vertical drills: 9
Automatic feeding:

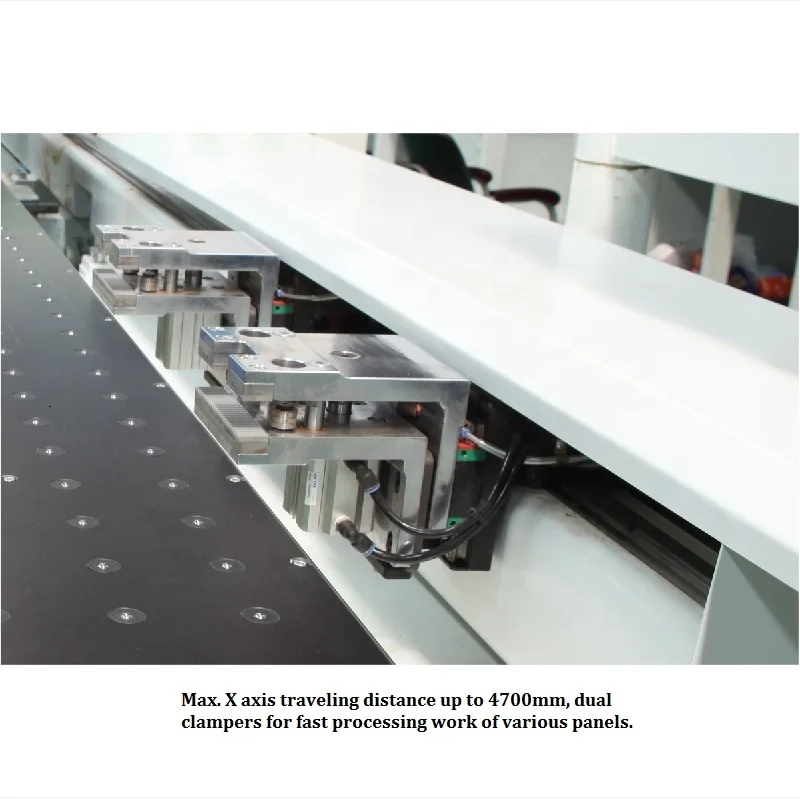

Long guiding rail with dual clampers for processing work of various work pieces. Automatic detection of panel size reducing man-made mistakes.

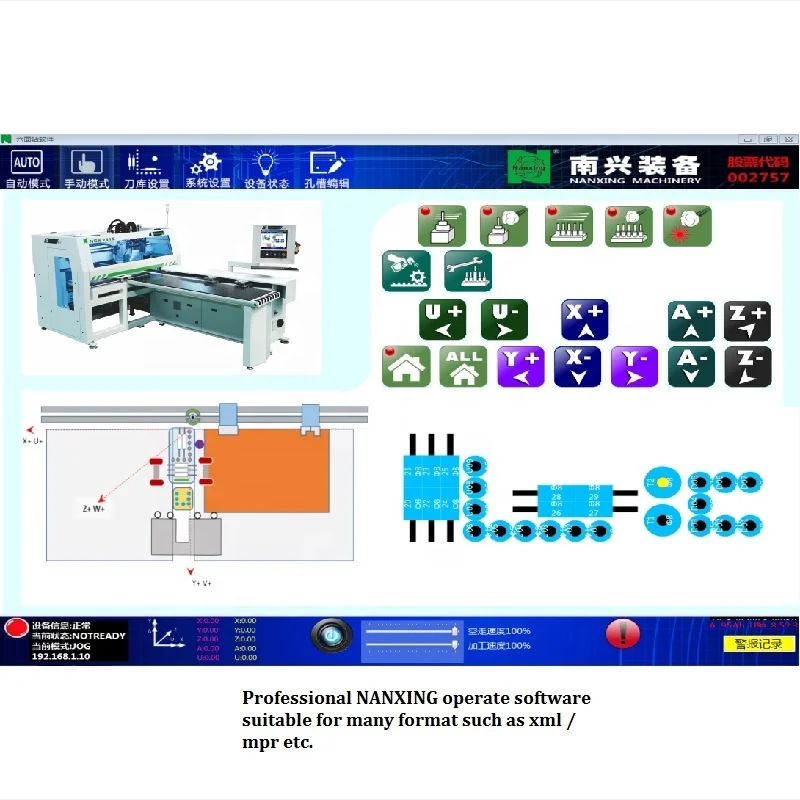

Machine used by Windows operating system and Taiwan SYNTEC controller. Open port for international popular software, other format like xml, mpr also possible to be applied.
High technology compact machine making possible to drill holes on 6 sides, groove top and bottom, rout shapes in one process without necessary of turning panel.
Easy production management due to self-recording function.

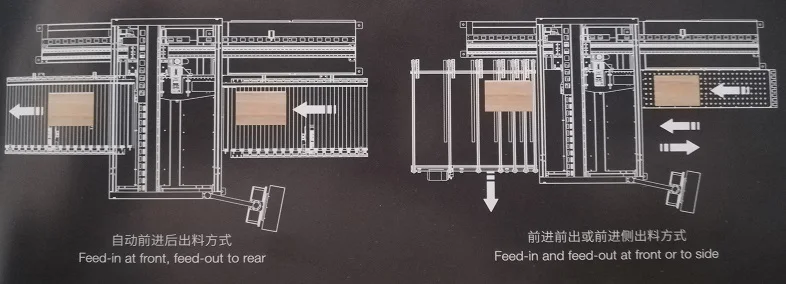

Air float woring table ensuring best way to protect panel surface. Choosing from powered or simple roller conveyor for feeding in and out of panel to form a production line based on requirements.
S
Specification of high speed CNC boring machine for chest
Model
NCB2412
Panel length
250-2400mm
panel width
50-1200mm
Panel thickness
12-50mm
max. traveling speed(X/U/Y/Z)
135/135/75/30 m/min
main spindle power
3.5kw * 2
max. rotating speed
18000rpm
Upper vertical drills
12
Upper horizontal drills
X: 2+2 pcs Y: 2+2 pcs
Under vertical drills
9
Max. rotating speed
4000rpm
total power
18.3kw
operating voltage
380v/50Hz
net weight
3500kg
overall dimension
5900*2640*2100mm
Other models
MZ125S1
MZC518S4
MZ512S4
P
Production
E
Exhibition
F
Factory
F
FAQ
Q1. How to get the most suitable machine and best price
Please tell the material you want to working on?
How to working on it?
What’s the MAX size of these material? (Length? Width? Thickness?)
Q2. Do you have the manual of the machine?
Yes, we have
Q3. If we don’t know how to use the machine, can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q4. How about your after-sales service?
We offer you 24 hours service phone, Skype, 10 hours with mail.
Q5. How about your guarantee period?
One year and during the time, if you have any questions, we will solve it for free
Q6 How can I buy this machine from you? (Very easy and flexible!)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the shipping, payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And arrange the production.
Machine used by Windows operating system and Taiwan SYNTEC controller. Open port for international popular software, other format like xml, mpr also possible to be applied.
