Product Overview

Description

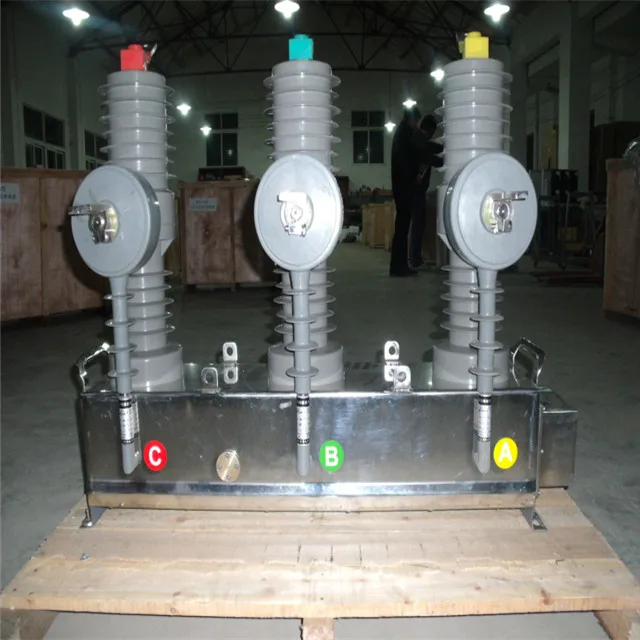

Outdoor ZW32-12 outdoor high voltage vacuum load break switch



FZW32-12/T630-20 type outdoor high voltage isolate vacuum switch is a new generation of high voltage electrical equipment developed by both home and overseas advanced technology. Each of the technical performance have reach the standard of GB3804 and IEC.

They are designed for the construction and reform of urban and rural grid. The bottom of the product has adopted stainless steel and galvanized carbon steel with ultraviolet-proof coating material, to make sure it’s normal outdoor operation. Each stainless steel component can ensure it’s durability, stability, water-proof and salt fog against ability.

It has characteristic of small size, light weight, good appearance, easy operation, strong breaking ability, long electrical life maintenance free and obvious fracture. It can adopt manual single-pole operation and also electric, distance operation.



Ambient condition

1 Ambient temperature: max +40°C min -40°C

2 Altitude: ≤2000m

3 Wind pressure: ≤700Pa(equals to wind speed 34m/s)

4 Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity≤90%

5 Air contamination degree: IV degree

6 Earthquake intensity: ≤8 degree, no frequent violent vibration.



Order instruction

Complete model and order quantity of the product

Rated current, rated voltage

Manual or electric operation

Installation method

Required accessory and quantity

Other requirement please contact with us directly



Mechanical data

No.	Item	Unit	Value
1	Rated voltage	KV	12
2	Rated frequency	Hz	50
3	Rated breaking current of active load	A	630
4	Rated breaking current of close loop	A	630
5	5% rated breaking current of active load	KA	31.5
6	Rated cable charging breaking current	KA	10
7	Rated lighting impulse withstand voltage	KV	Inter phase or to ground 75,fructure 80
8	Rated short-time power frequency withstand voltage	KV	Inter phase or to ground 42,fructure 48
9	Rated current	A	630
10	Rated short-circuit making current	KA	50
11	Rated short-time withstand current (thermo stability)	KA	20
12	Rated duration of short-circuit	S	4
13	Rated peak withstand current (dynamic stability)	KA	50
14	Mechanical life	Times	30000
15	Contact erosion limit	Mm	0.5
16	Manual operation moment of force	NM	≤200





Mechanical characteristics adjustment data

No.	Item	Unit	Value
1	Rated contact stroke	mm	9 ±1
2	Average opening speed	m/s	1.1±0.2
3	Three-pole simultaneity	ms	≤5
4	Three-pole simultaneity (assembled with isolator)	ms	≤2
5	Distance of charged body and relative air	mm	≤2
6	Core distance between phases	μΩ	≤200
