Product Overview

Description





Product Description

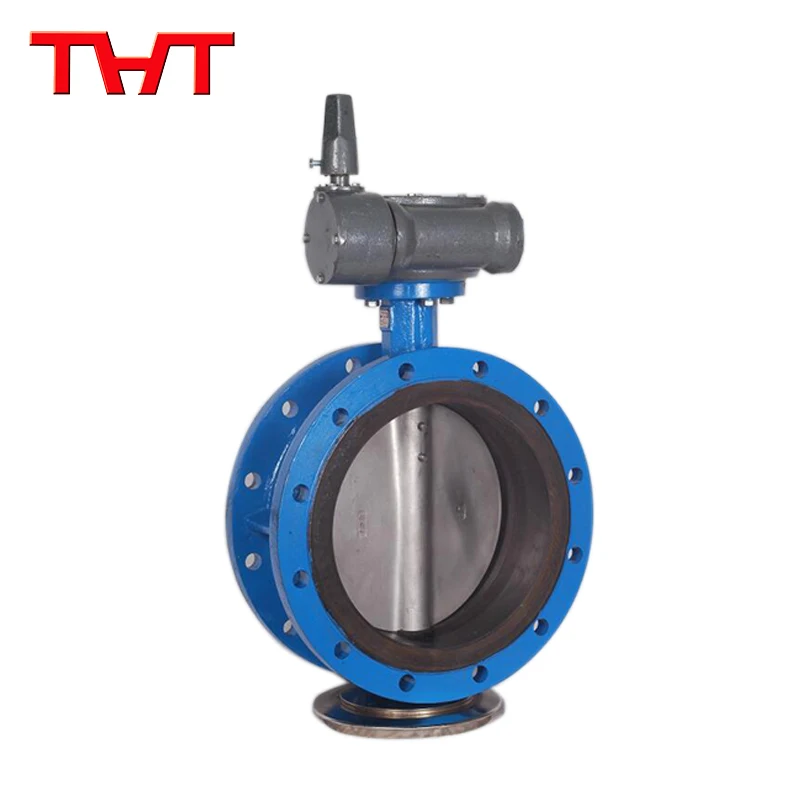

 Underground pipe network flange butterfly valve

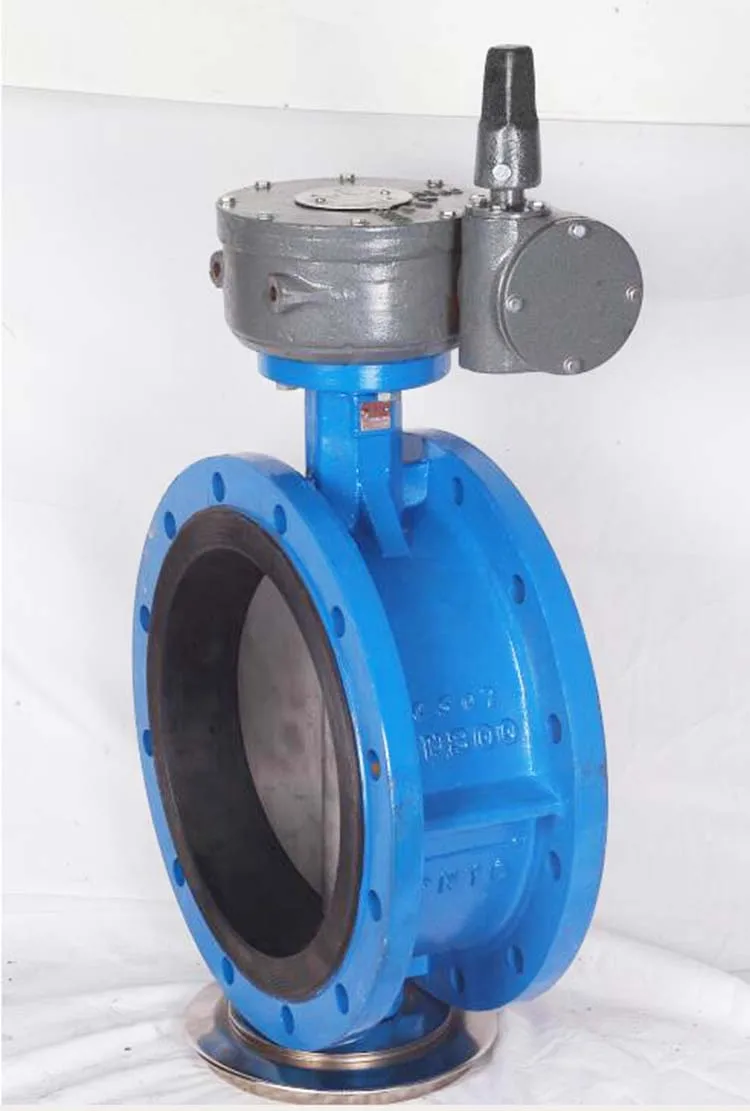

.jpg





Brief introduction:


The butterfly valve of pipe network adopts the upper-mounted structure, which reduces the connecting bolts of the valve body under the condition of high pressure and large caliber, enhances the reliability of the valve and overcomes the influence of the system weight on the normal operation of the valve.







Pressure & Temperature ratings:






















Working Pressure



PN10,PN16



Testing Pressure



Shell: 1.5 times rated pressure,


Seat: 1.1 times rated pressure.



Working Temperature



-10°C to 80°C (NBR)


-10°C to 120°C (EPDM)



Suitable Media



Water, Oil and gas.






Materials:






































Parts



Materials



Body



Cast iron, ductile iron, carbon steel, stainless steel



Disc



Nickel ductile iron / Al bronze / Stainless steel



Seat



EPDM / NBR / VITON / PTFE



Stem



Stainless steel / Carbon steel



Bushing



PTFE



“O” ring



PTFE



Worm gearbox



Cast iron / Ductile iron









 Application:


Pipe net butterfly valve is widely used in coal chemical industry, petrochemical industry, rubber, paper, pharmaceutical and other pipelines as a medium of diversion confluence or flow switching device.

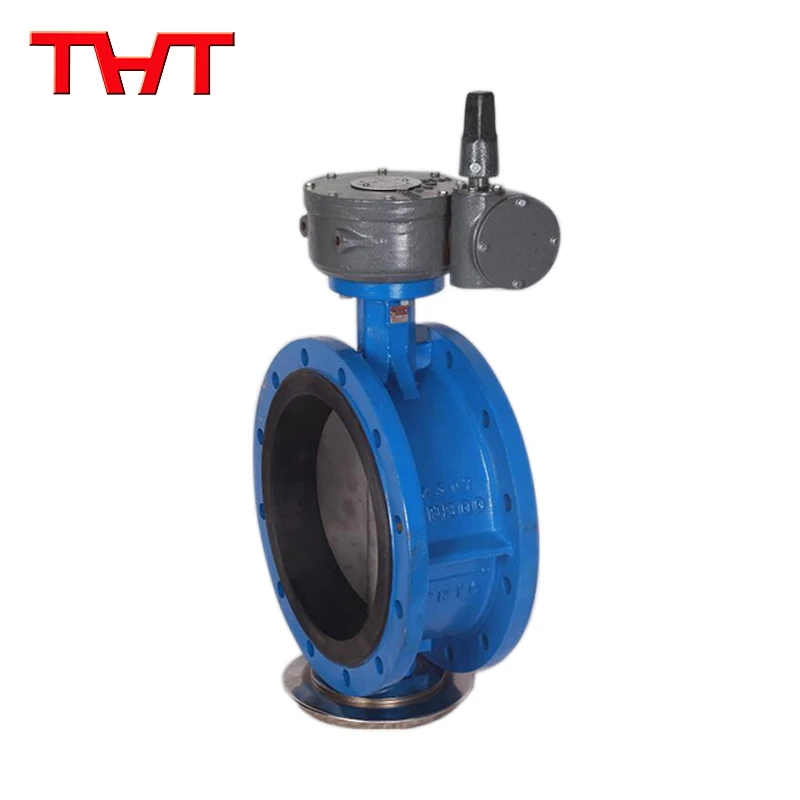

Flange butterfly valves display:
