AD11 dia 50mm 24V 48V 110V 220V 380V signal indicator tower led warning light
- Category: Equipment Indicator Lights >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60813903662):
Product Overview
Description
Product Description
Product Name:Dia 50mm IP65 waterproof LED warning light
J50 series single warning light is simple and smooth in appearance, bright in color, with high protection grade, high anti-vibration performance, and adopts imported LED chip, high-power buzzer, can effectively transmit signals in large working space occasions.
How to order | ||||||||||||||||||
Warning Light | ||||||||||||||||||
AD11-J | 50CA/ 50CB | / | Light source type | Light style | Colour | Voltage code | Accessories code | |||||||||||
A:short B:tall | L: LED H: high brightness LED | L:normally on X: flash Z:rotary flash T:adjustable | R:red G:green Y:yellow B:blue W:white | 23:ACDC 24V 25:ACDC 48V 26:ACDC 110V 31:AC 220V 32:AC 380V | C5:side hanging | |||||||||||||
Warning Light With Alarm | ||||||||||||||||||
AD11-J | 50CA | / | Light source type | Light style | Voice type | Voice dB | Colour | Voltage code | Accessories code | |||||||||
A:short | L: LED H: high brightness LED | L:normally on X: flash Z:rotary flash T:adjustable | 1: continuous 2: discontinuous | 1: 80dB | R:red G:green Y:yellow B:blue W:white | 23:ACDC 24V 25:ACDC 48V 26:ACDC 110V 31:AC 220V 32:AC 380V | C5: side hanging | |||||||||||
Detailed Images
Product Parameter
Type specification | AD11-J50CA(B) | ||||||||||
Product Name | Warning light | ||||||||||
Products Standard | GB/T 14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤98% | 3 | Ⅲ | ||||||
Main technical index | Common parameter | Rated insulated Voltage | 690V | ||||||||
Insulated resistance | ≥50MΩ | ||||||||||
Front protect class | IP65 | ||||||||||
Withstand Voltage | 1.89KV/5S | ||||||||||
Volume | 80dB/10cm | ||||||||||
Lamps parameter | Rated working Voltage/Power | AC DC (V) | AC (V) | ||||||||
24V/48V | 110V | 220V | 380V | ||||||||
＜3W | ＜5W | ＜10W | ＜15W | ||||||||
Life of signal lamps | ≥30000h | ||||||||||
Installation method | Direct installation or side hanging | ||||||||||
Outline Size

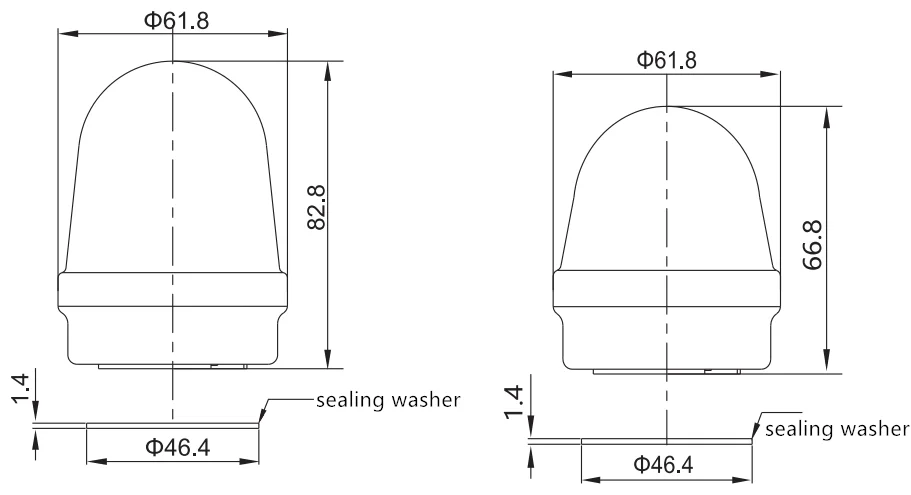

Outline size (direct installation)

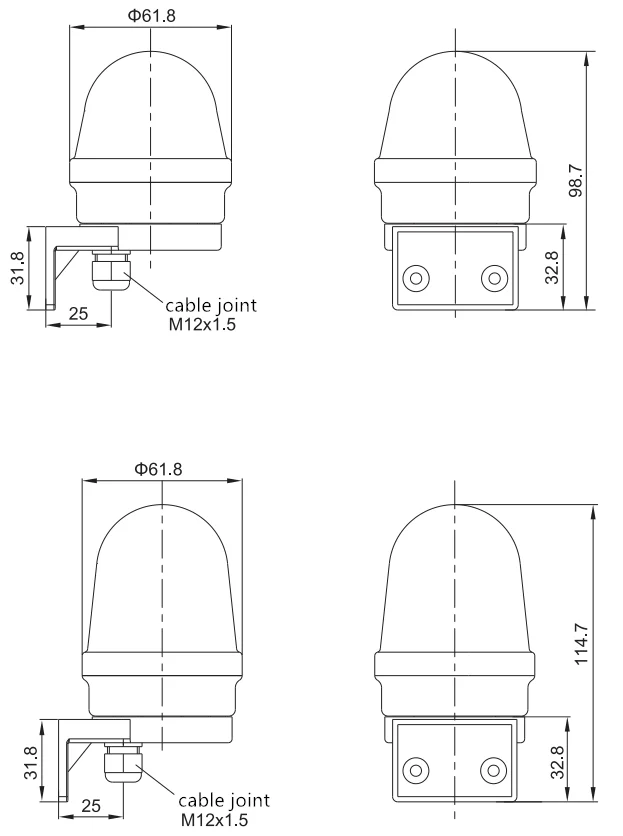

Outline size (side hanging)
