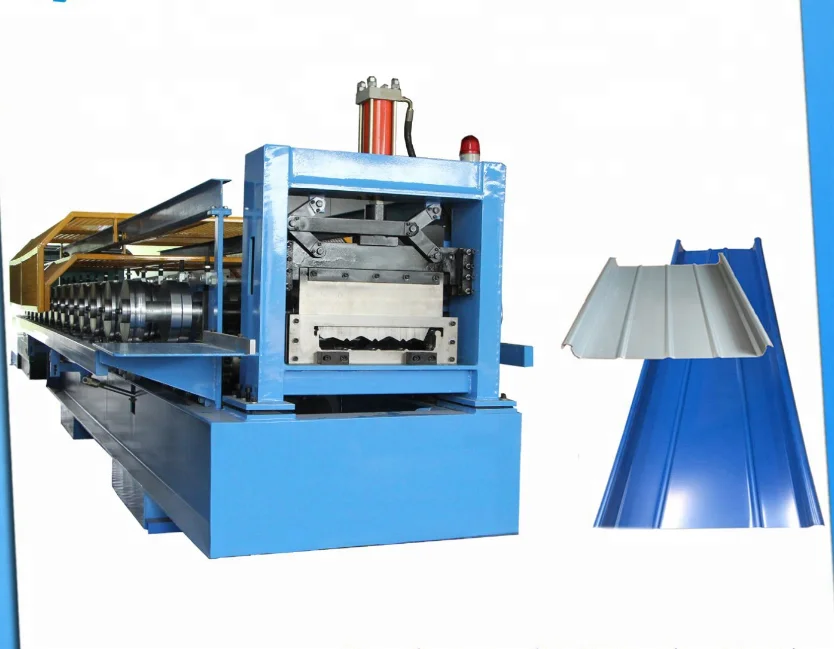

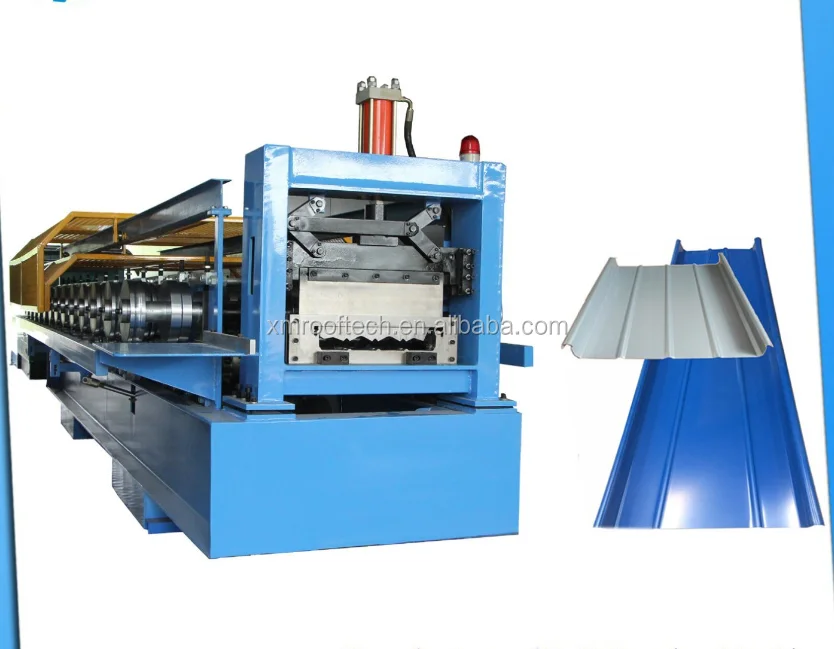

Bemo style profiling machine for standing seam roof panels
- Category: >>>
- Supplier: Xiamen Ruiyu Machinery Co. Ltd.
Share on (60813980048):
Product Overview
Description
Product Description
|
Dimension |
6000*1700*1600mm |
|
Weight |
about 6500KGS |
|
Voltage of Motor |
380V/50HZ/3PH or depend on customer |
|
Main Motor Power for Running |
7.5KW*2 sets |
|
Hydraulic Power for Cutting |
2.2KW |
|

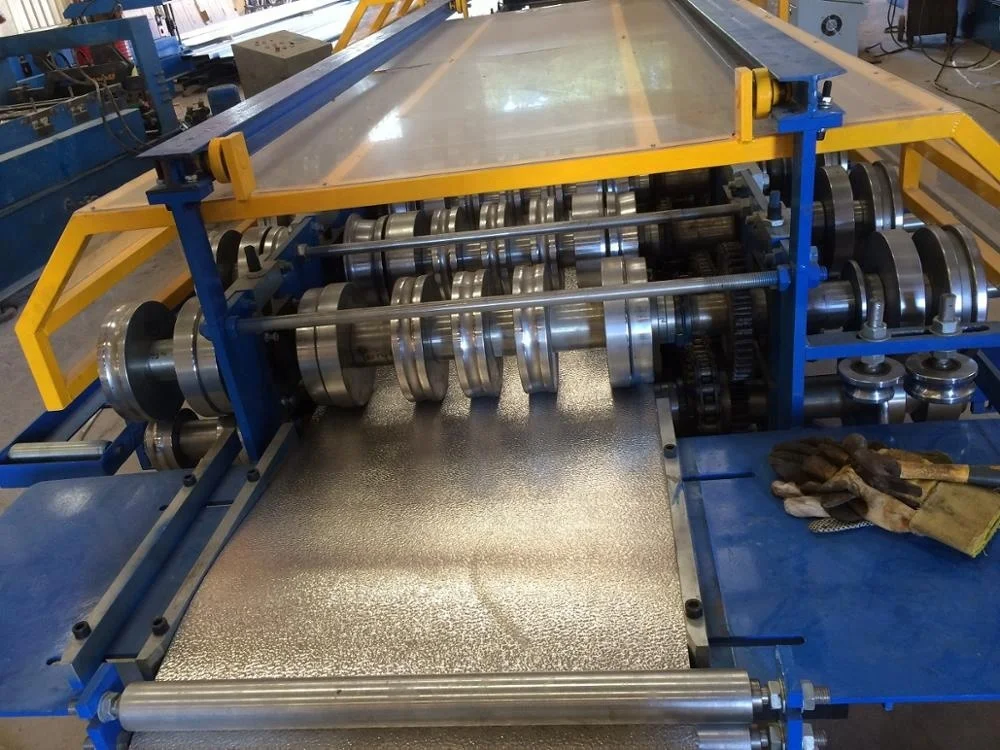

Forming Steps |
13Steps rollers |
|
Working Speed |
0-15m/min |
|
Height of Roofing |
65mm |
|
Effective Cover Width |
300,400mm,425mm |
|
Feeding Material Width |
475,575-578mm, 600-603mm |
|
Thickness for Al Sheet |
0.7-1.1mm |
|
Thickness for Steel Sheet |
0.7-1.0mm |
|
Min. Width of Tapered Roofing |
250mm |
|
Min. Length of Tapered Roofing |
1000mm |
|
Cutting, Forming Tolerance |
±2mm |
|
Roller material |
45# steel with machining----Fine Machining ---Polishing---Plated Chrome---Polishing; |
|
Material of shaft |
High grade 45# forged steel |
|
Shaft Diameter |
85mm |
Accessories
Main Accessories:
(1) Main Standing Seam Roof Panel Machine;
(2) 5 Tons Manual Decoiler;
(3) Hydraulic System;
(4) PLC Computer Controlling System with touch screen;
(5) Device for making taper standing seam roofing;

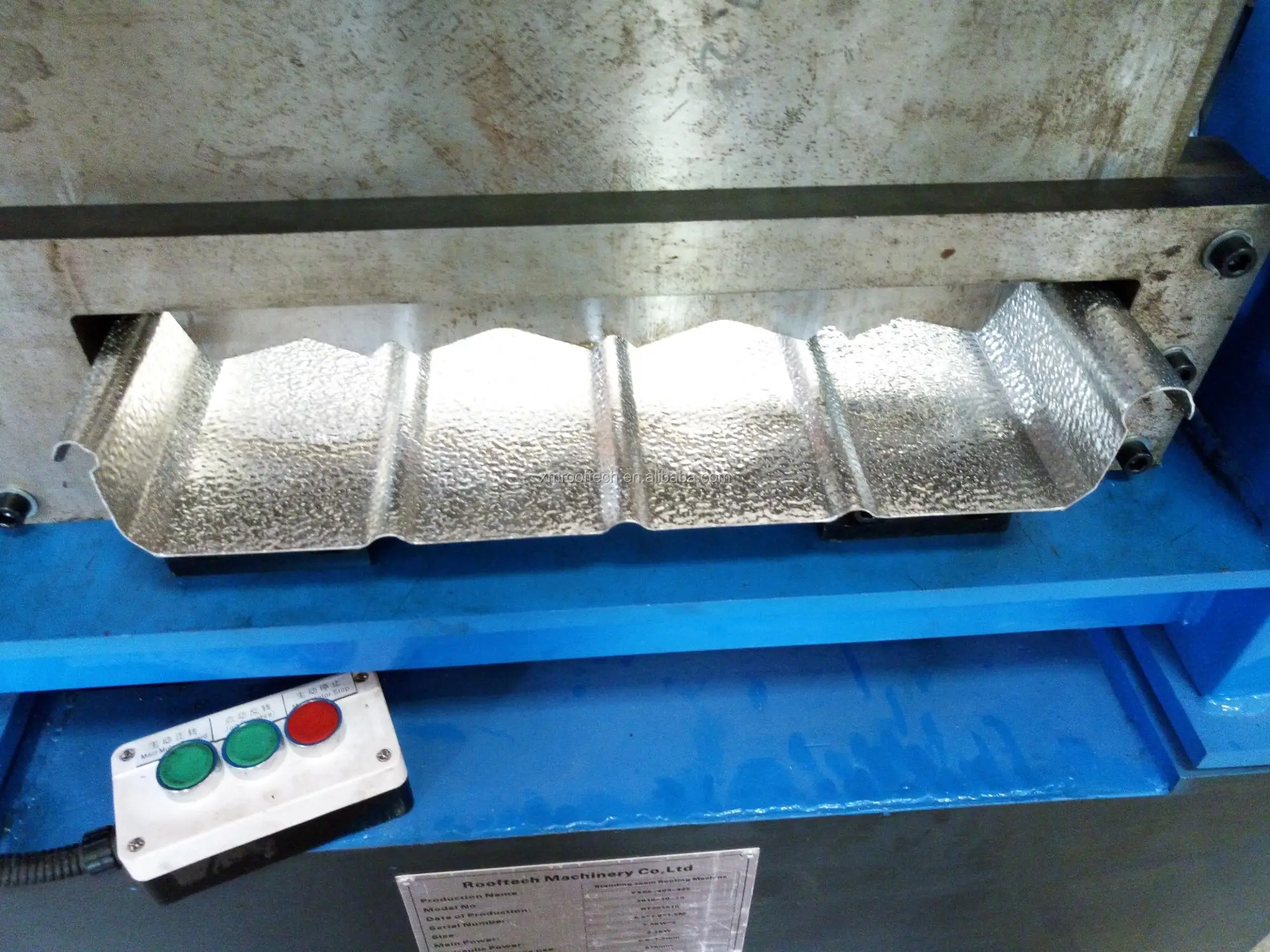

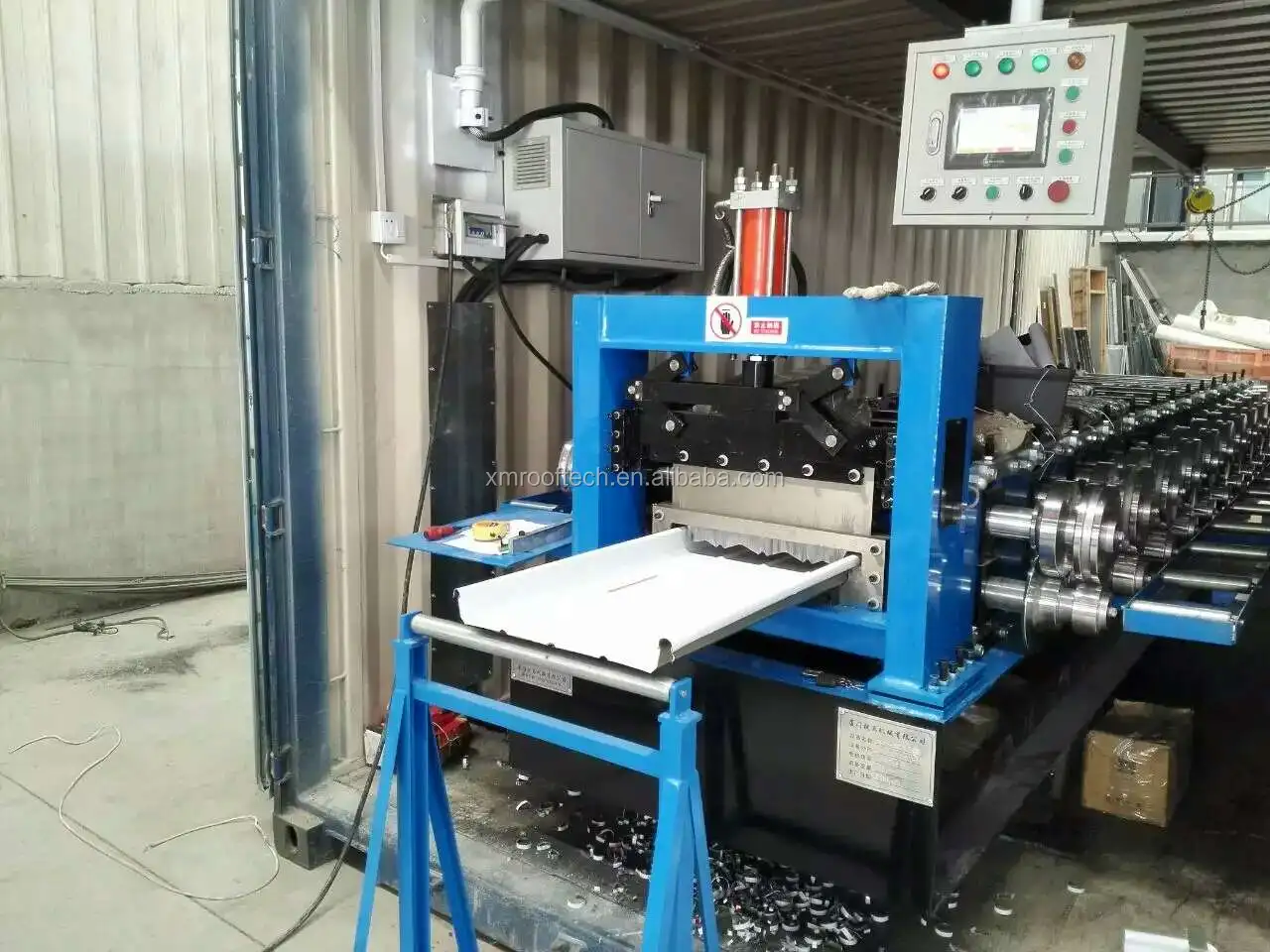

(6)Hydraulic Forming Cutter;
(7) Run out table;
(8)Manual Seamer;
(9) Tools;
Main Usage:

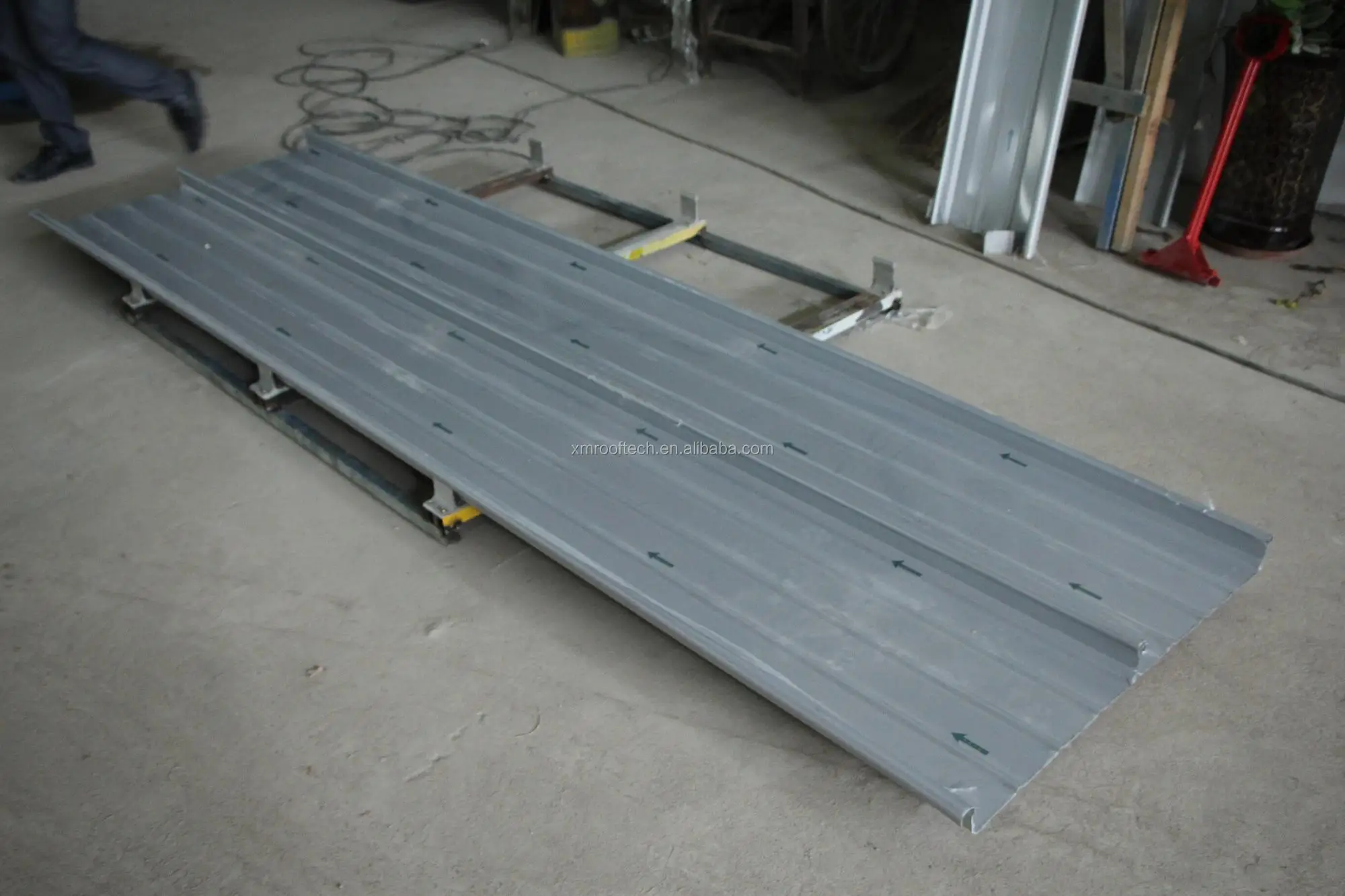

1. One machine can produce the straight standing seam roofing 300mm,400mm,500mm, and tapered standing seam roofings
2. Can automatically product variable width of roofing from 300mm to 500mm;

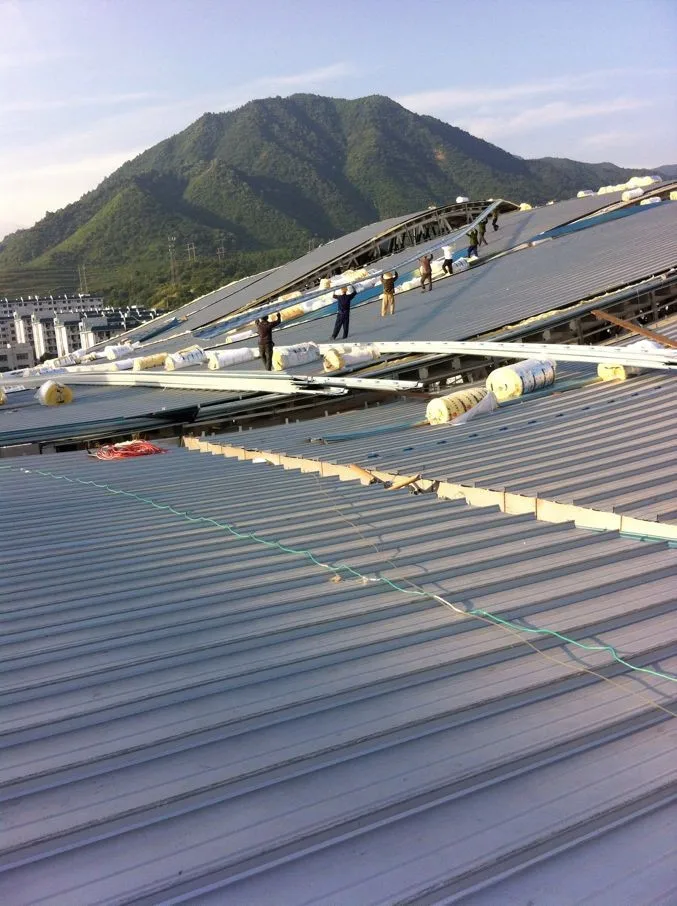

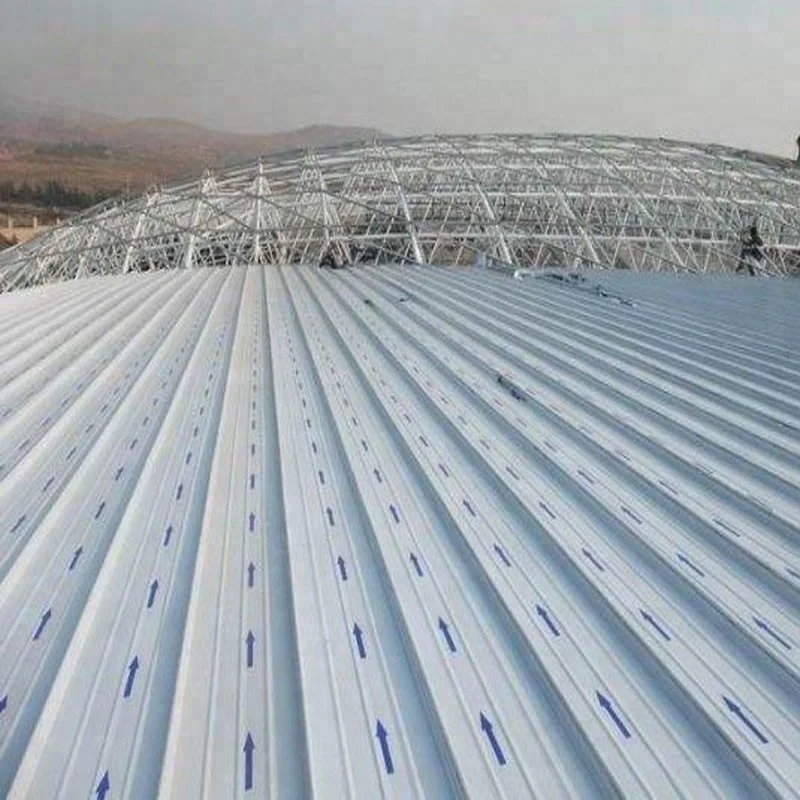

3.Widely use in the large project such as:railway station,airport , gymnasium etc.
4.Can product trapezoid roofing and straight roofing.

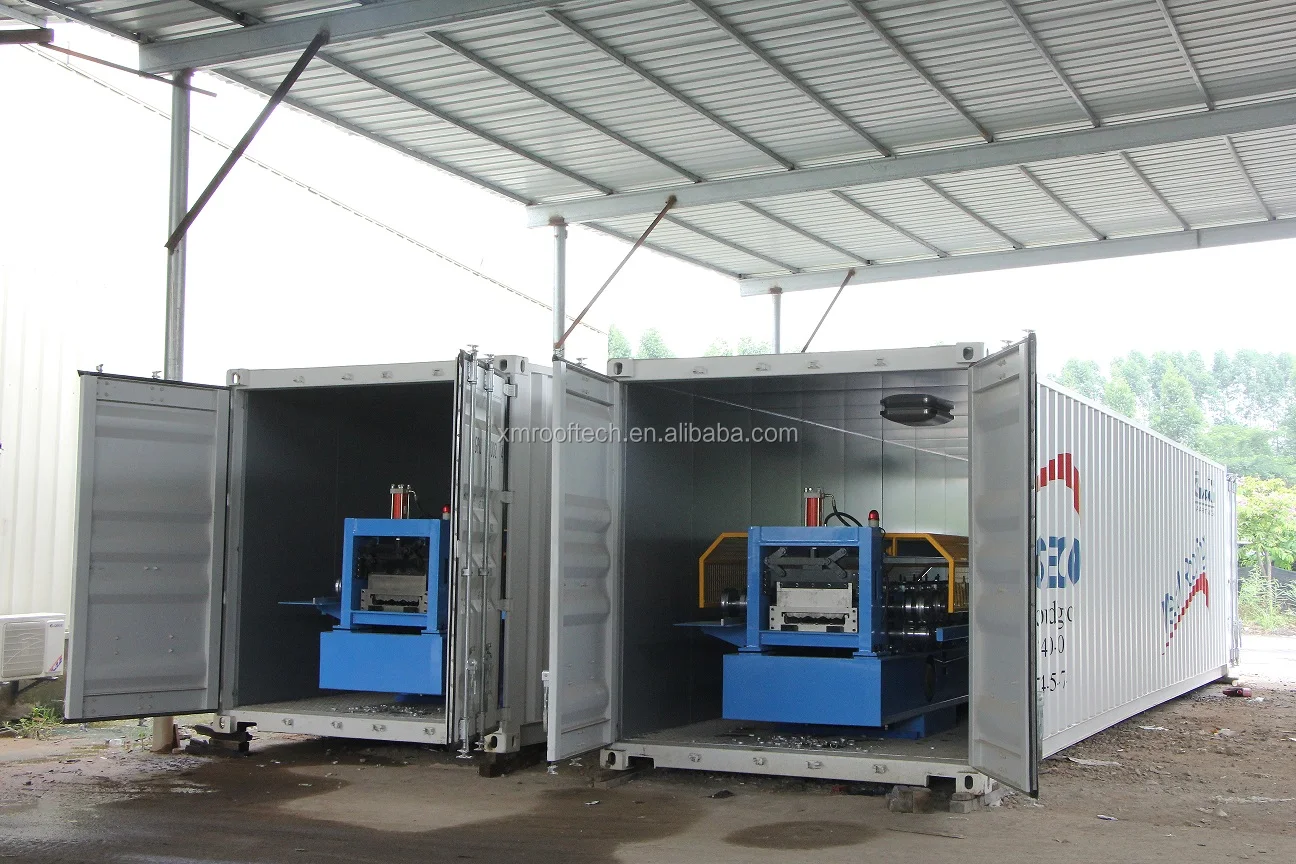

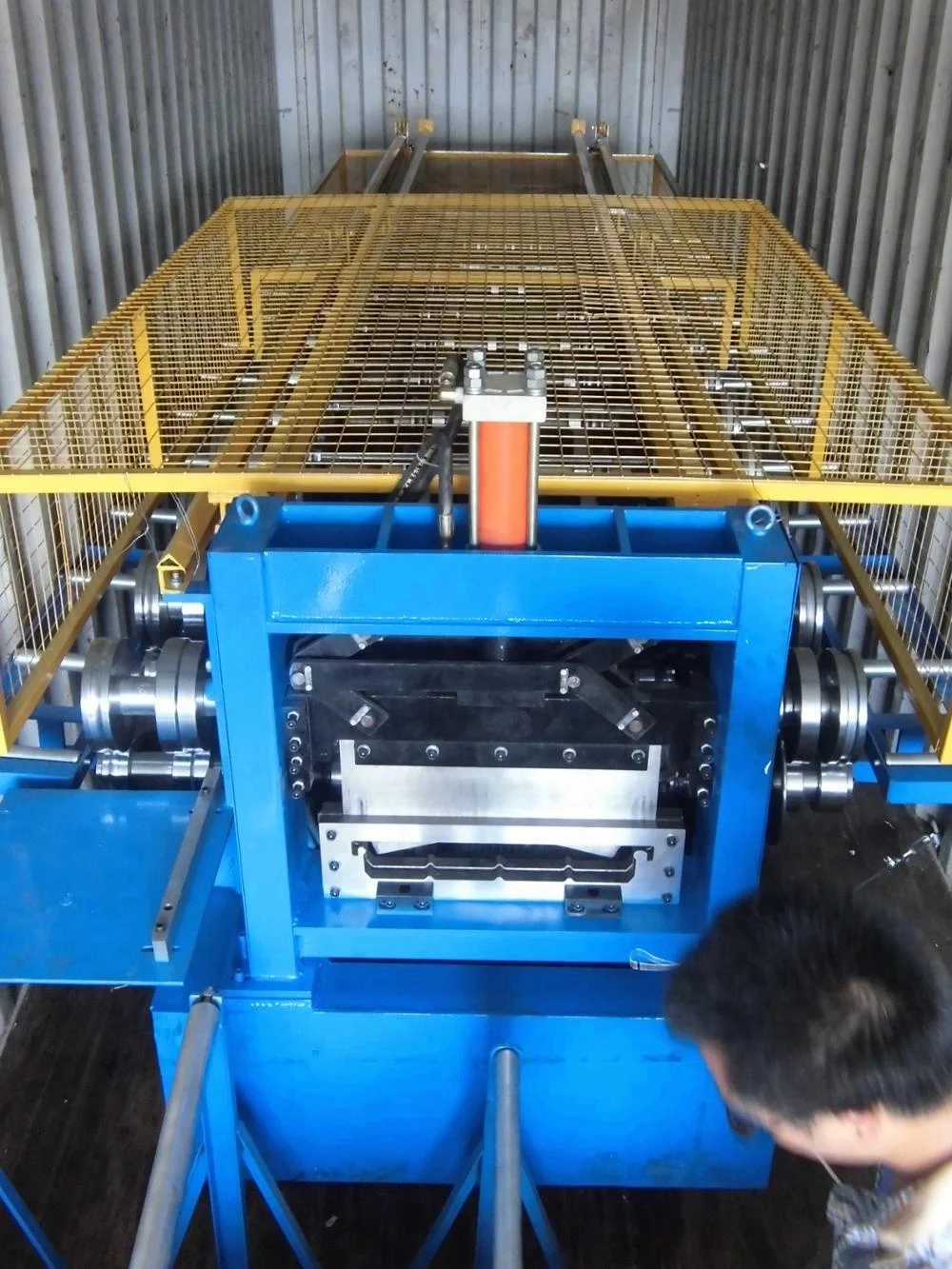

Feature: Can be packed and worked in one 20'GP or 40'GP shipping container, and , so can it saves much time, room and cost. Also can design and make the machine according to your demand.
design
Product Show
