Constar 35000rpm 24V bldc motor 1400kv
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (60813995269):
Product Overview
Description
Constar 35000rpm 24V bldc motor 1400kv
 |  |  |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
 |  |  |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Applications
Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliance
Characteristics
| -1-24.0 | ||||
| 1 | Voltage | V | 24 | |
| 2 | Terminal resistance | Ω | 1.1 | |
| 3 | No-load speed | rpm | 35000 | |
| 4 | No-load current | A | 0.65 | |
| 5 | Stall torque | mNm | 133 | |
| 6 | Stall current | A | 21.8 | |
| 7 | Nominal torque | mNm | 4 | |
| 8 | Nominal speed | rpm | 34000 | |
| 9 | Nominal current | A | 1.3 | |
| 10 | Max. output power | W | 123 |
Options
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Hall sensor, Encoder, Driver

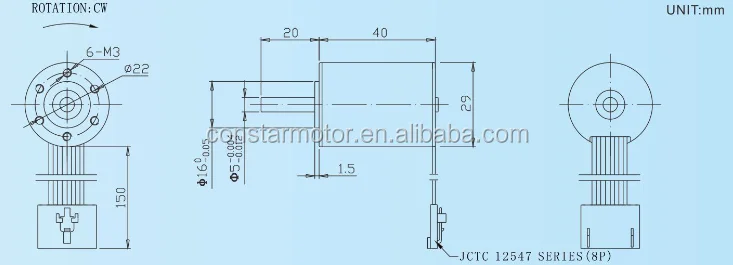

Outline Drawing

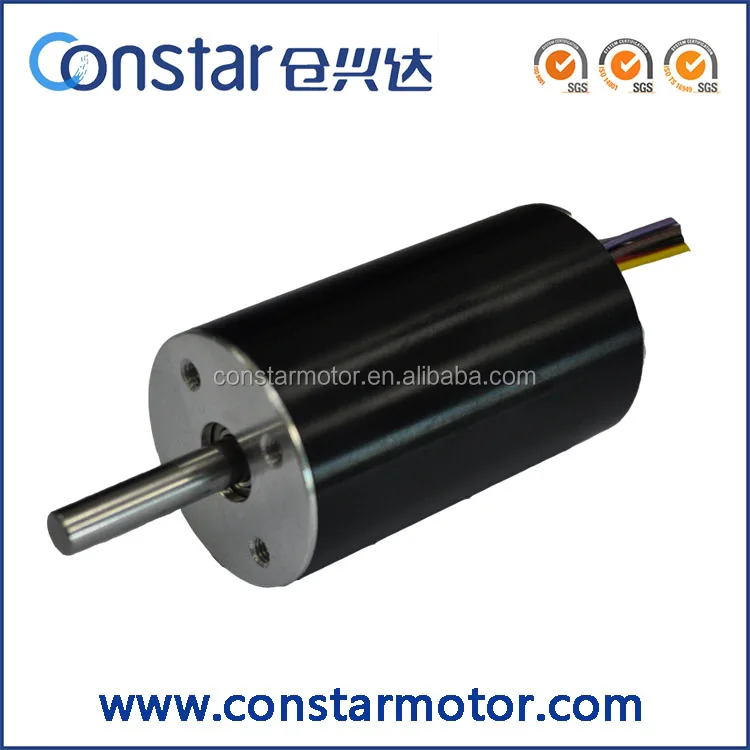

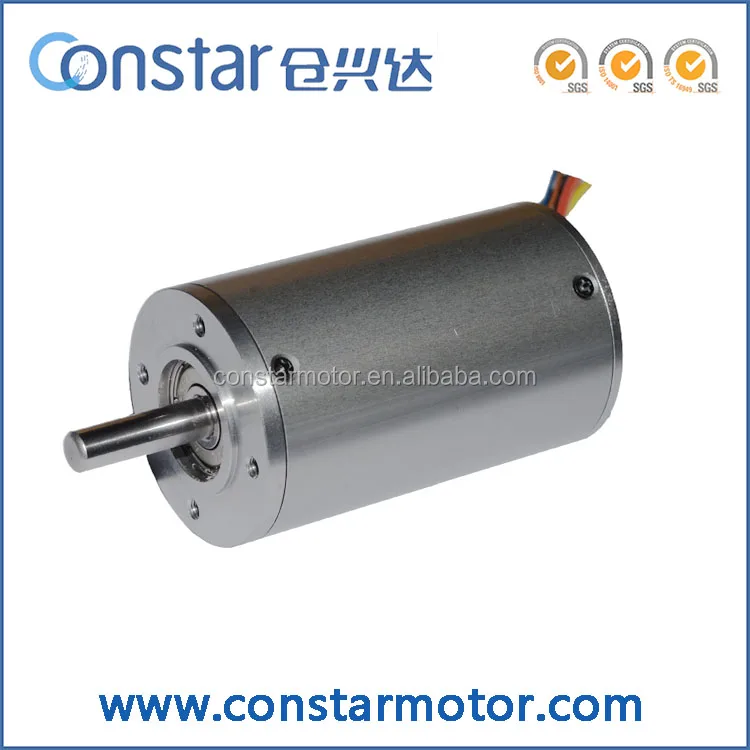

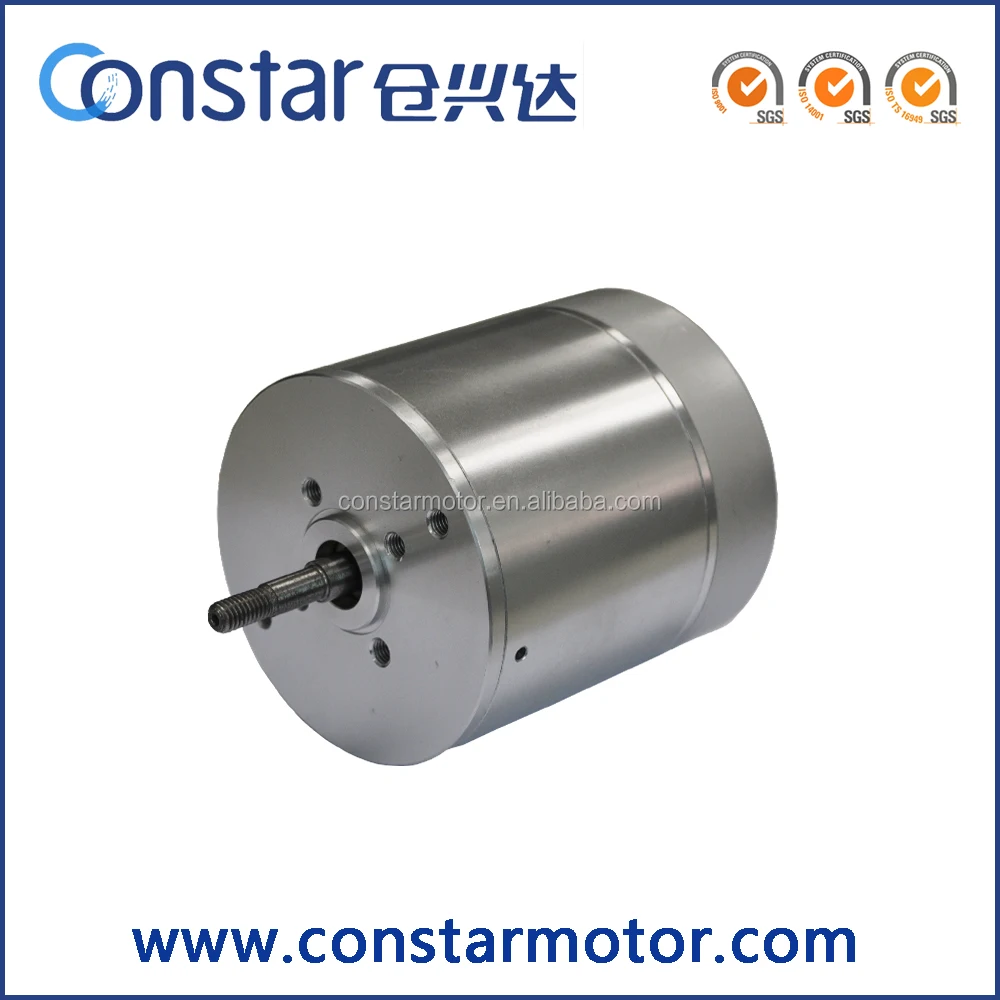

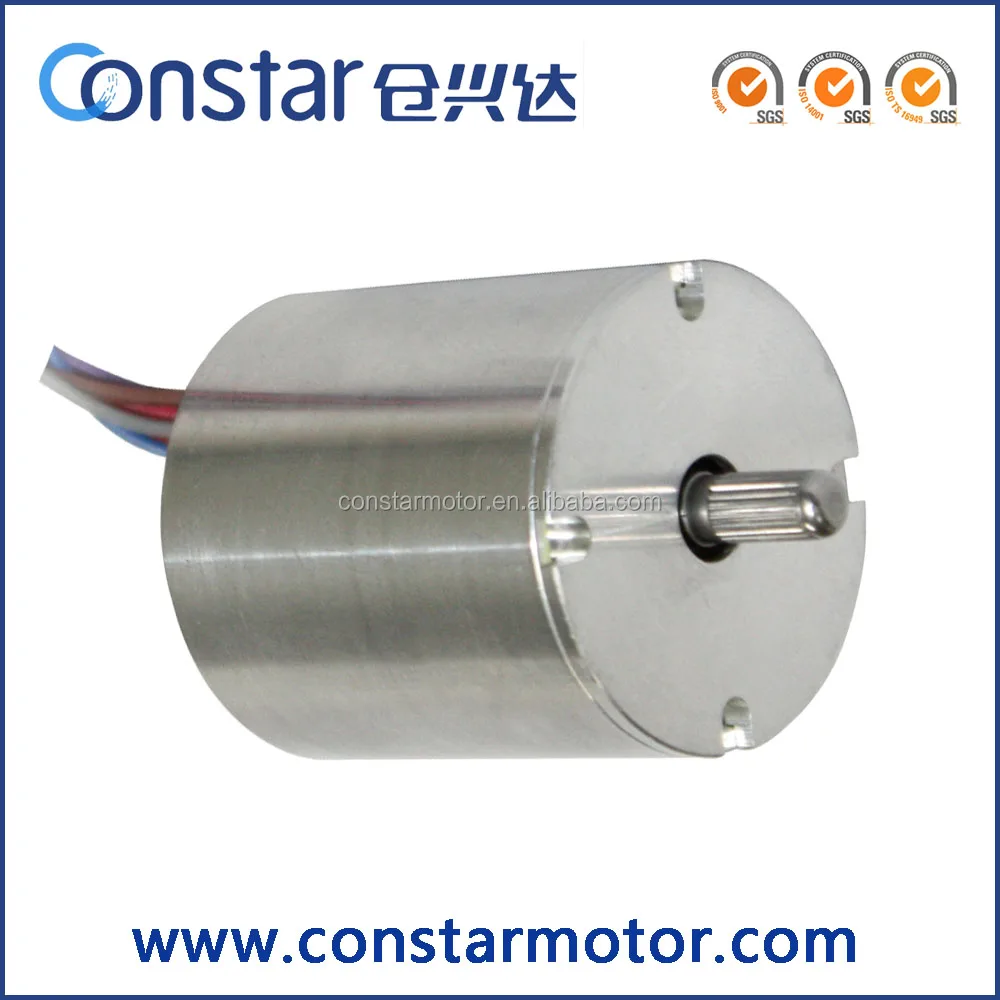

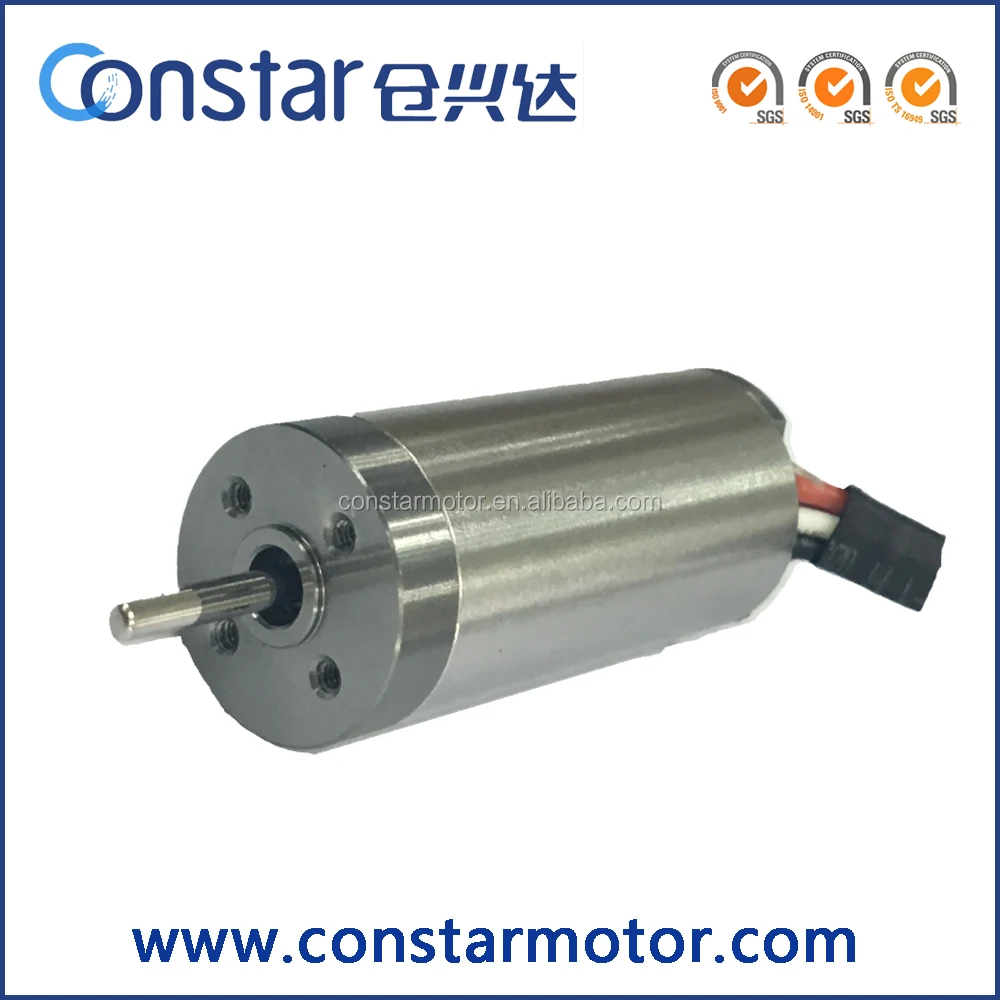

Product Show
Customized Motor
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Other Item
| Series | Dimension
| Voltage | No-load Speed
| No-Load Current | KV | Torque Constant |
| (mm) | (V) | (rpm) | (mA) | (rpm/V) | mNm/A | |
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5740 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
