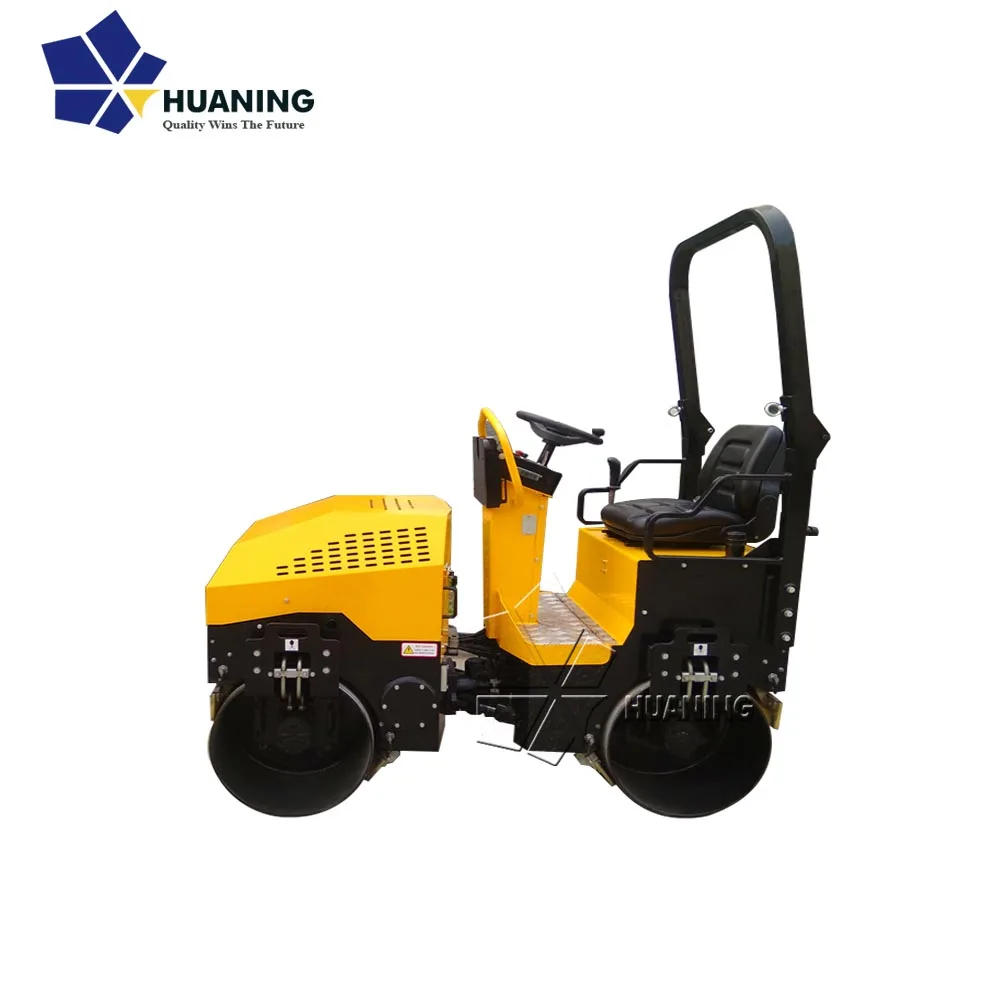

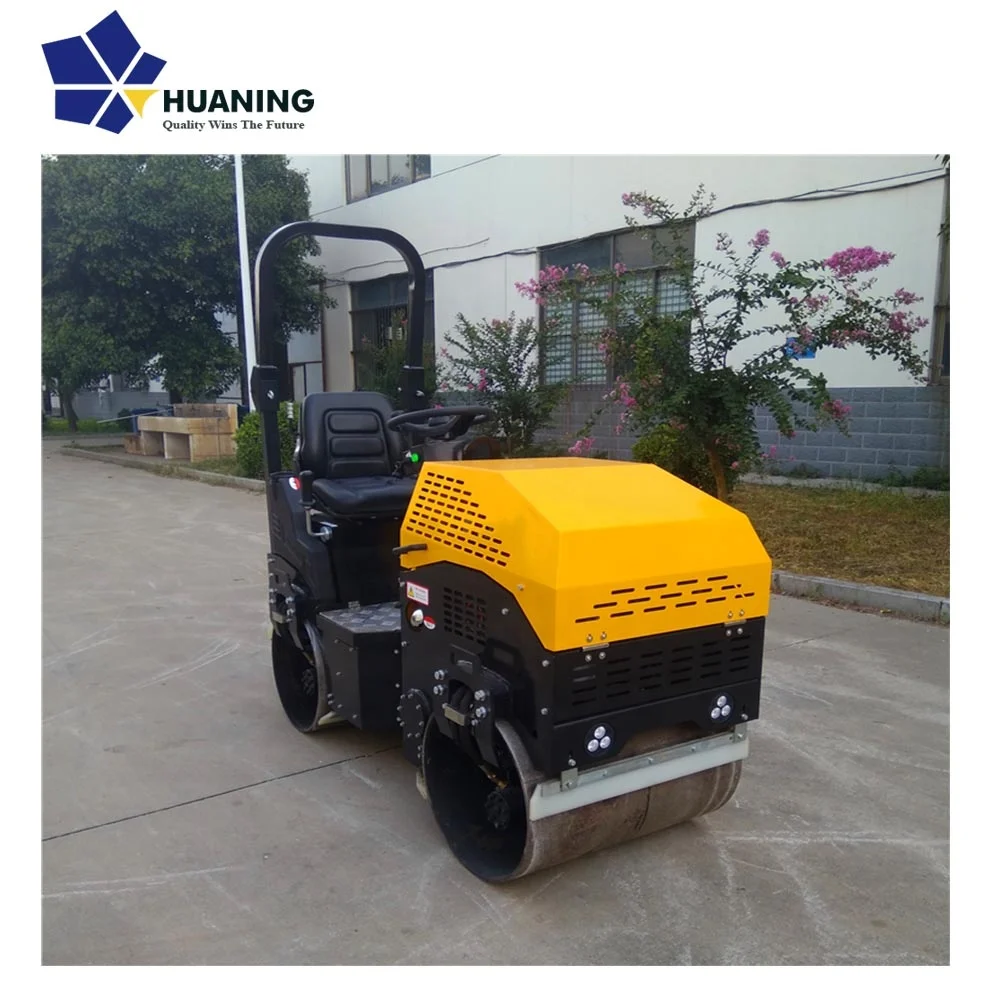

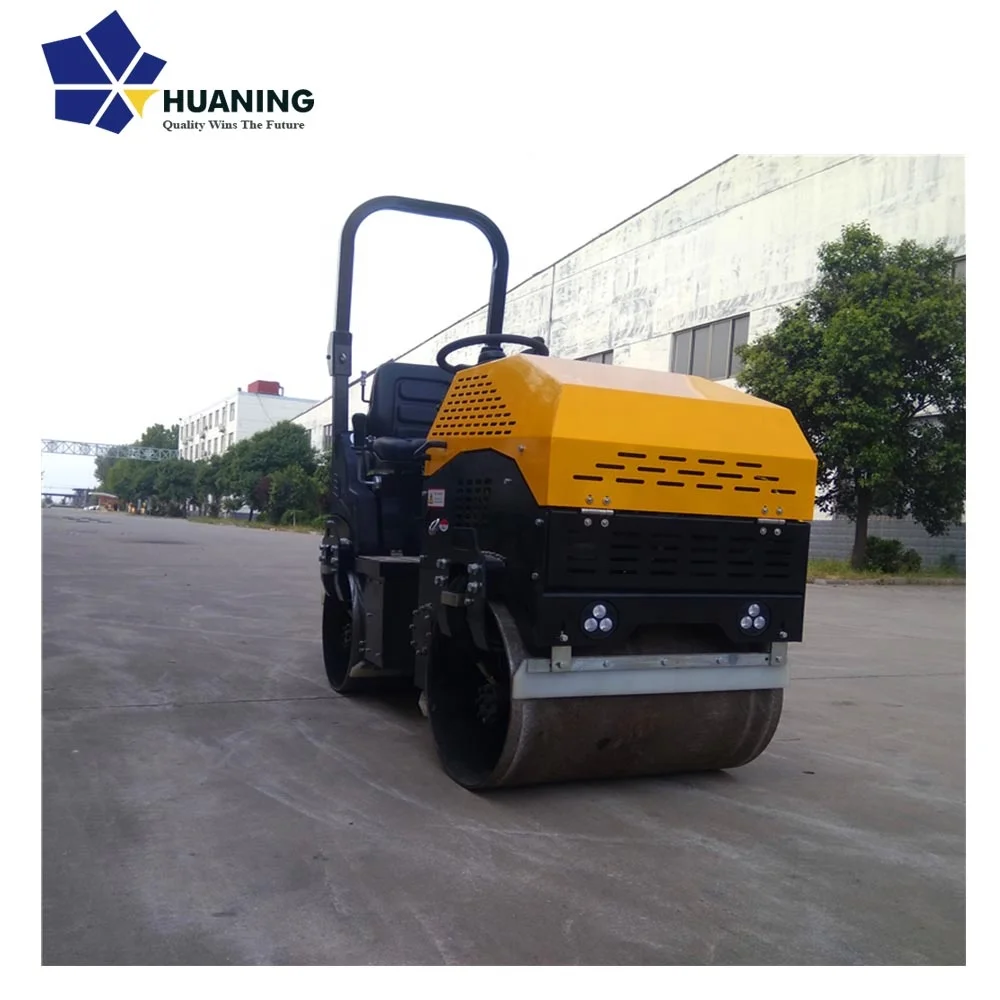

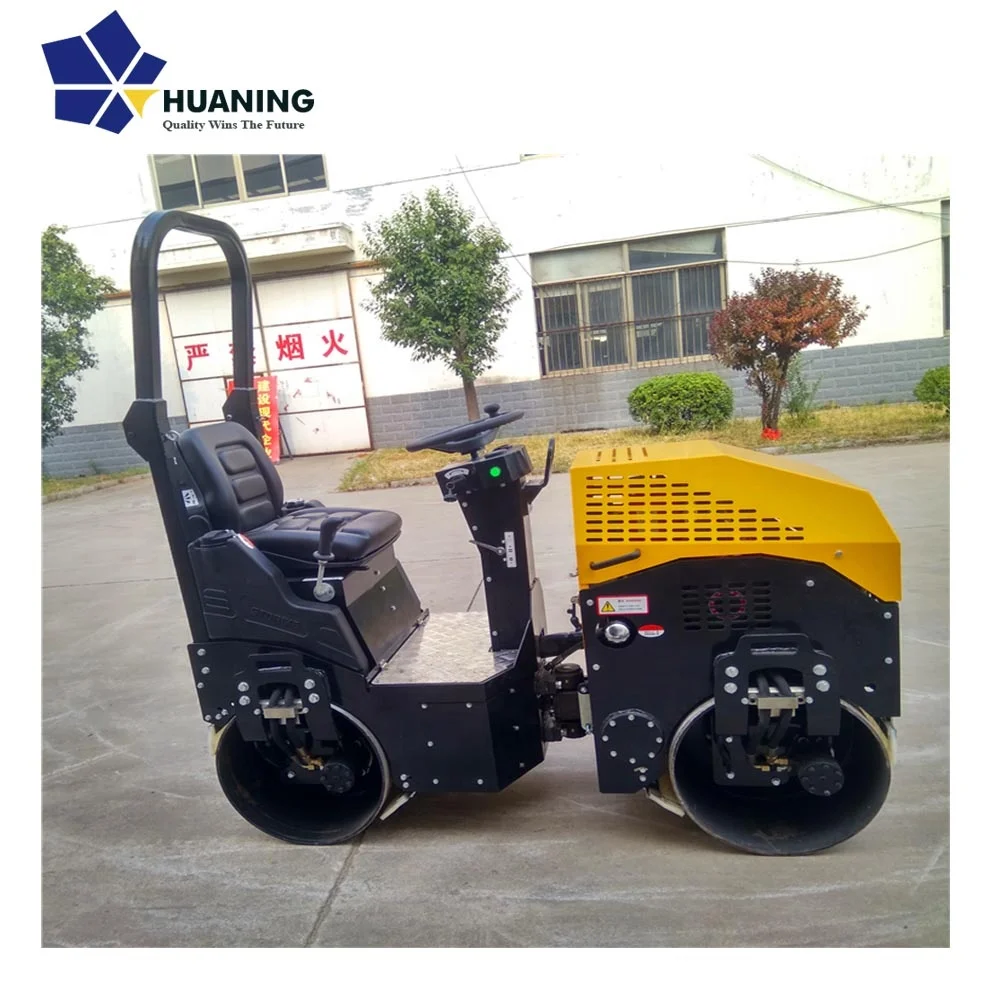

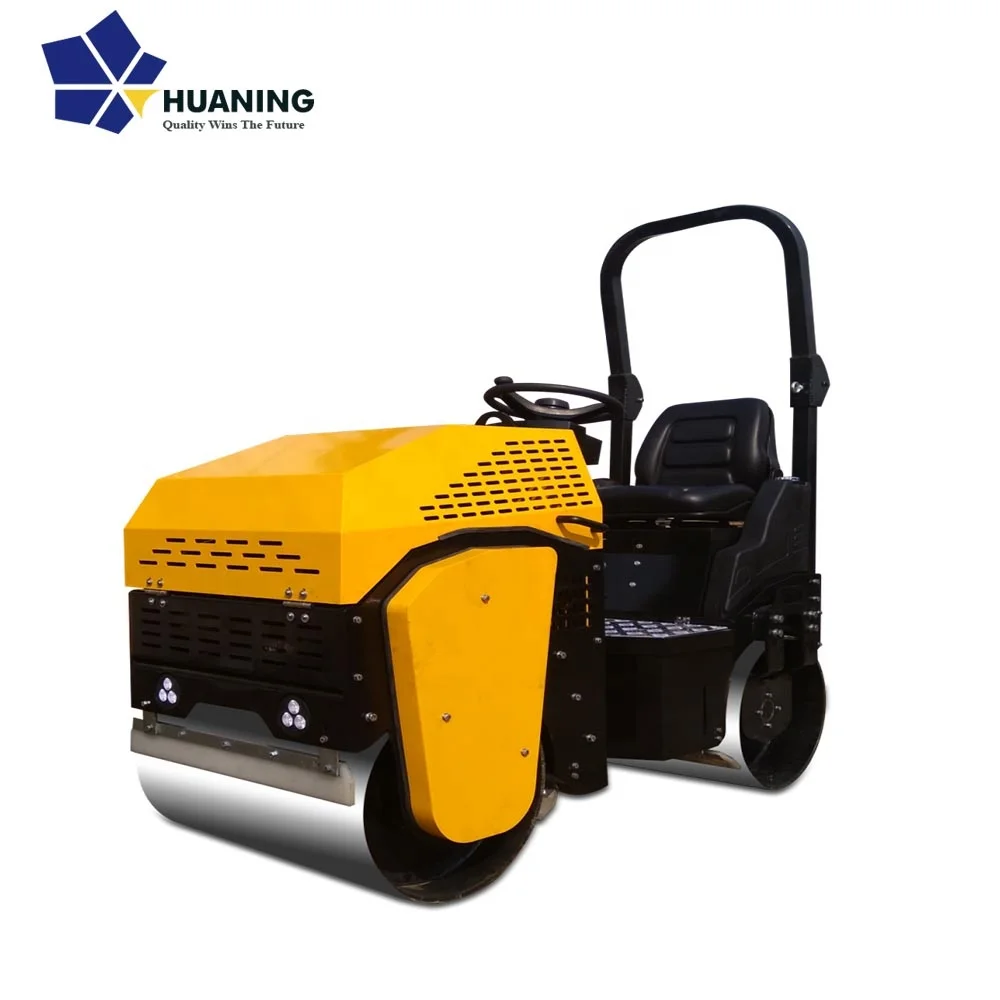

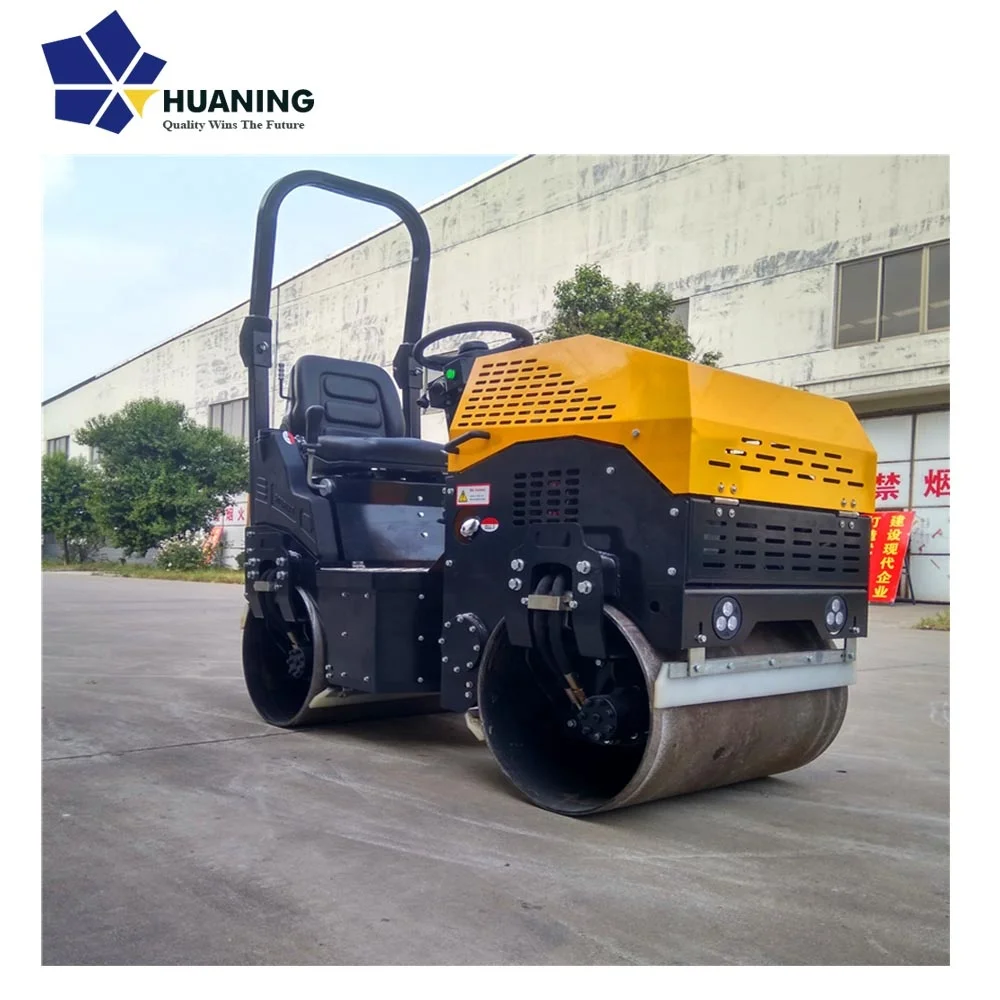

1000 kg ride on diesel engine compactor road roller
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd.
Share on (60814050382):
Product Overview
Description
It can be used for municipal and highway pavement maintenance, as well as for groove foundation, backfill, construction and plaza construction, compaction, lawn compaction and so on.
It can be used for compaction of soil, asphalt road, sidewalk, bridge, culvert, parking lot, sports ground and narrow field. Vertical vibration, great exciting force and high compaction efficiency are the ideal equipment for road and municipal departments to build roads, streets and squares.
Model | ST1000 | ST1000S | |
Engine model | HONDA GX390 | Changfa/ Changchai 186F | Golden Flying Fish RD90N-1 |
Engine type | Single-cylinder vertical air-cooling four-stroke diesel engine | Single-cylinder horizontal water-cooling four-stroke diesel engine | |
Power | 13hp | 9hp | 9hp |
Driving method | Variable plunger pump and Infinitely variable speed | ||
Steering method | Hydraulic steering | ||
Steering system | Swinging articulation | ||
Vibration form | Mechanical transmission, electromagnetic clutch | ||
Working width | 825mm | ||
Whole machine length ( toppling / erect of the protective rack) | 1870/1780mm | ||
Whole machine height (toppling / erect of protective rack) | 1450/1985mm | ||
Turning radius (outside) | 2600mm | ||
Width of steel wheel x diameter | 700x500mm | ||
Wheelbase | 1230mm | ||
Speed | 0-4km/h | ||
Theoretical climbing ability | 30% | ||
Vibration frequency | 70HZ | ||
Exciting force | 25KN | ||
Sprinkling form | Gravity sprinkling | ||
Operating weight | 1000kg | ||
