China hot sale high temperature insulating pi polyimide film tape polyimide tape
- Category: >>>
- Supplier: Zhuhai Huayuan Electronics Co. Ltd.
Share on (60814245312):
Product Overview
Description
VR
Video
Products Description
Product Name | Model No | Filmthickness (mm) | Totalthickness (mm) | Adhesiontosteel (N/25mm) | Tensilestrength (kg/25mm) | Elongationatbreak (%) | Temperature resistance (℃) | Voltageresistance (KV) |
Polyimide tape | HY200-1A | 0.015 | 0.030 | 2.8 | 10 | 25-35 | 260 | |
HY200-1B | 0.015 | 0.035 | 3.5 | 10 | 25-35 | 260 | ||
HY200-2A | 0.025 | 0.042 | 2.5-3.5 | 10-13 | 45 | 260 | ||
HY200-2B | 0.025 | 0.050 | 4.0 | 10-13 | 45 | 260 | 3M-98C-12 | |
HY200-2C | 0.025 | 0.055 | 5.0 | 10-13 | 45 | 260 | ||
HY200-2D | 0.025 | 0.06 | 5.5 | 10-13 | 45 | 260 | ||
HY200-2E | 0.025 | 0.065 | 6.0 | 10-13 | 45 | 260 | ||
HY200-2F | 0.025 | 0.070 | 6.5 | 10-13 | 45 | 260 | ||
HY200-3A | 0.05 | 0.08 | 6.0 | 20 | 55-65 | 260 | ||
HY200-3B | 0.05 | 0.10 | 6.5 | 20 | 55-65 | 260 | ||
HY200-4 | 0.075 | 0.12 | 6 | 28 | 60-65 | 260 | ||
HY200-5 | 0.10 | 0.15 | 6 | 36 | 70-75 | 260 | ||
HY200-6 | 0.125 | 0.18 | 6 | 40 | 80-85 | 260 | ||
HY200-2DA | 0.025 | 0.06 | 5.0 | 10-13 | 45 | 280 | ||
HY200-2DB | 0.025 | 0.06 | 5.0 | 10-13 | 45 | 300 |

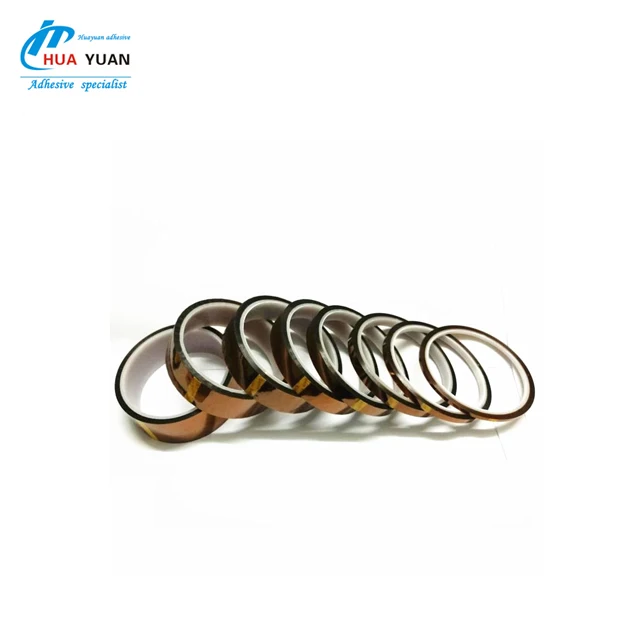

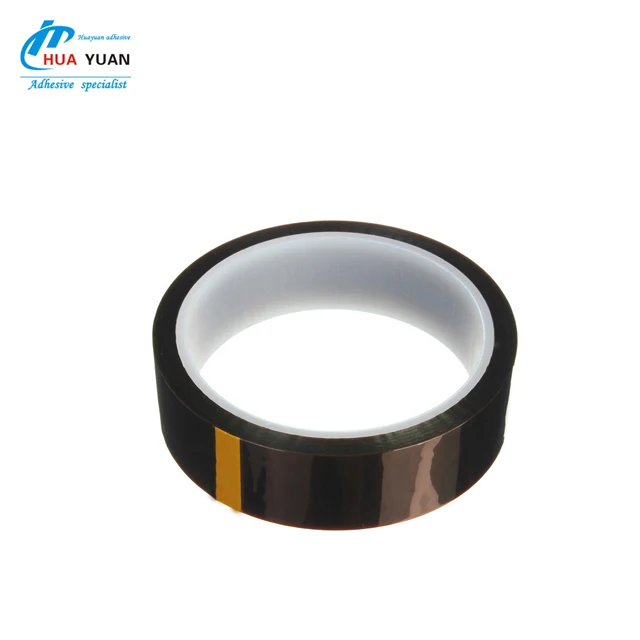

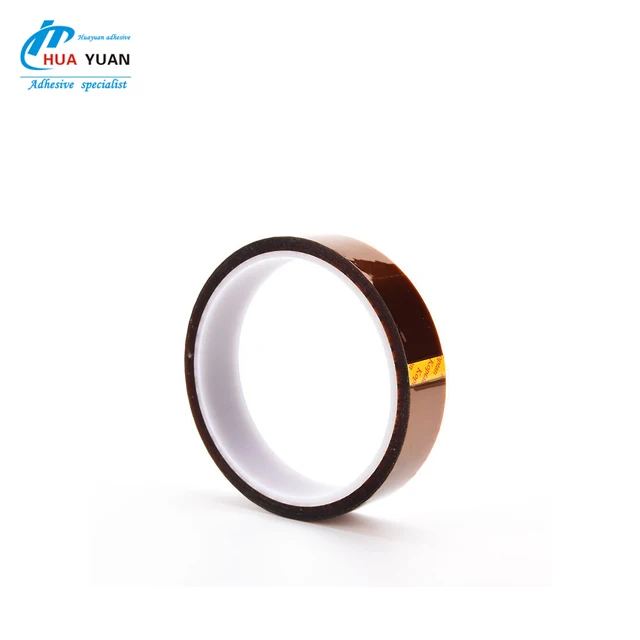

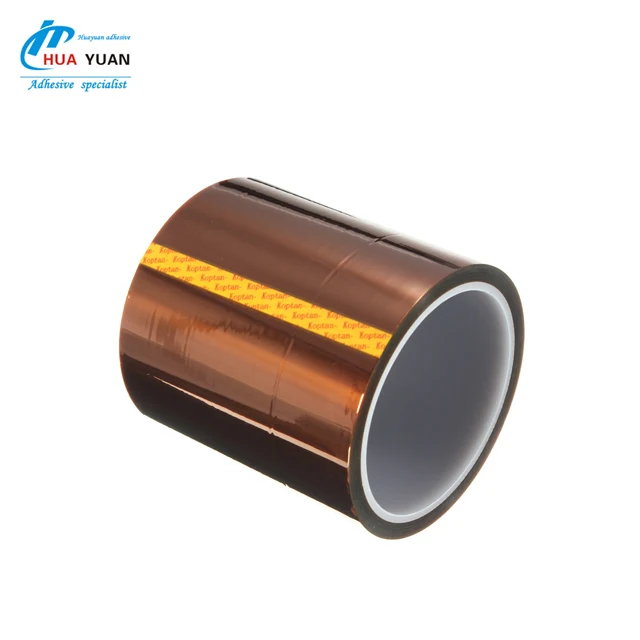

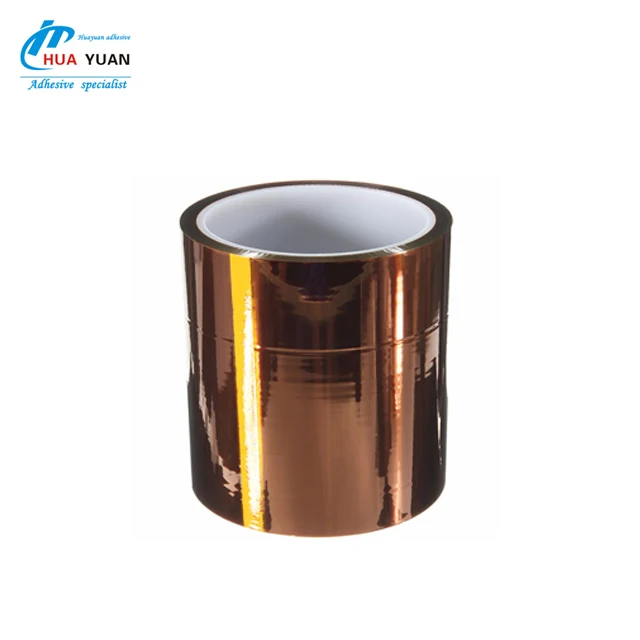

Polyimide tape:
Color: heat resistance silicone, Amber(black is customized), Roll core can be made as 76mm and 38mm
Features: Heat resistance, High Voltage insulation, acid and alkali resistant, low voltage electrolytic
Usage: Protect golden finger when PCB board in soldering tin furnace,,insulation of coil, wave–soldering protection,
electrical insulation, high temperature resistance, etc. No residue leaving after peeling off.
(ESD) Anti–static polyimide tape:
Features: High solvent resistance, Anti–static treatment on surface
Usage: Protect golden finger when PCB board in soldering tin furnace, insulation of coil, wave–soldering protection,
electrical insulation, high temperature resistance, etc. No residue leaving after tape removed.
Polyimide tape(Lithium battery cells' tape):
Features: This Acrylic glue is resistant to strong acid & alkali.
Usage: Fix lithium battery' s anode, protect adhesion away from influence of electrolyte.
Double–sided polyimide tape(Coating on double sides):
Features: Easily bending products, heat resistance 260degrees, high solvent resistance, good release force
Usage: Special insulation for laptop/computer, etc. It can be bended to any shapes
Polyimide film:
Features: Temperature resistance –269degrees~400degrees. Stable physical performance thermal performance,
mechanicalproperty, chemical property and electrical property. Tabletting/metal treatment/punching and
coating .Good smoothness, uniformity and stable dimension
Usage: Bar code label, machine part, electronic component, electrical insulation pressure sensitive tape
Polyimide– Fluorine–46 Composite film:
Features: HF/FHF are polyimide film covered by emulsion F-46, sintering under high temperature. Not only with high
insulation/high temperature resistance/ RAD–Hard/corrosion resistance of polyimide, but also glue sealing
under high temperature
Usage: Insulation of electric wire/electric cable/electromagnetic wire,etc, and various insulation of Class H electric
machines and appliances.
Zhuhai Huayuan Electronics Co., Ltd.
Zhuhai Huayuan Electronics Co., Ltd.
The company is headquartered in Hong Kong china and one of the factories in mainland China specializing in the production of adhesive tapes.
The company has 4 production lines with internationally advanced coating technology and multiple fully automatic precision machines. The slitter and cutting machine all use imported original equipment and are equipped with a full set of testing equipment to test the products. The production site environment is clean and tidy, the gluing process is carried out in a dust-free workshop, and all production processes are strictly implemented in accordance with the quality system.
The company has 2 business divisions, namely the electrical tape division, which mainly produces: polyester Mylar tape, polyimide tape, polyimide film, PET high-temperature tape, copper tape, double-sided tape business. V h b/ P E/ P E T double-sided tape, heat-resistant tape, etc. Our factory has more than 17 years of experience in North America, Asia, Europe and domestic markets.
The company has 4 production lines with internationally advanced coating technology and multiple fully automatic precision machines. The slitter and cutting machine all use imported original equipment and are equipped with a full set of testing equipment to test the products. The production site environment is clean and tidy, the gluing process is carried out in a dust-free workshop, and all production processes are strictly implemented in accordance with the quality system.
The company has 2 business divisions, namely the electrical tape division, which mainly produces: polyester Mylar tape, polyimide tape, polyimide film, PET high-temperature tape, copper tape, double-sided tape business. V h b/ P E/ P E T double-sided tape, heat-resistant tape, etc. Our factory has more than 17 years of experience in North America, Asia, Europe and domestic markets.
Certifications
Factory Show
Working Environment
Factory
Our Team
Show Room
Machine
Slitting machine
Die cutting machine
Testing
Packing
Transportation
Why Choose Us
FAQ
1) What is your main product?
Industry adhesive tape Unit,is divided into three categories;
(1)special electrical tape; polyester mylar tape Polyimide (finger) tape, PET High-temperature tape;TCopper foil tape,Aluminum foil tape;Teflon tape and other industrial adhesive tape;
(2)Industrial Double-sided Tape Series: Industrial Double-sided Tape Series,producing Industrial double sided tape,VHB Acrylic foam double-sided tape,Foam double-sided tape(PE/EVA),tissue ,PET double-sided tape.
(3)Packing Tape Series,producing OPP packing tape,Glass fiber tape, Industrial packing tape .
(2)Industrial Double-sided Tape Series: Industrial Double-sided Tape Series,producing Industrial double sided tape,VHB Acrylic foam double-sided tape,Foam double-sided tape(PE/EVA),tissue ,PET double-sided tape.
(3)Packing Tape Series,producing OPP packing tape,Glass fiber tape, Industrial packing tape .
2) How to guarantee your quality?
Before produce: Send free pre-production samples for checking.
During producing: Send production photoes and mass production samples, any inspection during production or loading is welcome.
After shipment: If there's any problem of our product due to our mistake, we will surely take responsible.
During producing: Send production photoes and mass production samples, any inspection during production or loading is welcome.
After shipment: If there's any problem of our product due to our mistake, we will surely take responsible.
3)Can you print our logo or do special packaging?
We can print customer's logo on the tape and paper core and cartons.
We can do any special packaging as required, such as individual shrink with logo card, barcode lable, blister card or any request.
We can do any special packaging as required, such as individual shrink with logo card, barcode lable, blister card or any request.
