6 port Industrial network switch Unmanaged 10/100/1000M Ethernet poe fiber Switch with 4*10/100/1000Base TX to 2*1000Base FX

Product Overview

Description

6 port Industrial network switch Unmanaged 10/100/1000M Ethernet poe fiber Switch with 4*10/100/1000Base-TX to 2*1000Base-FX



The 3CI-SFP0204G series is an industrial Ethernet switch/media converter independent development by 3C-LINK,with 4*10/100/1000MEthernet ports and 2x 1000MSFP port, Users can select different optical modules according to their needs, such as multi-mode dual fiber and single-mode dual fiber, single-mode single fiber, etc. It uses the latest IC in the United States, with stable performance, high quality and high cost performance. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.



* 4 Port 10/100/1000Mbps RJ45 with Auto Uplink , 2 port 1000Mbps SFP Slot

* Automatic MAC address learning and aging

* Automatically support IGMP (Multicasting)

* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

* LED indicators for monitoring power/link/activity

* Supports 10/100/1000Mbps-Full/Half-duplex

* SupportsWall-mount and DIN-Rail installation for lightning protection

* Supports Daisy-Chain connection

* Supports Broadcast StormControl

* Supports Relay output for power failure

* Super lightening protection, IP40 protection.

* Excellent heat elimination without cooling fan.

* Redundant dual DC power inputs.

* Redundant Power Inputs

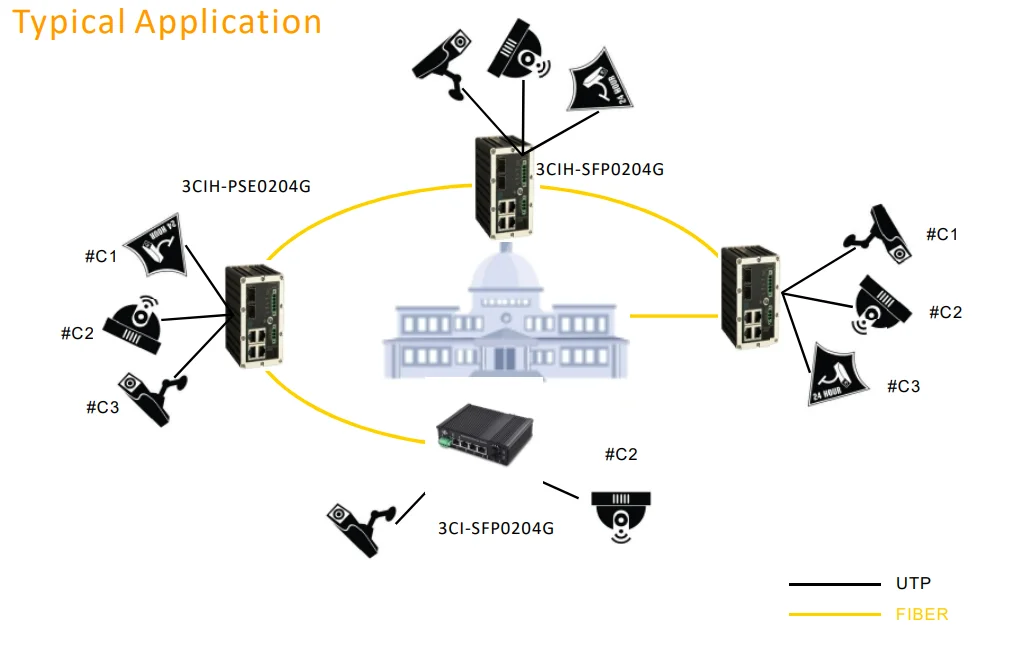

* Apply to Urban Intelligent Traffic Monitoring System(ITS), Safe City.

* Harsh industrial environment or higher requirement

* -45 -85 operating temperature range





IEEE Ethernet Standards	IEEE802.3, IEEE802.3u, IEEE 802.1ab,	PoE Management	Total Power Consumption Control;
	IEEE802.3z, IEEE 802.3x, IEEE 802.3ad		PoE ON/OFF; Port Output Priority;
	IEEE 802.1d, IEEE 802.1p, IEEE 802.1q	Security Feature	Enable/disable ports
	IEEE 802.1w, IEEE 802.1s, IEEE 802.1x		MAC based port security
	IEEE 802.1ab		Port based network access control
Ports			VLAN (802.1Q)
10/100/1000M Base-T	4		Radius centralized password management
1000MBase-X SFP 4 (1)	2		SNMP v1/v2c/v3 encrypted authentication and access security
Switch Performance
Architecture	Store-and-forward	Protocols	ERPS/STP/RSTP/MSTP, SNTP, 1588 PTP
Bandwidth	32Gbps		DHCP Server/Client, MVR, IGMP v1/v2
Buffer	4Mbps		GMRP, GVRP, SNMP v1/v2c/v3, TFTP,
Mac Address Table	8192		SMTP,RMON, RARP, HTTP, HTTPS, Telnet, SSH, Syslog
			LLDP, IPv6, NTP Server/Client
PoE		Warning & Monitoring	Relay output for fault event alarming
Standard	IEEE802.3af/at		Syslog to record and view events
PSE Type	End-span  End-span		Event selection support
Power Pin Assignment	1 / 2 (+), 3 / 6 (-)	Relay Output	1A@24VDC NC or NO
Power Output	Each port up to 30W	Power

















Click Here >>>>>> Send Inquiry To Get A Sample!!!

















Model	Spec
3CI-SFP0204G	4×10/100/1000Base-TX + 2×100/1000Base-FX SFP,DC 12~48V
3CI-PSE0204G	4×10/100/1000Base-TX + 2×100/1000Base-FX SFP,DC 12~48V. With POE
