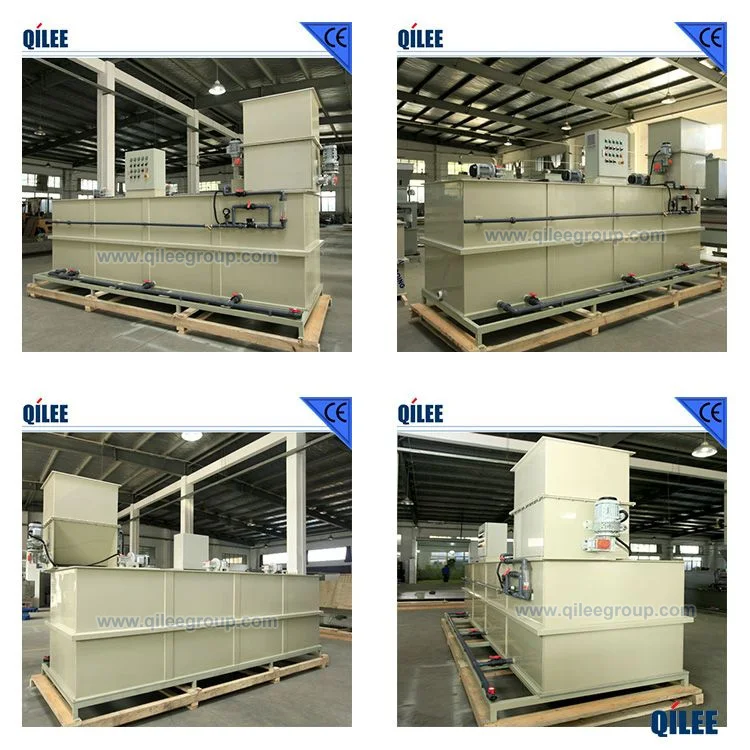

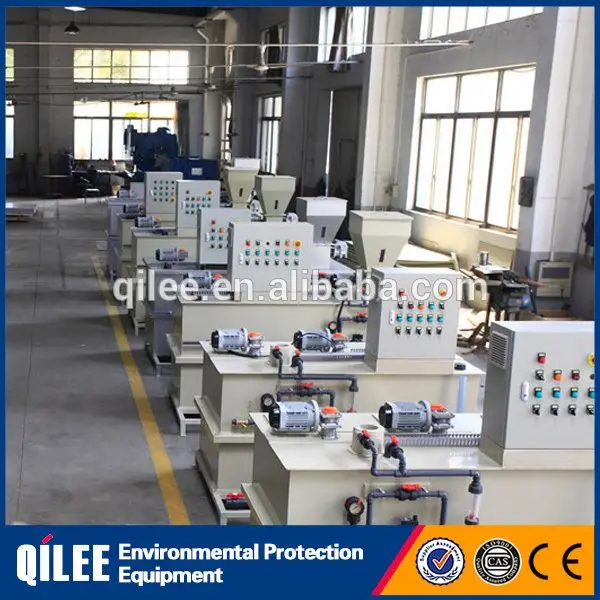

Automatic chemical dissolver dosing device for electrocoagulation wastewater treatment
- Category: >>>
- Supplier: Shanghai Qilee Environmental Protection Equipment Co. Ltd. [Shanghai China]Shanghai
Share on (60814318933):
Share on (60814318933):
Dissolver dosing device Features:
•Automatically Operate
•Amount of the powder feeding is exactitude
•SUS304 crust, all imported parts
•All message is output by touch
•Guarantee the treatment effect, avoid waste
•Attractive appearance
Selection of models:
Model | Chemical Solution Production Capacity (L/hr) | Powder Feeding Hopper Volume (L) | Powder Metering Feeder Speed Variable (HP) | Machine Dimensions(mm) | Machine Weight (kg) | |||||
L | W | H | L1 | W1 | H1 | |||||
QPL3-500 | 500 | 42 | 1/4 | 1700 | 1000 | 1500 | 1650 | 700 | 800 | 320 |
QPL3-1000 | 1000 | 42 | 1/4 | 2000 | 1150 | 1650 | 1950 | 850 | 900 | 410 |
QPL3-1500 | 1500 | 42 | 1/4 | 2300 | 1200 | 1700 | 2250 | 900 | 1000 | 490 |
QPL3-2000 | 2000 | 85 | 1/4 | 2438 | 1300 | 1850 | 22388 | 1000 | 1030 | 550 |
QPL3-3000 | 3000 | 110 | 1/4 | 3150 | 1350 | 2000 | 3100 | 1050 | 1100 | 680 |
QPL3-5000 | 5000 | 200 | 1/4 | 3300 | 1500 | 2200 | 3250 | 1200 | 1200 | 960 |
QPL3-8000 | 8000 | 300 | 1/4 | 4750 | 1650 | 2600 | 4700 | 1350 | 1500 | 1280 |
Product Application:
•Aid condensation of city sewage
•Aid condensation of industry sewage
•Disposal and deposit of sludge

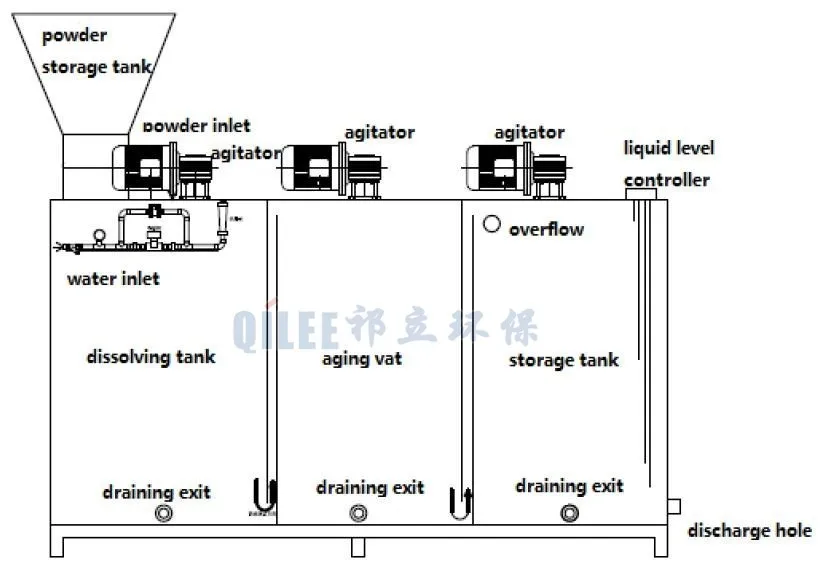

Product Structure:

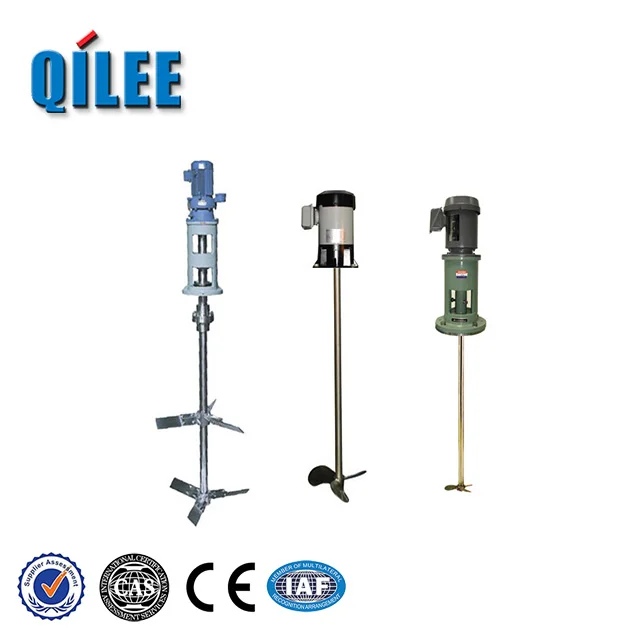

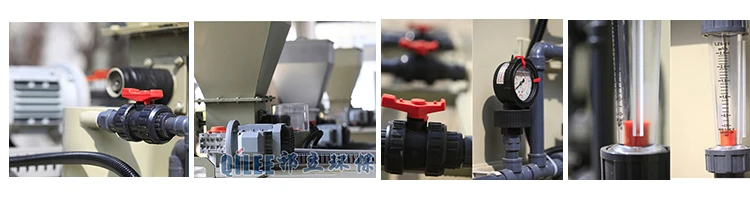

Accessories:
It is widely applied in dissolving chemical powder, such as PAM (polyacrylamide), PAC (Polyaluminium Chloride) and so on.
The material is SUS304 or PP according to the feature of powder.
Advise us the name of powder, the solution capacity needed per hour, the concentration, then we could choose the suitable model. Please put forward if you have special requirements.
