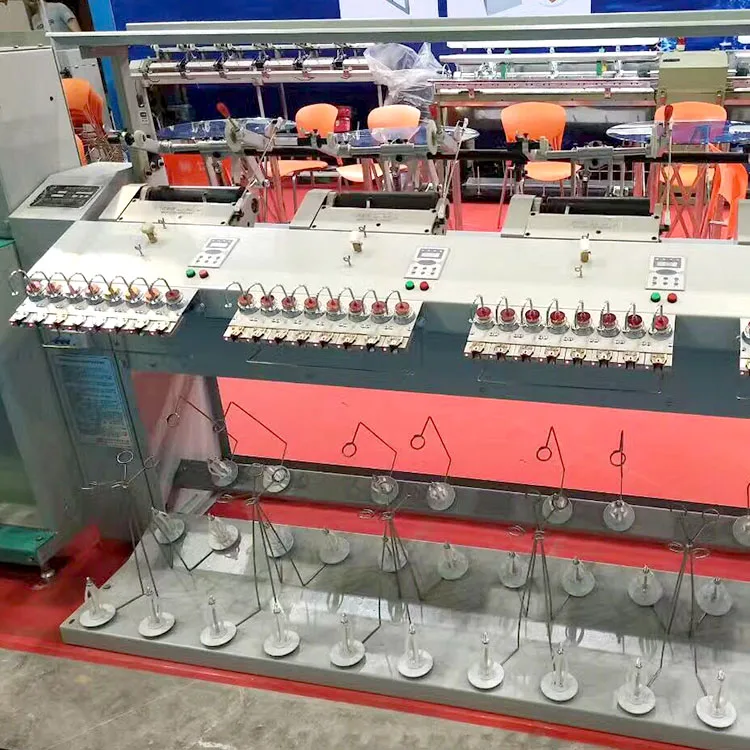

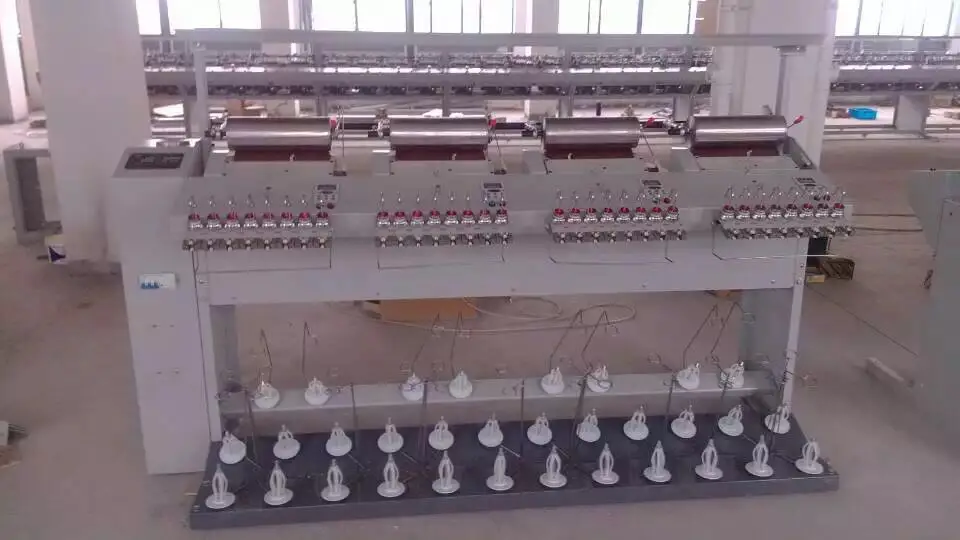

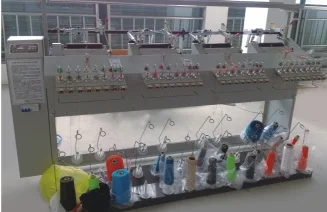

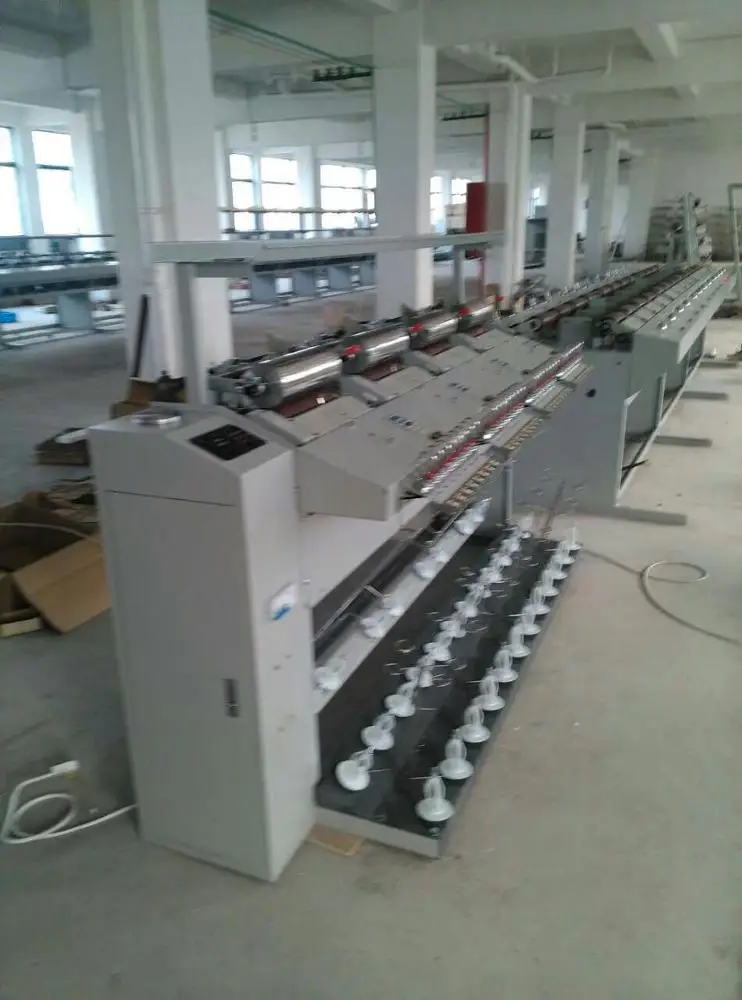

FH D yarn doubling machine

Product Overview

Description

Plying winding Machine

Chemical fiber drum plying winding Machine, it can winding 2-3 ply of Fiber yarns, Cotton yarns, Wool yarns, FDY, Polyester yarns and etc, it can take up with Tube bobbins for TFO twisting machine preparing, and also can take up with conical Cone for Weaving machine using . It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.

We took most advanced technology such as:

1)individual motor for each spindle,

2)automatic stop of yarn break, dead line control,

3)slow start(startup time is adjustable), adjustable of speed of cross yarn,

4)meter count

5)suitable for 2 to 1,3 to 1, 4 to 1

Machine model	FHTDTK-D
Number of spindles	24(6 spindles/group)
bobbin type	flat bobbin or cone(optional)
Spindle gauge	mm
Layout	Single side
Power Supply	380V 50HZ 3phase
Max.package diameter	250mm
Take-up traverse	152mm
spindle power	120w
Take-up speed	Max. 1000 meters/min
Max.yarn diameter	≤280mm
Friction roller specification	flat bobbin or cone (optional)
Driving	Individual
Auto Stop Device	Motion sensor
Electronic Anti-Stack	Inverter control
Auto-waxing device	Optional installed
Cleaner device	Optional installed
Electronic Yarn Clearer	Optional installed
Air Splicer	Optional installed
Blower cleaner	Optional installed
Lighting System	Optional installed
Dimensions	L 1454 x W 690 x H 1600 mm
Weight	200kg/group
