Industrial automation application magnetic smart gripper used on the end of robot arm
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (60814472758):
Product Overview
Description
Product Description

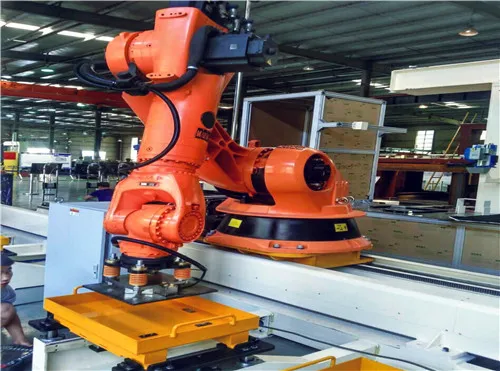

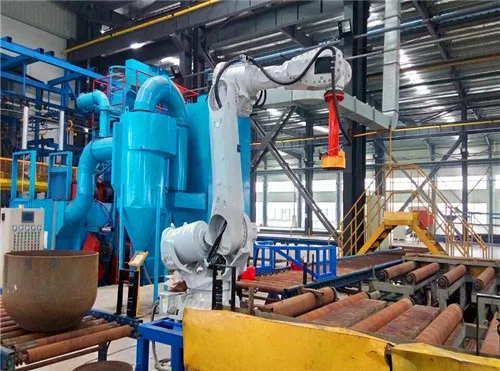

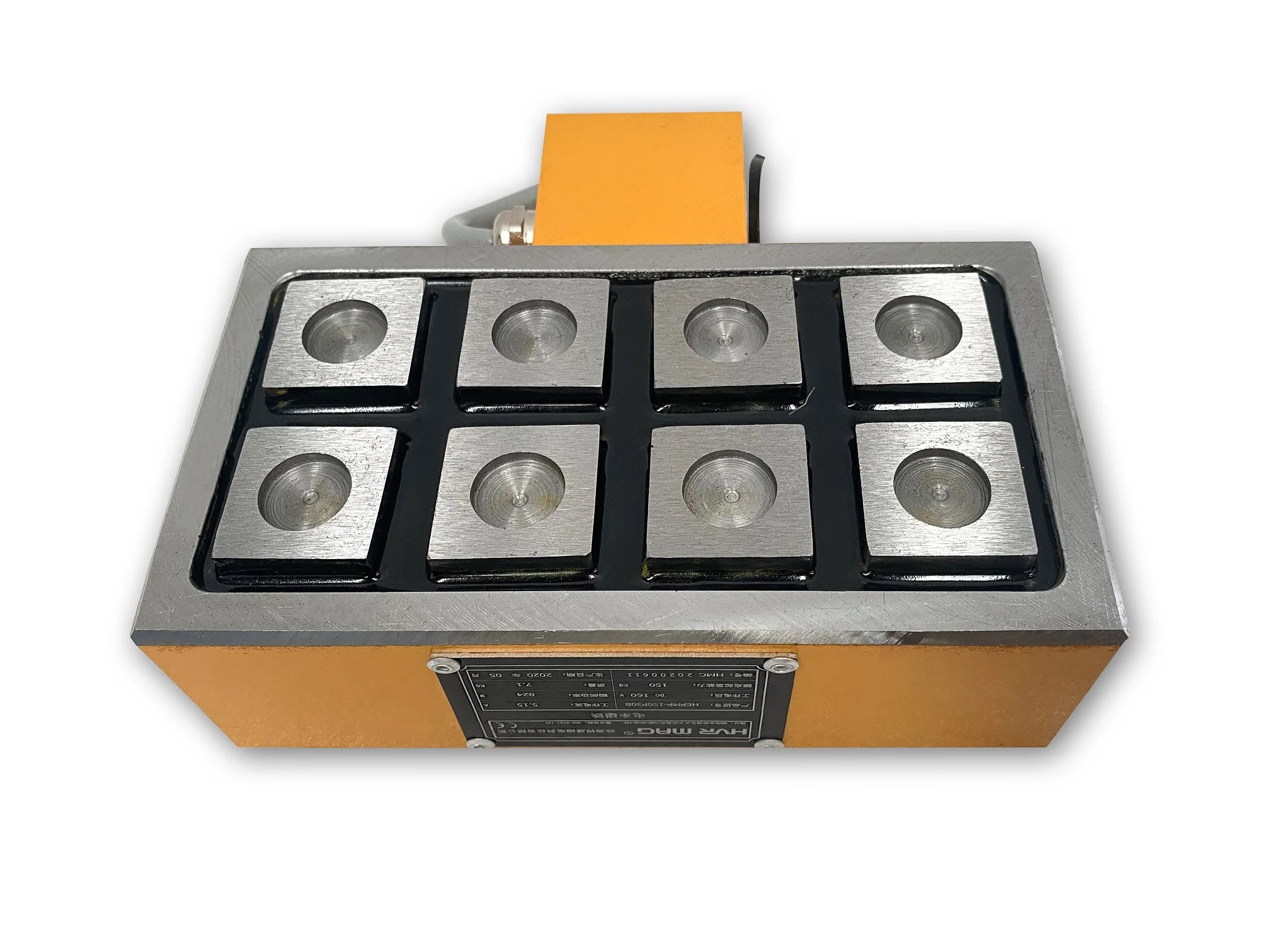

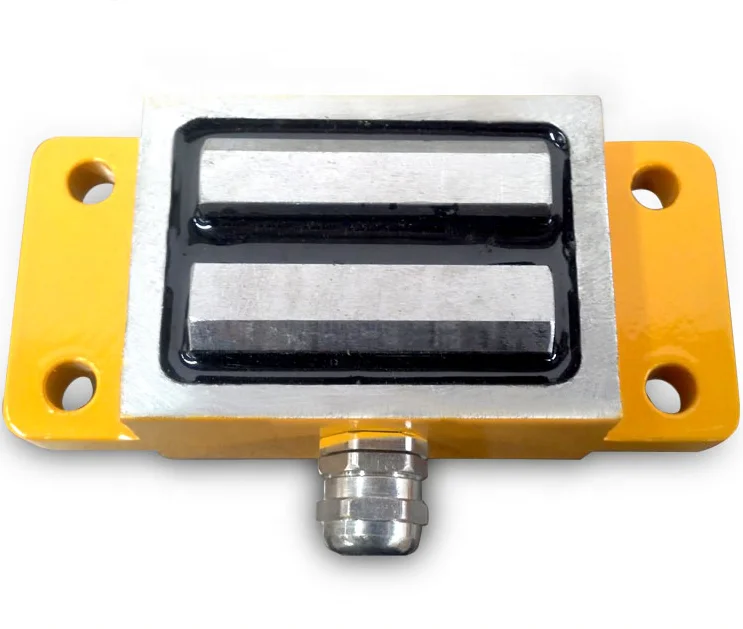

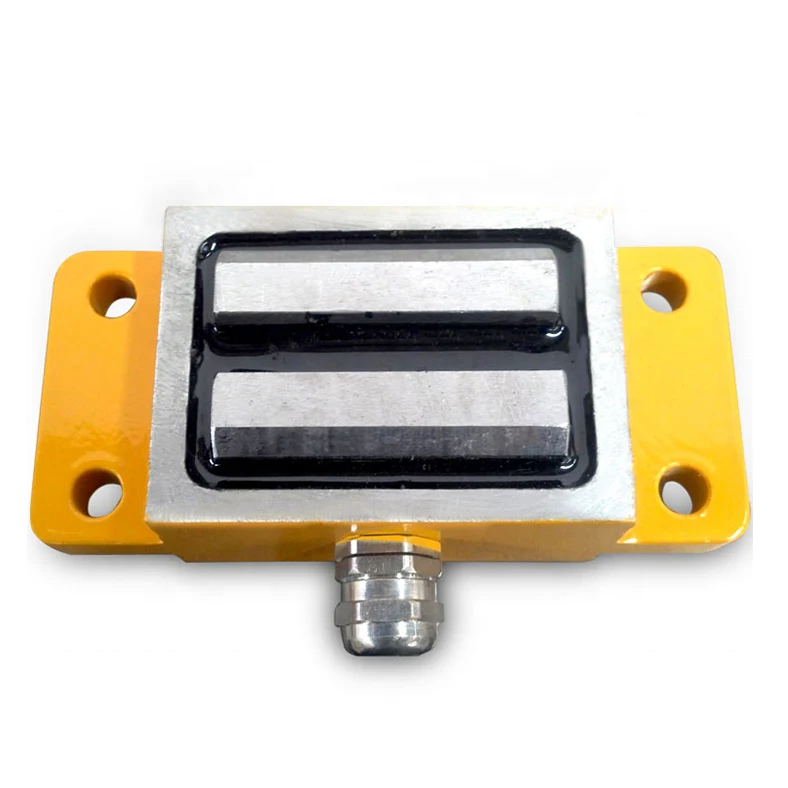

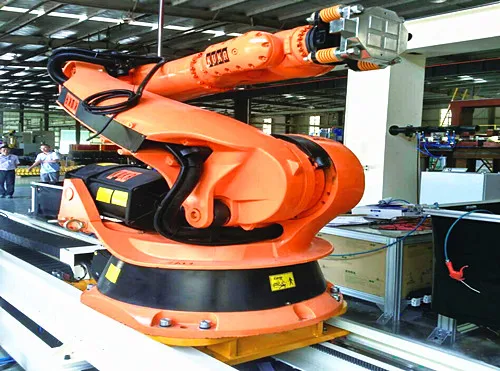

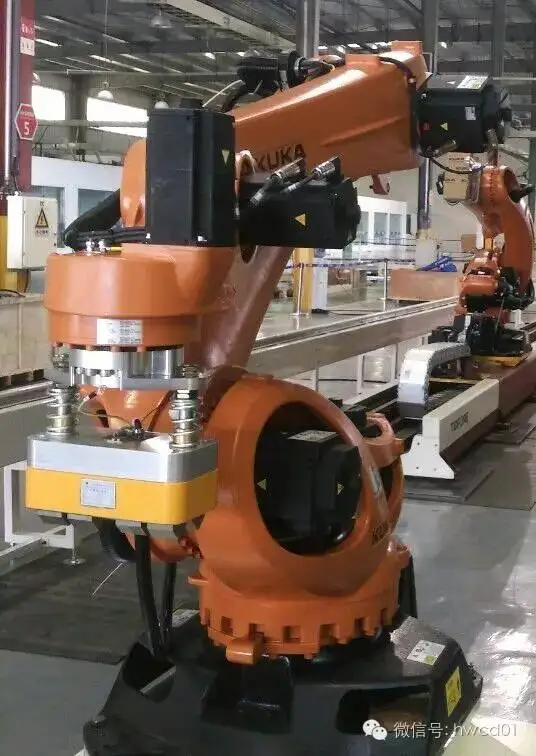

It's a electro permanent holding magnet , combines the advantages of both permanent magnets and electromagnets, the electro permanent magnetic gripper is being used in the end of arm tooling for a robotic arm safely handling various parts for machining.
HVR MAG with 31 R&D engineers and 29 R&D patents , are able to provide ONE STOP SERVICE for holding magnet for automation of industry application, if below product is not you are looking for , please feel free to contact us for OEM service to full fill your detail requirement.
Features:
1. Lightweight to maximize end-of-arm capacity.
2. Strong magnetic clamping force up to 16kg per cm².
3.100% safey even sudden power off the loads will not drop off.
4. High stable performance since it's cool system and no moving parts inside.
5.Special magnetic pole is available for taking care any kinds of steel load.
6.Wth PLC interface can work with robot or machinery easily.
7. Uniform clamping force keep the loads in high quality , no deforming.
2. Strong magnetic clamping force up to 16kg per cm².
3.100% safey even sudden power off the loads will not drop off.
4. High stable performance since it's cool system and no moving parts inside.
5.Special magnetic pole is available for taking care any kinds of steel load.
6.Wth PLC interface can work with robot or machinery easily.
7. Uniform clamping force keep the loads in high quality , no deforming.
Application:
• Transfer lines
• Conveyor lines
• Pick and place equipment
• General engineering
• Robotics
• Robotics
• Packaging machinery
• Palletising/depalletising systems
• Palletising/depalletising systems
Product Paramenters
Model | Rated lifting force （≥16mm） | Plate thickness | Max. pulling-out force | L | W | H | Weight | Pole | Pole number |
HEPMP-1510P50 | 160kg | ≥6mm | 650KG | 150mm | 100mm | 72mm | About 8kg | 50X50 | 2 |
HEPMP-320P50 | 320kg | ≥6mm | 1300kg | 180mm | 180mm | 72mm | About 17kg | 50X50 | 4 |
HEPMP-500P50 | 500kg | ≥6mm | 1950kg | 250mm | 180mm | 72mm | About 23kg | 50X50 | 6 |
HEPMP-720P50 | 720kg | ≥6mm | 2925kg | 250mm | 250mm | 72mm | About 32kg | 50X50 | 9 |
HEPMP-2012P70 | 320kg | ≥8mm | 1100kg | 190mm | 110mm | 72mm | About 12kg | 70X70 | 2 |
HEPMP-2020P70 | 640kg | ≥8mm | 2200kg | 200mm | 200mm | 72mm | About 22kg | 70X70 | 4 |
Packing & Delivery
* Customized wooden case for all-round protection
Company Profile
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q：HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for robot arm safely handling various parts for machining based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for robot arm safely handling various parts for machining based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
