U71Mn Chinese Standard Steel Rail QU80 Crane Rail

Product Overview

Description

U71Mn Chinese Standard Steel Rail QU80 Crane Rail



 Product Description



Product Name	U71Mn Chinese Standard Steel Rail QU80 Crane Rail
Type	Crane Rail
Material	U71Mn
Length	12m
Standard	YB/T5055-93
Brand	Yong Yang
Product Origin	Hebei, China (Mainland)

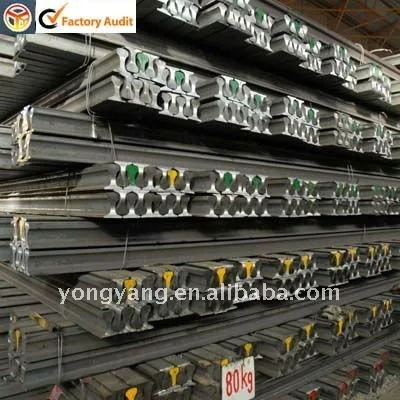

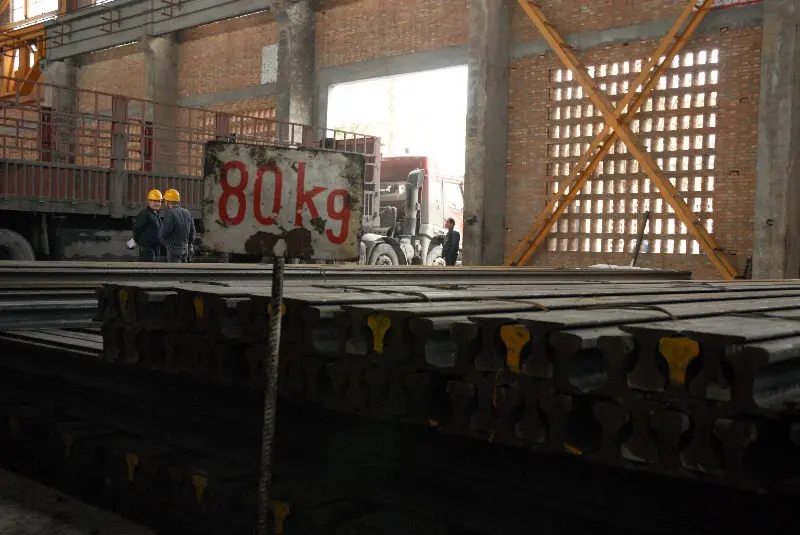

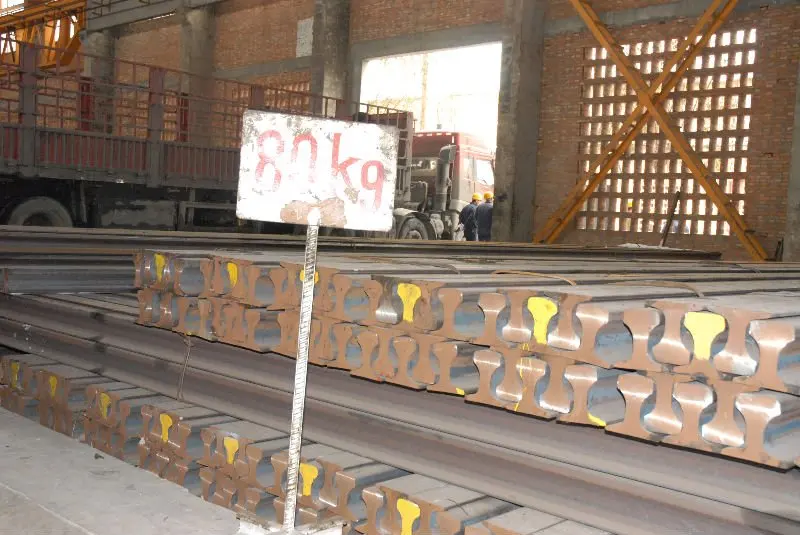

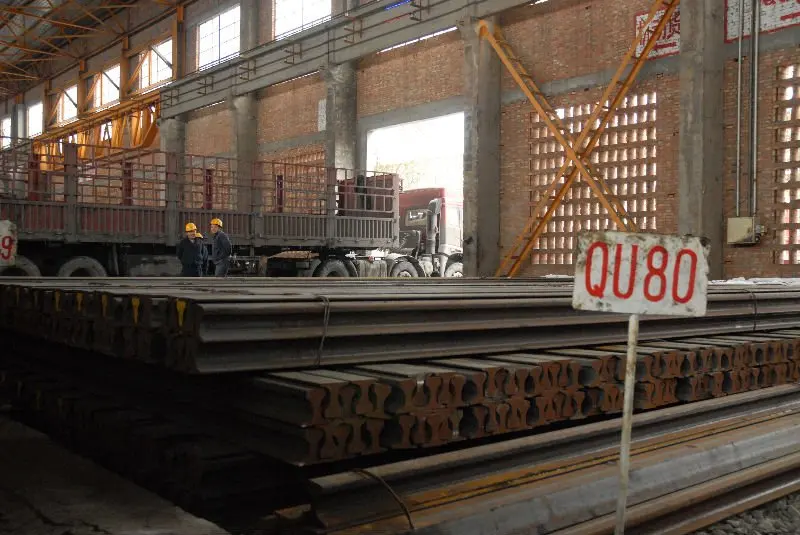

 Detailed Images





















 Inventory



Model	Height(mm)	Bottom (mm)	Head (mm)	Web(mm)	Length per piece (m)	Material
8kgs/m	63.50	52.50	24.00	6.50	6	Q235
25kgs/m	69.85	69.85	38.10	7.54	6	Q235
15kgs/m	79.37	79.37	42.86	8.33	6,8,9,10	Q235/55Q
18kgs/m	90.00	80.00	40.00	10.00	6,8,9,10	Q235/55Q
22kgs/m	93.66	93.66	50.80	10.72	6,8,9,10	Q235/55Q
24kgs/m	107.00	92.00	51.00	10.90	6,8,9,10	Q235/55Q
30kgs/m	107.95	107.95	60.33	12.30	6,8,9,10	Q235/55Q
38kgs/m	134.00	114.00	68.00	13.00	12,12.5	U71MN
43kgs/m	140.00	114.00	70.00	14.50	12,12.5	U71MN
50kgs/m	152.00	132.00	70.00	15.50	12,12.5	U71MN
QU70	120.00	120.00	70.00	28.00	12	U71MN
QU80	130.00	130.00	80.00	32.00	12	U71MN
QU100	100.00	150.00	100.00	38.00	12	U71MN
QU120	170.00	170.00	120.00	44.00	12	U71MN





 Company Information



1.We are a professional manufacturer of all types of industrial rails under Chinese Standard which are used for mining or other industrial projects, and our main products include light rails, heavy rails, and crane rails, and accessories of fish plates, bolts and nuts etc. We have more than 20 years of history supplying above products.
2.We have continuously tried to improve product quality. Our annual production capability is more than one million tonnages.
3.Our products have already been exported to Poland, Romania, Russia, India, South America, Singapore, Philippines, Vietnam and Hong Kong, in 2001, we obtained the ISO9001:2000 quality management certification.
We hope to cooperate with more customers for mutual development and benefits.



Welcome your inquiries!
