Product Overview

Description


Power LED Package Blue Diode 440nm 450nm  460nm 470nm 480nm 490 nm 500nm LED 3W 5W 100W Epileds Chip






Product Description


Notes:


These are just retail prices, if you have bulk order, please contact our salesmen/saleswomen for the latest prices. Thanks.





When choosing the shipping method, please make sure that your address is not remote area for the epxress service,


if you do not know how to check it, please feel free to contact our salesmen/saleswomen to check it for you.





3W High Power LED Blue:


HP LED Blue.jpg


3W High Power LED Red:


HP LED 660nm


 3W High Power LED Green:


HP LED green.jpg

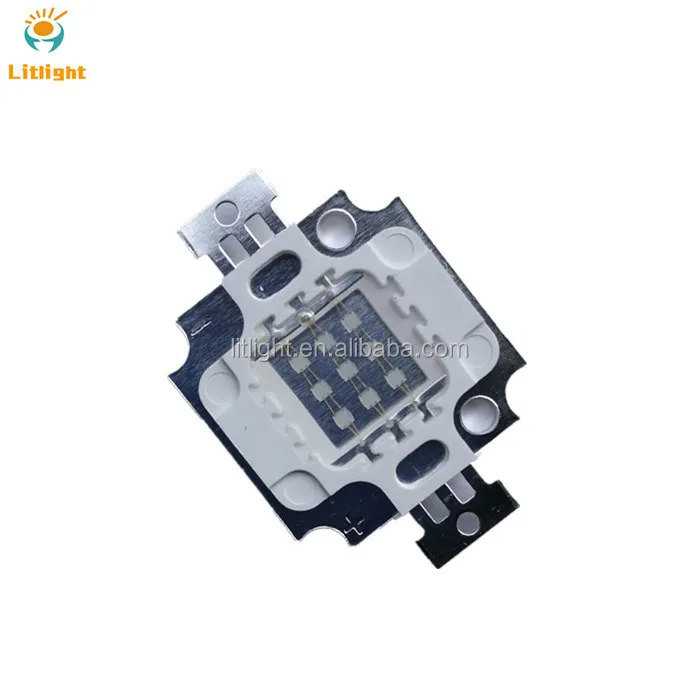

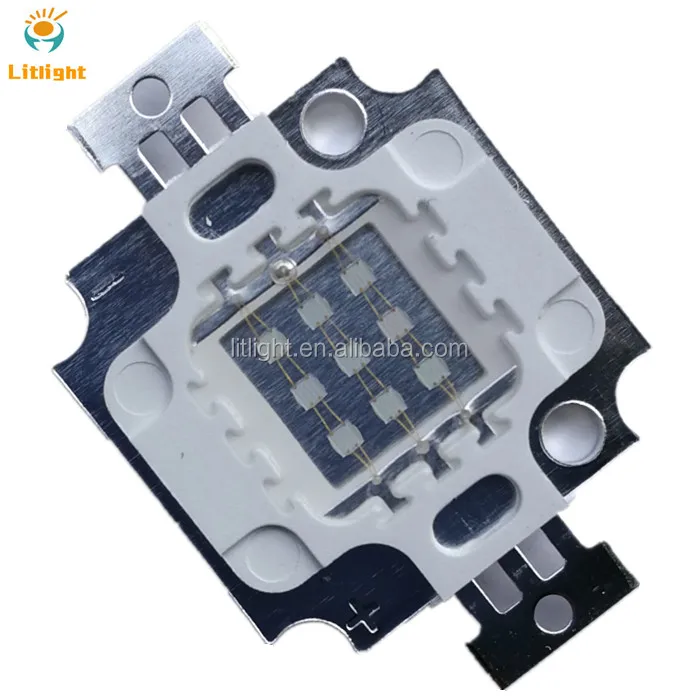

10W High Power LED:


10w cob led uv


20W High Power LED:


cob ir led 20w

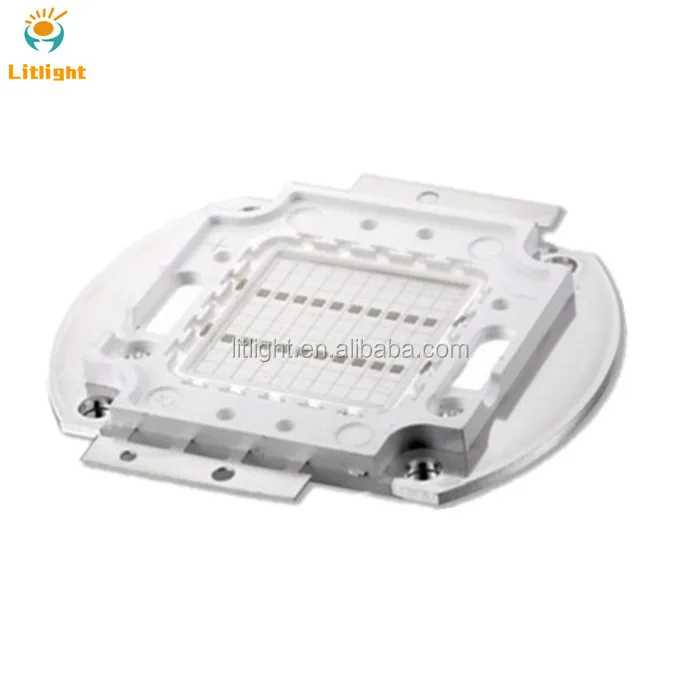

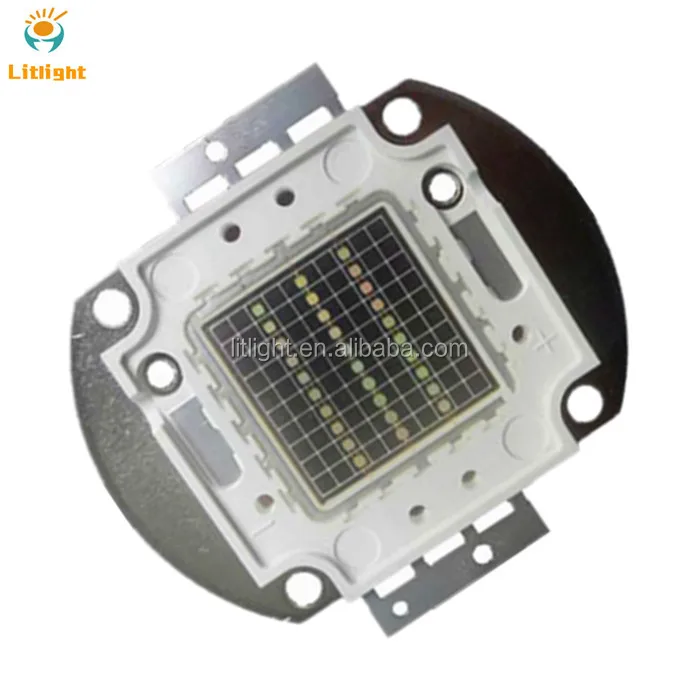

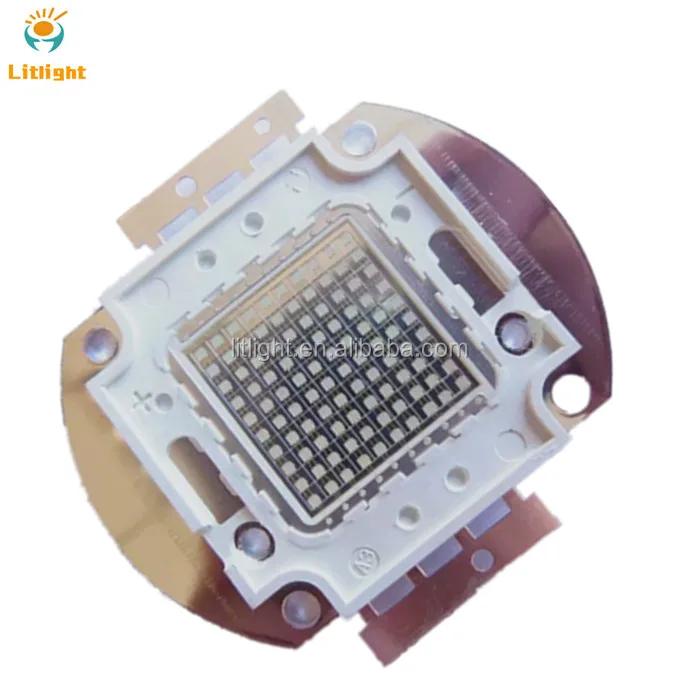

100W High Power LED:


100w cob blue

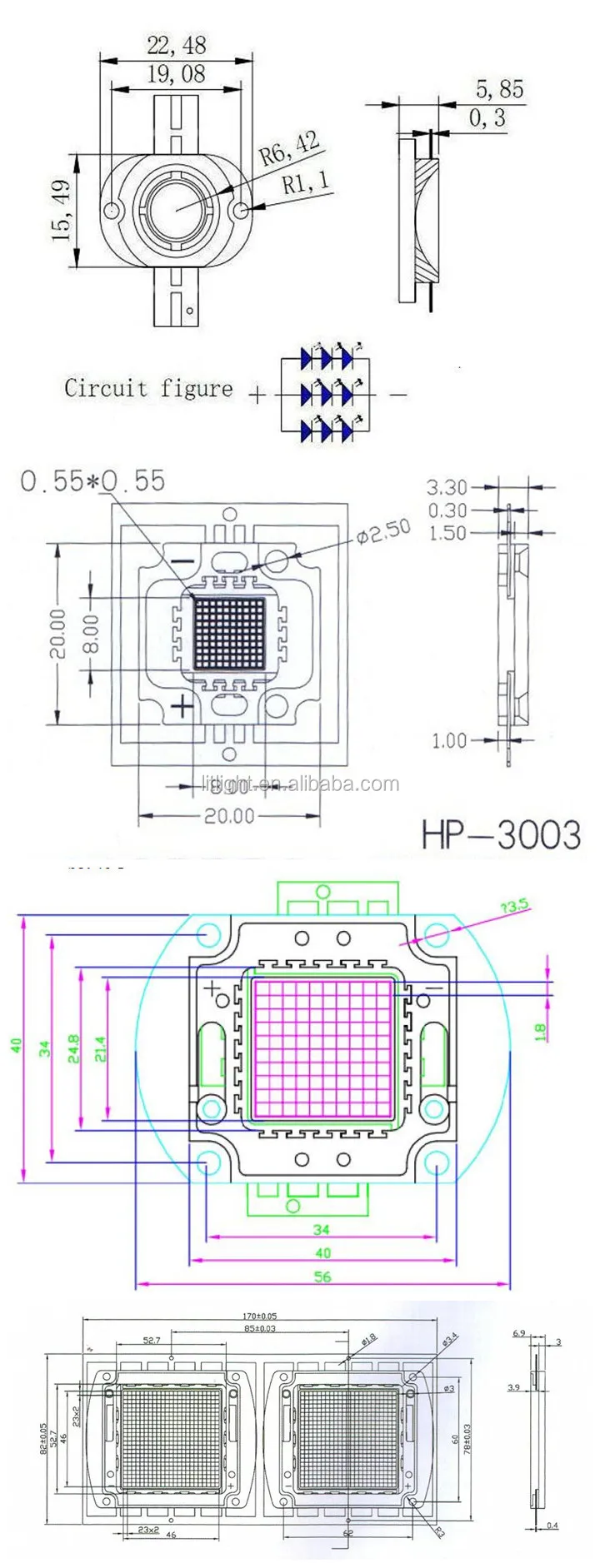

HP LED size.jpg













































































Electro-Optical characteristics (TA=25°C)



Parameter



Test


Condition



Symbol



Color



Value



Unit



















Min



Typ



Max







Forward voltage



IF=700mA



Vf



B



3.0



--



3.6



V



luminous flux



IF=700mA



φ



B



90



--



110



LM



Viewing angle at 50% IV



IF=700mA



2θ1/2



B



--



120



140



Deg



Dominant wavelength



IF=700mA



λd



B



490



--



500



nm



Reverse current



Vr=5V



Ir



B



--



5



--



μA



 LLEHP catalog 1.pngLLEHP catalog 2.pngLLEHP catalog 3.pngLLEHP catalog 4.png


factory 2


High Power led packing.jpgpayment methods.jpgshipping method.png





FAQ





Question 1. Can I have a sample order of the led?
A: Yes, we welcome sample order to test. Mixed samples are acceptable.


Q2. What about the lead time?
A:Sample needs 1-3 working days, mass production needs 3-7 working days if order quantity more than 10K.

Q3. Do you have any MOQ limit for led light order? What's the Payment method?
A: MOQ is 10pcs for each model. We accept Alibaba Trade Assurance(Credit card or T/T),Paypal, and Western Union payment.


Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-6 working days to arrive. Airline and sea shipping also are optional.

Q5. How to proceed an order for the led?
A: for some products, you can buy on our web directly; otherwise, please contact our sales:


Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.


Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new LEDs with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.








Our Services





· Reply your inquiry within 12 working hours


· Well-trained and experienced staffs to answer all your inquiries in fluent English.


· Strict quality control procedures before shipment.


· Customized design is available.OME and ODM are welcomed


· Delivery the goods to our customer all over the world with speed and precision.
