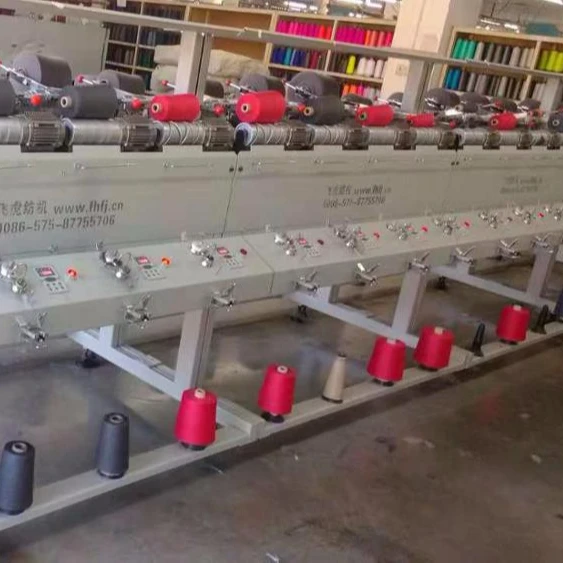

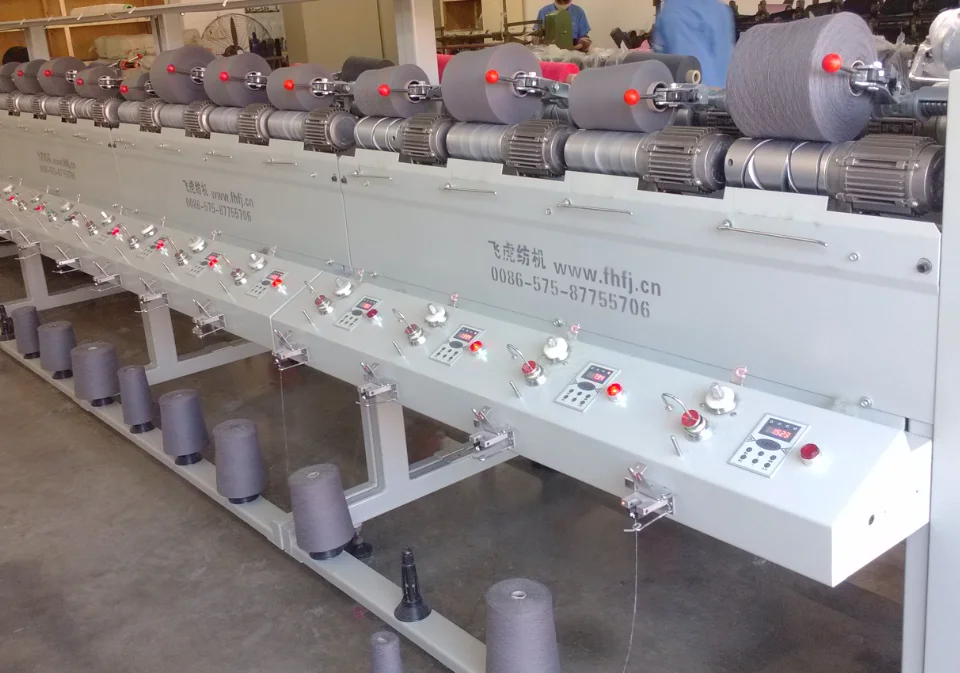

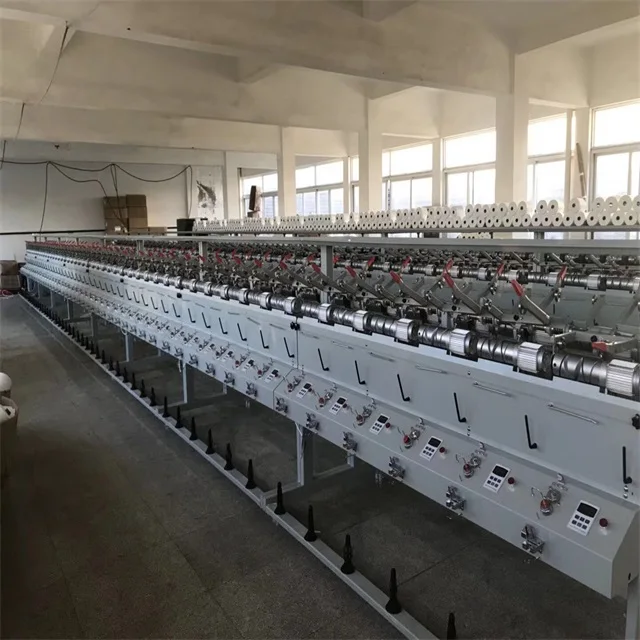

Feihu textile hard Winding Machine manufacturer / yarn cone winder
- Category: Apparel & Textile Machinery >>>
- Supplier: Zhuji Feihu Textile Machinery Co. Ltd.
Share on (60814580504):
Product Overview
Description
Buying Guides

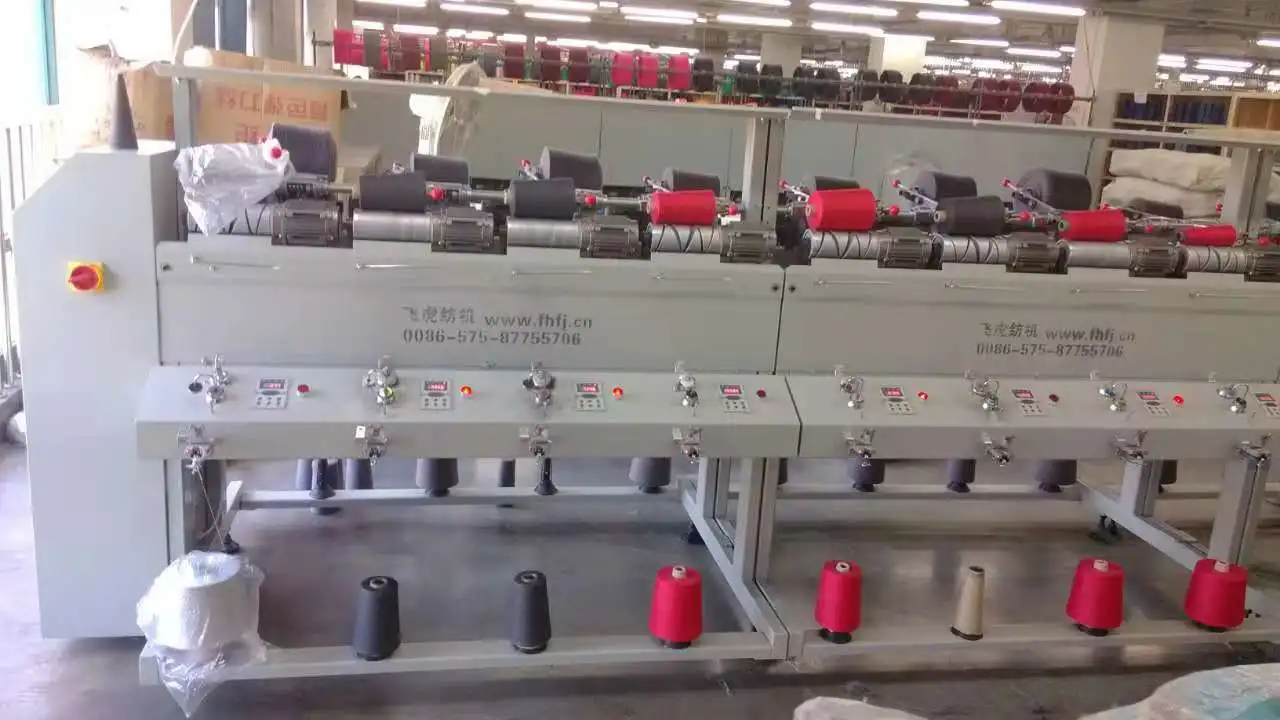

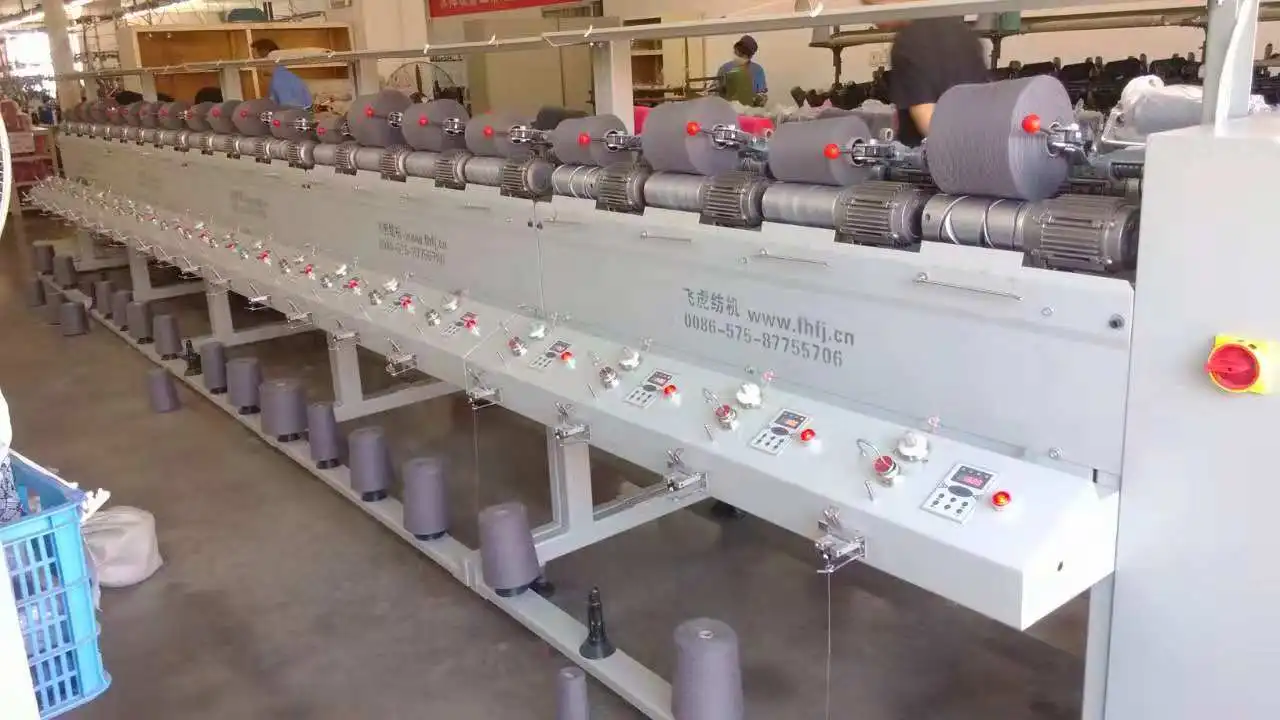

FHCT-J HARD DRUM CONE TO CONE YARN WINDING MACHINE
Product description
Grooved drum of super plastic alloy material, high strength, light weight, groove design guide has an excellent performance broad applicability, the surface adopt the new technology of polishing,Ra< 0.8/um roughness, hardness HV > 900,Computer dynamic balance correction to meet high speed and low noise.
2. Electric rotary waxing device to ensure that the yarn wax evenly.
3. Individual spindle control, slow start, the line speed is adjustable, broken yarn stop and alarm functions.
4. Advanced touch screen interface.
Product name | FHCT-J Hard drum cone to cone yarn winding machine |
Number of spindles | max.9 group for 1set, total 108 spindles. (Normal 7 group 84 spindles) Customer selection |
Groove drum | 0/D 82mm, spindle distance 2.5, symmetry0" |
Layout | Single side or double side |
Power Supply | 3 phase 5 wires,380V 50HZ (Optional) |
Spindle power | 120w/spindle+5W(wax)+cleaning |
Winding speed | 600-700m/min(Speed adjustable) |
Parameter design | Individual or touch screen interface control (Fixed - length, slow - start, adjustable speed, broken yarn auto stop) |
Tube type | 3° 30'; 4° 20'(462); 5° 57'(468) |
Max. speed | 2800R/min. |
Diameter | 250mm |
Dimensions | L 2230 x W 1100 x H 1600 mm ( 12 spindles) |
Weight | 350KG/GROUP |
