LOOSAFE CCTV 4CH 1080P AHD Kit P2P camera analog H. 264 DVR Video surveillance camera system Waterproof Outdoor
Features:
Video compression: H.264
Encode capacity: 4x 1080N @25FPS, NTSC @30FPS

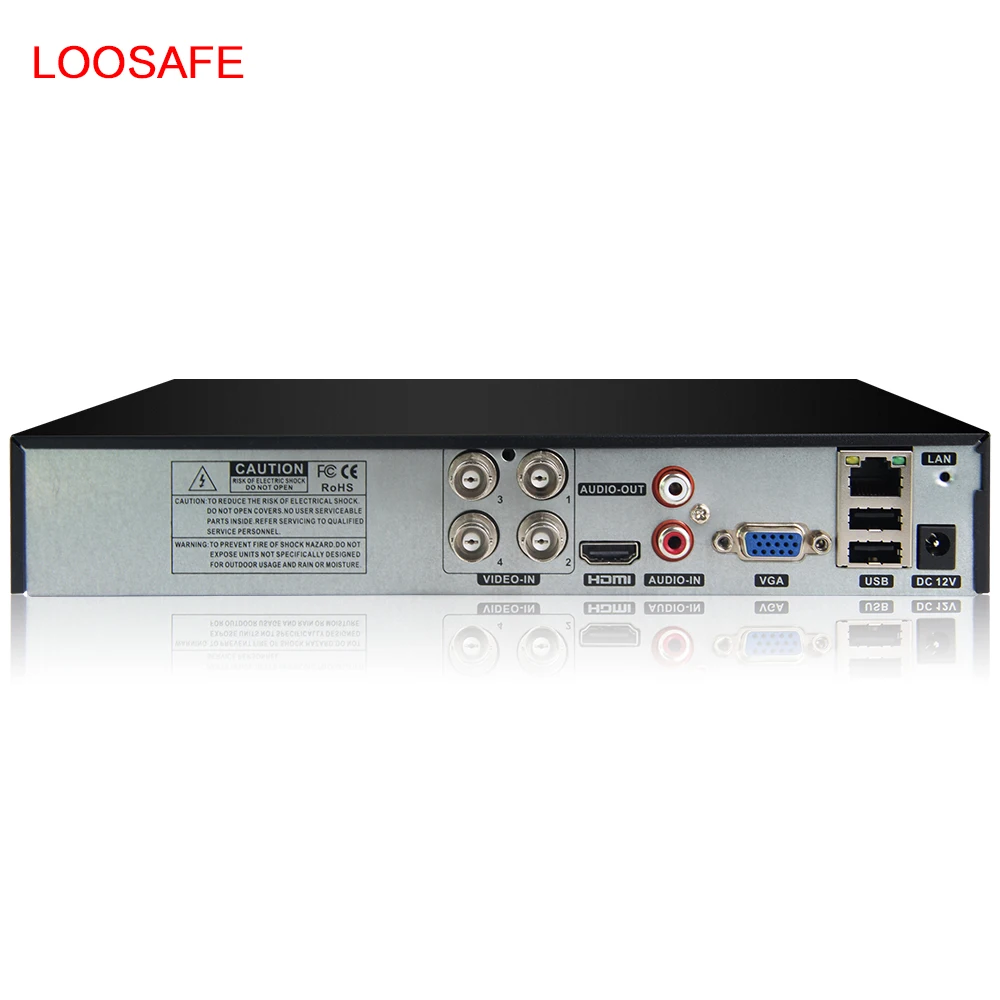

Video input/ output: 4CH BNC/ 1CH VGA,
Audio input/ output: 1CH RCA/ 1CH RCA
Recording , Playback , Backup resolution: 720P/1080N
USB: 3x USB 2.0
HDD: 1xSATA port (Max support up to 8TB)
IP Camera Specification | |

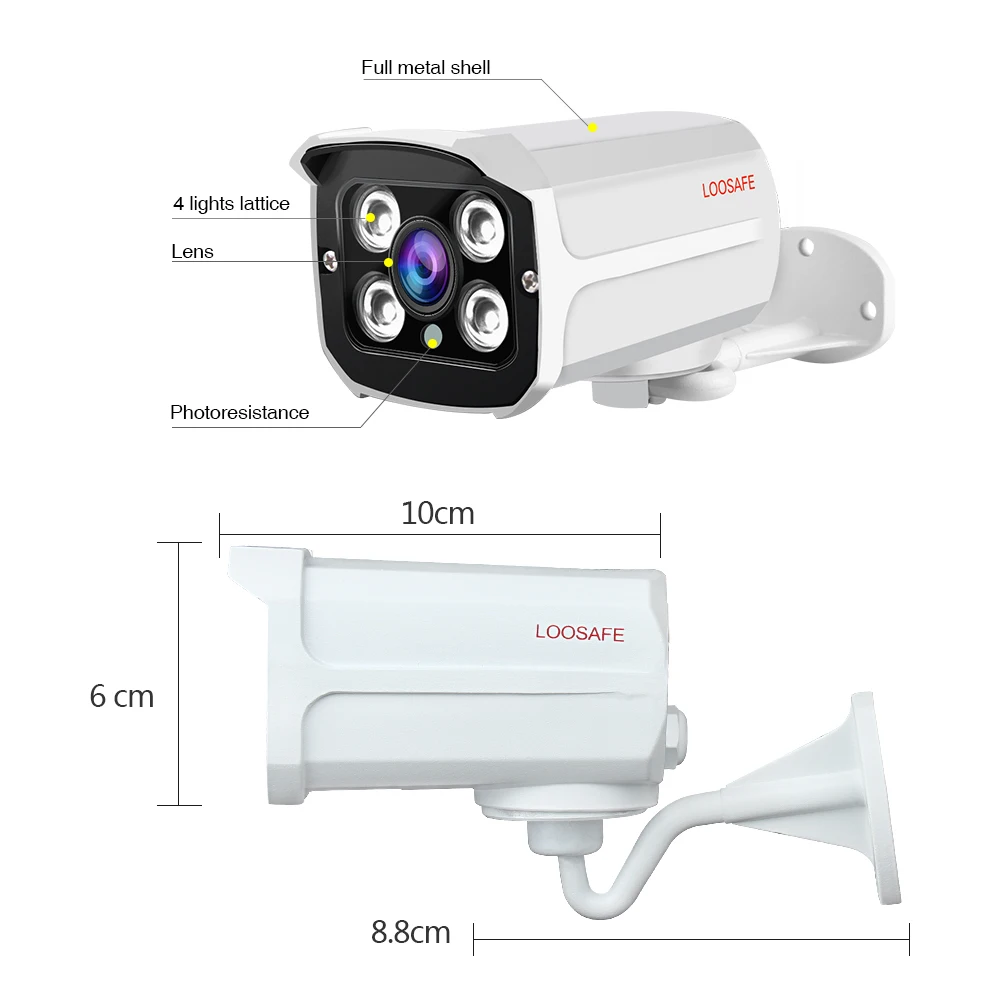

Name | 1080P Starlight AHD camera |
Video Definition | PAL |
Sensor | PIXELPLUS2211 |
Resolution | 1920*1080 |
Lens | 3.6/ 6 MM for optional |
Min. illumination | Color: 0.01Lux@ (F1.2, AGC ON), 0Lux with IR black: 0.001Lux@ ( F1.2,AGC ON), 0Lux with IR |
Video Compression | 50Hz: 25fps & 60Hz: 30fps |
Transfer Distance | 500m via 75-3 coaxial cable |
IR | EXIR: 30M |
Day & Night | Auto / Color / BW |
Remote control on phone | Android/ IOS |
Network Protocol | TCP/IPF/FTP/PPPOE/DHCP/DDNS/NTP/UPNP |
Storage Location | AHD camera, Computer |
Device Port | 1*DC power port, 1*BNC port |
Working Temperature/Humidity | -15 °C to +60°C , Humidity < 90%, |
Waterproof Level | IP66 |
Power Input | DC12V±10% ( 2A )/24W |
Size | 155*90*65 MM |
AHD DVR Specification | |
Operating system | CMS Centralized management |
System source | Concurrent multi-channel,video,operate |
ImageCompression | H.264 |
Video Storage | Local save |
Realtime View Resolution | 2.0 MP HD |
Video method | Hand-actuated/ Alarm/Dynamic detection |
Video file | 944*1088PX |
Storage Capacity | Max 8TB |
Backup | Network/ Hard drive/Sata |
Network Interface | 4*RJ45 10M/ 100M Internet Port |
USB Interface | 3* USB2.0 Interface |
Hard disk port | 1*SATA |
Temperature | -10°~55° |
Humidity | 10%-90% |
Power Consumption | ≤5W |
Power Input | DC12 V / 2A |








LOOSAFE
Shenzhen Loosafe Electronic Technology Co., Ltd. was founded in 2005, specializingin surveillance products
research and development, strict quality control processes,professional servicefor customers to create the
perfect video security monitoring overall solution program. We have a wide range of surveillance products
chain includingwireless WIFI cameras, high-definition network cameras, Analog / AHD camera, CCTV system
kits, DVR, NVR, video capture card, surveillance accessories and LCD monitor.
More product styles may be more attractive to !
click below product image learn more details.

We can promise the quality of camera.It is more competitive.
All of our products can be customized.Any sizes,shapes,designs,logos meet your requlrement,before quote you the price . we will be appreciated if you can provide the information below:
1.Camera type
2.Material structure and thickness.
3.Camera size(width & Length & High)
4.Printed logo
If you are not clearly we will recomnmend for you. With above informaiton we can quote exact price immediately More product styles may be more attractive to you!
Warm reminder1:
In addition to the above products,we can customize the production of the following:
POE NVR,H.265 NVR IP ,H.265IP Camera,Bullet Camera, IP Camera (wireless ip camera ),HD Alnalog Camera(Bullet camera,Dome camera) ,DVR/NVR ,Panorama Fisheye Camera ,
CCTV Security Kit(wifi NVR Kit ,NVR kit,DVR kit)
Warm reminder2:
Save time quickly get customized products prices,just provide the information below:
1.Camera type
2.Material structure and thickness
3.Application of the camera scene
4.Bag size(width &Length &high)
5.Color of the camera
6.I possible pls prouide the pIcture or artworkof the camear ,If you are not cleatly we will recommend for you .
With above informatton we can quote exact price immediately.
1.Reply your inquiry in 12 hrs.
2.Any professional question would get a professional answer.
3. All item of every order enjoy 2 year warranty from the date of shipped on board.

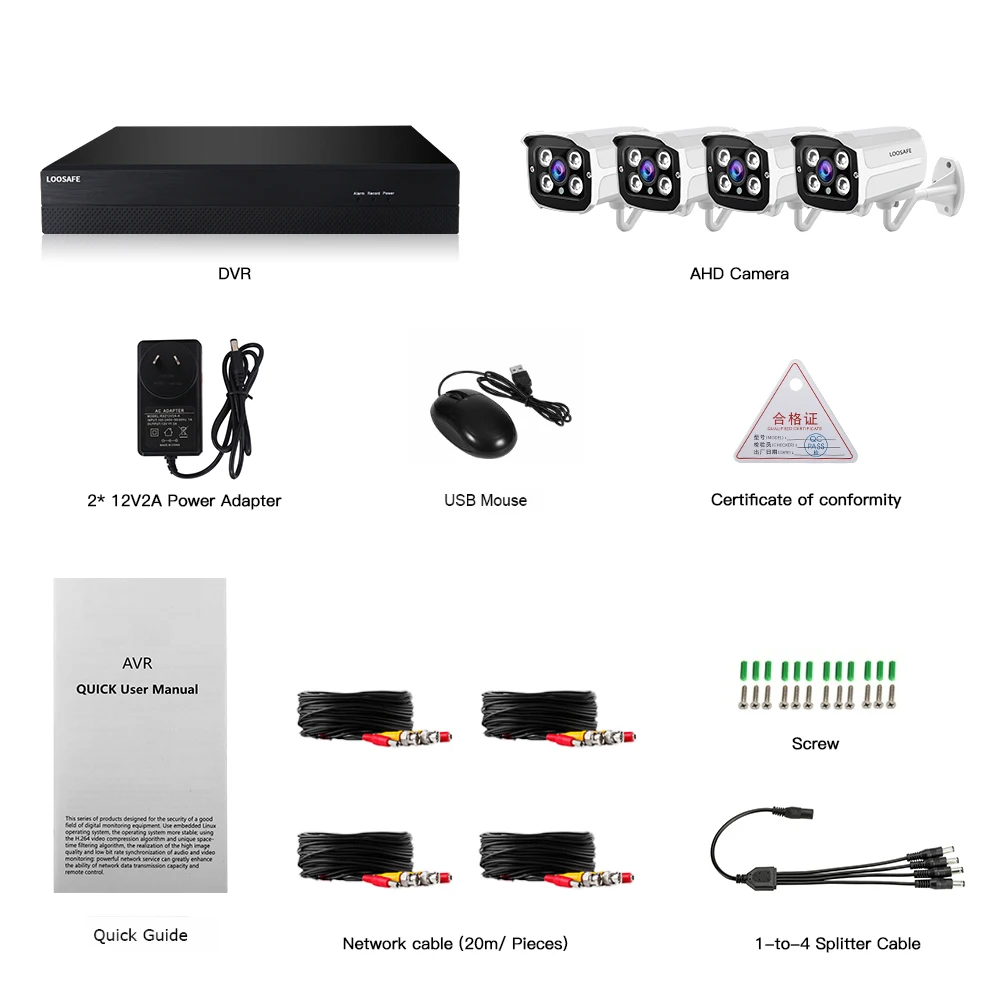

Package Includes
1 X 4CH Security 5 in 1 DVR Recorder
1 X Power Supply for DVR
1 X USB Mouse
1 X User's Manual
4 X 1080P Waterproof Cameras
4 X Video Power 20m BNC Cable
1 X 4-to-1 Splitter Cable
1 X Power supply
NO HDD
