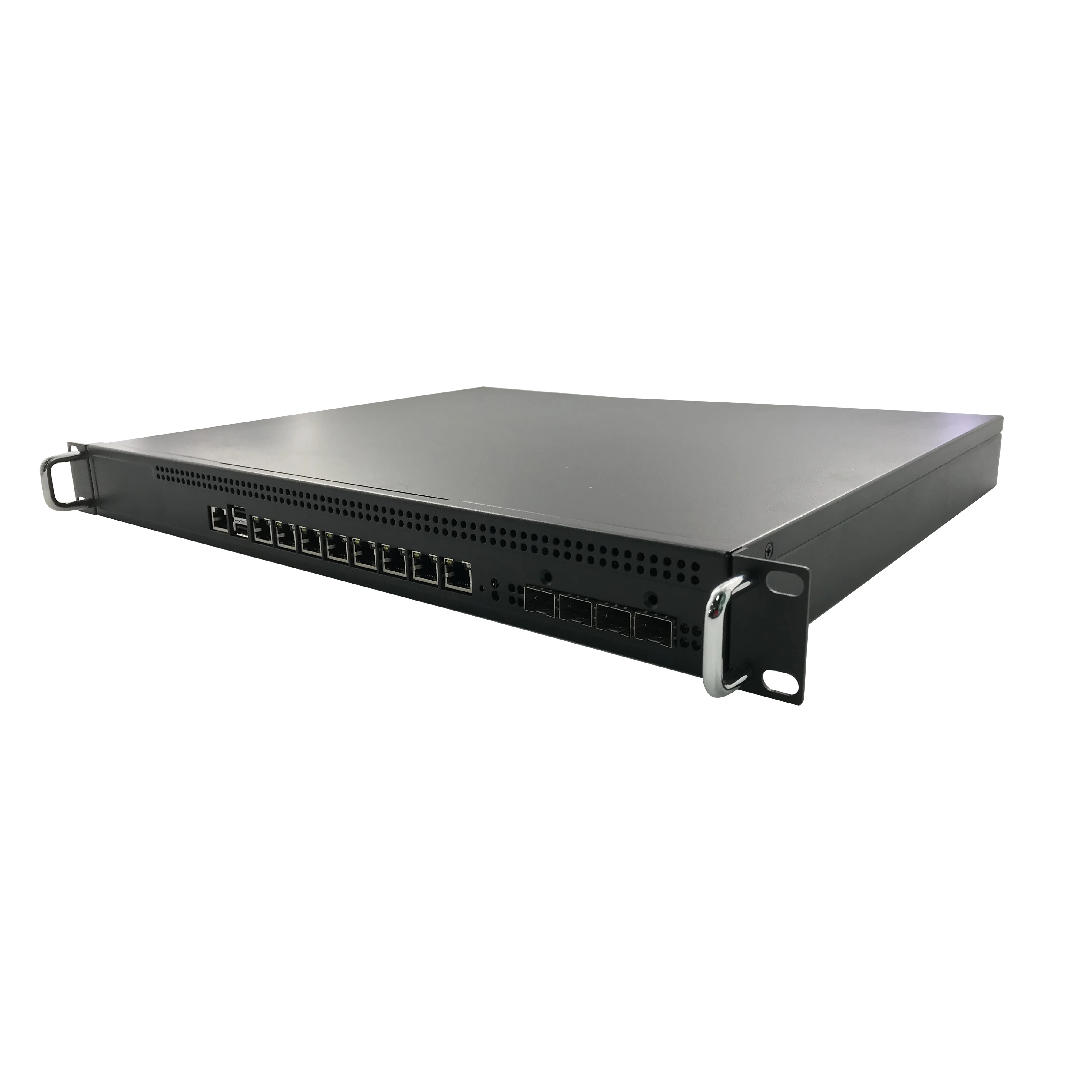

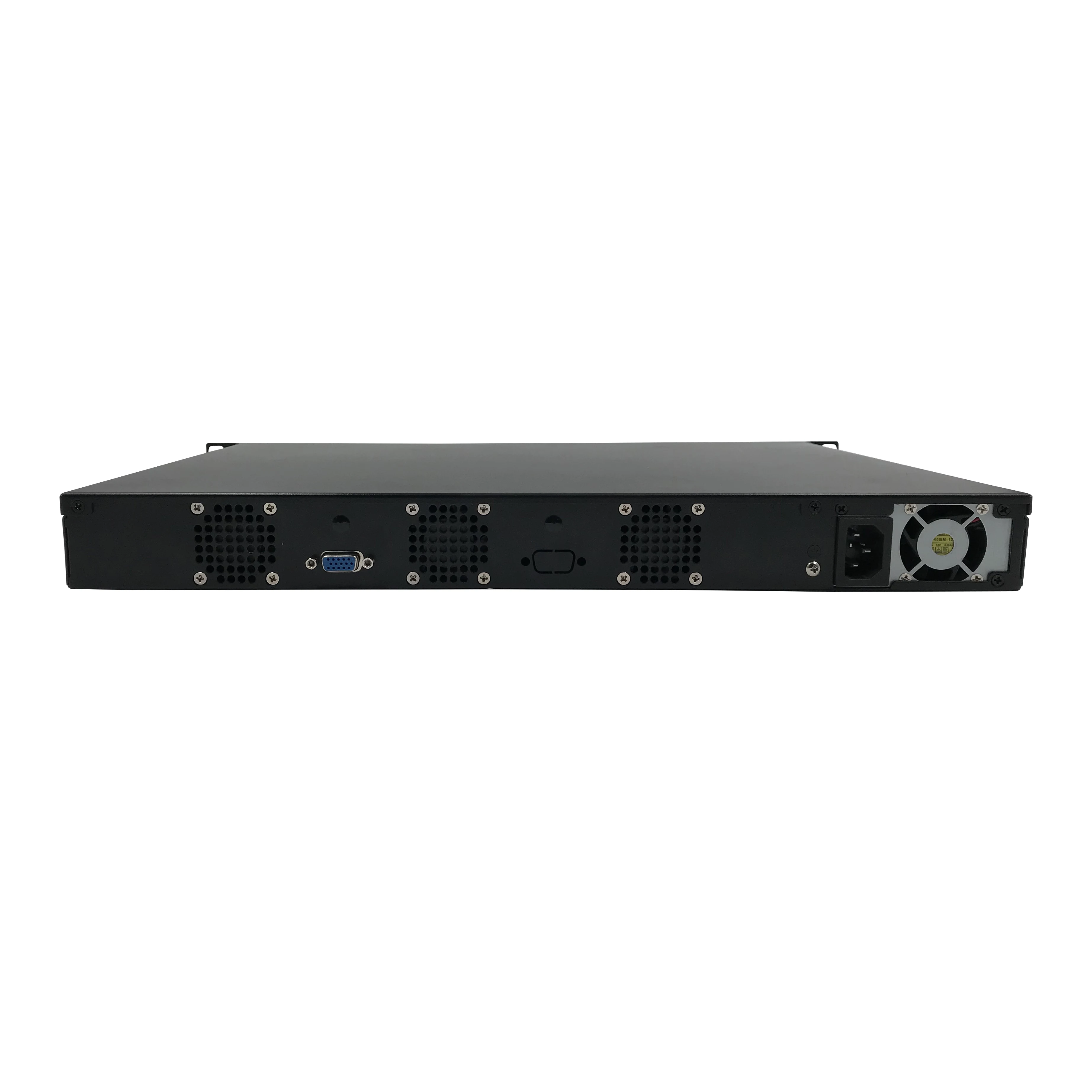

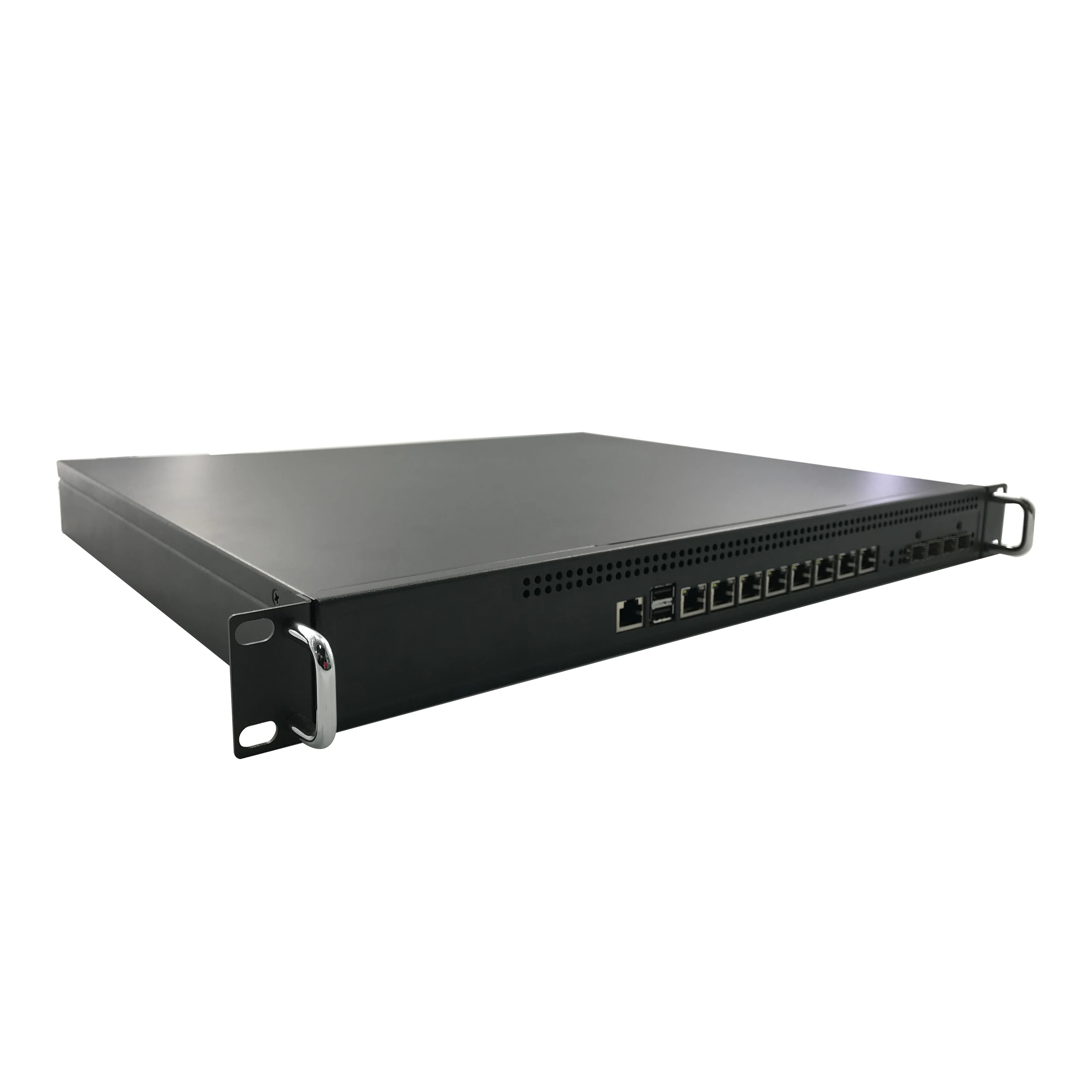

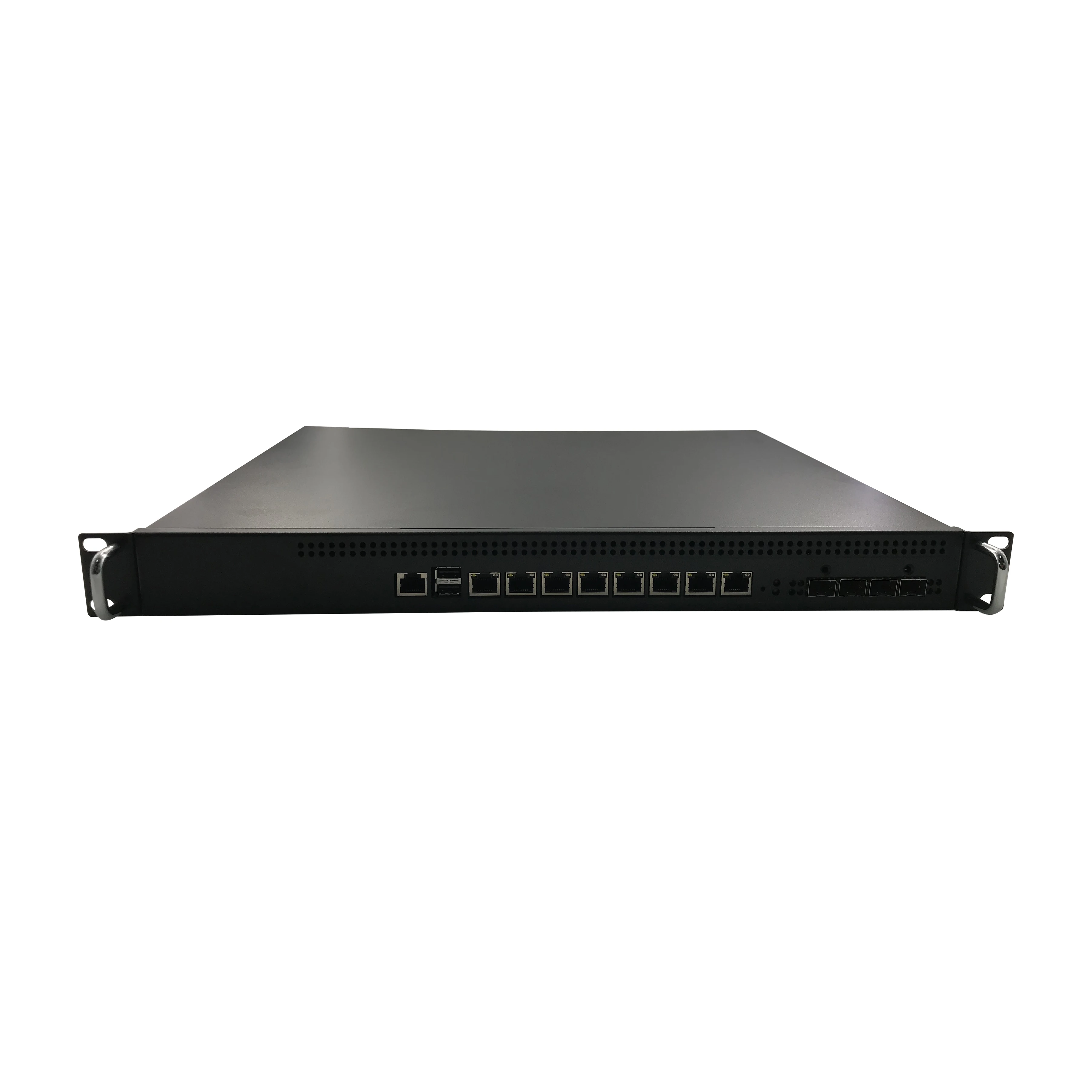

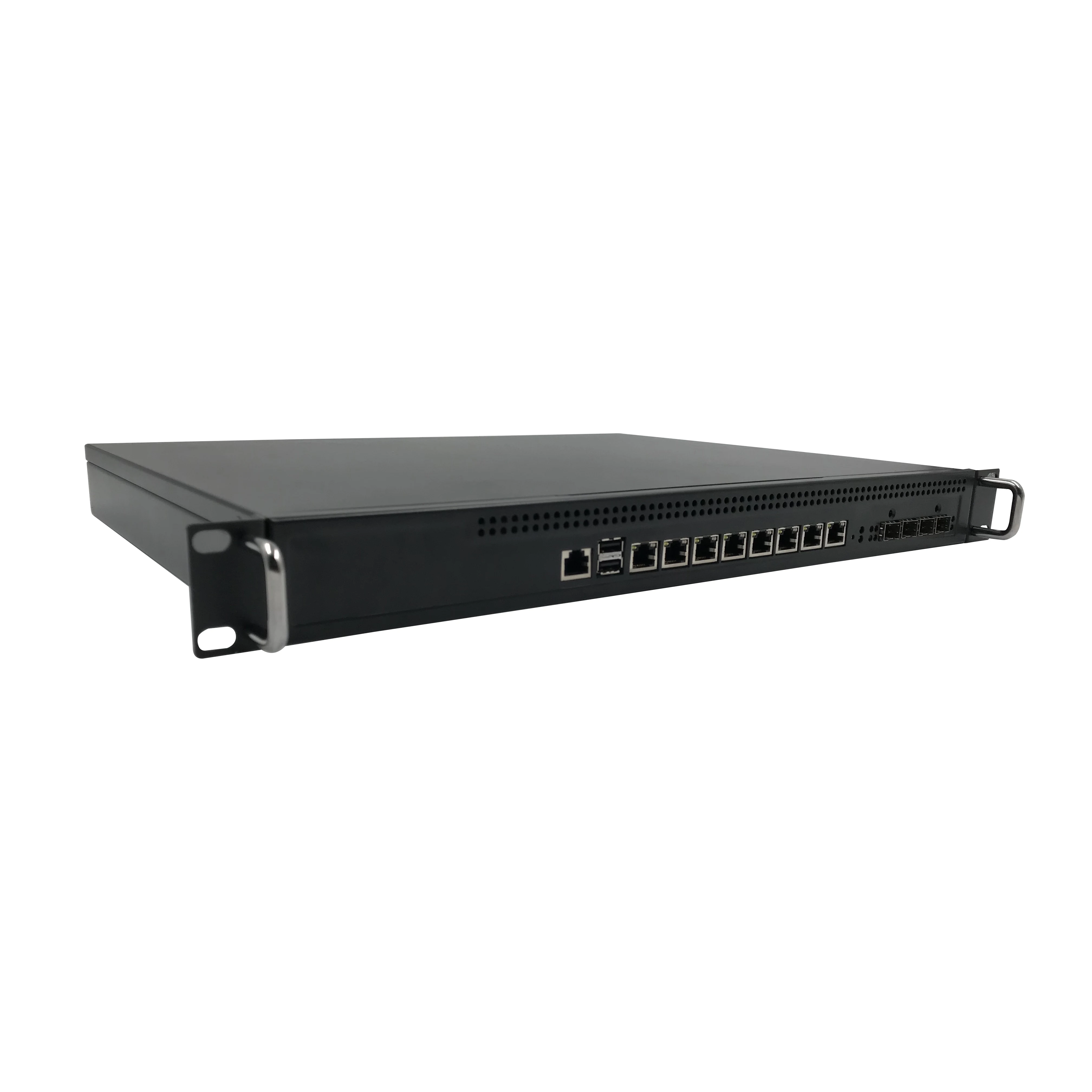

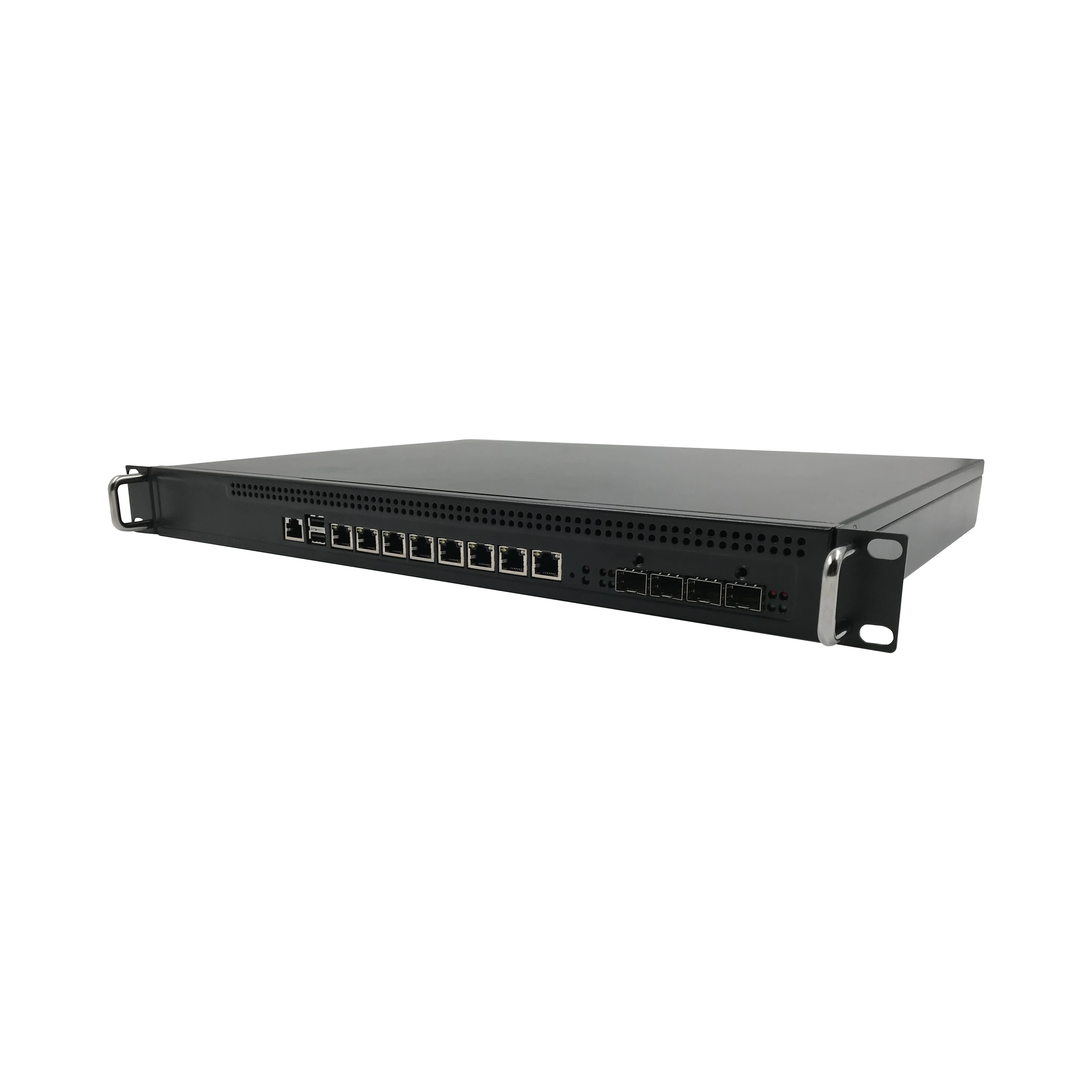

1U Rackmount Network Appliance with Intel Core i3/i5/i7 or Xeon E3 1200 v3/v4 processors, 4 x 10 GbE SFP, mSATA

Model No.

FWA-8781-2O

Form Factor

1U 19” Rackmount

Platform

Processor Options

Intel Core i7/i5/i3, Pentium, Celeron, Xeon E3(Haswell)

CPU Socket

1x LGA1150

Chipset

Intel H87

Security Acceleration

N/A

BIOS

AMI 64Mb Flash ROM

System Memory

Technology

1066/1333/1600MHz DDR3 memory

Max. Capacity

16GB

Socket

1* SODIMM DDR3

Networking

Ethernet Ports

8x GbE RJ45 Intel 82583V/82574L
4x GbE SFP Intel 82580EB(Optional)

Bypass

I/O Interface

Reset Button

-

LED

Power/Storage

Power Button

-

Console

1x RJ45

USB

2*USB

LCD Module

-

Display

1x VGA

Power Input

1*AC Inlet

Storage

HDD/SSD Support

2x 2.5'' bays or
1x 3.5'' bay

Onboard Storage

1x m-SATA

1X 2.5'' notebook SATA port

Expansion

PCIe

-

Mini-PCIe

Yes

Miscellaneous

Watchdog

Yes

Internal RTC with Li Battery

Yes

TPM

-

Cooling

Processor

CPU fan

System

3x cooling fans

Environmental Parameters

Temperature

0℃~45℃/ -20℃~70℃

Humidity

5 ~ 90% non condensing /
5 ~ 95%, non condensing

System Dimensions

(WxHxD)

430x44.5x360mm

Weight

4.5 kg

Package Dimensions

(WxHxD)

520x130x440mm

Weight

5.2 kg

Power

Type/Watts

220W ATX Single PSU

Input

90~264V@47~63Hz

Approvals and Compliance

CE, FCC Class B

Part number

PCH

DDR3

1Gb LAN port

SFP

Console

USB 2.0

2.5'' HDD

3.5'' HDD

Mini PCIe Expansion

Power

FW-8210A

HM65

1

8* Intel WG82583

Intel i350 2 x GbE

1

2

2

1

1

AC 60W single

FW-8210B

HM65

1

8* Intel WG82574

Intel i350 2 x GbE

1

2

2

1

1

AC 60W single

FW-8210C

HM65

1

8* Intel WG82583

-

1

2

2

1

1

AC 60W single

FW-8210D

HM65

1

8* Intel WG82574

-

1

2

2

1

1

AC 60W single

1

2 x Rackmount ear

2

1 x SATA signal cable

3

1 x Screw bag

4

1 x Power cord

5

SATA power cable
