Geophysical Deep Borehole Logging Tool for 16 and 64 Resistivity Logging Equipment



An instrument for measuring the resistivity of rocks and ores in boreholes. When measuring the resistivity, a certain current should be supplied to the rock layer, and the potential difference caused by the current input at different positions of the rock layer should be measured, and then the apparent resistivity can be calculated. Therefore, resistivity logging tool generally consists of two parts: power supply and measurement record. Due to the influence of the actual measurement conditions, there are some differences between the measured results and the actual rock resistivity, so people call such measurement results as apparent resistivity.







Description

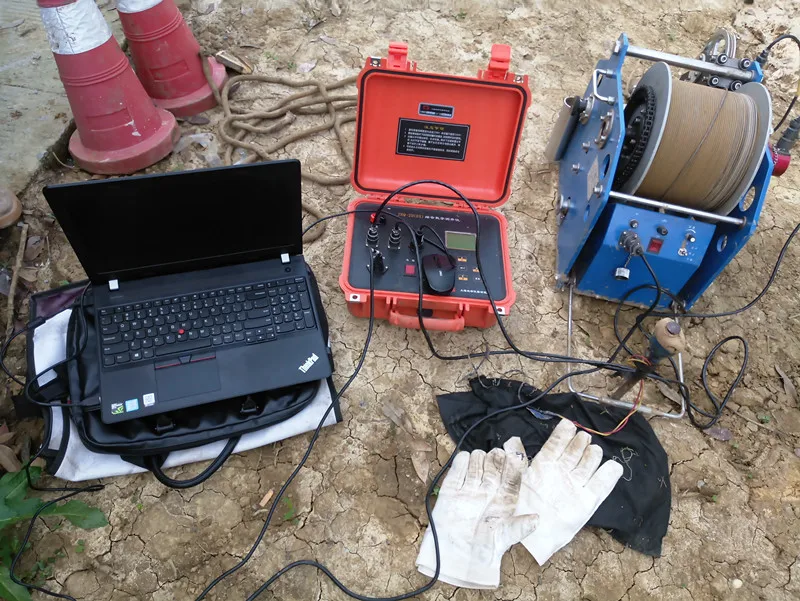

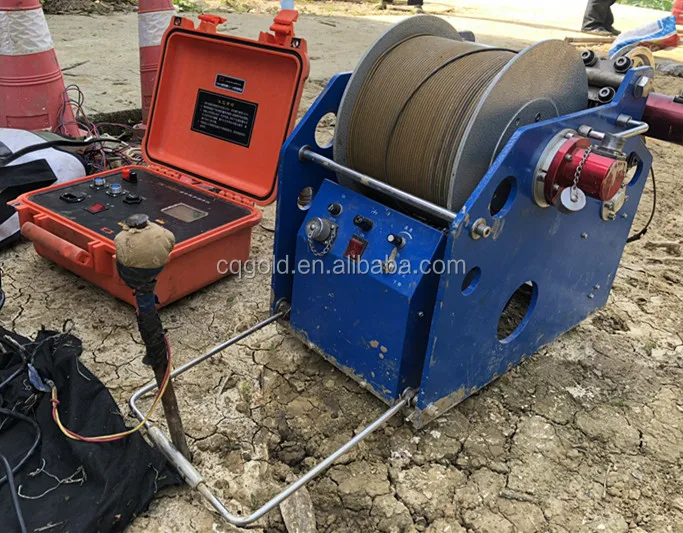

 Geophysical Borehole Logging Tool for 16 and 64 Resistivity Logging Equipment

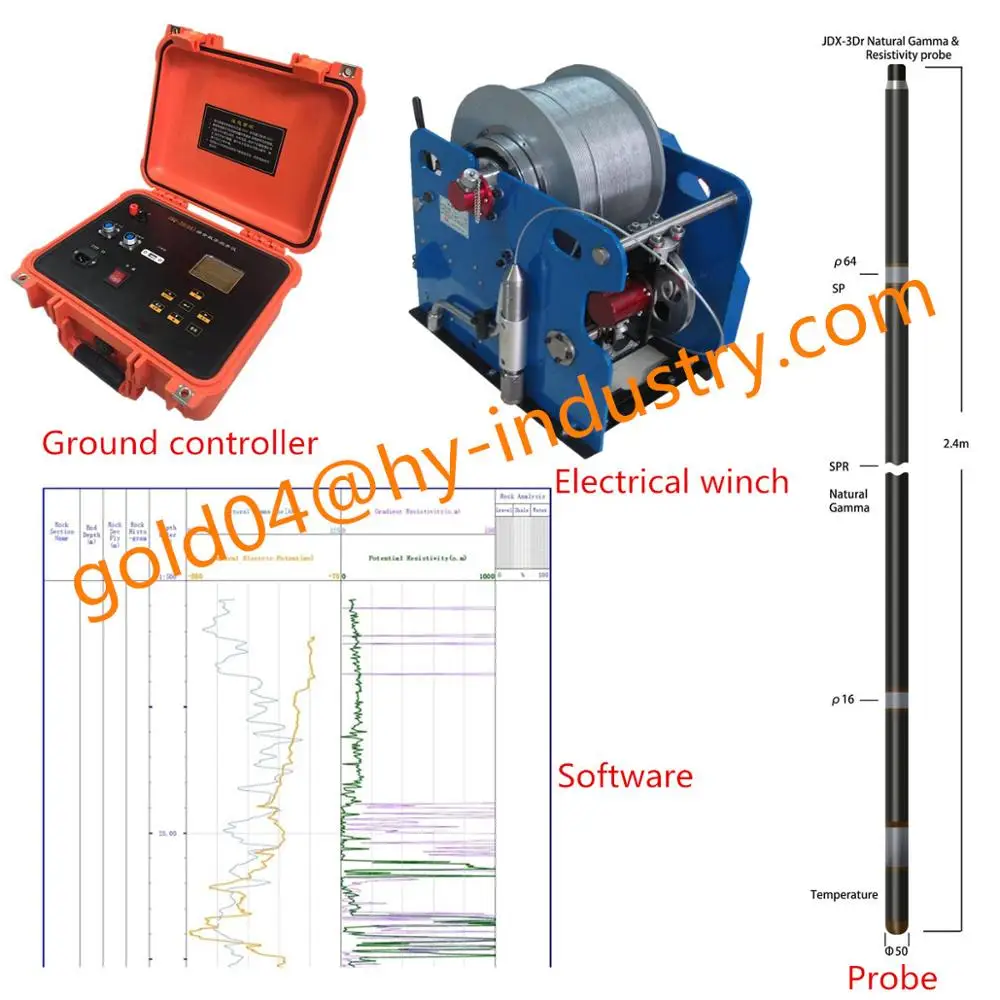

The Natural Gamma & Electrical Resistivity Probe measures



natural gamma,

16” Normal & 64”Normal Resistivity,

Spontaneous Potential (SP),

Single Point Resistance(SPR),

Temperature.



Users can log resistivity profiles with different depths of investigation and gain information about permeability, porosity, water quality and geological formation properties.



Operating Conditions:Uncased;Borehole Fluid:Water or Mud.







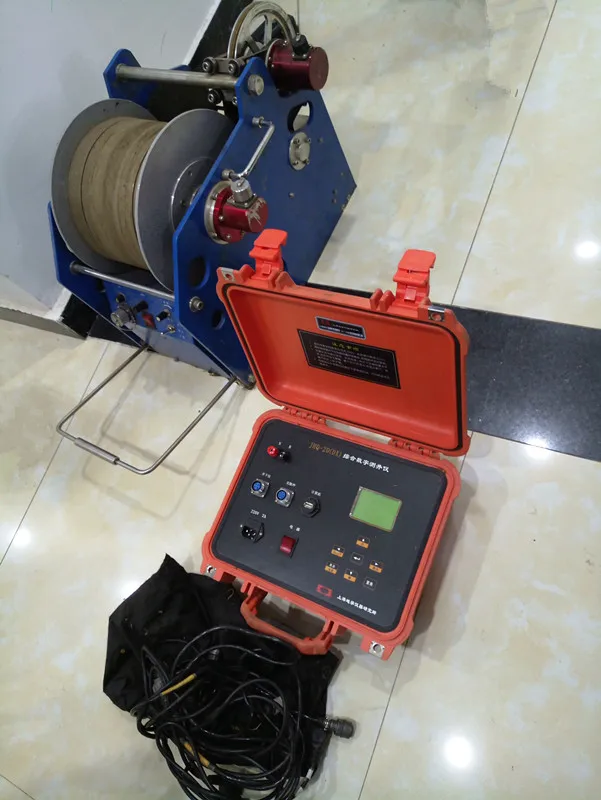

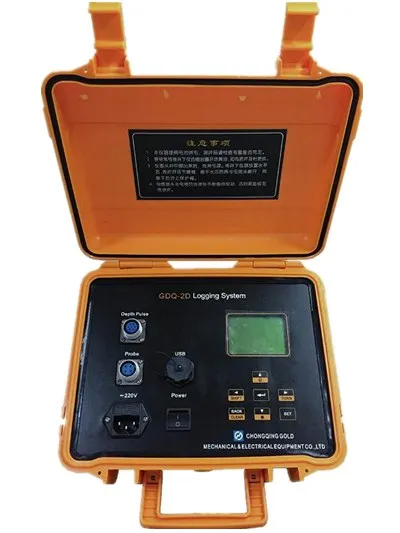

 Geophysical Borehole Logging Tool for 16 and 64 Resistivity Logging Equipment



Parameter

1. Instrument Power Supply:DC200V±20%,Electricity≤40mA

2. Electrode Array: AM 16”;AM 64”

3. Natural Gamma Sensor:NaI Crystal

4. Temperature Sensor::Platinum Resistance (pt100)

5. Measuring Range:

resistivity:1~4000Ωm(customize10000Ωm)

Spontaneous Potential (SP):±1200mV

Natural Gamma:0~32768cps

Temperature Range:  0℃~100℃, Resolution:0.025℃

6. Measurement Accuracy:2%(10~4000Ωm)or ±1Ωm

7. Environmental: Temperature<80℃;Pressure<20MPa

8. Signal: Bipolar Codes



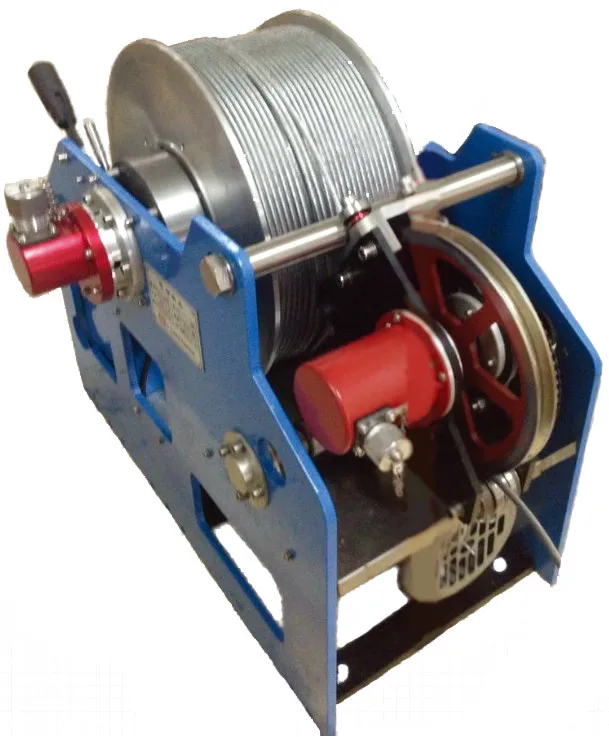

  Geophysical Borehole Logging Tool for 16 and 64 Resistivity Logging Equipment





Water-Well Management

Environmental Protection

Mining Surveys

Civil Engineering

Geological Surveys
