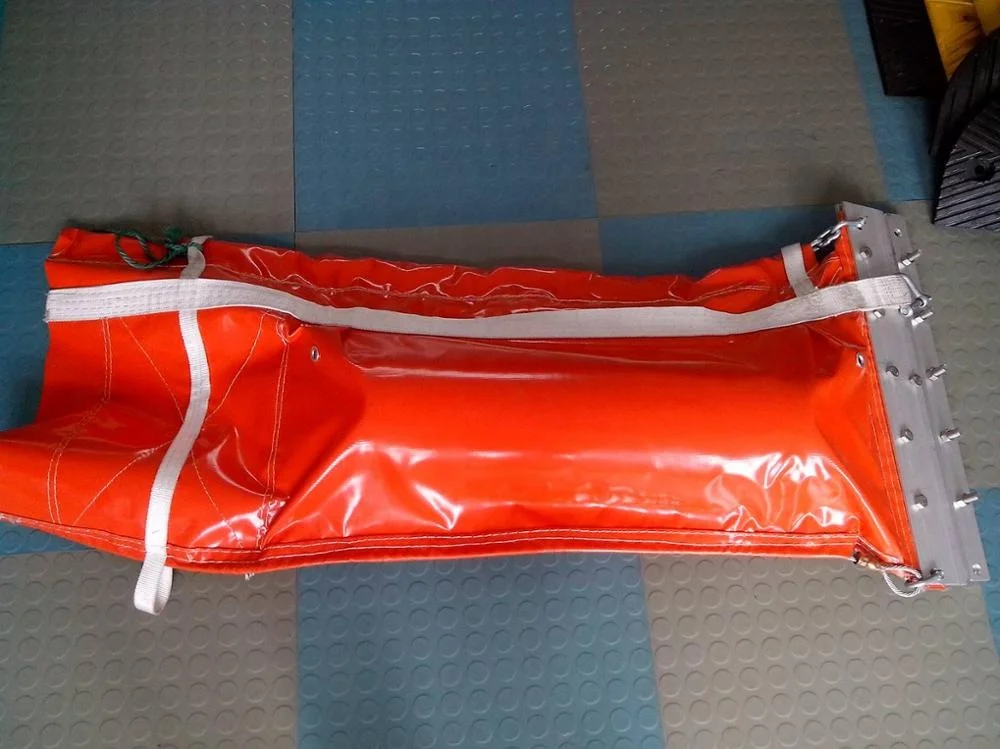

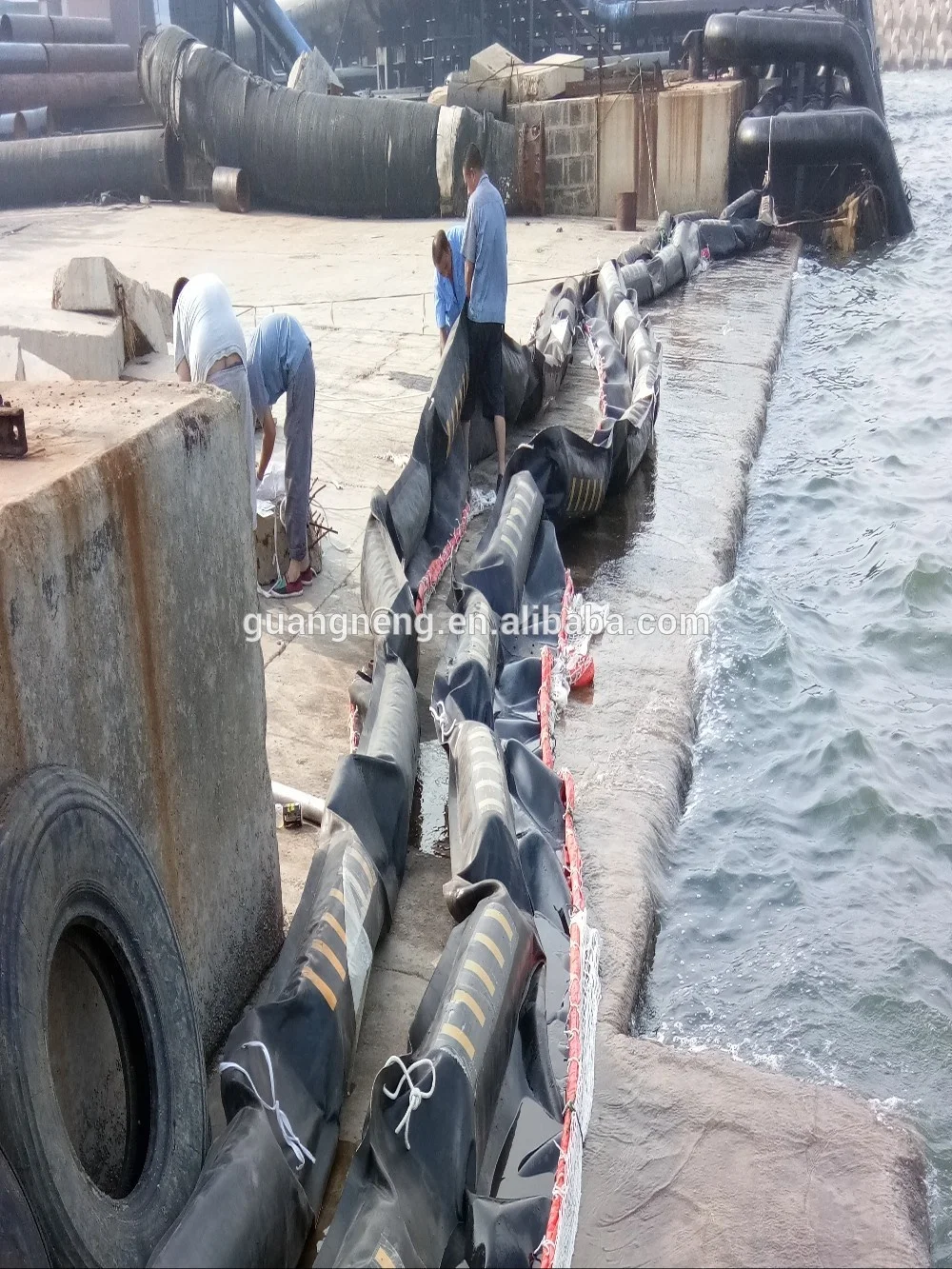

Oil Spill Containment Boom/SOLID FLOTATION QUICK DEPLOYMENT rubber oil boom

Product Overview

Description

Oil Spill Containment Boom/SOLID FLOTATION QUICK DEPLOYMENT rubber oil boom





Itemcode:GR0705



Feature: High strength, oil-resistant, whether-resistant and anti-abrasive,
Convenient to guide spilt oil and to be cleaned. All necessary ancillaries for boom can be selected or specially designed upon users

Application: It is most suitable for permanent deployment, frequency operation, adverse circumstance, such as refinery, oil terminals, water intake, bath beach, aquatics farm and other sensitive areas. It also can be emergently used to control spilt oil.





Model Parameter	QWJ800	QWJ1000	QWJ1200	QWJ1500	QWJ1800	QWJ2000	QWJ2600
Overall height(mm)	800	1000	1200	1500	1800	2000	2600
Freeboard(mm)	280	360	400	500	560	600	810
Draft(mm)	370	430	590	780	950	1100	1400
Max, working tensile strength(mm)	110	140	170	190	230	260	280
Standard length per section(m)	100/200
Max, wave height to withstand(m)	2	2	2.5	3	3	4	4
Max,wind speed to withstand(m/s)	15	15	20	20	20	25	25
Max,current speed to with stand(Kn)	2-3	3	3-4	3-4	3-4	3-4	3-4
Dimensions of container(mm)	2700x2200x2200	2900x2200x2200	3200x2200x2200	3500x2200x2200	4100x2200x2200	4300x2200x2200	5200x2200x2200

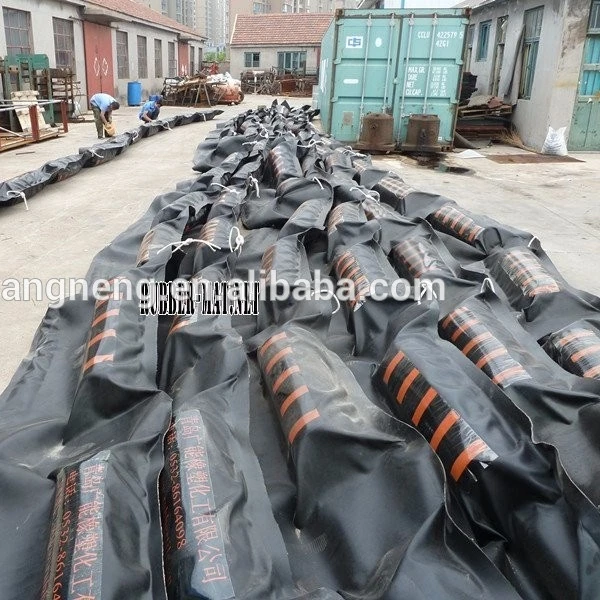

We are manufacturer of oil booms including rubber oil boom and PVC oil booms in China.The solid float rubber boom is important equipment used to prevent spilled oil on waters from diffusion and transfer. It is widely used for long-term deployment on waters such as open seas, bays, harbors, wharfs, rivers, oil platform, oil-refining plants, oil piers, oil storage, sea bathing area, etc. And also for emergent use in oil spilling accidents.









inflatable rubber boom

Feature: High strength, oil-resistant, whether-resistant and anti-abrasive,
Convenient to guide spilt oil and to be cleaned. All necessary ancillaries for boom can be selected or specially designed upon users
Application: It is most suitable for permanent deployment, frequency operation, adverse circumstance, such as refinery, oil terminals, water intake, bath beach, aquatics farm and other sensitive areas. It also can be emergently used to control spilt oil.



1. Inflatable curtain boom has a large air buoyancy chamber floating on water with two layers of fabric coated with neoprene on its outer surface.
• 2. Buoyancy chamber diameters ranging from 100mm to 850mm.Approximately 40% of the boom is above the water and 60% below. The larger the buoyancy chamber and underwater skirt depth the rougher the sea conditions in which the boom can function..
• 3. Hydraulic power pack, air blower and boom reel with brakes are fixed in the container. To operate conveniently, the container can be opened from both front and back two doors. We can supply cleaner or other fittings if the customers need them.
• 4. The auxiliary equipment including bridle, towing bridles and anchor point, can be supplied if customers need them.

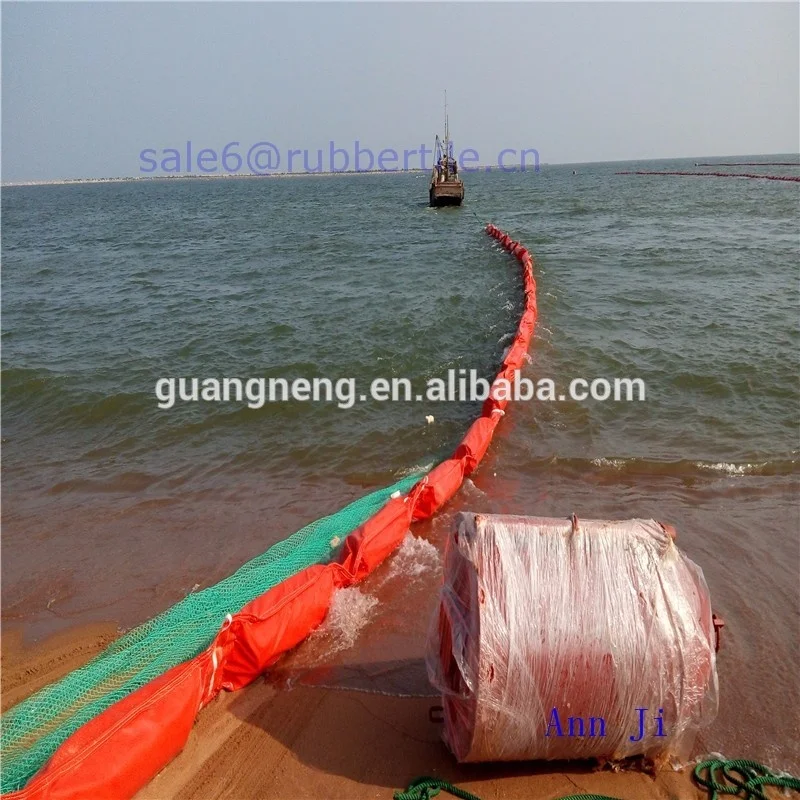

  Oil boom is an important equipment that was adapted for use on the sea or other water to control oil spill. It is specially adapted for permanent installation on open seas, bays, harbors and docks. It can be used in oil spill response.

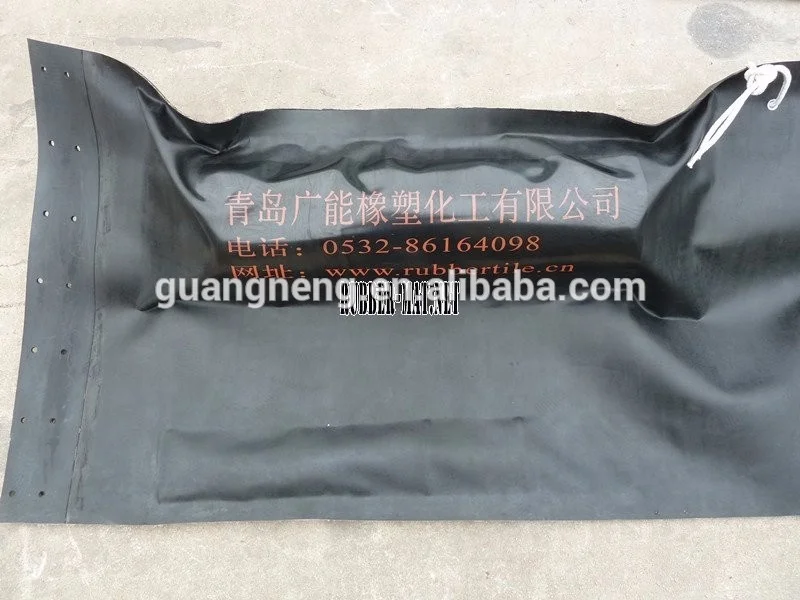

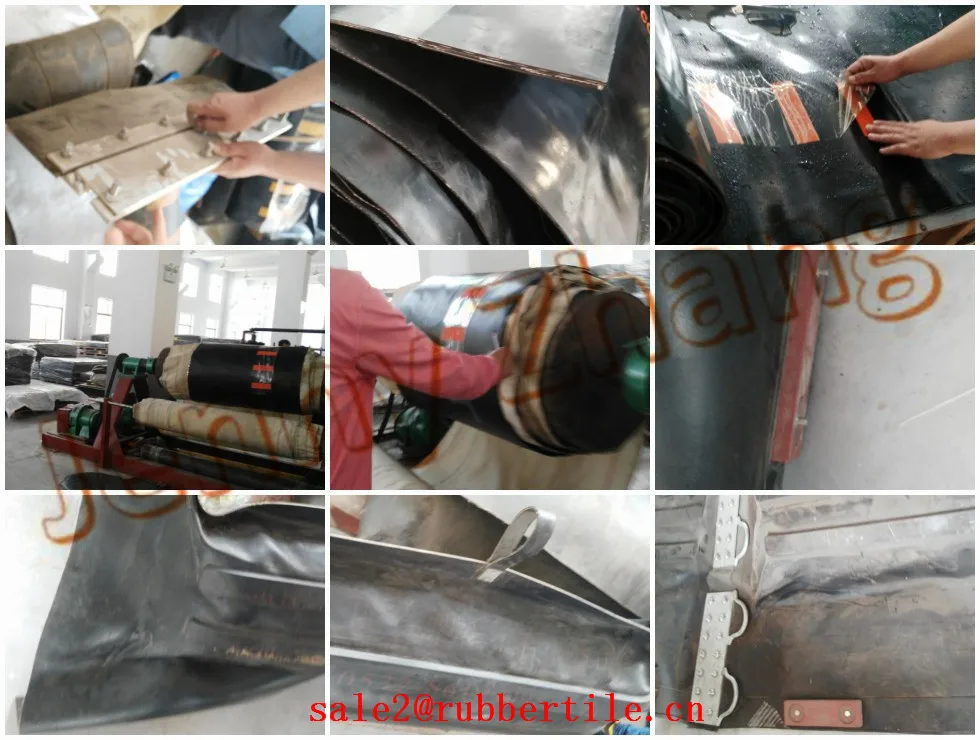

The rubber boom is made of double strength synthetic fiber cloth which is covered with good quality synthetic rubber. It is oil-resisting, wear-resisting, seawater-resisting, and ultraviolet ray ageing-resisting. The unique configuration of floats has great buoyancy reserve, and high intensity and stability. Universal connectors make quick and reliable connection impossible. The surface of the boom is convenient to guide spilt oil and to be cleaned.
