RUBBER TRACK SKID STEER MULTI TERRAIN LOADER HIGH FLOW A/C CAB PILOT JOYSTICK

RUBBER TRACK SKID STEER MULTI TERRAIN LOADER HIGH FLOW A/C CAB PILOT JOYSTICK

Category: >>>
Supplier: Taian Hi-Tech Sunrise Machinery Co. Ltd.

Price:$28,000.00

Quantity:

Product Overview

Description

Product Description

Product Application- China compact mini rubber asv track crawler skid steer loader for sale

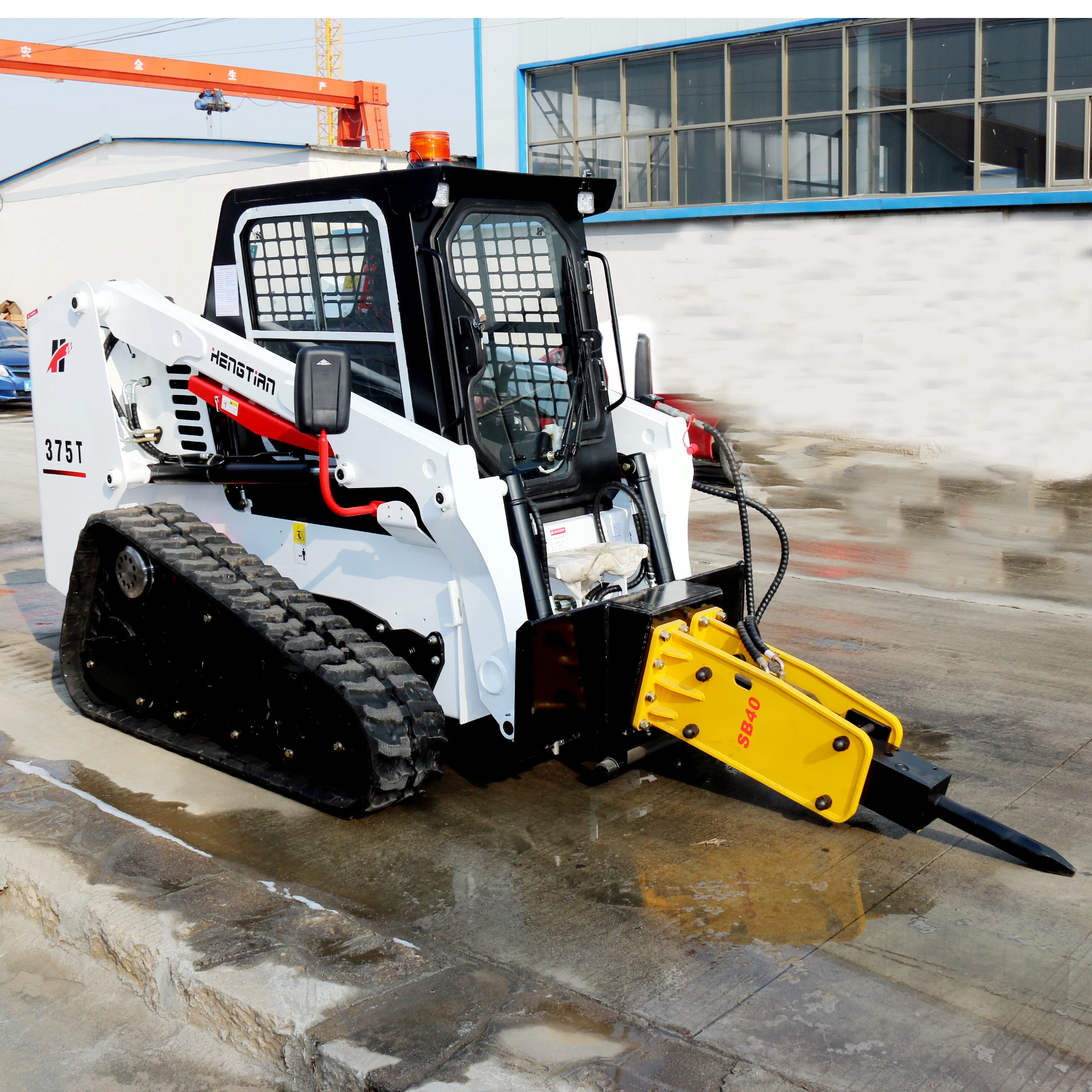

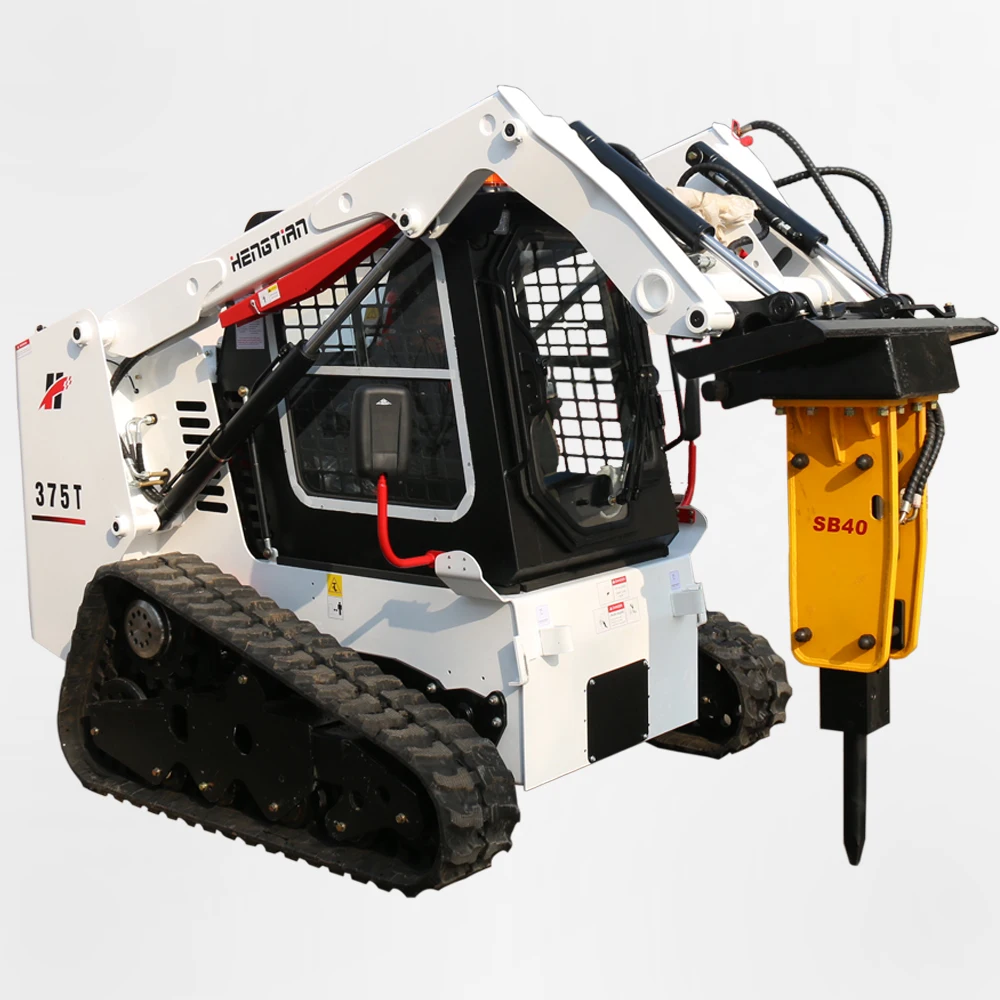

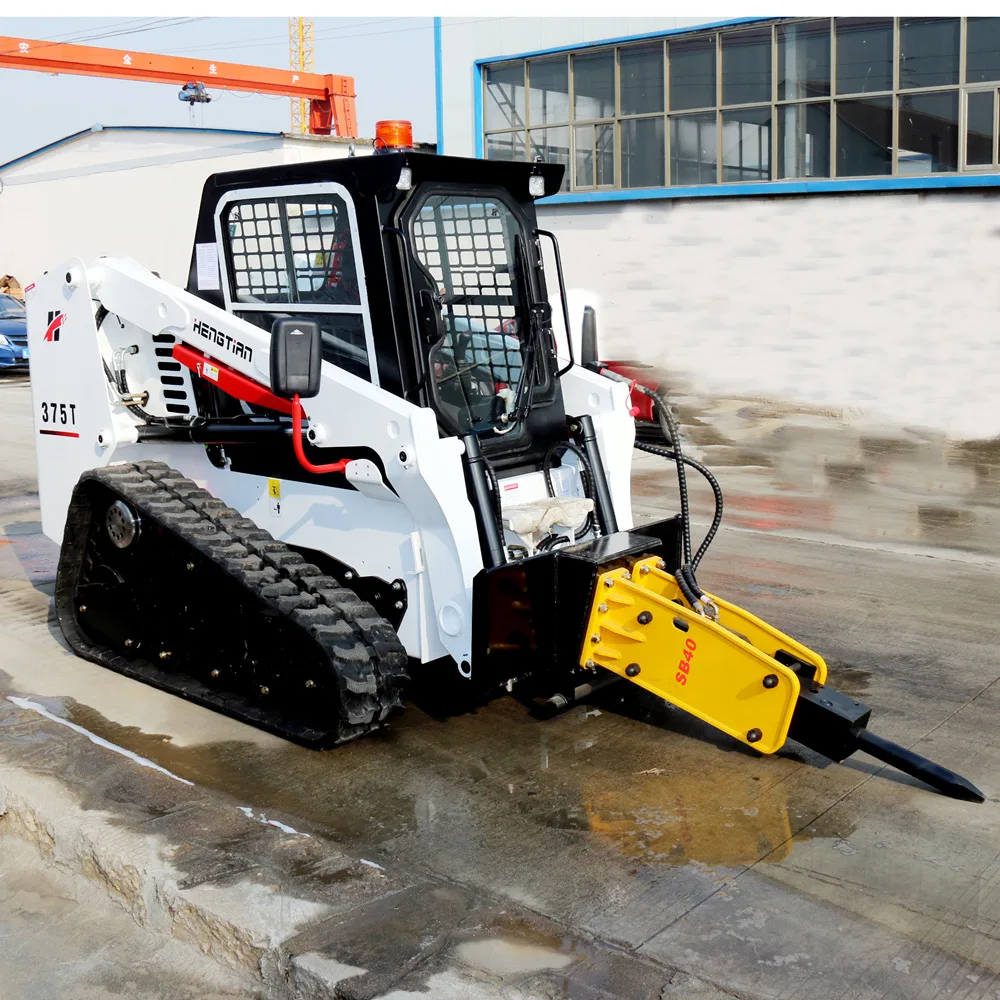

TY-375T skid steer loader is HENGTIAN brand, radial series researched and developed with world latest design standard. It is a new kind of product characterized by high efficiency, safey ,convenience and beauty.

It is rubber crawler track skid steer loader type , two crawler driving and 360 degree skid-steering, wiht quick coupling to attach various attachments at jobsite easily. It can work in different working environments. 1000kgs loading capacity, rough terrain road working condition the heavy machine you have.Bobcat mini compact track crawler loader for sale.compact skid steer

SPECIFICATION FOR SKID STEER LOADER MODEL TY-375T
Item	Main specification	Units - Metric	Units -US
A	Overall operating height	4000mm	157.4 in
B	Height to bucket hinge pin	3100mm	122 in
C	Height to top of cab	2028mm	79.8 in
D	Height to bottom of level bucket	2960mm	116.5 in
E	Overall length without bucket	2733mm	107.5 in
F	Overall length with bucket	3523mm	138.7 in
G	Dumping angle at maximum height (°)	40	40
H	Dumping height	2465mm	97 in
I	Dumping reach	610mm	24 in
J	Rollback of bucket on ground (°)	30	30
K	Rollback of bucket at full height (°)	98	98
L	Wheelbase	1150mm	45.3 in
M	Ground clearance	215mm	8.5 in
N	Angle of departure (°)	26	26
O	Turning radius front without bucket	1350mm	53 in
P	Front turning radius with bucket	2210mm	87 in
Q	Rear turning radius	1786mm	70 in
S	Tread width, centerline to centerline	1506mm	59 in
T	Width between outside of two wheels	1850mm	72.8 in
U	Bucket width	1880mm	74 in

Futures.

.Word first-class quality power system.

.Original inported hydraulic system.

.Direct driving from engine to pump.

.Self-;pclomg throttle adjustable

.Rotary type all aluminum radiator .

Control system.

. Including basic controland high -grade hydraulic control.

.Skid steer loader in the range of 360 degree.

. Optional leveling valve of bucket to keep the bucket level up

Cabin.

. The cabin is redesigned with high safety standard 2 in 1 for ROPS AND FOPS.

.Safety protection design including safety belt, bar and seat and safety bumper. A/C including.

Main Features

1) Power system : to use of world famous engines ensures machine strong power from 60hp to 95hp

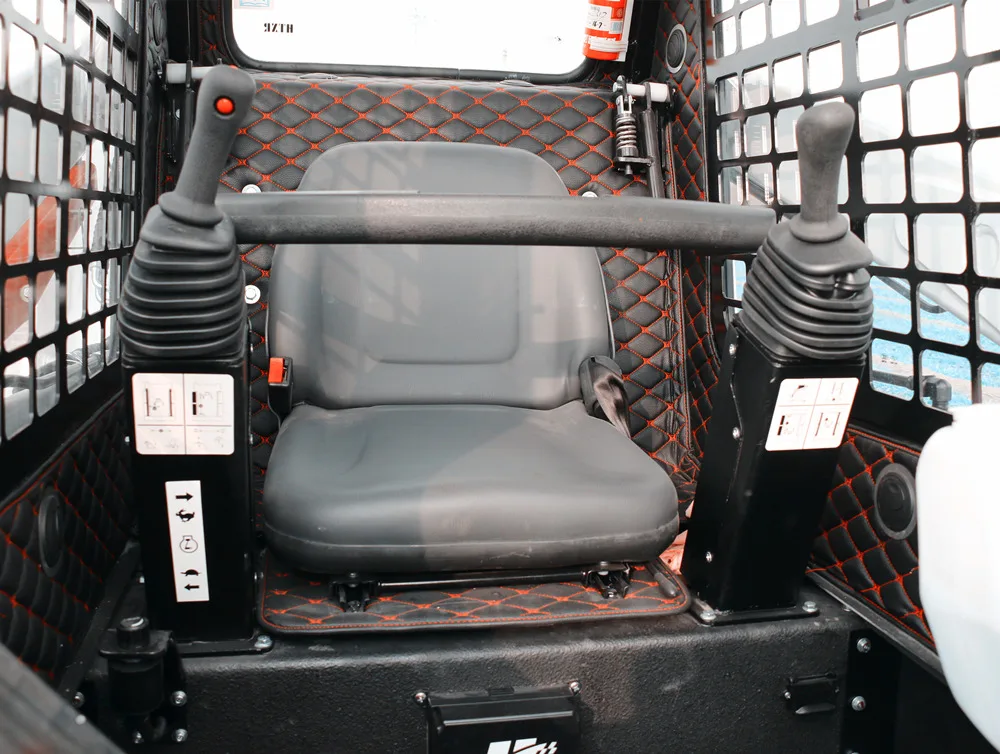

2) Easy control type:Machinical control with two hand levers to control direction when using two foot pedals control working , quite easy and convenient. With hydraulict control, the operator can control every with two joysticks, from basic function to speed ,power, accelerator, etc.

3)Confortable cabin . With air conditioner as standards type, with safety protection.

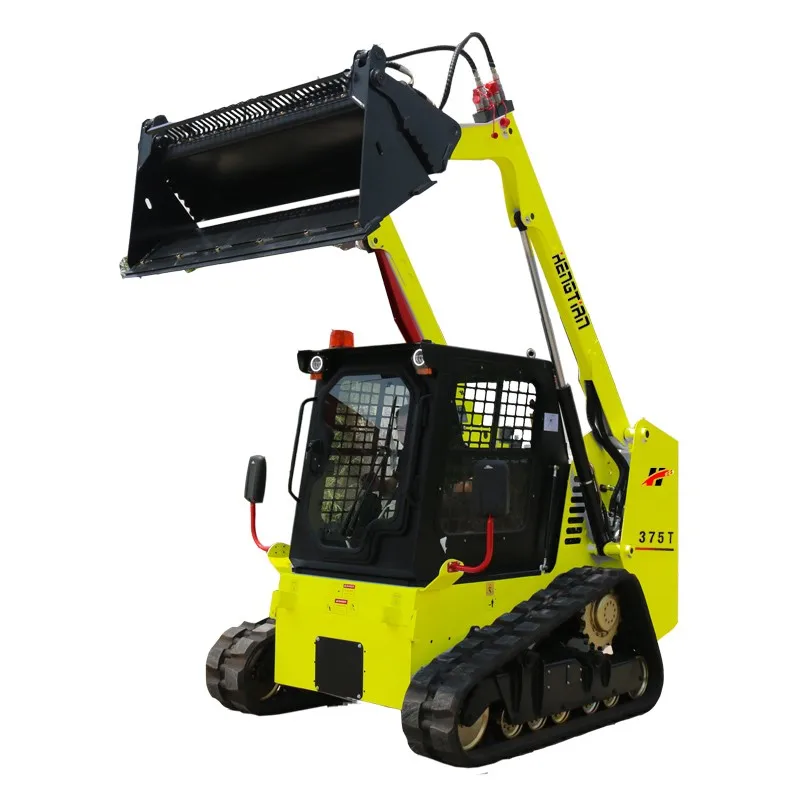

4) Loading capacity 1000kgs, dumping height can up to 2.47m

5) 4 in 1 bucket have four functional, grapple , push , pull , and dumping in quickly type.

Detailed Images

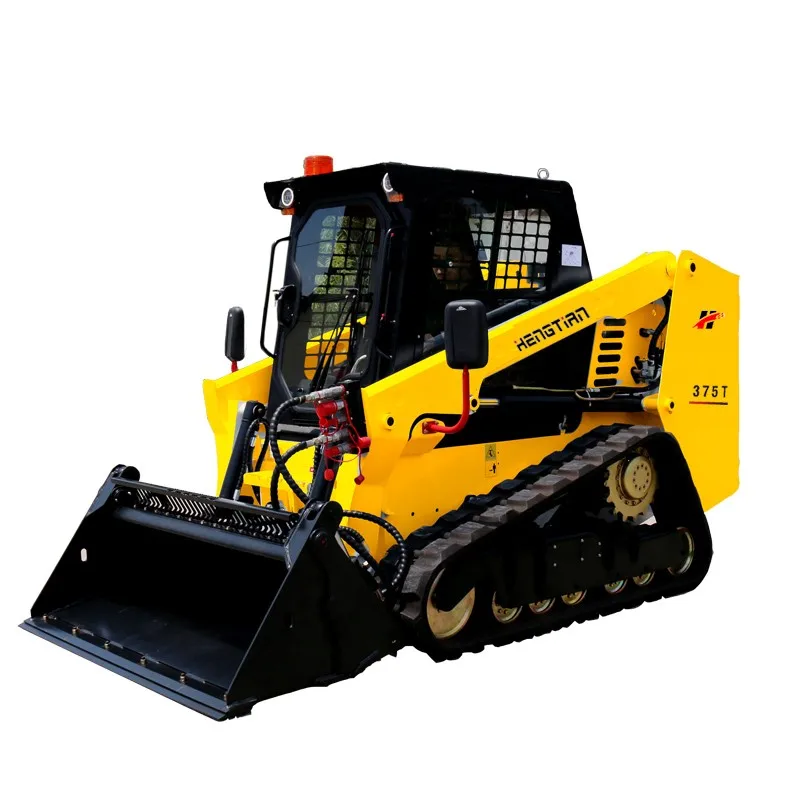

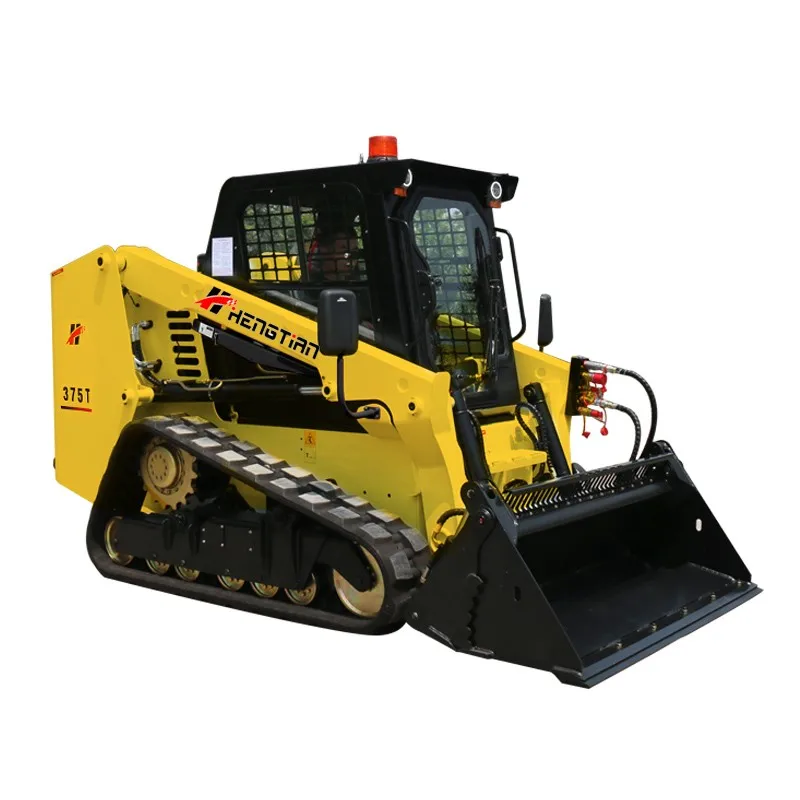

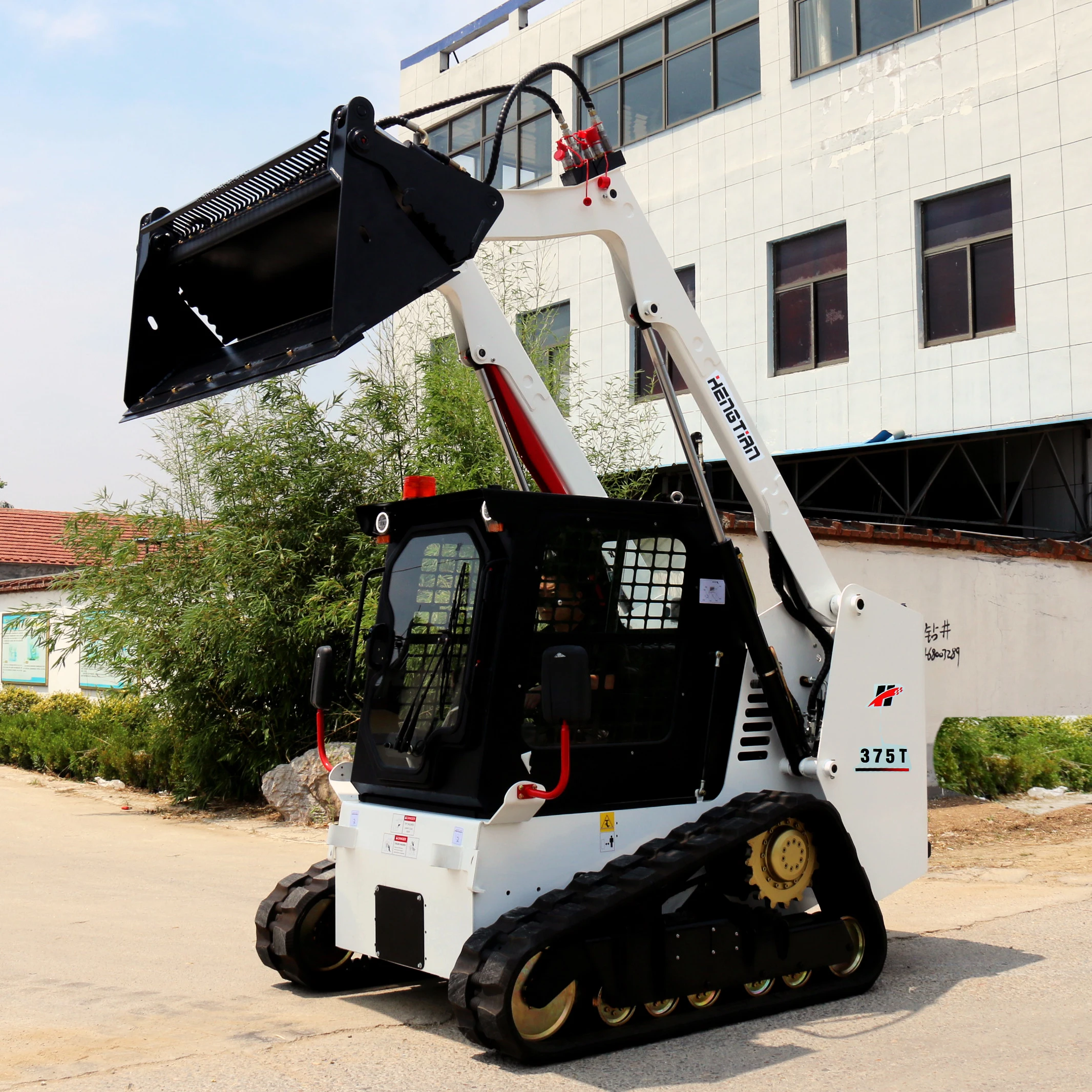

Skid Steer Loader compact track TY-375T

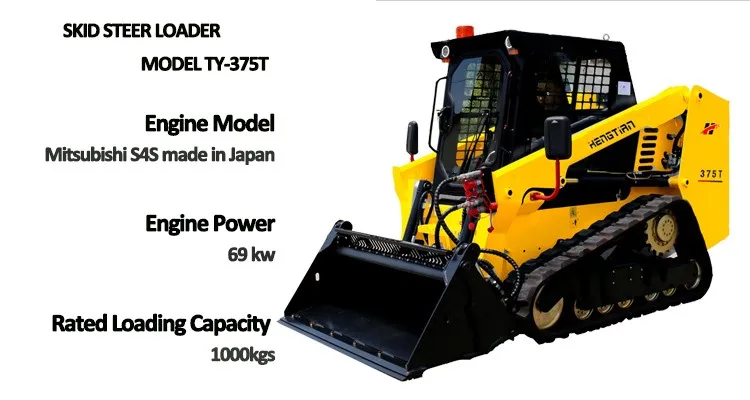

90HP big power engine made in Japan

high flow range 128 L/min

Loading capacity 1000kgs

Fast -Low speed : 22.6 km/h

Main Features :

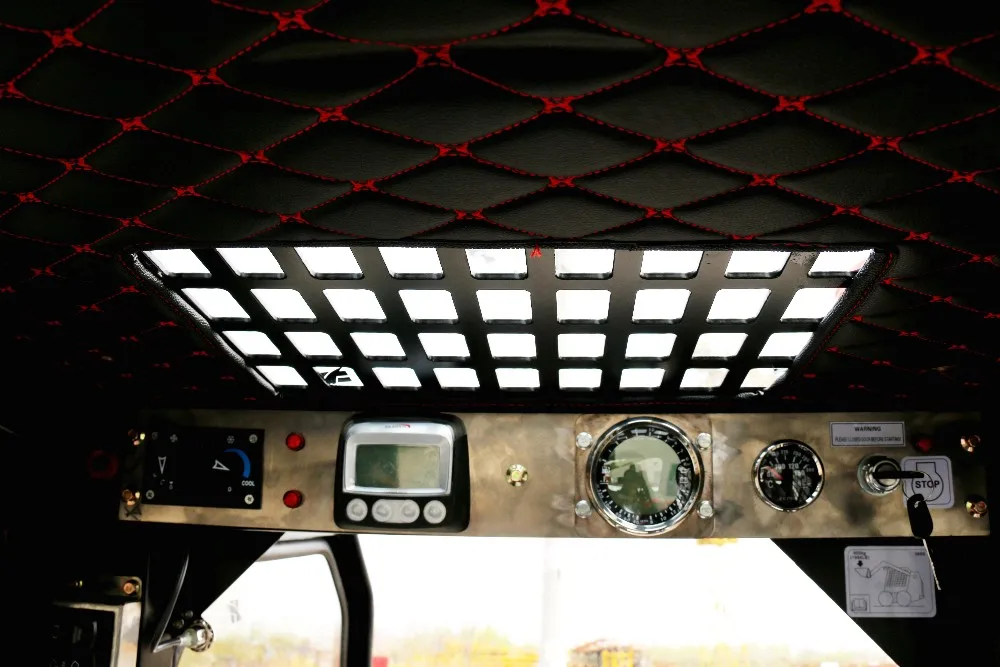

All digital operating meter

Clearify instrumentation panel for your daily check.

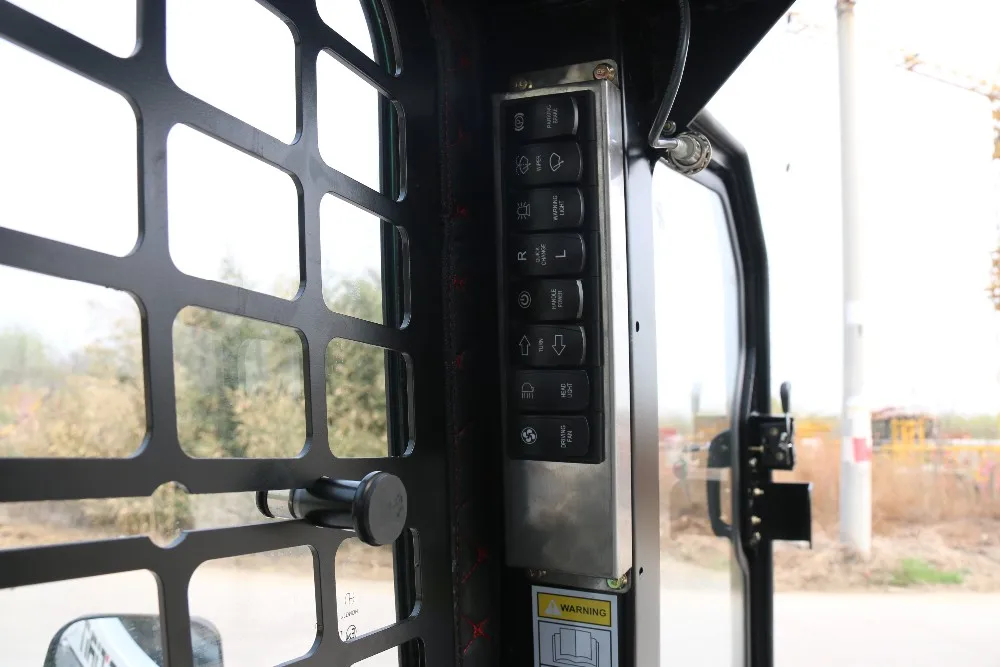

Including :
a)Hour meter
b)Digital display screen for speed, oil meter.
c)Temperature meter
d)Light switch
e)Air conditioner button
f)Parking brake
