ARO low volume high pressure pneumatic diaphragm pump

 ARO low volume high pressure pneumatic diaphragm pump

3/4” Non-Metallic Models
COMPACT SERIES PUMPS

Part of our Compact Series of pumps, our ¾” pumps feature big performance in a small package. With flow rates up to 14.8 GPM (56 LPM) and a wide range of material and porting confgurations.

Pneumatic diaphragm pump Feature:

Ratio: 1:1
Maximum Flow: 14.8 g.p.m. (56 l.p.m.)
Displacement per cycle: 0.032 Gallons (0.12 Liters)
Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short
Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. - 1
Rp 1/2 (1/2 -14 BSP, parallel)
Max. operating pressure: 100 psi (6.9 bar)
Suspended solids max. dia.: 3/32” (2.4 mm)
Weight: lbs (kg) 5.61 (2.54)
Maximum dry suction lift: ft (m) 15.0 (4.5)
Sound Level: 70 PSI 60 Cycles/Min 75.0 db(A)

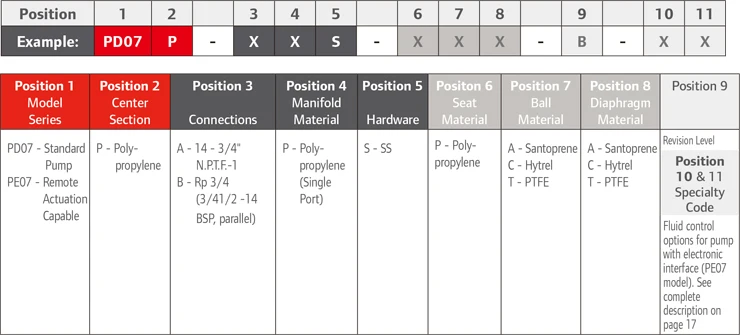

Pneumatic diaphragm pump Ordering

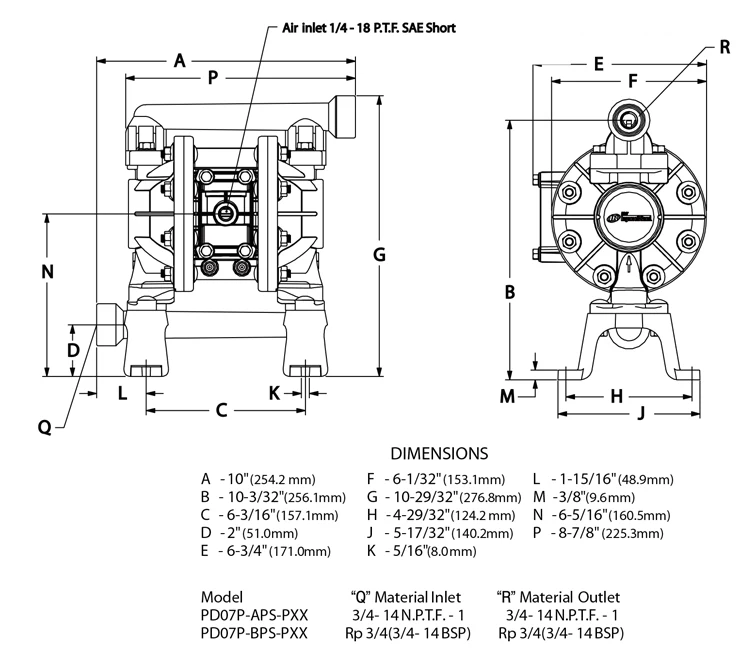

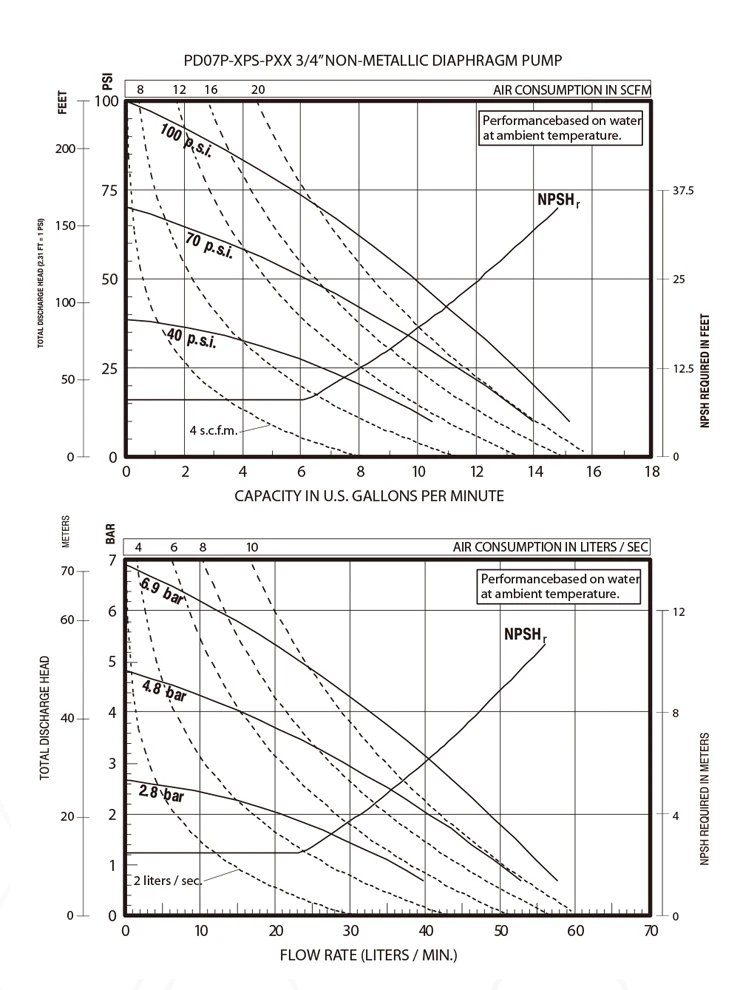

 Pneumatic diaphragm pump  3/4"  Non-Metallic Dimensions and Flow Charts
