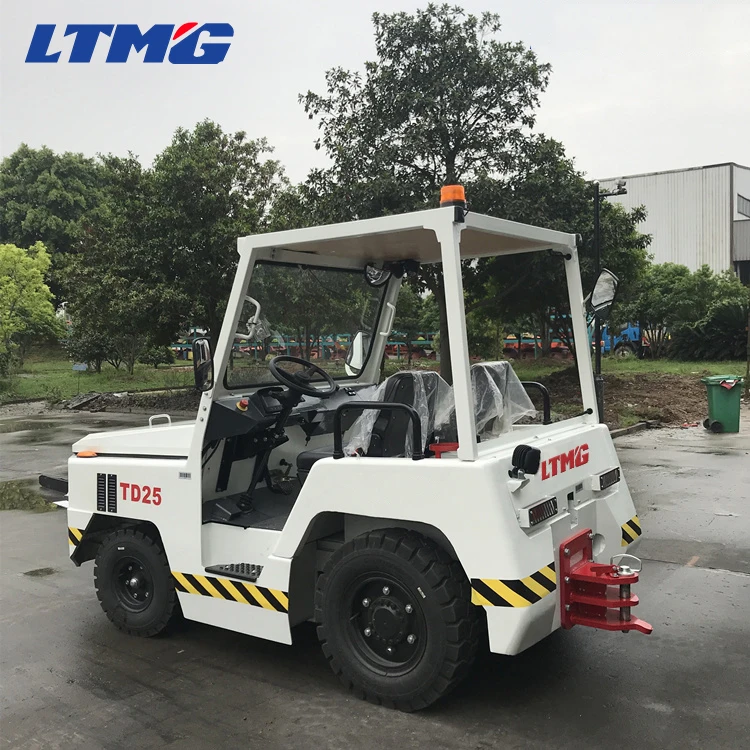

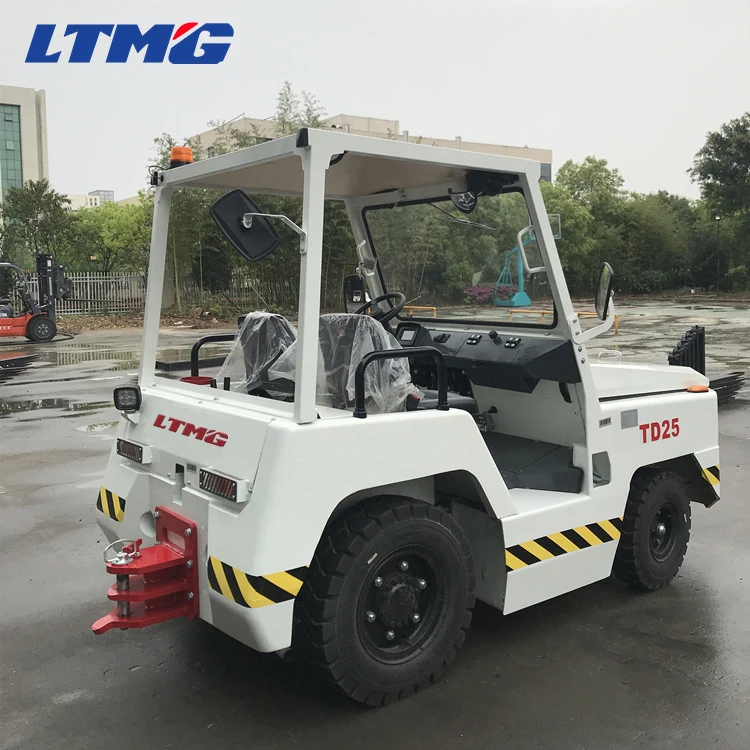

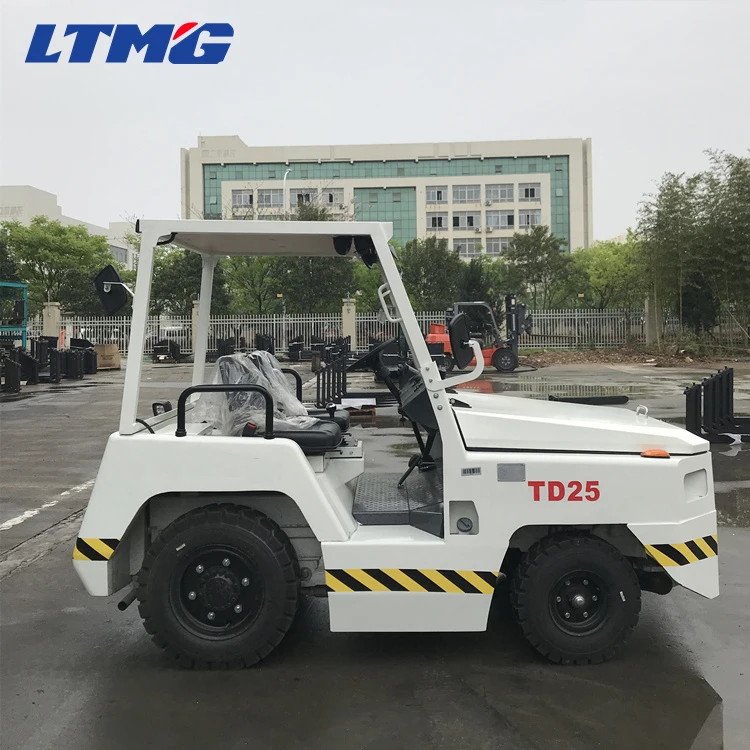

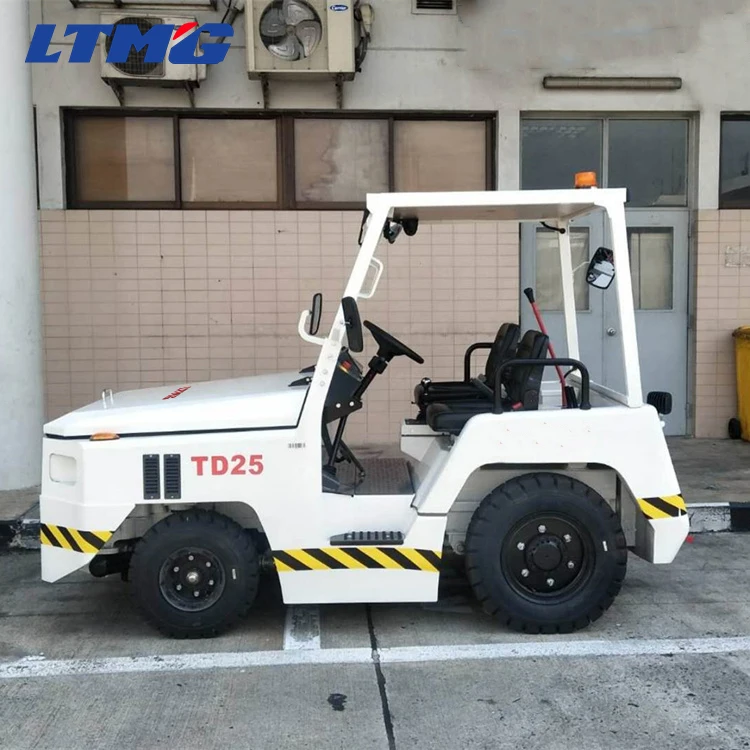

LTMG GSE mini 2.5 ton airport towing luggage tractor for sale
Emergency switch, help to keep your safety.
Good space design, let the driver feel more suitable.
German Vehicle transmission, easy to operate.
Specifications of LTMG aviation equipment 2.5 ton airport tow luggage tractor
Model
TD25
Power Type
Diesel
Max. drawbar pull
KN
25
Max. towed weight at dry even concrete surface With one trailer/With a train of trailers
Kg
38000 / 58000
Max. travel speed Forward/Backward
km/h
29/13
Max. gradeability(No load)
%
35
Overall length(with coupler)
mm
3150
Overall width
mm
1440
Overall height
mm
1450
Wheelbase
mm
1600
Front overhang(with coupler)
mm
900
Front tread
mm
1200
Rear tread
mm
1190
Min. turning radius(Outer)
mm
3250
Floor height
mm
460
Seat height
mm
940
Center height coupler
mm
304.8/400
Coupler length
mm
260
Min. ground clearance
mm
150
Tire size Front/Rear axle
6.50-10-10PR/7.00-15-12PR
Truck weight( No load)
kg
4100
Weight distribution Front/Rear axle
kg
1350/2750
Model
japanese engine
Displacement
cc
3319
Rated output
kw/rpm
42.1/2300
Rated torque
kg
177.6-196.3/1600-1800
Our Company
Packing & Delivery
Our Customers
Our Service
After-sale Service
LTMG always treat after-sale service important as the same as product quality. LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
