Product Overview
Description
Competitive Price ZPS-900 Whole tire shredder machine
Functions
The tire rubber crusher is used to crush the waste tire into rubber powder. Environmental protection and energy saving, Market Prospect Broadness.
Parameters
HS CODE | 84778000.00 |
Input size | Less than 1200 |
Discharge size | 50-300mm(adjustable) |
Motor power | 30*2kw |
Dimension | 5450*2200*2450mm |
Amount of waste tire | 2.5T/h |
Screen power | 4 KW |
Main shaft speed | 19rpm |
Screen speed | 4rpm |
Number of blades | 18 PCS |
weight | 7000kg |
voltage | 380V, 50HZ |

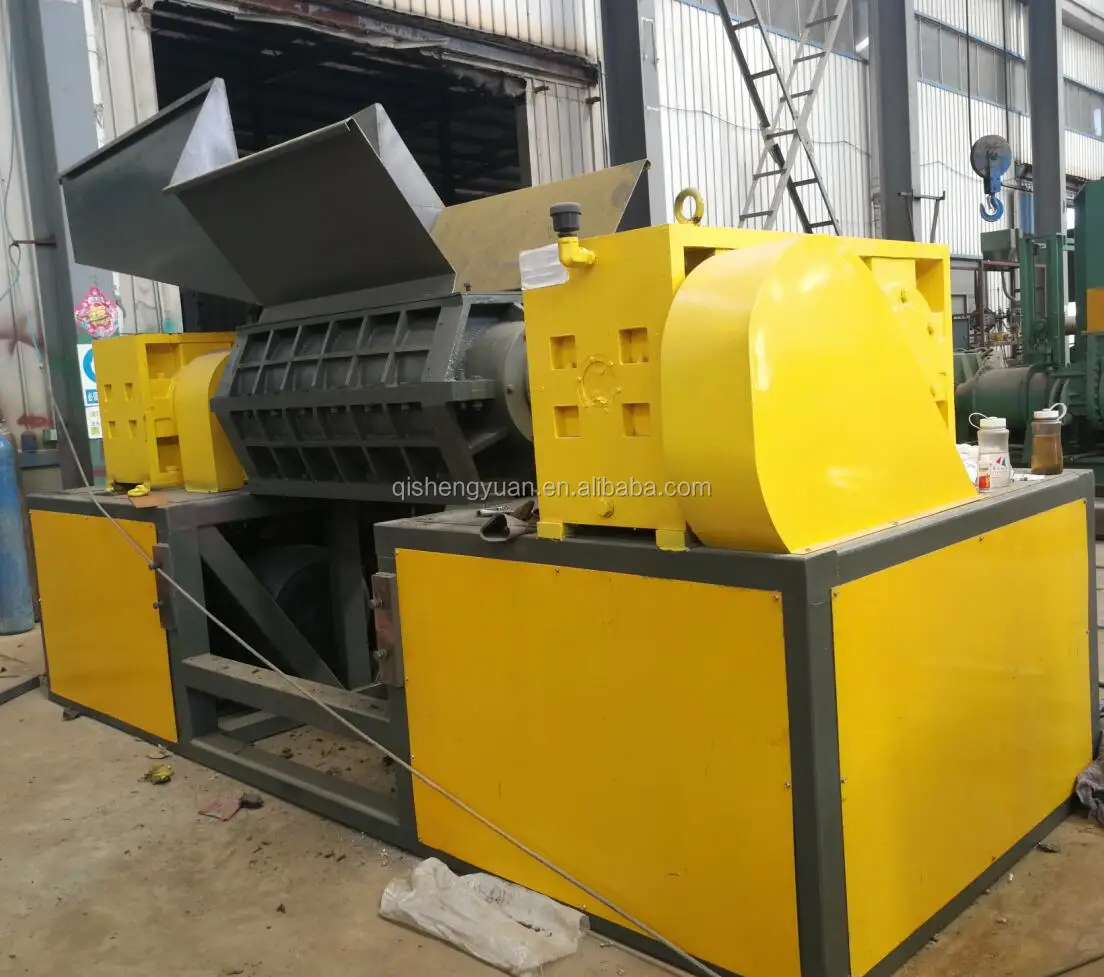

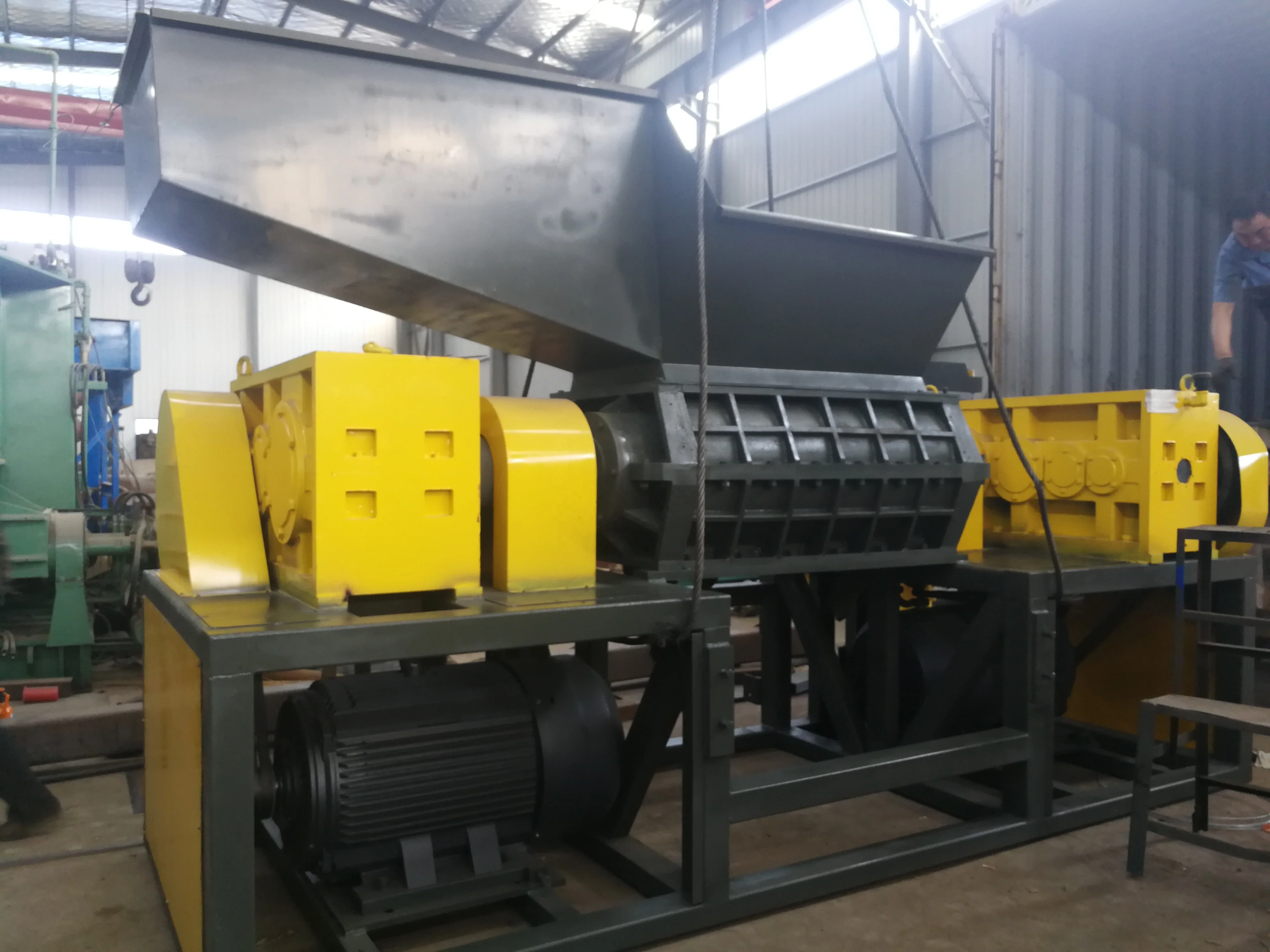

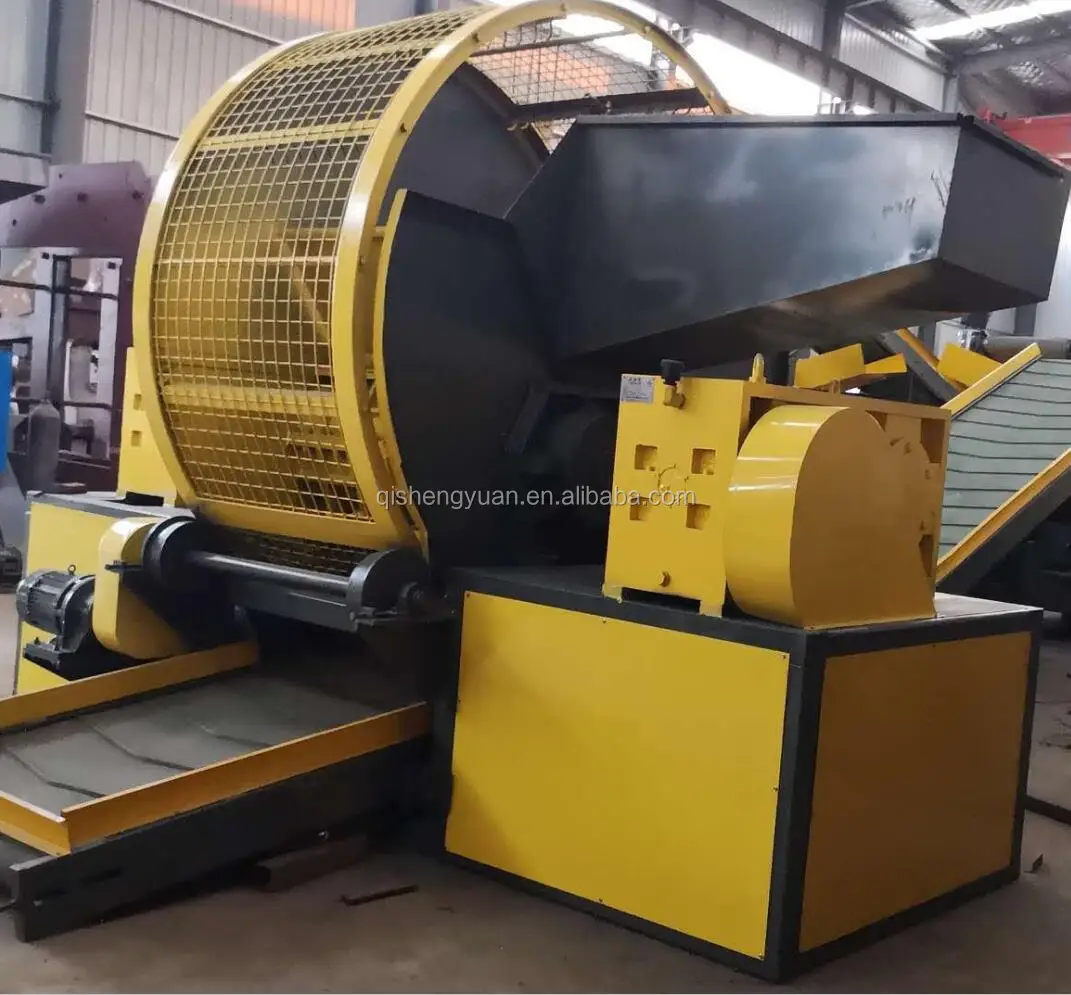

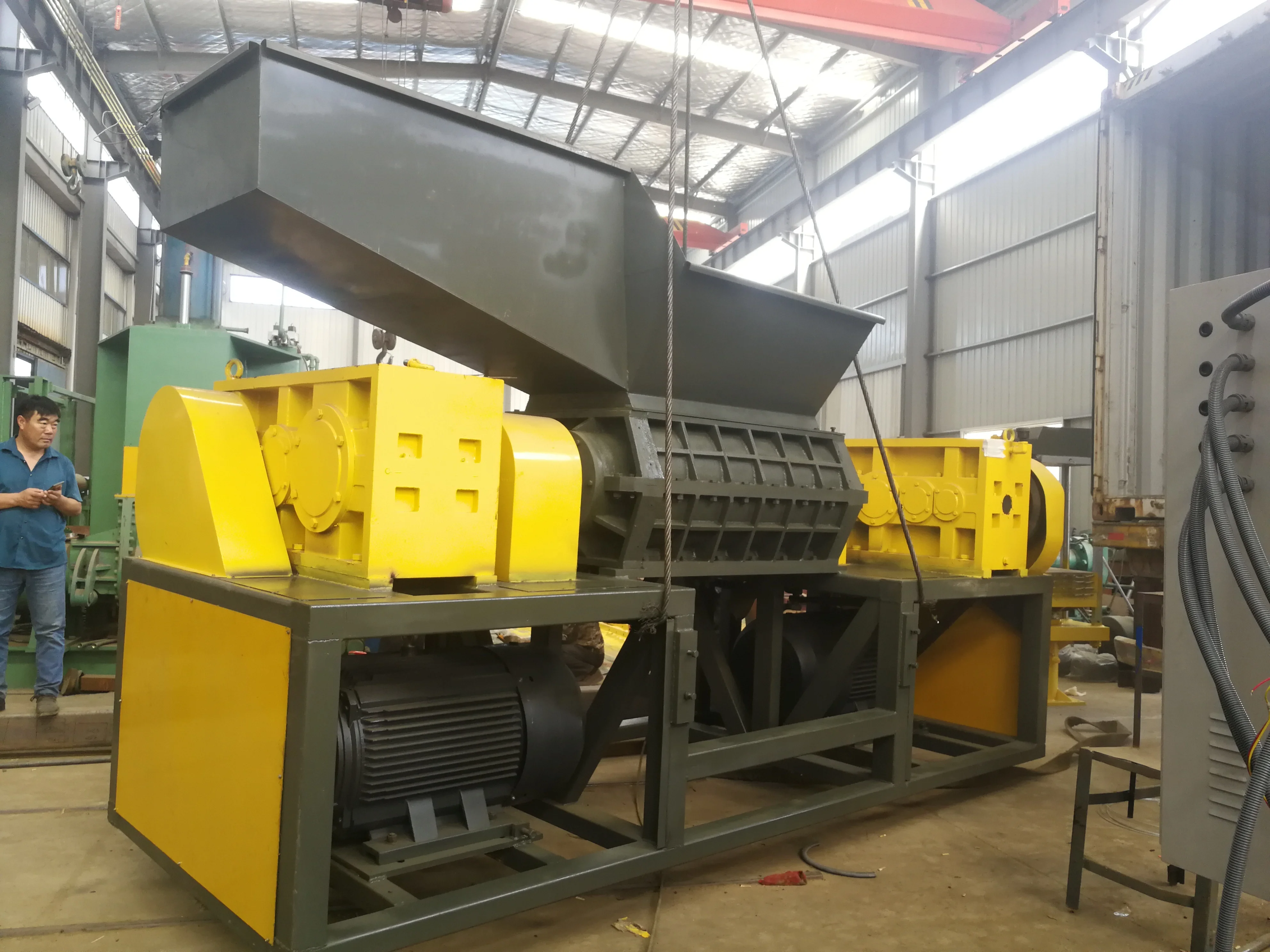

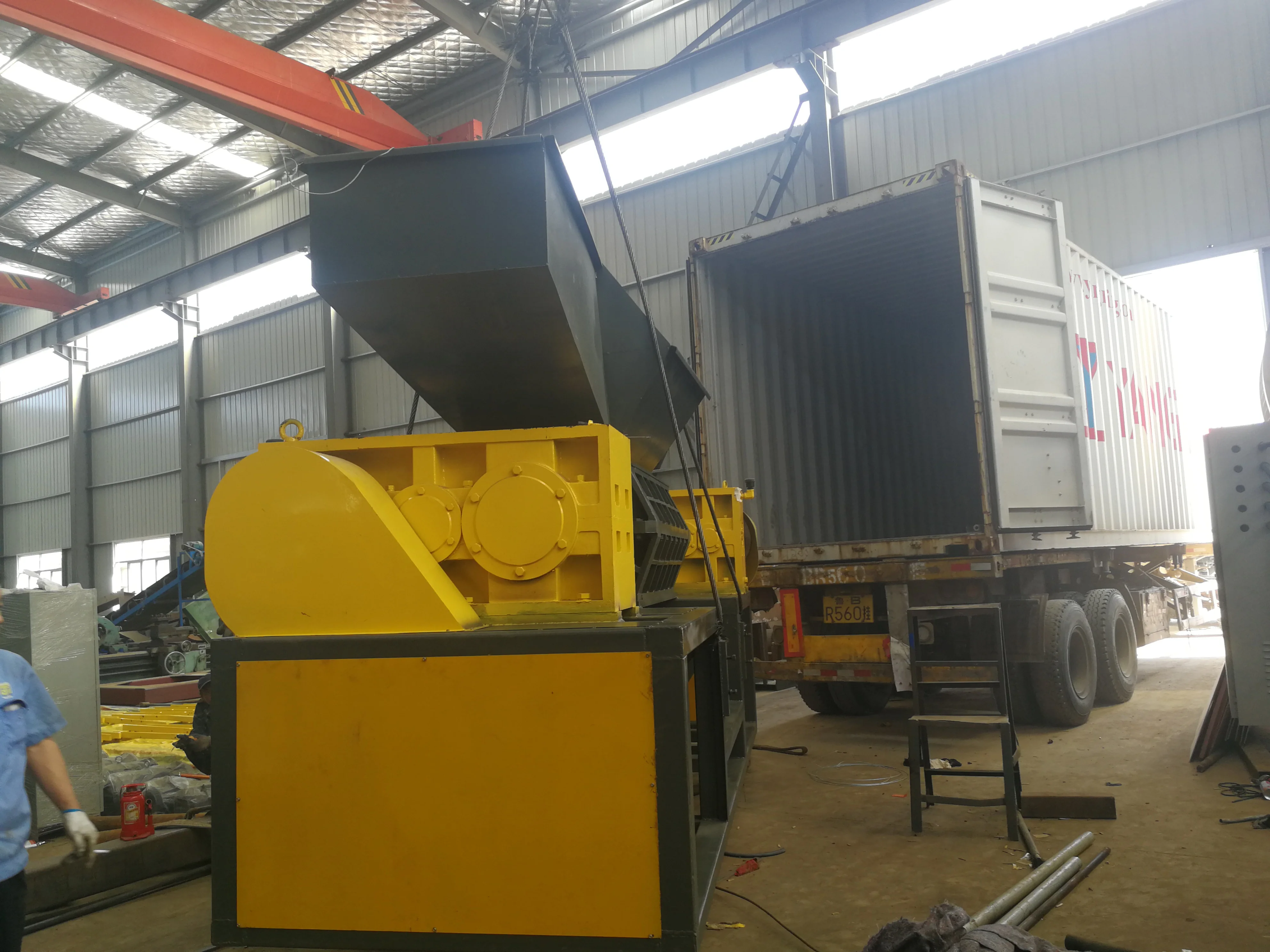

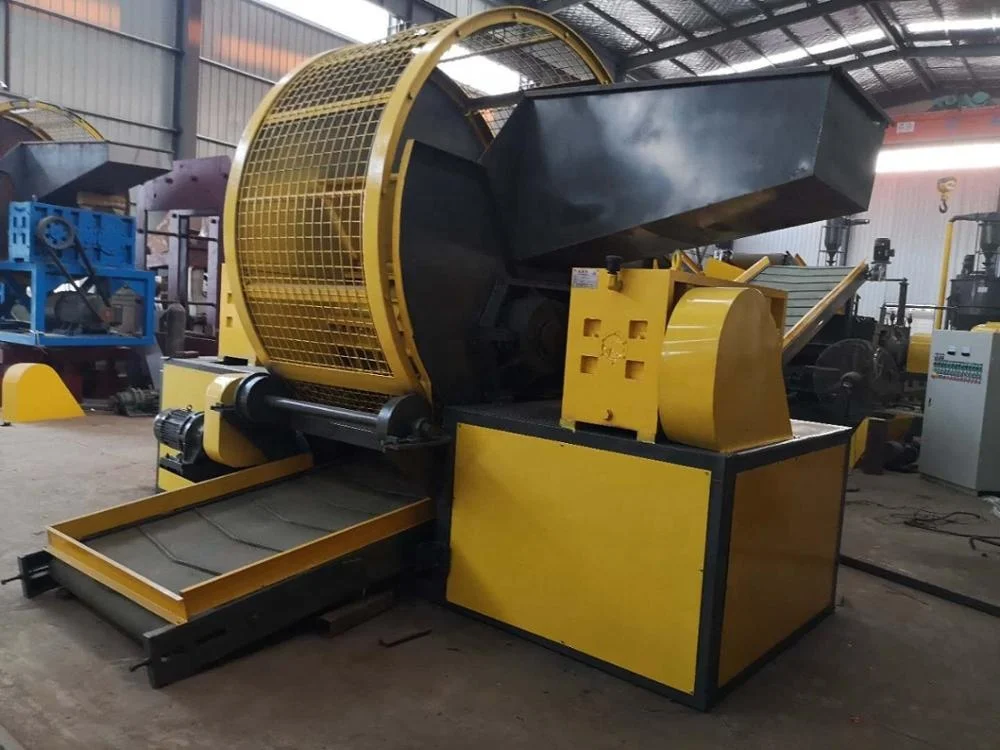

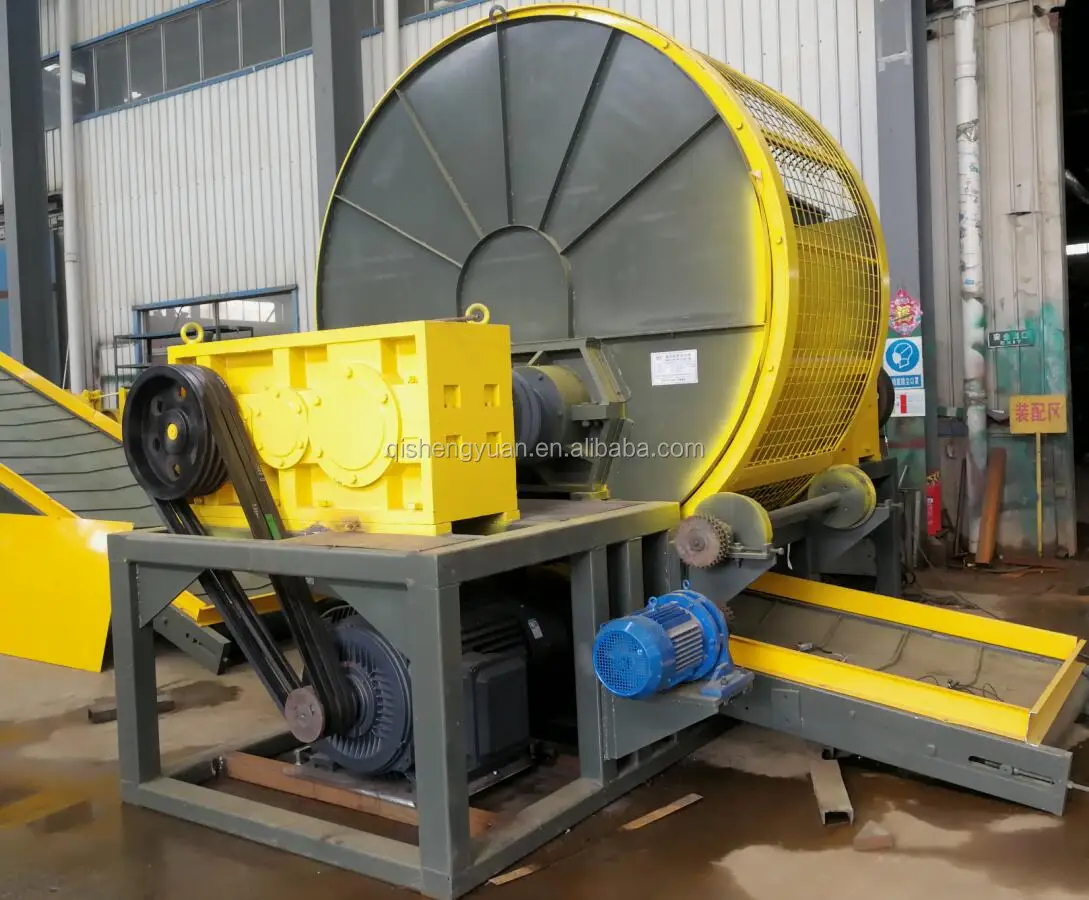

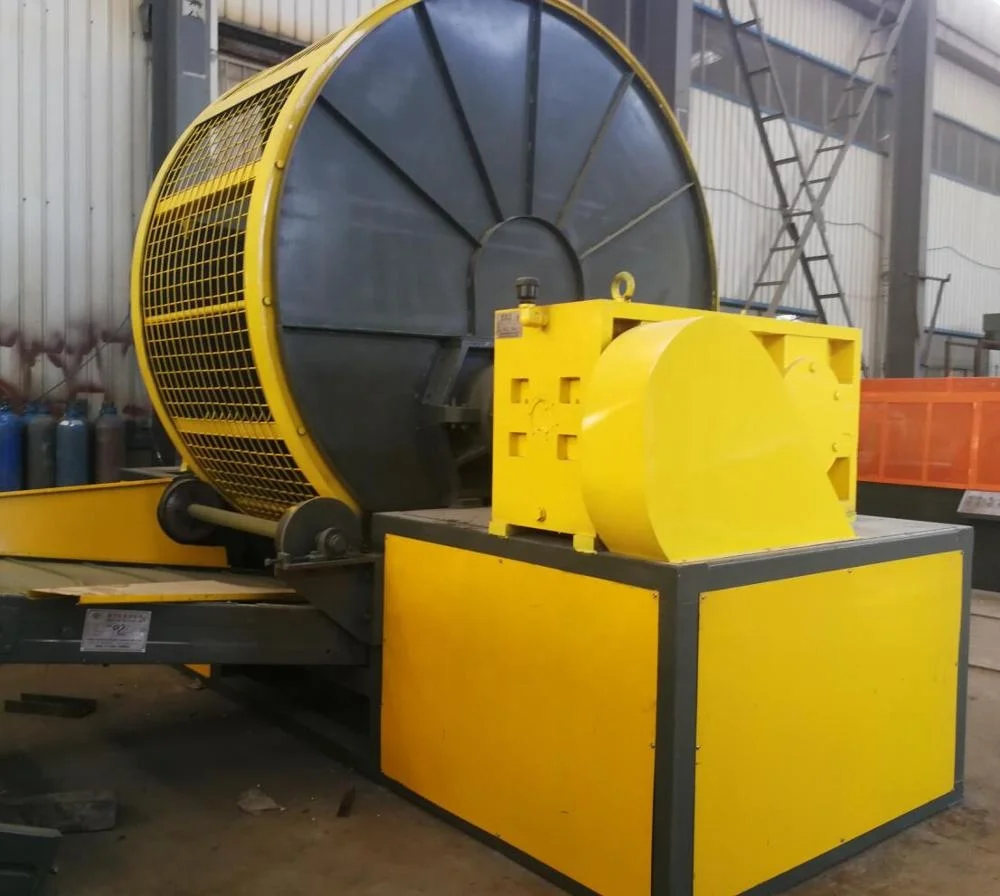

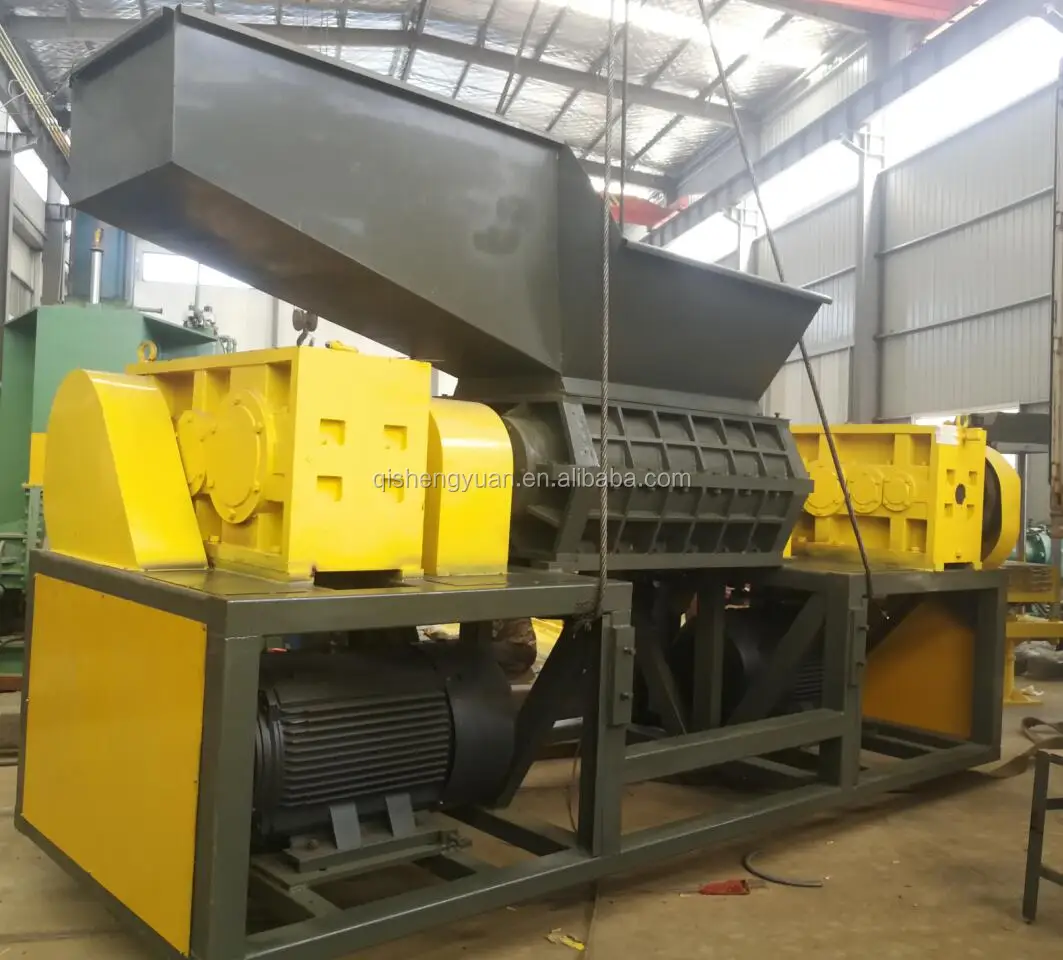

Details images of tire shredder
Other tire recycling machine

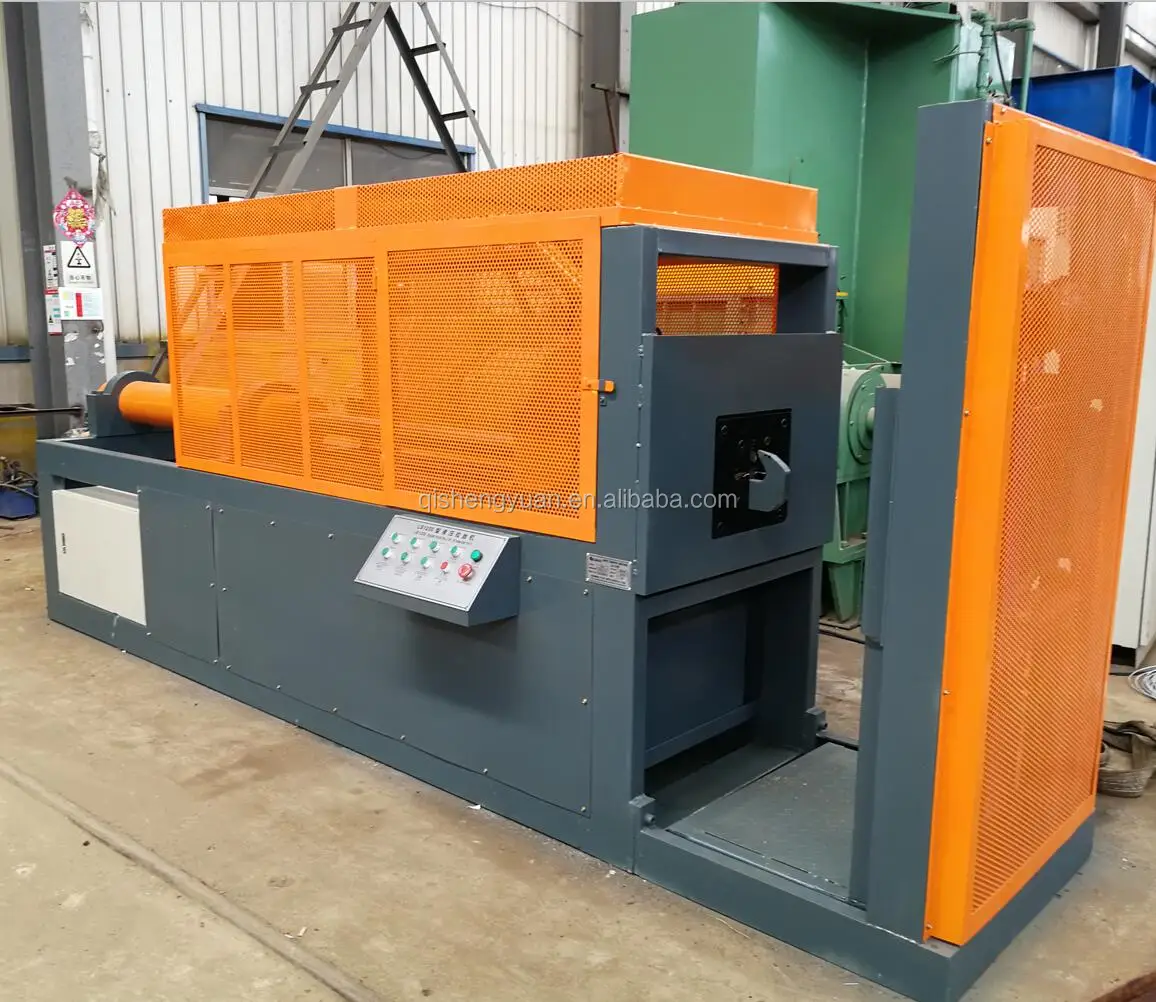

1.wire ring pulling machine
HS CODE | 84778000.00 |
Adapt tire | <1200mm |
Pull | 5T |
capacity | 20-50 tires /hour |
Motor power | 15KW |
Weight | 3T |
Dimension | 4200*900*1700 |
voltage | 380V, 50HZ |

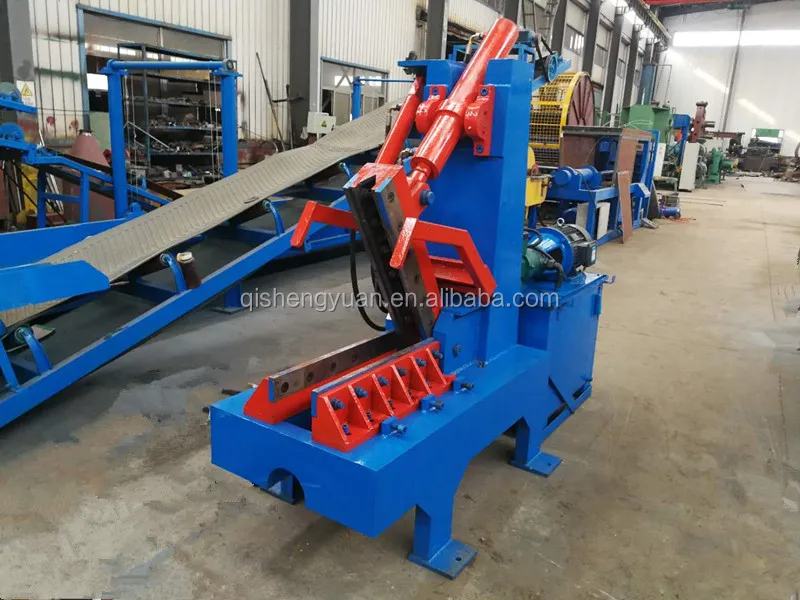

2.tire cutter machine
HS CODE | 84778000.00 |
Main Parameters | CJ-1200 tire cutter |
Adapt tire | <1200mm |
capacity | 20-60 tires/h |
Motor power | 5.5KW |
Dimension | 2080*1000*2130 |
Weight | 2.5T |
weight | 2T |

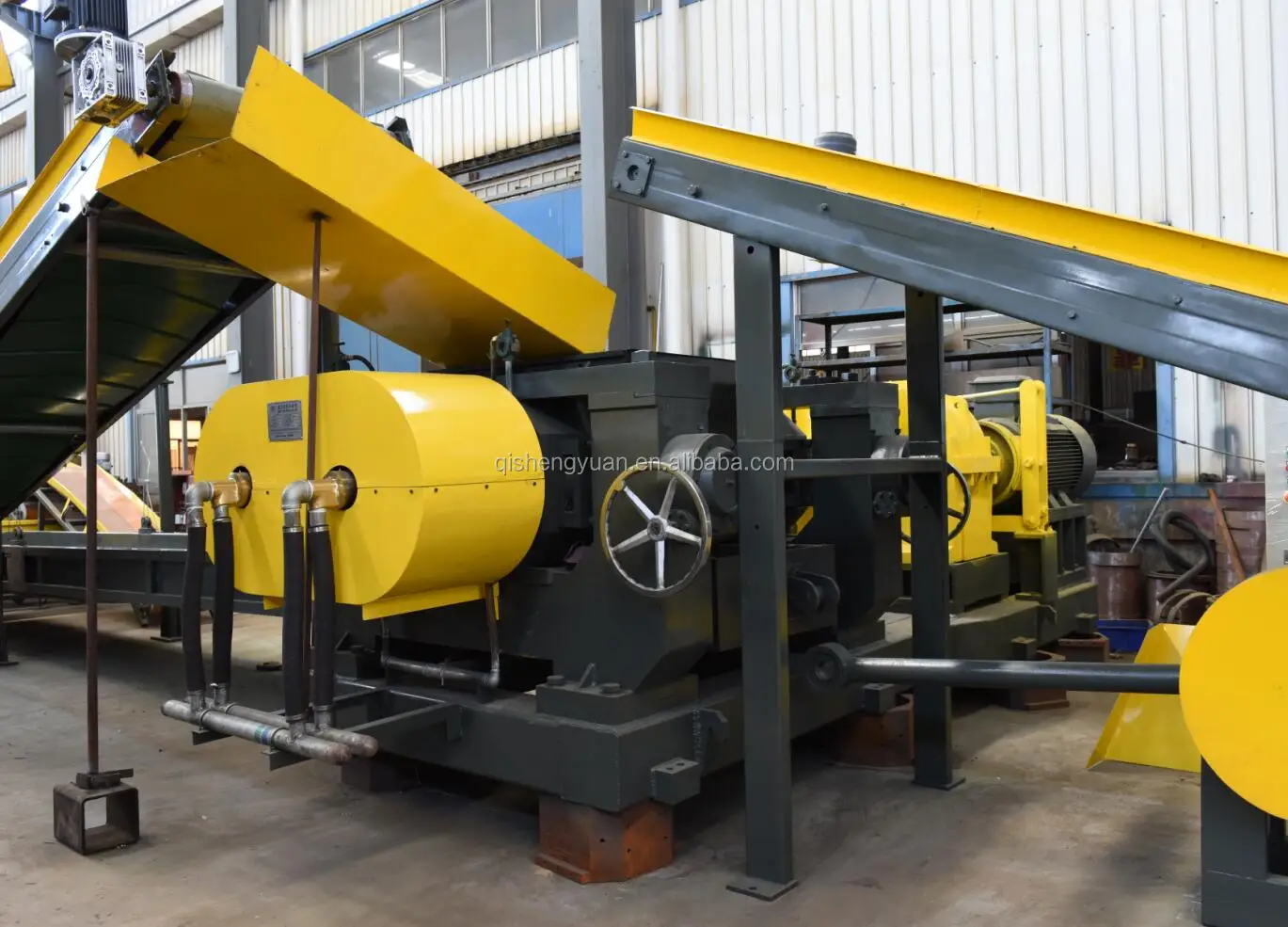

3.rubber crusher
Parameters/version | XKP-450 |
Back roll diameter | 450mm (grove ) |
Working length | 600mm |
Liner speed | 21.8m/min |
Friction ratio | 1:1.27 |
Max. nip | 10MM |
Feeding capacity per hour | 500-800(kg) |
Power(kw) | 55kw ,Chinese brand |
Gear box | ZSY hard tooth surface gear box |
Bush | Roller bearing |
Size(l*w*h) | 5800*2700*2300MM |
Weight(kg) | 11000kg |

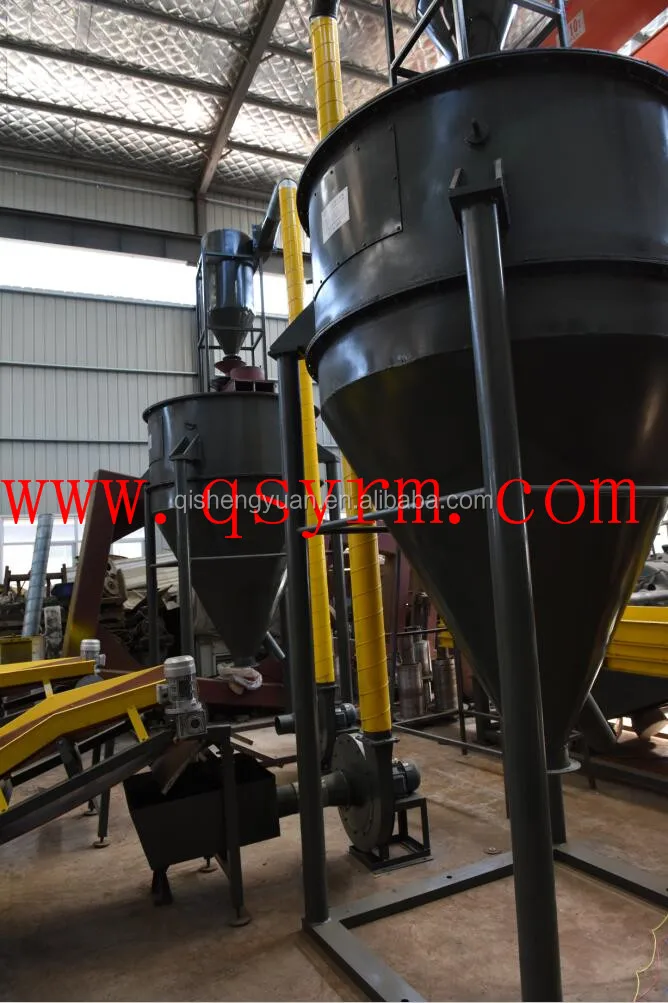

4.fiber separator
Fiber separator
1. Power: 4 kw
2. Speed: 650 rpm
3. Size:1300*1300*4700 mm
4. Weight: 1.5 T
4.HS Code:84778000.00
5.voltage:380V, 50HZ

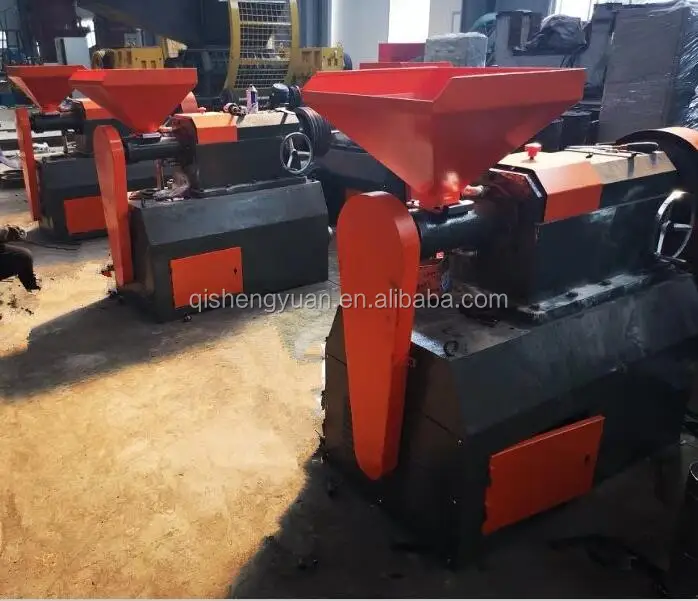

5.rubber grinder machine
Model | XFJ-320 |
Main motor | 30kw |
Input size | 5mm |
Output size | 0.8-1mm |
Buncher | 1.1kw |
Air blower | 7.5kw |
Kwan Fan | 0.75kw |
Output | Less than100kg/h |
Grinding temperature | ≤70℃ |
Dimension | 1560*800*1400 |
Weight | 725kg |
