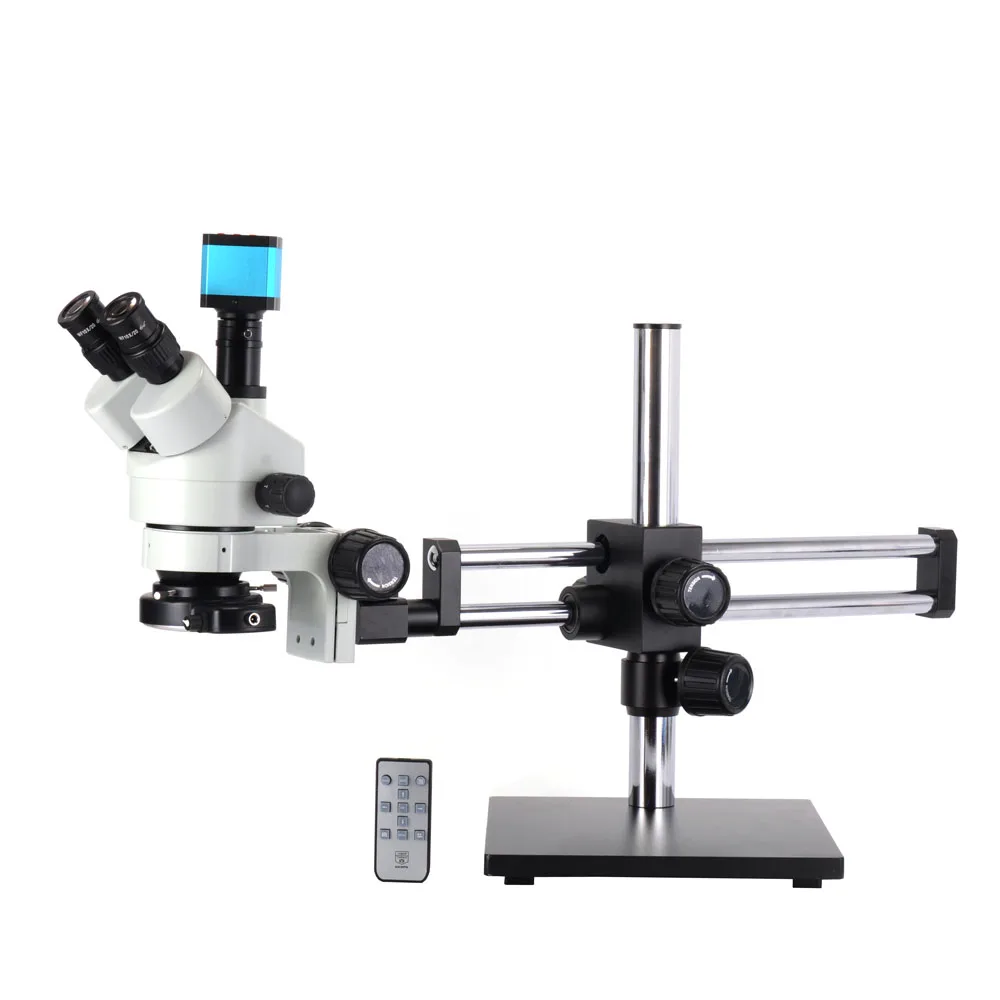

Тринокулярный Стерео микроскоп 0.7X 90X, двухслойный, вращающийся на 360 градусов, 14 МП, совместимая с HDMI камера, промышленный микроскоп, камера

Product Overview

Description

SZM7045 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body	Trinocular head, 45 degree inclined, 360 degree rotatable, can be locked in any position desired
	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1

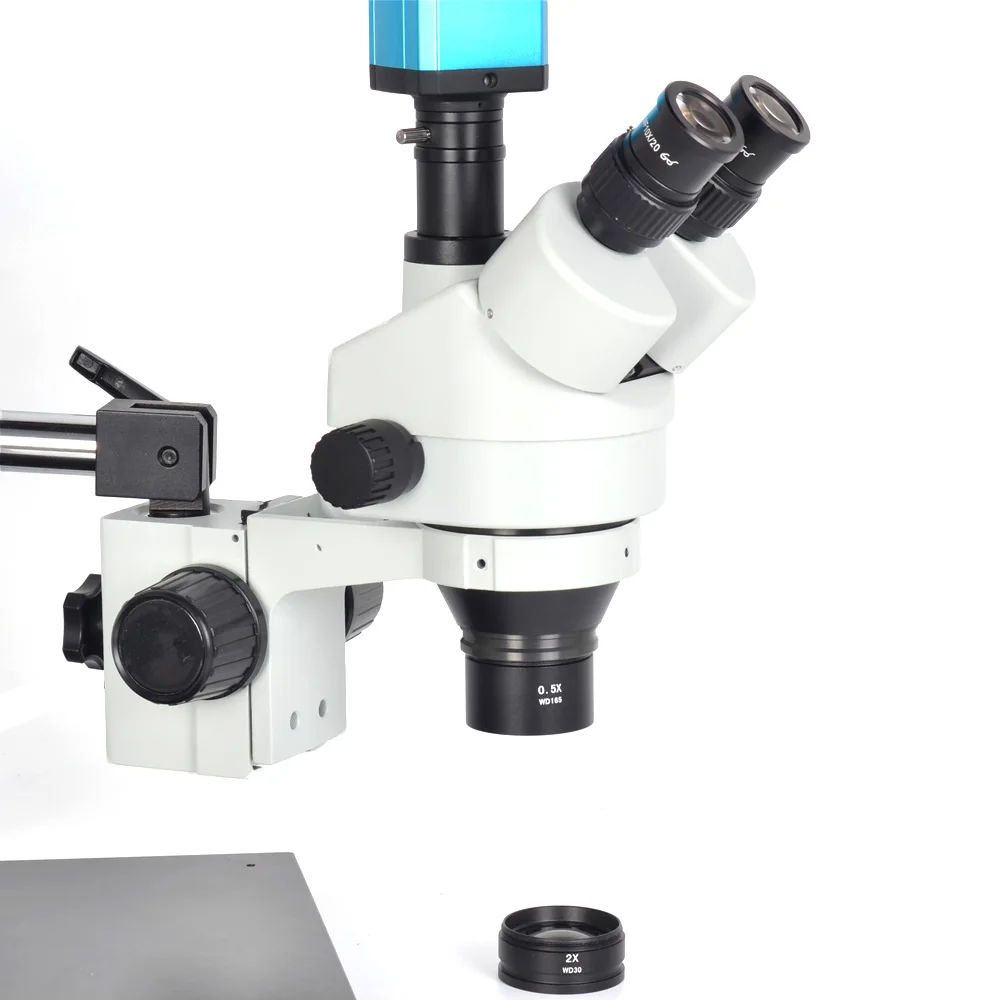

Aux Lens	0.5X and 2X

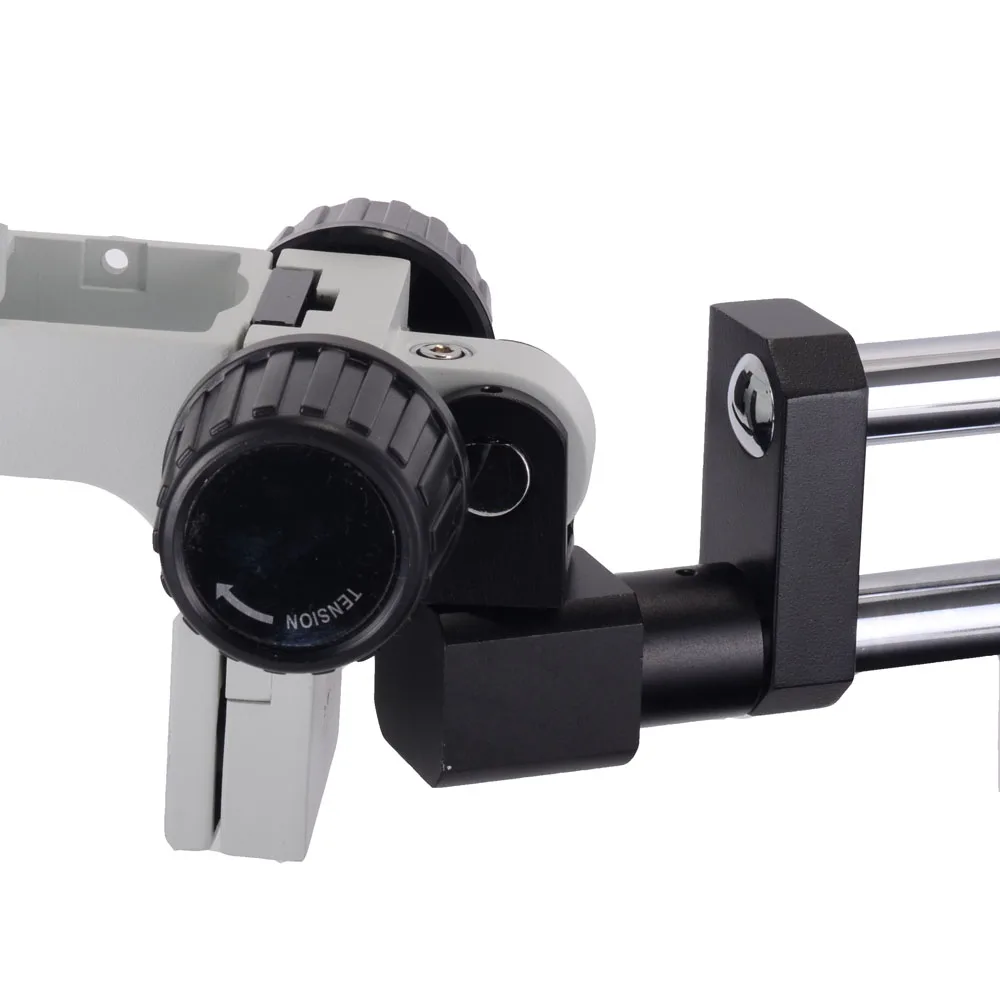

Focusing Mount	A3 focusing mount with vertical working distance 50mm

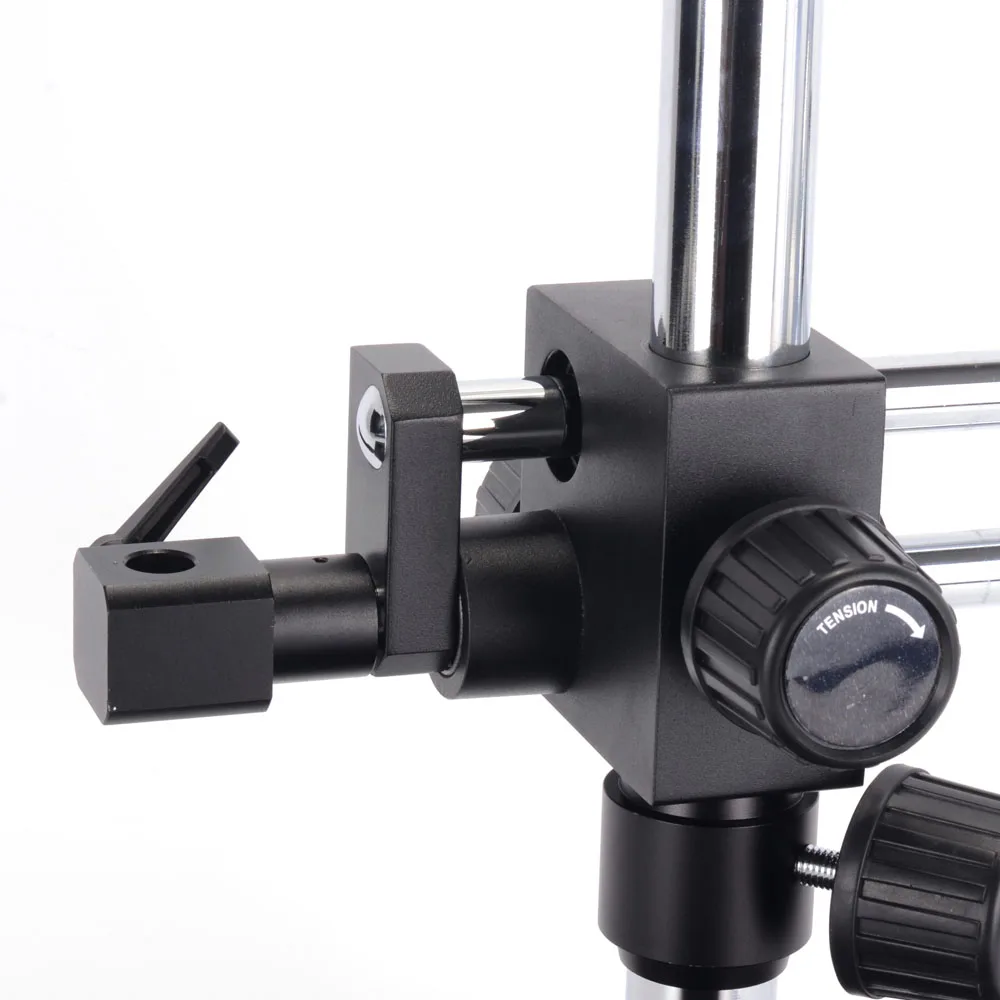

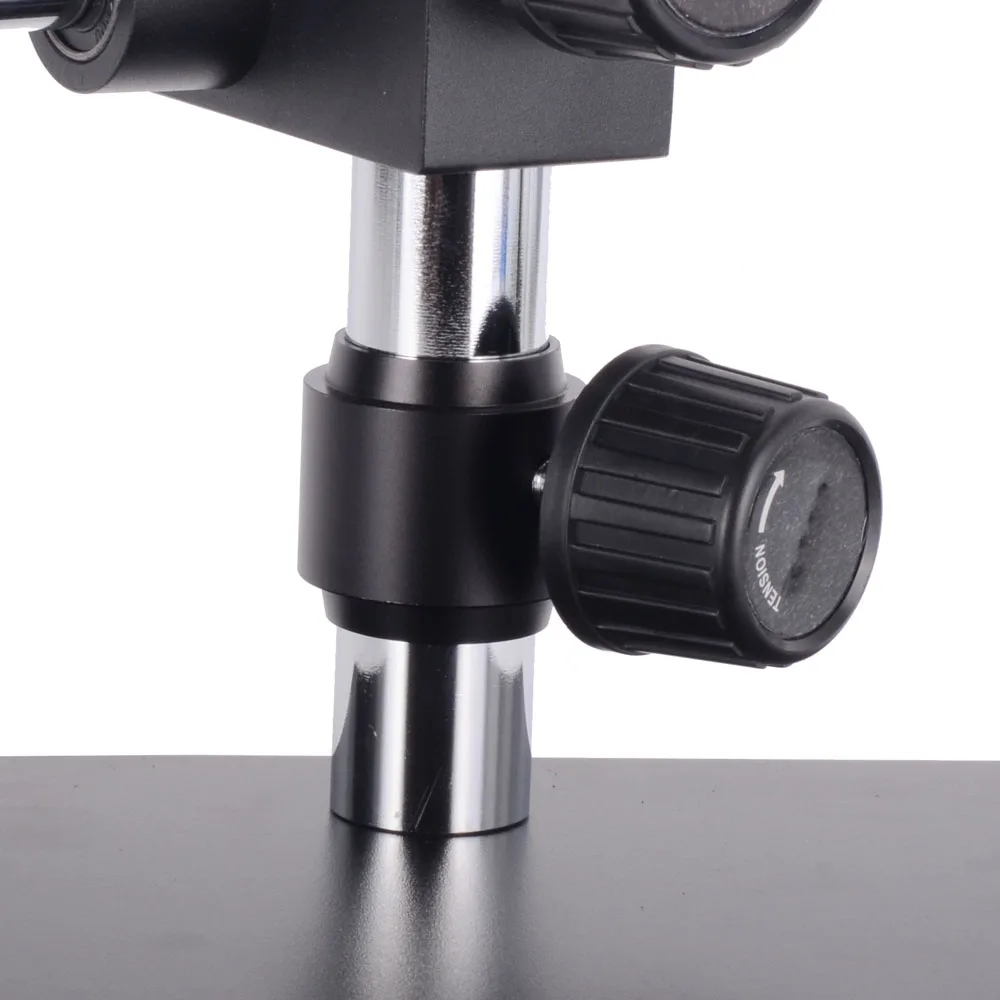

Stand	STL5 Boom Stand Expand the scope of operation and observe the object in any direction Vertical Post:380mm Diameter:dia. 37mm Horizontal moving:420mm Base Size:260x280x15mm    With A3 Focusing Mount

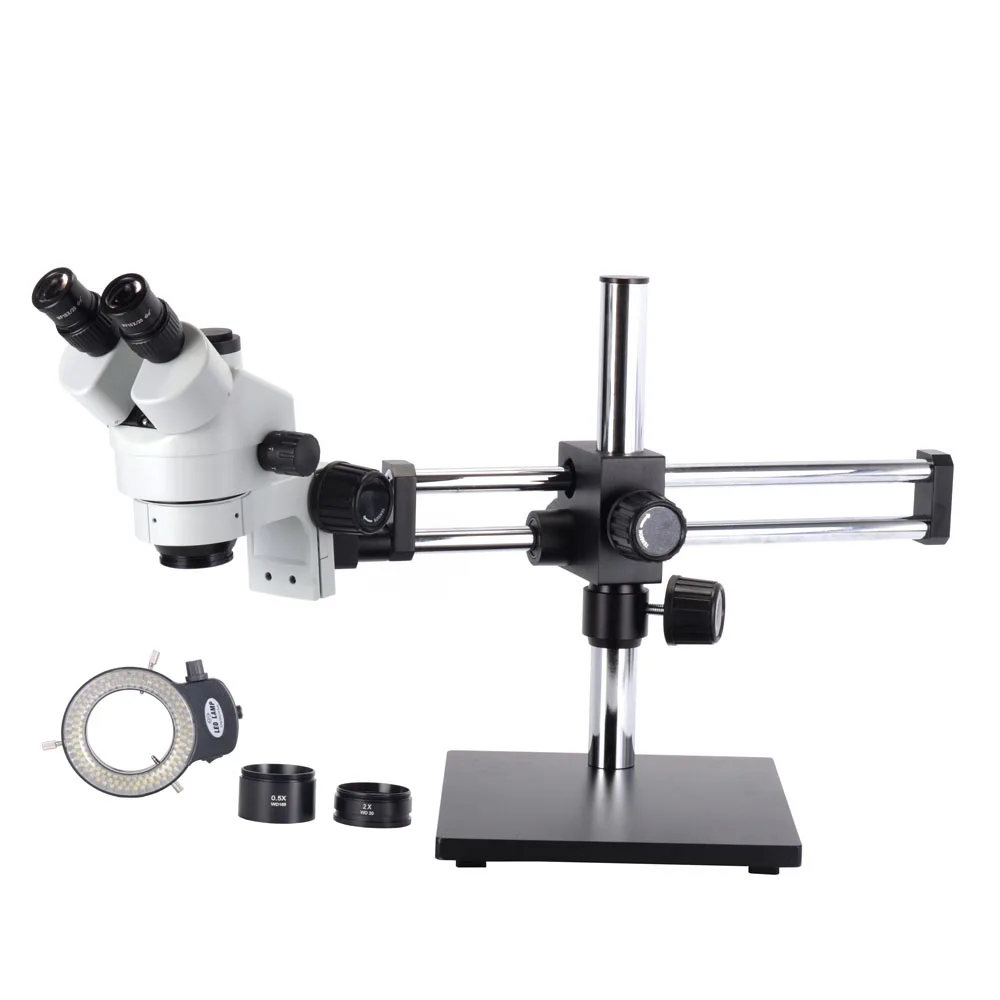

Illumination	adjustable 144 LED Ring light

Noted: Trinocular adapter: CTV1/1  (CTV1/2 or CTV1/3 is optional)







Features:
Model: Camera with HDMI-Compatible USB2.0 two output
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
Negative: Support
Mirror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese

Specification:
Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Housing:metal
Lens:C mount
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI-Compatible interface:Standard HDMI-Compatible output (Type A)
USB interface:Standard usb2.0 interface (Type B)

NOTED!!!
TF card storage is only for HDMI-Compatible output. USB output will be storaged in PC.
