Угол шарового соединения SQP10S из углеродистой стали и оцинкованного сплава
- Category: Sliding Bearings >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (60814960131):
Product Overview
Description
Product Description

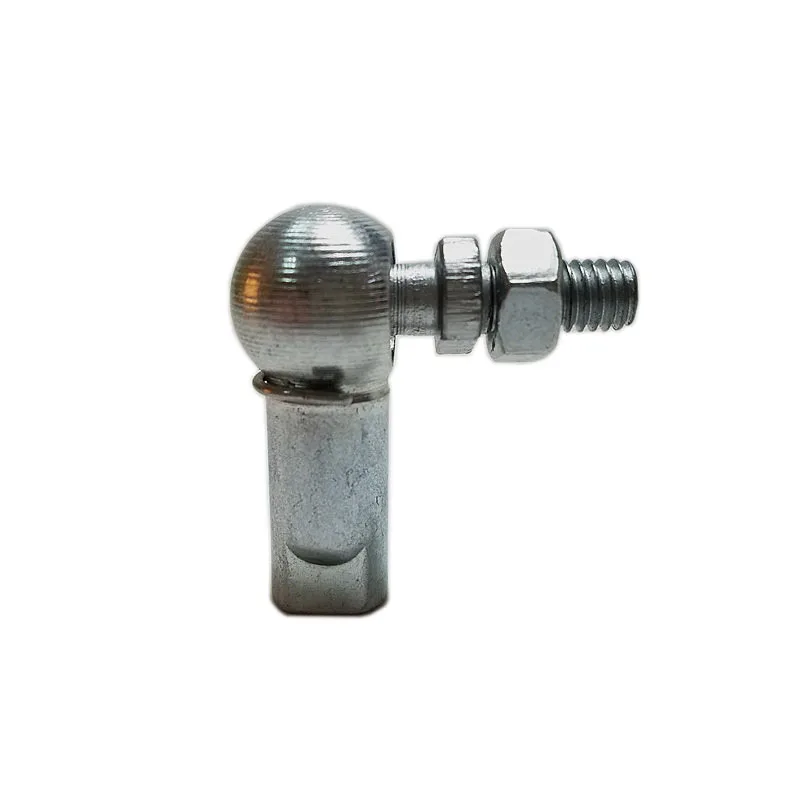

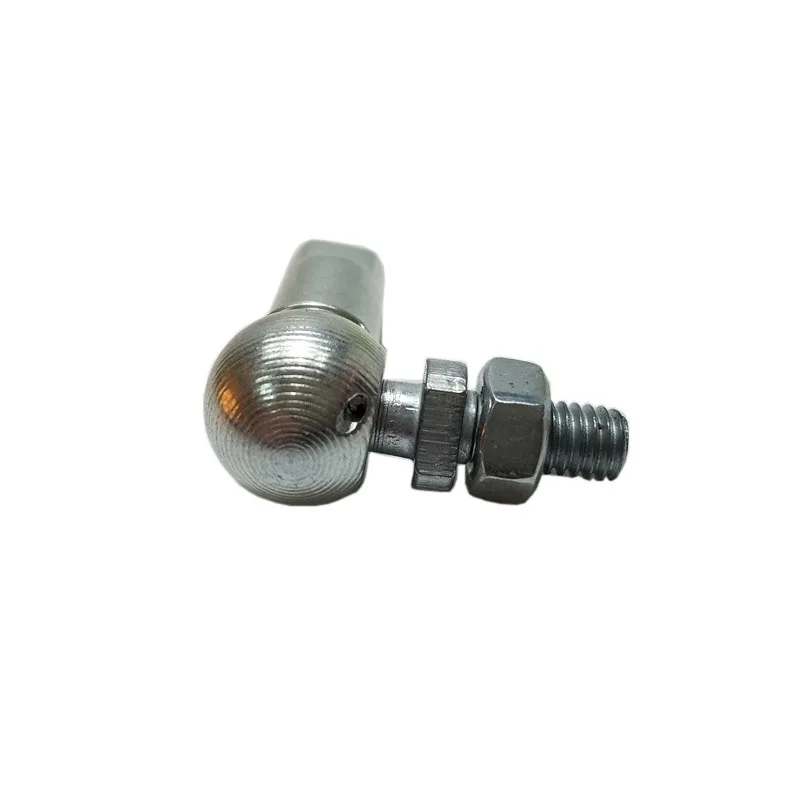

SQP10S angle ball joint
Features
• Housing: carbon steel and zinc plated
• Stud : carbon steel and zinc plated
• Sliding contact surface : steel/steel
Dimensions
• Thread: M10x1.5
• Load Ratings: 103.8KN
• Weight: 0.097kg
• Diameter of ball(stud): 13mm
• Radii of ball(housing): 12mm
• Center of Ball to Bottom of Housing: 35mm

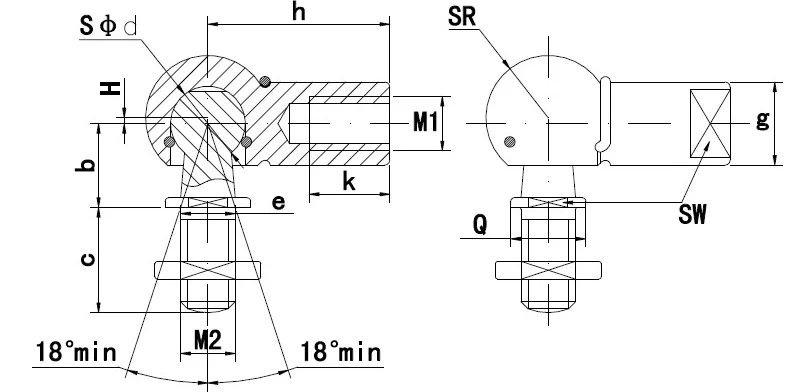

SQP..S Series Angle Joint
SQP..S series angle joint are made of carbon steel and zinc plated.
Features • Sliding contact surface: steel/steel • Housing:carbon steel,zinc plated • Stud: carbon steel,zinc plated
|  |
| Part No. | Dimensions mm | Load ratings | Weight | ||||||||||||
| Right hand | Left hand | Q | M1 6H | M2 6g | b | c | d | g | h | H | k min | SW | SR | KN | kg |
| SQP 5 S | SQPL 5 S | 8 | M5x0.8 | M5x0.8 | 9 | 10 | 8 | 8 | 22 | 0.7 | 10.2 | 7 | 6.4 | 15.2 | 0.014 |
| SQP 6 S | SQPL 6 S | 10 | M6x1.0 | M6x1.0 | 11 | 12.5 | 10 | 10 | 25 | 0.7 | 11.5 | 8 | 7.4 | 25.2 | 0.024 |
| SQP 8 S | SQPL 8 S | 13 | M8x1.25 | M8x1.25 | 13 | 16.5 | 13 | 13 | 30 | 1.16 | 14 | 11 | 9.65 | 53.1 | 0.053 |
| SQ 10 S | SQPL 10 S | 16 | M10x1.5 | M10x1.5 | 16 | 20 | 16 | 16 | 35 | 1.16 | 15.5 | 13 | 12 | 103.8 | 0.097 |
| SQ 12 S | SQPL 12 S | 16 | M12x1.75 | M12x1.75 | 16 | 20 | 16 | 16 | 35 | 1.16 | 15.5 | 13 | 12 | 103.8 | 0.097 |
| SQ 14 S | SQPL 14 S | 22 | M14x2.0 | M14x2.0 | 20 | 27 | 19 | 22 | 45 | 1.5 | 21.5 | 17 | 15 | 220.9 | 0.218 |
| SQ 14-1 S | SQPL 14-1 S | 22 | M14x1.5 | M14x1.5 | 20 | 27 | 19 | 22 | 45 | 1.5 | 21.5 | 17 | 15 | 220.9 | 0.218 |
