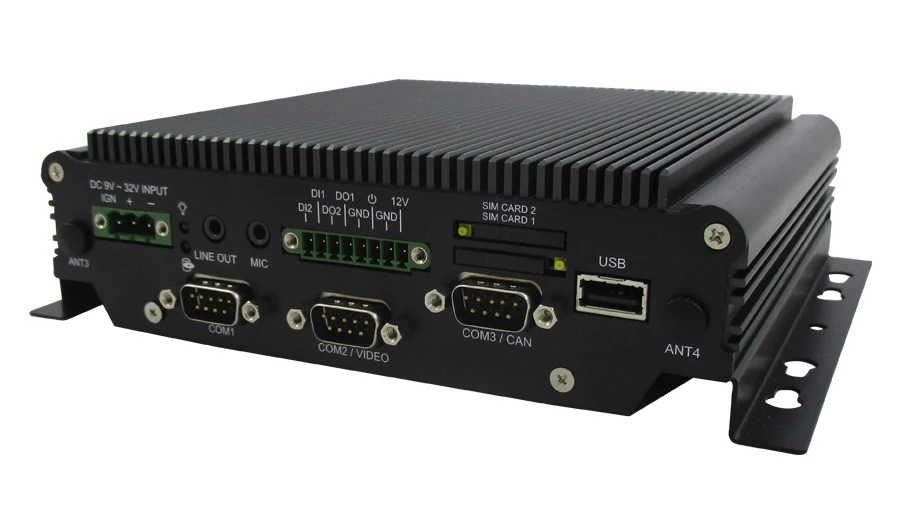

Smallest Win8 Linux Fanless Industrial Computer

Product Overview

Description





 Smallest Win8 Linux Fanless Industrial Computer



Intel Haswell Dual Core 2980U 1.6GHz CPU with 3 x RS-232/ DC 9-36V Input In-Vehicle Computer / In Car PC

• Intel Gen4 Dual Core 2980U 1.6GHz (optional I3-4010U)
• Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
• 9V - 36V DC Power Input
• Smarter Vehicle Power Ignition for Variety Vehicle
• Support 3x RS-232 (COM1 with 232/422/485)
• Support 2 x DI / 2 x DO (12V / 100mA)



Specification

System CPU Intel Gen4 Dual Core 2980U 1.6 GHz (optional I3-4010U) Memory  1 x DDR3L-1600 SO-DIMM up to 8GB Chipset N/A Graphic Intel HD Graphics ATA 2 x Serial ATA 2.0 Ports with 6Gb/s HDD Transfer Rate LAN Chipset  2 x Intel i210-AT Gigabit Ethernet Watchdog 1 ~ 255 Level Reset Power Requirement  Power Input  9V -36V DC Power Input Power Management  9V -36V DC Power Input Power Off Control Power off Delay Time Setting by Software, Default is 5 Mins Backup Battery  Internal Battery Kit for 10 Mins Operating (Optional) I/O Serial Port Suuport 3x RS-232 (COM1 with RS-232/422/485) USB Port 3 x USB 2.0 ports LAN 2 x RJ45 ports for GbE Video Port 1 x HDMI and DVI-I GPIO Port Support 2 In and 2 Out (12V / 100mA) Audio Mic-in/Line-out Expansion bus 3 x Mini-Card Slots Antenna 4 x SMA-type external antenna connectors for WLAN / UMTS / GSM / GPRS / GPS SIM Card Socket 2 x SIM Card sockets supported onboard with eject Mechanical & Environmental Dimension 182(L) x 167.6(W) x 52(H) mm Mounting Method Din Rail Mounting Kit Weight 1406 g Relative Humidity 5 ~ 90% (non-condensing) Operating Temp. -20 ~ 70°C (SSD), ambient w/ air Storage Temp. -40 ~ 80°C Certificatins CE, FCC Class A, eMark Compliance Ordering Information Part Number SD3210-3S Description Intel Haswell Dual Core 2980U 1.6GHz CPU In-Vehicle Computer w/ 9~36V DC Input
