Black color plastic PP geotextile fabric for embankment reinforcement
- Category: >>>
- Supplier: Zhejiang Chengmei Import & Export Co. Ltd. [Zhejiang China]Zhejiang
Share on (60814995668):
Product Overview
Description

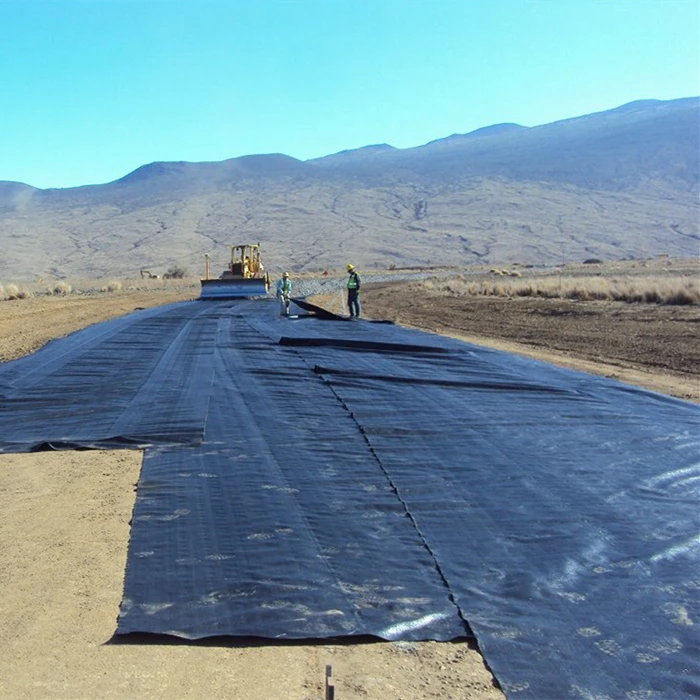

Geotextiles include a variety of synthetic polymer materials that are specially fabricated to be used in geotechnical, geoenvironmental, hydraulic and transportation engineering applications. It is convenient to identify the primary function of a geotextile as being one of: separation, filtration, drainage, reinforcement, fluid/gas containment, or erosion control. In some cases the geosynthetic may serve dual functions.
Mechanical Properties | Test Method | Minimum Average (English) | Minimum Average (Metric) |
| Mass/Unit | ASTM D-5261 | 8.2 oz/yd² | 350 g/m² |
| Wide Width Tensile Strength (MD x CD) | ASTM D-4595 | 3179 x 2711 Ibs/ft | 46 x 40 kN/m |
| Grab Tensile Strength (MD x CD) | ASTM D-4632 | 350 x 350 Ibs | 1560 x 1560 N |
| Grab Tensile Elongation | ASTM D-4632 | 20 x 15 % | 20 x 15 % |
| Trapezoidal Tear | ASTM D-4533 | 120 x 120 Ibs | 534 x 534 N |
| CBR Puncture | ASTM D-6241 | 1000 Ibs | 4448 N |
| Apparent Opening Size(AOS) | ASTM D-4751 | 40 US Std.Sieve | 0.425 mm |
| Permittivity | ASTM D-4491 | 0.15 sec-1 | 0.15 sec-1 |
| Water Flow Rate | ASTM D-4491 | 11 gal/min/ft² | 448 L/min/m² |
| UV Resistance (% retained after 500 hours) | ASTM D-4355 | 80 % | 80 % |
A: Are you manufacturer?
B: Yes,we are factory.
A: What's the leading time?
B: Usually 15-25 days.
A: What's your payment term?
B: T/T,L/C,WestUnion and some other convinient payment way.
A: How can I visit your factory?
B: Fly to Ningbo Airpot,We'll send driver to pick you up.
