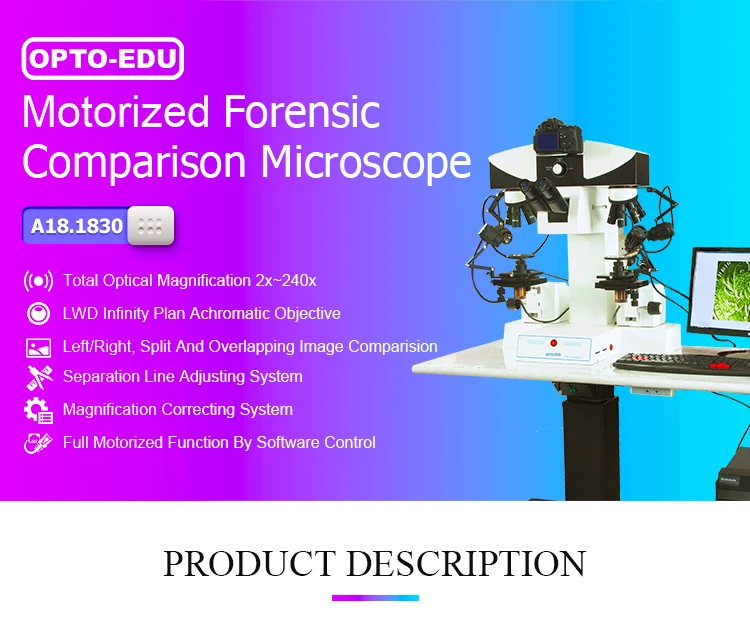

OPTO EDU A18.1830 Motorized Digital Forensic Comparison Microscope
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (60815006451):
Product Overview
Description
A18.1830 Motorized Digital Forensic Comparison Microscope,With Motorized Working Table | ||||
Magnification | 2x~240x | |||

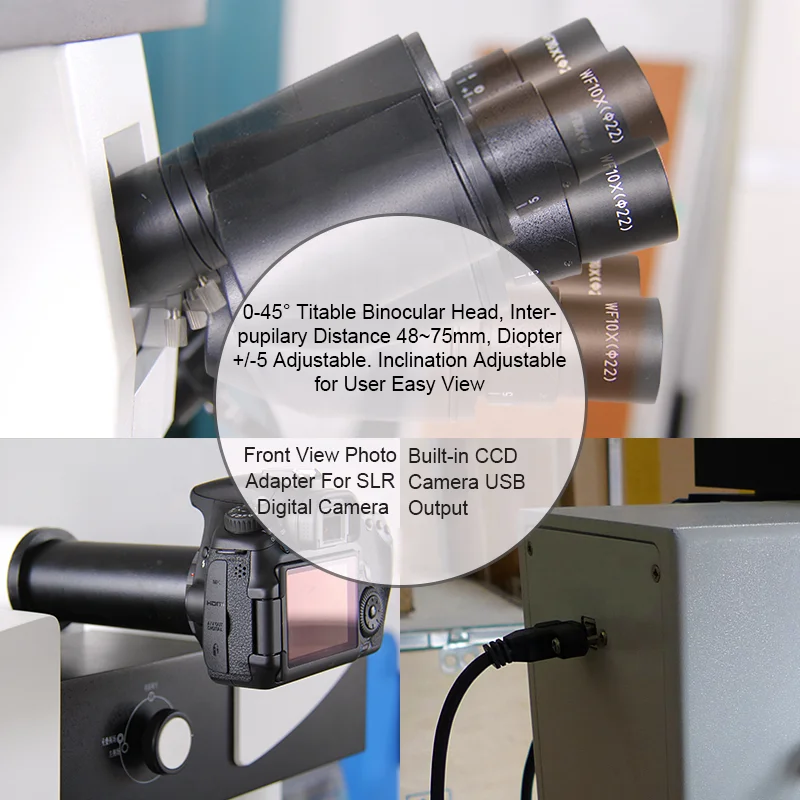

Head | 0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable | |||
Eyepiece | WF10x/22mm, High Eyepoint | |||
WF20x/12mm, High Eyepoint | ||||
Nosepiece | 6 Hole Click Stop Nosepiece | |||
Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x | |||
Auxiliary Lens 0.4x, 2.0x | ||||
Working Distance | 101mm | |||
View Field | Dia. 2.3~62mm | |||

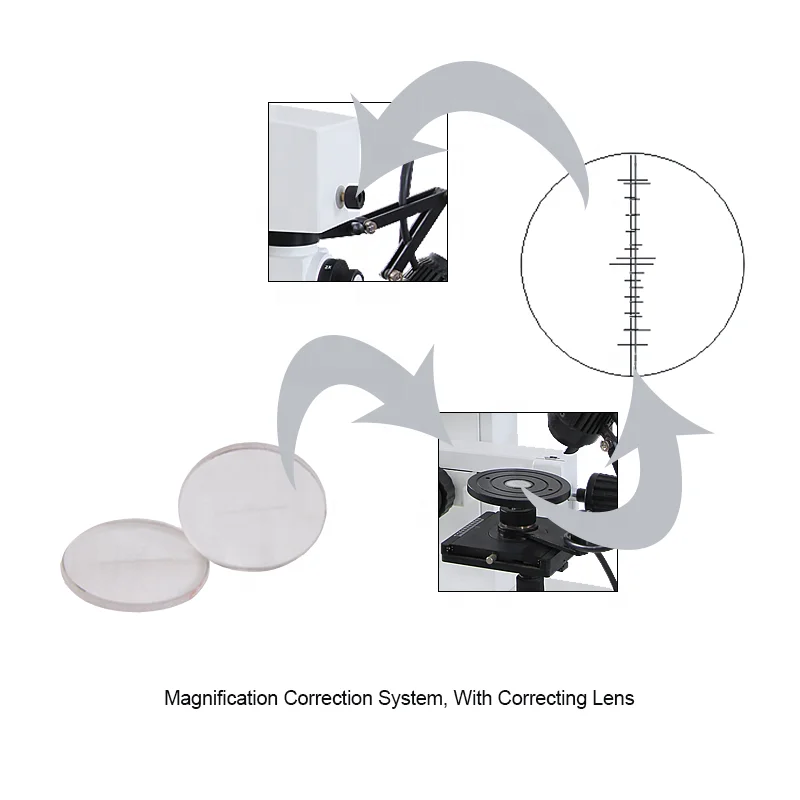

Magnification Correcting | Magnification Correction System, With Correcting Lens | |||
Separation Line Adjusting | Seperation Line Adjust System In Back, With Special Designed Adjust Driver | |||
Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm | |||
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable | ||||
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm | ||||
Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable，2pcs | |||
5W LED Cold Light, High Brightness, Brightness Adjustable，2pcs | ||||
Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface，2pcs | ||||

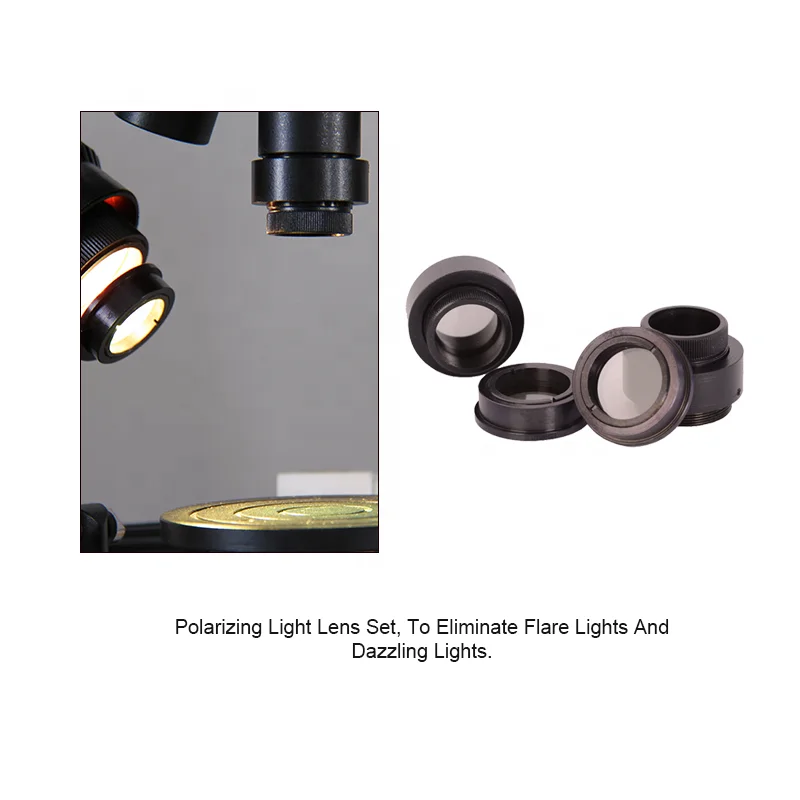

Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights，2pcs | ||||
Transmit Bottom Light (Built-in Working Stage) | ||||

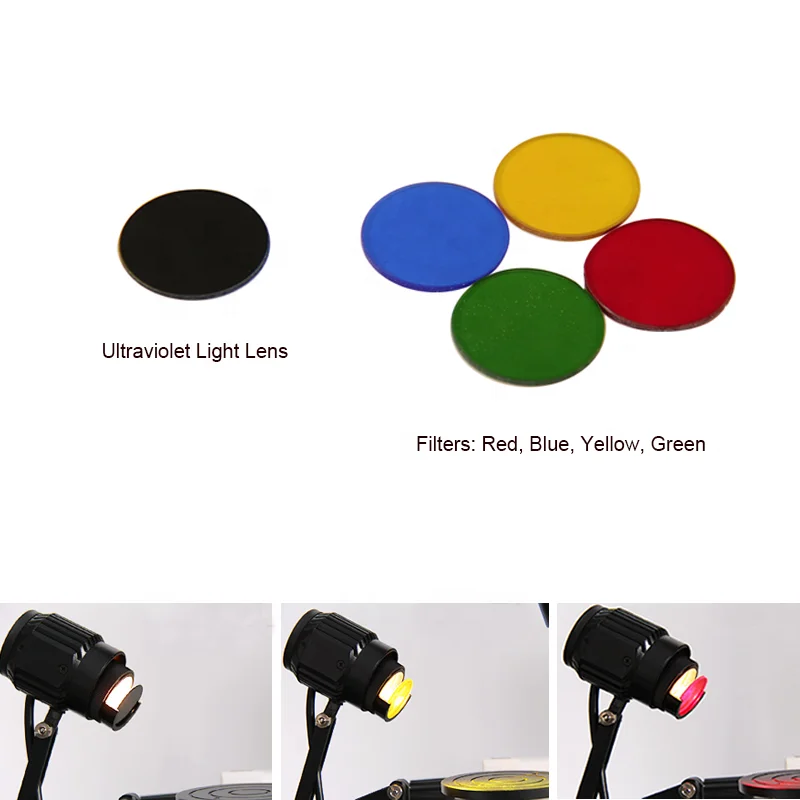

Ultraviolet Light Lens，2pcs | ||||
Filters: Red, Blue, Yellow, Green，2pcs Each Color | ||||
Adapter | 0.5x CCD Adapter For Digital Camera,1pc | |||
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon) | ||||
CCD Camera | Built-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm | |||

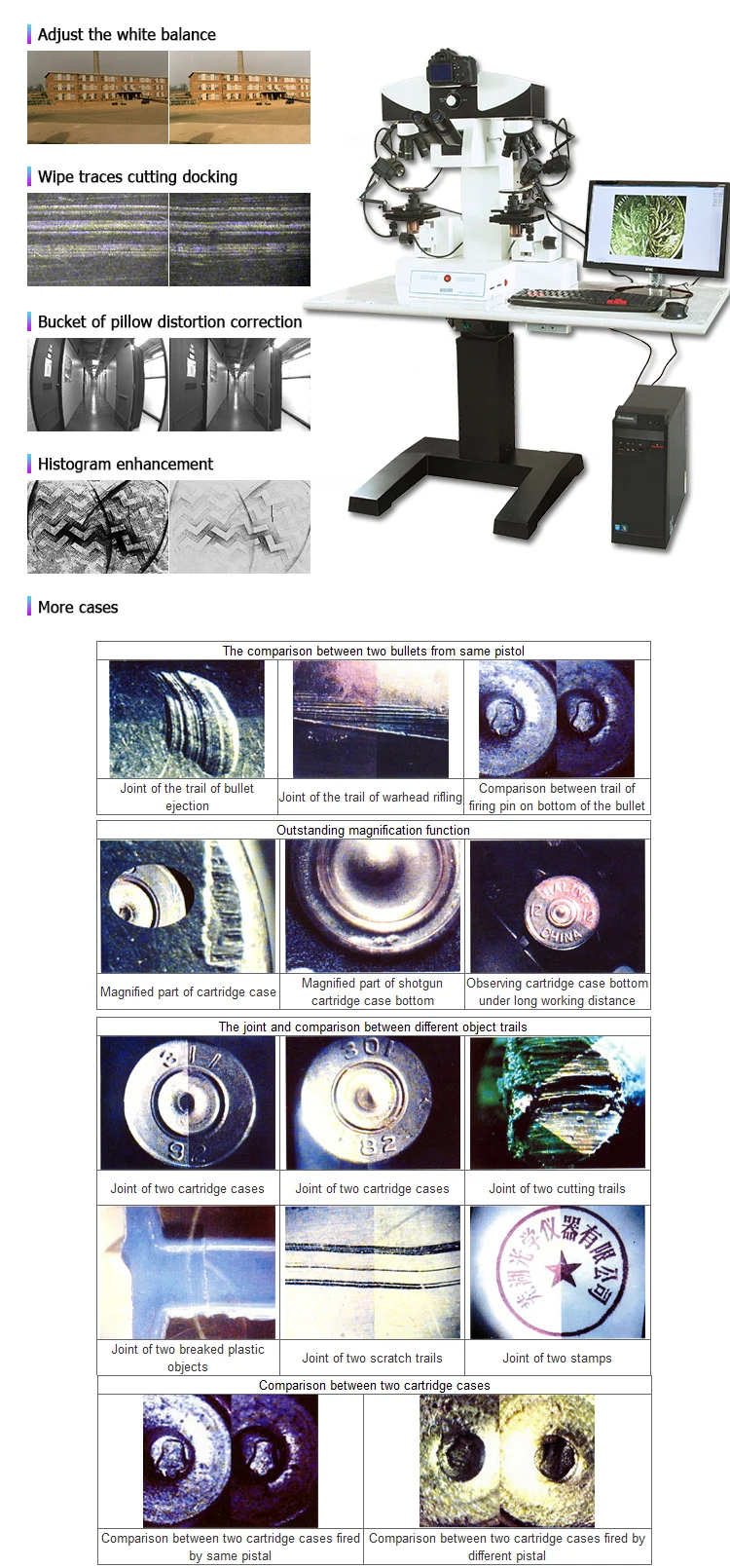

Software | Professional Forensic Image Analysis Software | |||
Motorized/Manual Viewfield Changeover Full /Split /Overlapping Image | ||||
Motorized/Manual Control Working Stage X/Y/Z 3D Movement | ||||
Motorized/Manual Control Round Working Stage Rotation +/- Direction | ||||
Motorized/Manual Control To Change Objective Magnification | ||||
Working Table | A18.1830 Include Motorized Working Table, Size 60*120mm, Height 65mm, Motorized Up/Down 160mm | |||
Power | 80~240V Wide Range Voltage | |||
Bullet Holder | Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects | |||
Dimension | Instrument Size 40*60*72cm | |||
Optional Accessories | ||||

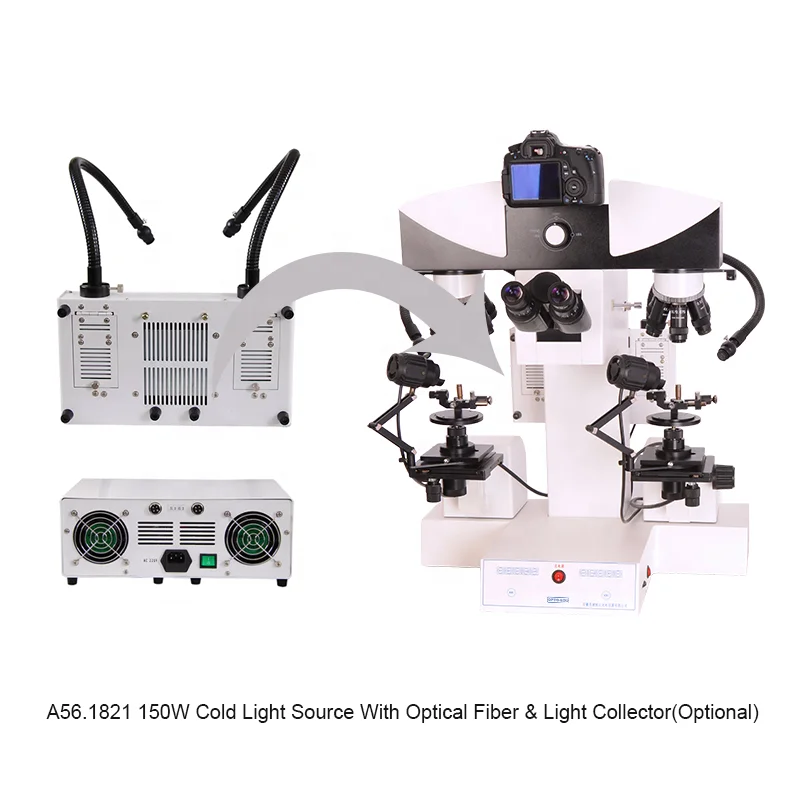

Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 | ||
Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 | ||
Objective | Eyepiece 10X | Eyepiece 20X | Photograpging & Video System | Working Distance |
Mag./Viewfield φ22mm | Mag./Viewfield φ12mm | |||
1X/0.03 | 10X/φ22 | 20X/φ12 | Measure According to Monitor & Digital Camera | 102mm |
1.5X/0.04 | 15X/φ15 | 30X/φ8 | ||
2X/0.05 | 20X/φ11 | 40X/φ6 | ||
4X/0.072 | 40X/φ5.5 | 80X/φ3 | ||
6X/0.075 | 60X/φ3.7 | 120X/φ2 | ||
0.5X/0.02 | 5X/φ44 | 10X/φ24 | 138mm |
