43 inch interactive multi touch foil for touch window or touch table
- Category: >>>
- Supplier: Shenzhen Greentouch Technology Co. Ltd.
Share on (60815151668):
Product Overview
Description
Product Description
| www.greentouch.com.cn skype:greentouch888 Wechat/whatsapp:+0086 17603061073 | ||
Interactive Touch foil Specifications
| ||
| Technical rationale | Improved projected capacitive technology,nano-silver wireme shmatrix substitute ITO layer. | |
| Product categories | MT-series | MT-series |
| Products series | 4K | 8K |
| Touch points | 40points | 40points |
| Available size | 30"-120" | 30"-120" |
| Suggestion size | 32"-120" | 42"-120" |
| Touch deviation | 2mm | 1mm |
| Sensors | 4096 | 8192 |
| Scanspeed | 16ms/frame | 14ms/frame |
| Energy consumption | 1.5W | 1.5W |
| Drive Type | Driver | Driver-free |
| Windows | Win7/8/8.1/10 | Win7/8/8.1/10 |
| Android | A20 Kernel:liunx3.3.0 | Kernel:3.10 and above |
| Linux | 12.04.4,Kernel:3.11.0-15 14.04.2, Kernel:3.16.0-30 | 12.04.4,Kernel:3.11.0-15 14.04.2, Kernel:3.16.0-30 |
| Mac | NO | NO |
| Arm Reject | NO | NO |
| Support customize | irregular size/tail | irregular size/tail |
| Bias calibration | Software calibration (3/ 5-point calibration) | Software calibration (3/ 5-point calibration) |
| Technical Certification | CE >ilac-MRA >CNAS >CAL >CMA | |
| Packing List | Touch foil*1 PCB board*1 USB cable*1 | |
| Film Thickness | 100um | |
| Transparency | 93% above | |
| Power supply | 5V | |
| Transfer way | USB2.0 | |
| Transfer distance | 50m >Plus USB signal amplifier, | |
| Safe distance | 2mm-10mm(It refers to the distance between the LCD screen and the film ) | |
| Ambient temperature | ||
| Ambient light | The whole point of the anti-glare | |
| Touch points support | Click, drag, zoom, rotate | |
| Sensing distance | <20(if big than 8mm,please inform in advance) | |
Drawing
Usage method
PC+Touch foil +Glass
PC/Android board +Projector +Projection film +Touch foil +Glass
Appplication

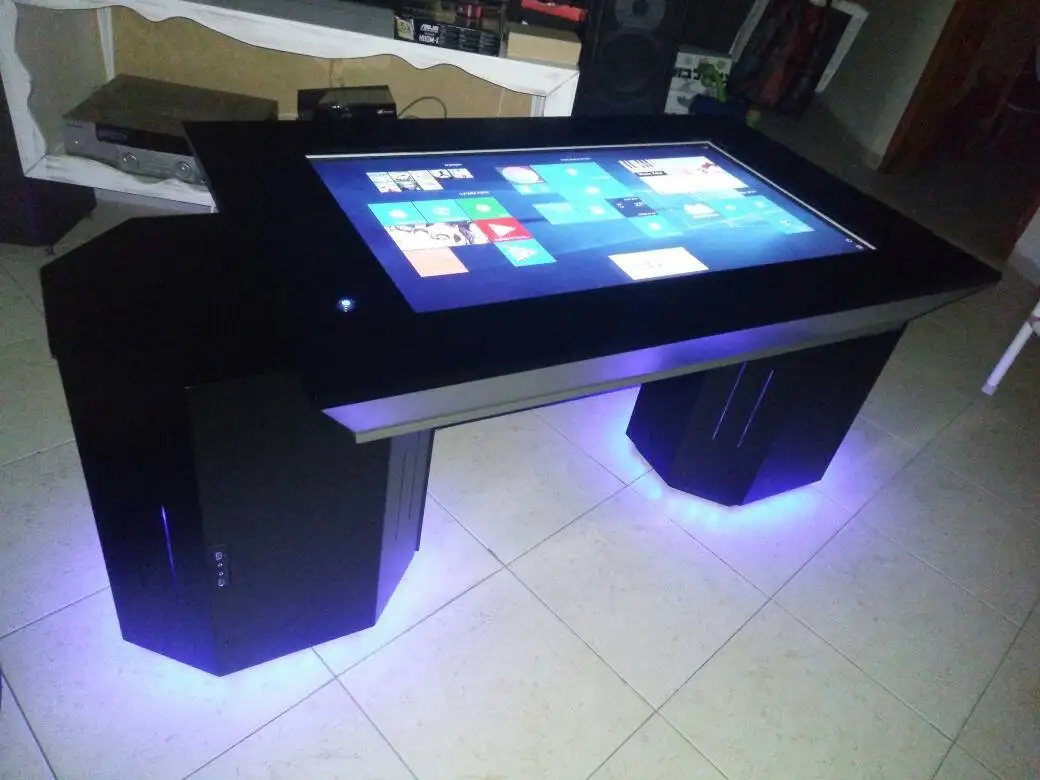

Touch table

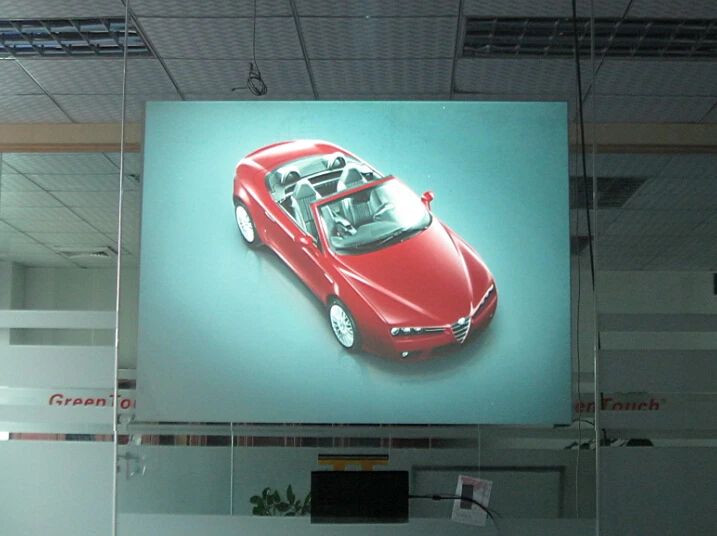

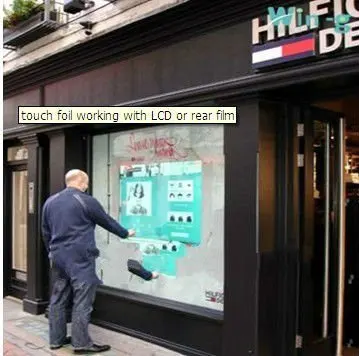

Window display
projection
Company Information
GreenTouch Technology Co., Ltd.is a professional manufacturer of touch screen and a high-tech enterprise. Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch screen. Our company has our own trademark GreenTouch and provides customers with touch screens including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen and various touch screen monitors. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001 Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation. Our products have been certified to CE, FCC, ETL, ROHS and UL. The objective of GreenTouch is to become the most reliable supplier of touch screen, special products, high value-added products and touch solutions in the world!
CE /FCC Certification
