6mm 3 2 Phase 4 Wire Micro Stepper Motor
VSM0613 is a precision mini stepper motor fuselage diameter 6 mm, 7 mm fuselage length, 1 mm shaft diameter, the axial length can be according to the demand change appropriately, can also be equipped with gear, pulley, worm, screw, etc. The corresponding output device.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
|PRODUCT NAME||6 MM MICRO STEPPER MOTOR|
|MAX. STARTING FREQUENCY||1300 PPS min. (AT 3.3 V DC)|
|MAX. SLEWING FREQUENCY||2500 PPS min. (AT 3.3 V DC)|
|PULL IN TORQUE||0.8gf-cm min. (AT 500 PPS , 3.3V DC)|
|PULL OUT TORQUE||1.0gf-cm min. (AT 500 PPS , 3.3V DC)|
|INSULATION CLASS||CLASS E FOR COILS|
|INSULATION STRENGTH||3.0mA (max.)|
|INSULATION RESISTENCE||1 MΩ (DC 100 V)|
|OPERATING TEMPERATURE RANGE||-10~+60 ℃|
|OEM & ODM SERVICE||AVAILABLE|

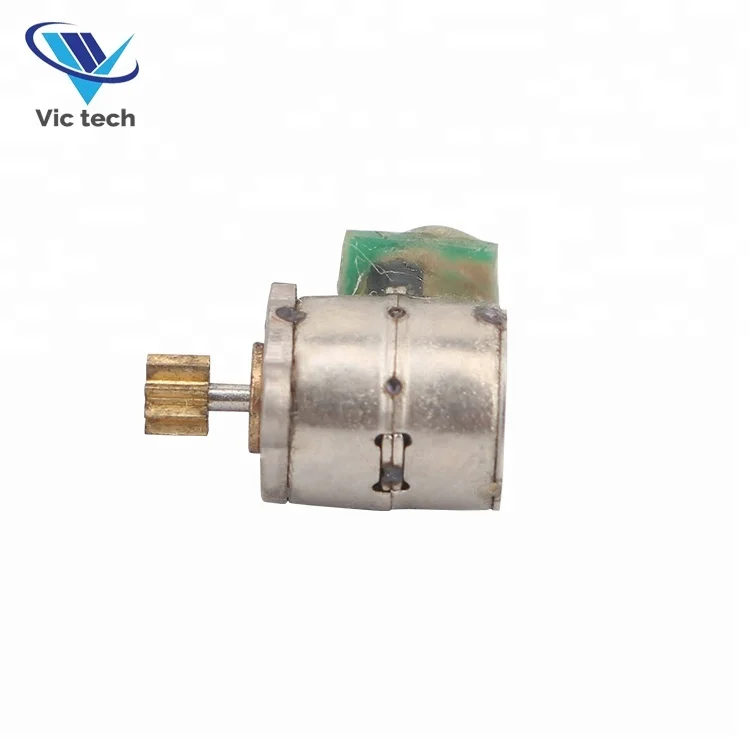

6mm micro stepper motor
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes can be customized.

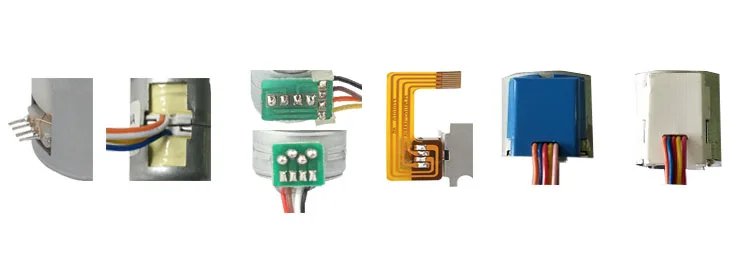

TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
