Product Overview
Description

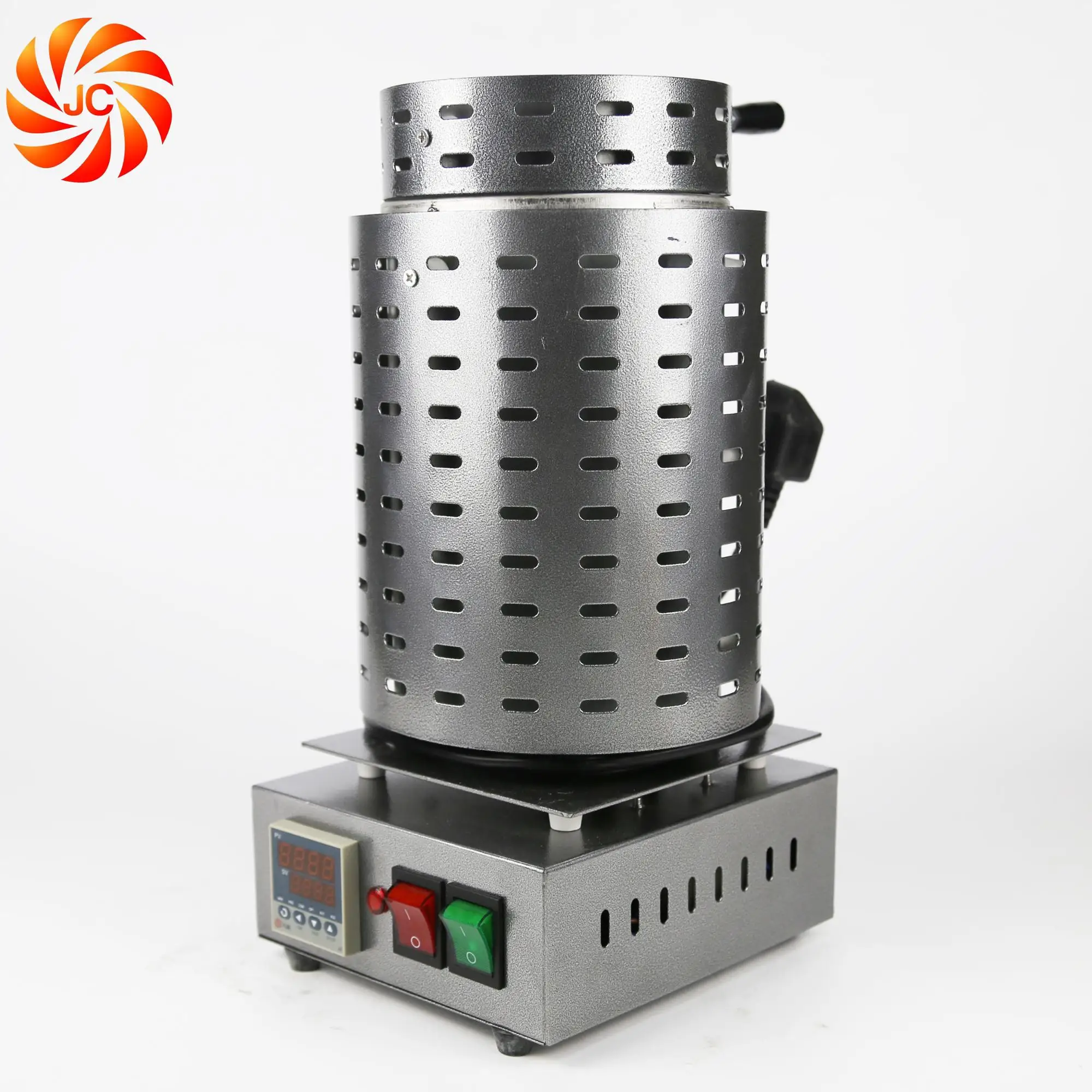

220V 4kg Metal Melting Electric Furnace for Gold Silver Copper Aluminum
Product Description
Automatic Melting Furnace are made for casting, reclaiming, alloying, and refining gold, silver and other metals with similar or lesser melting temperatures. Equipped with electronic temperature controls with digital displays, these melters can reach a maximum temperature of 2102F (1150 C). The digital temperature control will prevent overshoot and protect the heating element from overheating. Tongs are provided to easily remove crucible.
New type melting furnace apply SSR controller, alloy made heater with melting temp up to 1900, high temp proof ceramic melting Chamber, high aluminium protection.
Model | JC-K-220-2 |
Voltage | 220AC single phase 50/60Hz |
Power | 1500Watts |
Heating | Silicon Carbide chamber |
Working temp | 2102F (1150C) |
Melting Speed | 30-40mins |
Melted Material | Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc |
Capacity | 4kg list for gold |
Feature | 1.Designed for handheld pouring directly from the crucible |
Product Feature
* PID Digital Temperature Controller
* SSR relay.
* Easy to operate & maintai
* Low Maintenance Heating Element.
* Heat On/Off Indicator
* Safe & Shock Hazard free
* Transformer based (low voltage)
* Nichrome, Lanthal (DST or A1) heating coils are used for
* quality uniform heating.

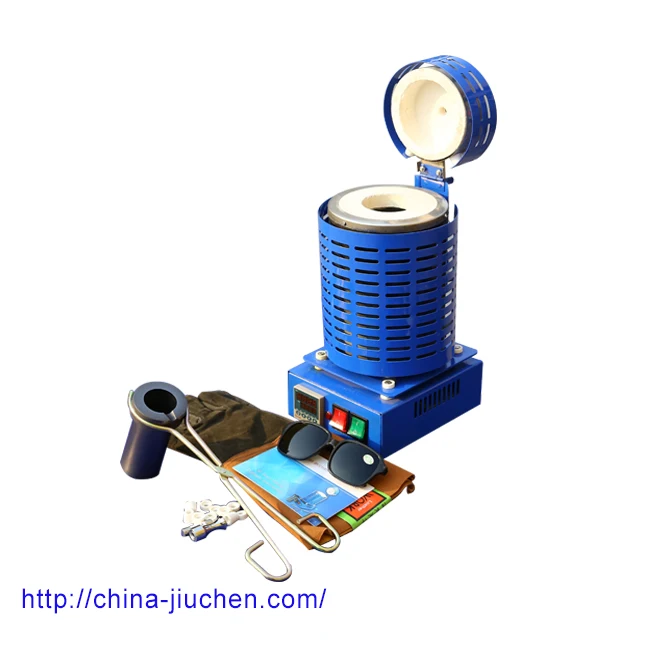

One Furnace Unit delivery with:

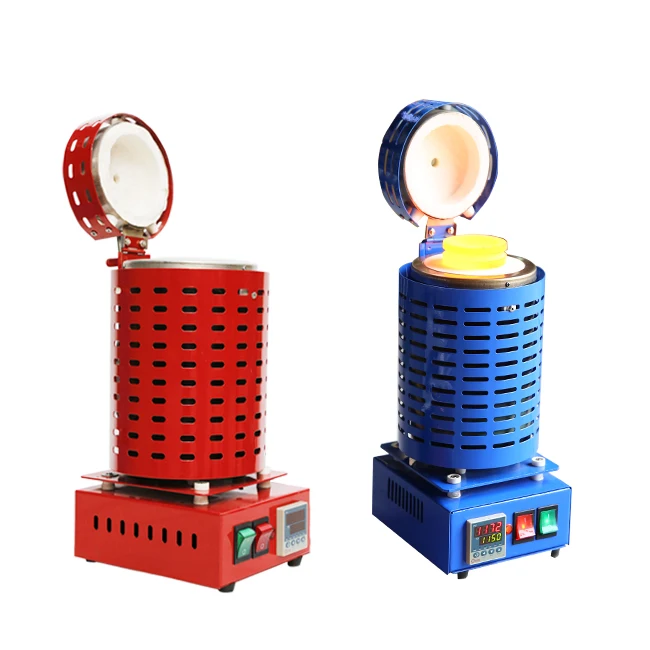

Model JC-K-220-2(220V 1.5kw) Red,Blue ,Gray color is optional

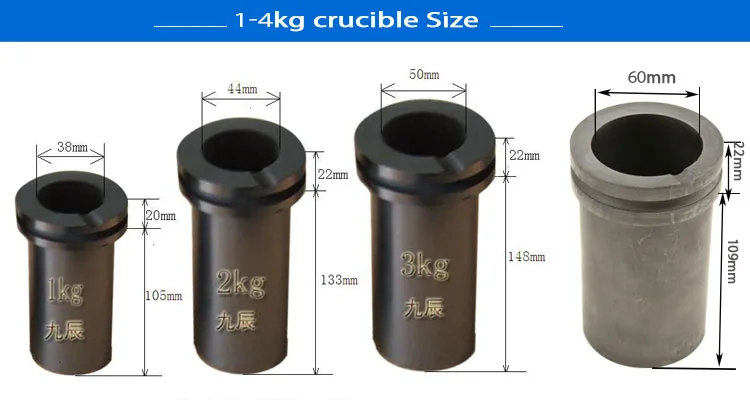

1-4kg graphite crucible
1-crucible tongs.
1-replacement fuse.
1-insulating heat glasses.
1- gloves.
Click here for getting a new quotation!!!!
Gold bar melting Operating Process as follows
Step 1 Put gold bar into the crucible.
Step2 Heat up the furnace with 15 minutes
Step3. Take out the Melting crucible from the furnace,then put it on tray.
Step4.Pour slowly the gold liquid from the crucible.
Step5.Wait the liquid cooling in the mould within several seconds.
furnace for melting metal Instruction
The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat
allowing you to set the desired melting temperature.
The RED switch turns on the heating element to start the melting process.
The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you
enter into the furnace. The top read-out (PV) displays the actual temperature inside the
crucible during operation.
Certificate
FAQ
1.How long is the JC Furnace warranty time?
A: One year with electric parts including temperature controller, relay,termocouple
Six months for heating elements including chamber, heating coil.
2.which certification of JC Furnace do you have ?
A:CE,ISO900 1,Test Report,etc.expect these for different countries,other certificates required
by customer is agreed.
