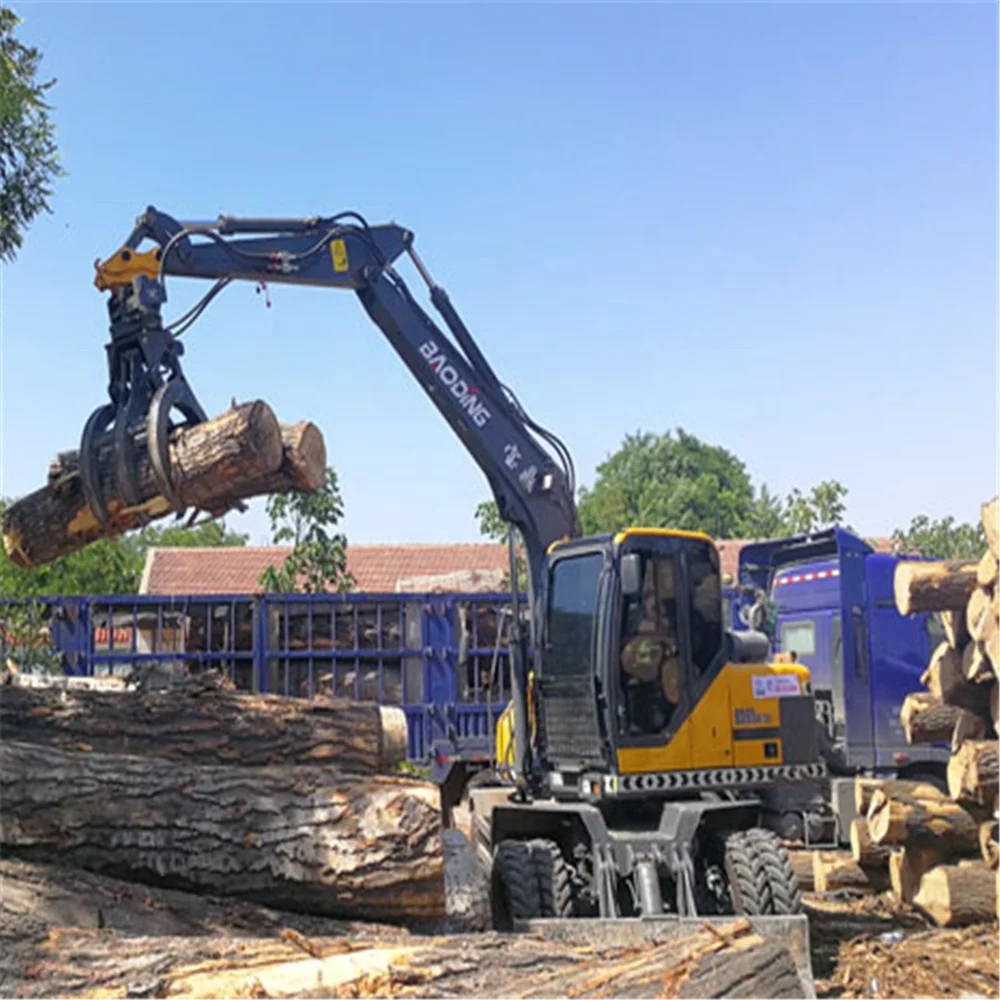

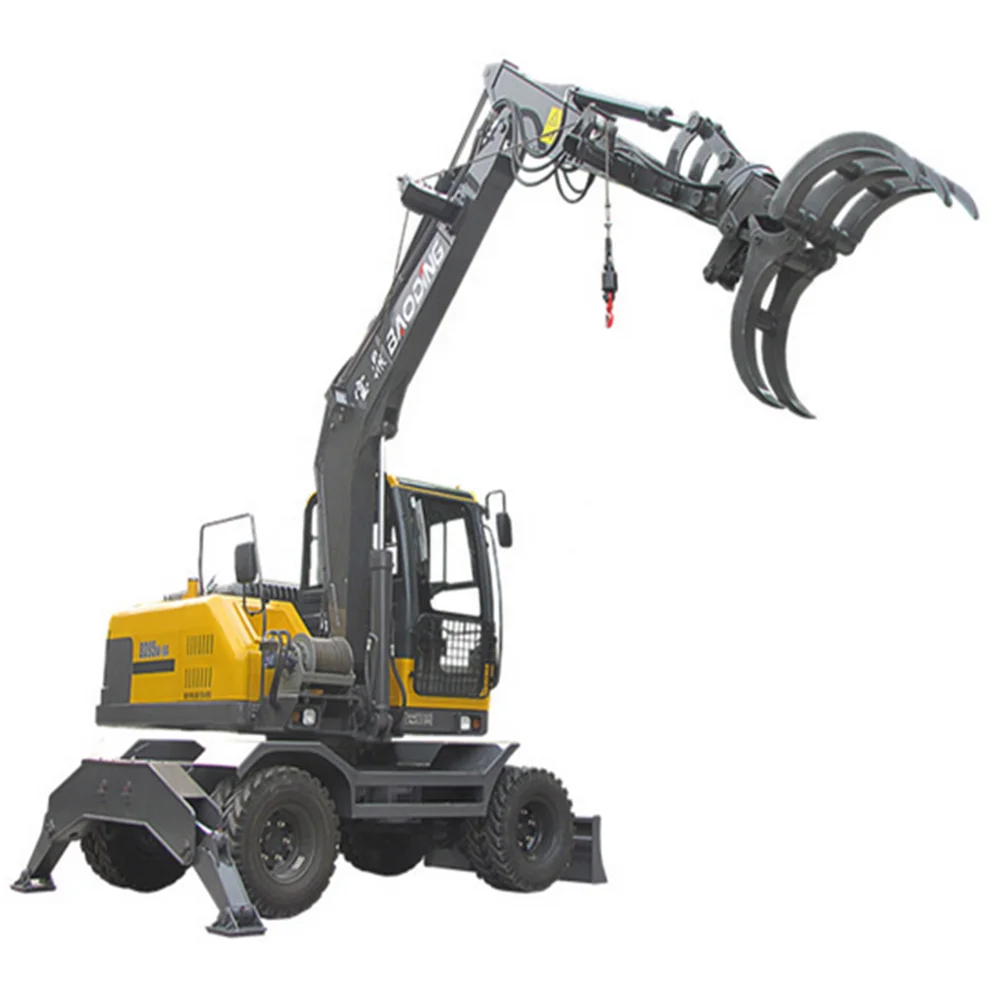

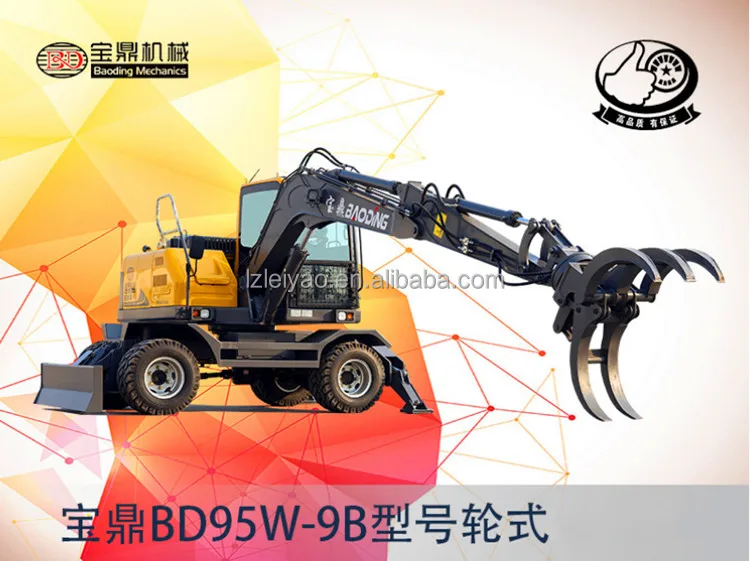

360 rotating timber loader wheel moving forest machine BD95W
- Category: >>>
- Supplier: Liuzhou Leiyao Trading Co. Ltd.
Share on (60815269328):
Product Overview
Description
Product Description

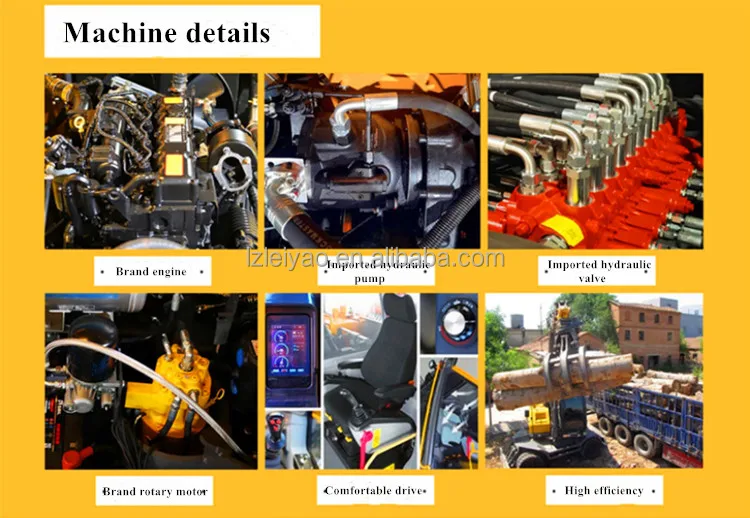

Advantages:
1) Timber loader wheel BD95 Adopt full imported Rexroth hydraulic system.
2) EGR system is installed in the china brand engine, the exhaust emission meets china emission standard III
3) Using unique intelligent matching technology, integrated fuel consumption can be reduced by 10% and 15%.
4) Forest loader machine BD95 wheel loader equipped Import variable piston pump system.
5) 8T reinforced special axle is used on the lower plate to increase the firmness of transmission parts.
6) Increase the length of movable arm and bucket arm while maintaining stable working performance
7) Use electronic keys to make machine be on working situation quickly

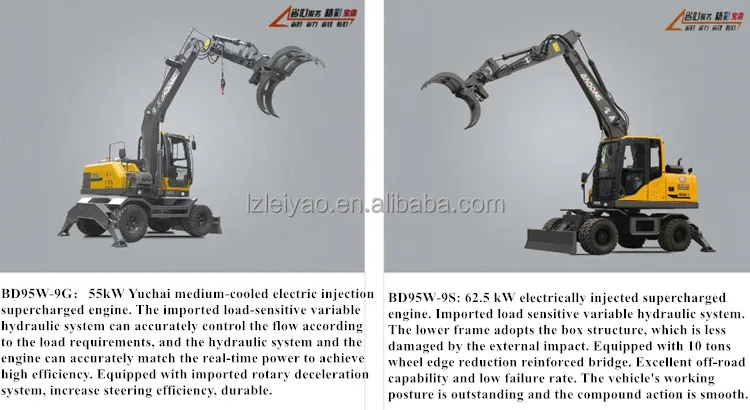

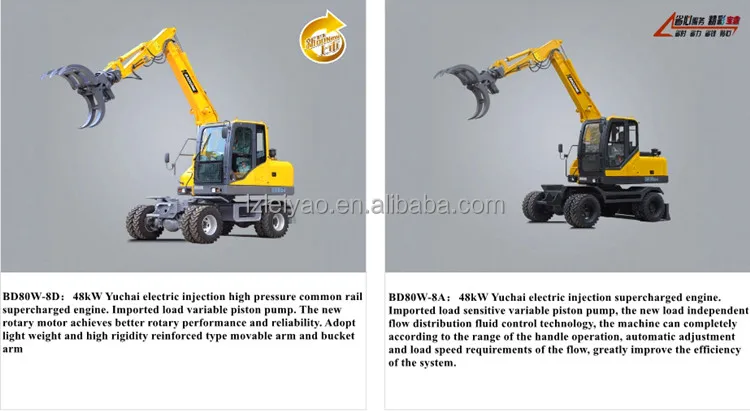

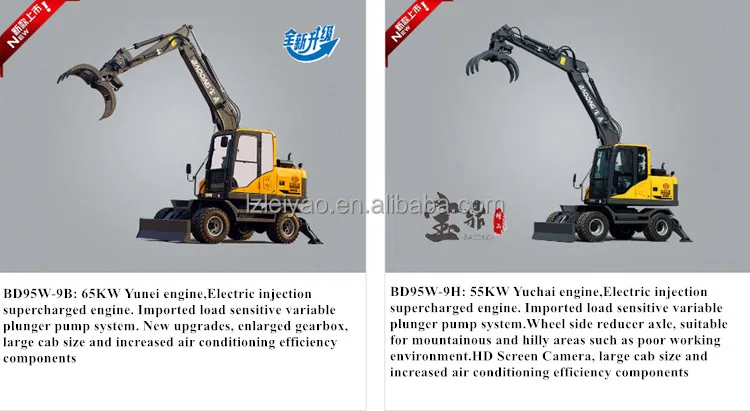

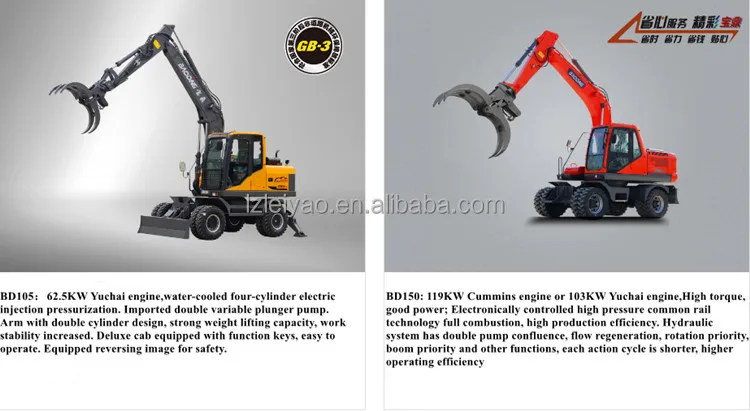

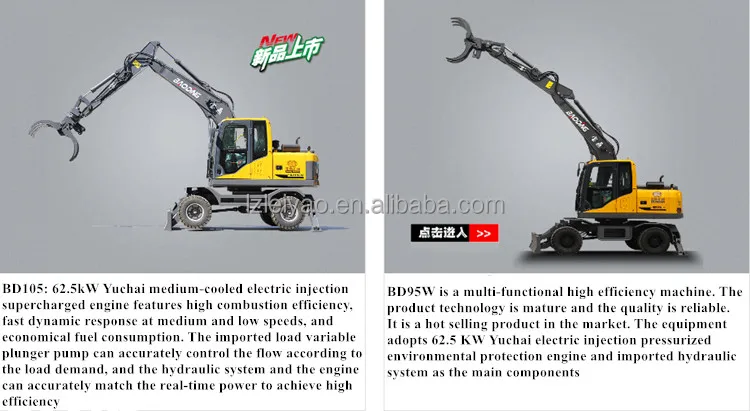

More model available

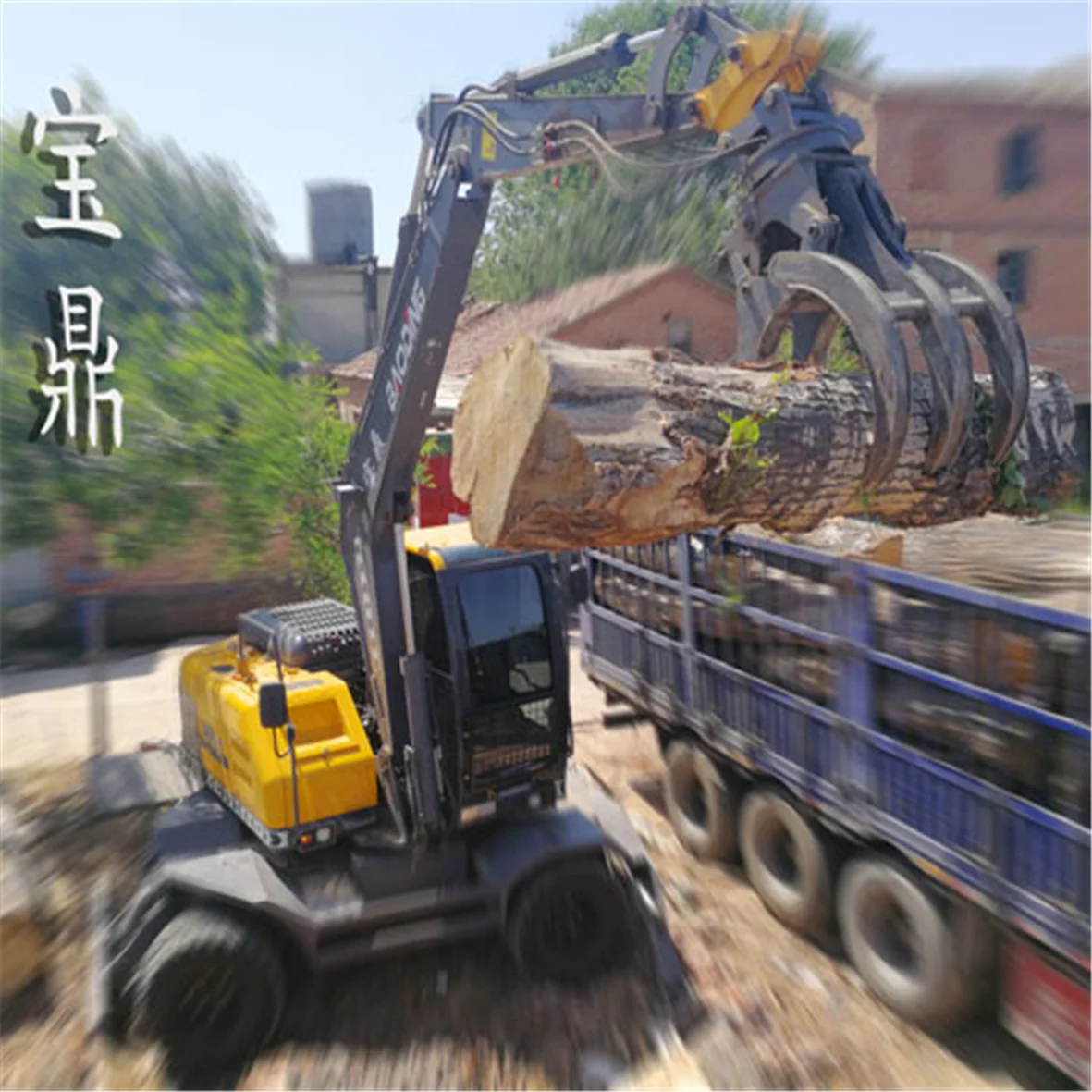

Working moment

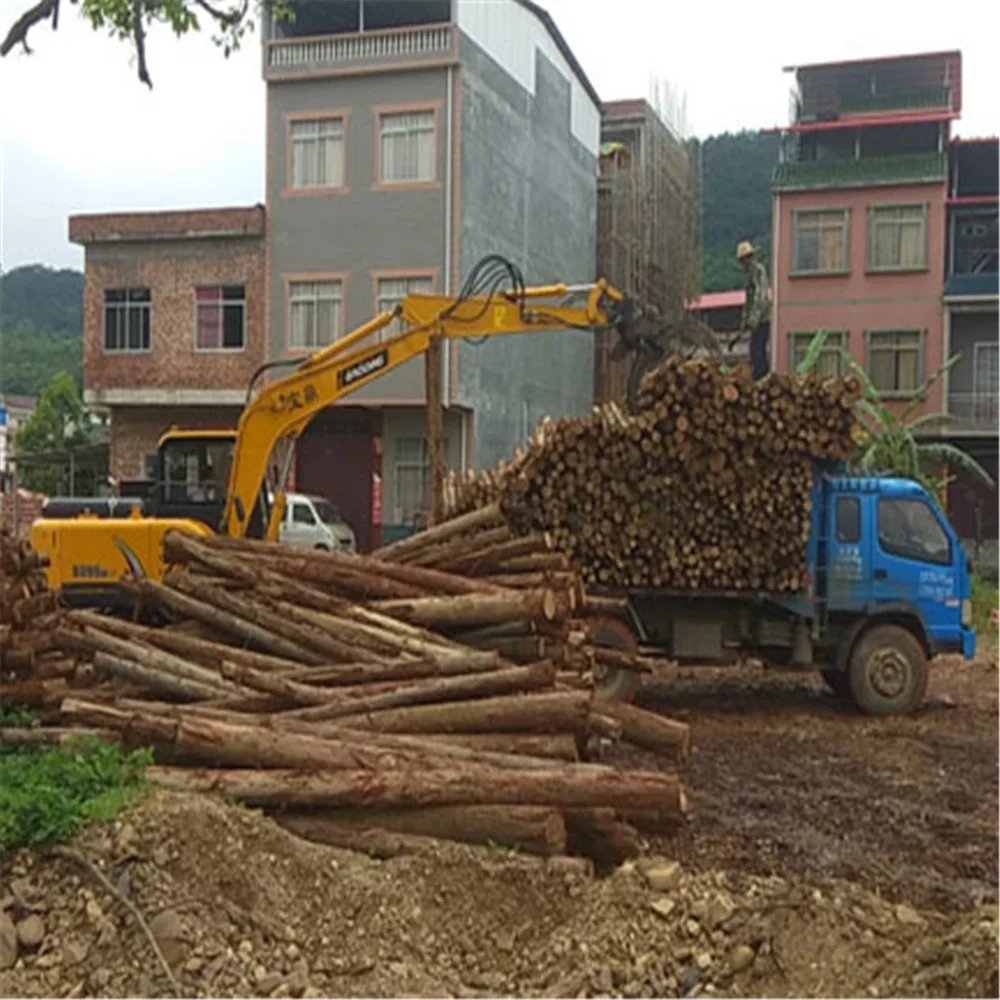

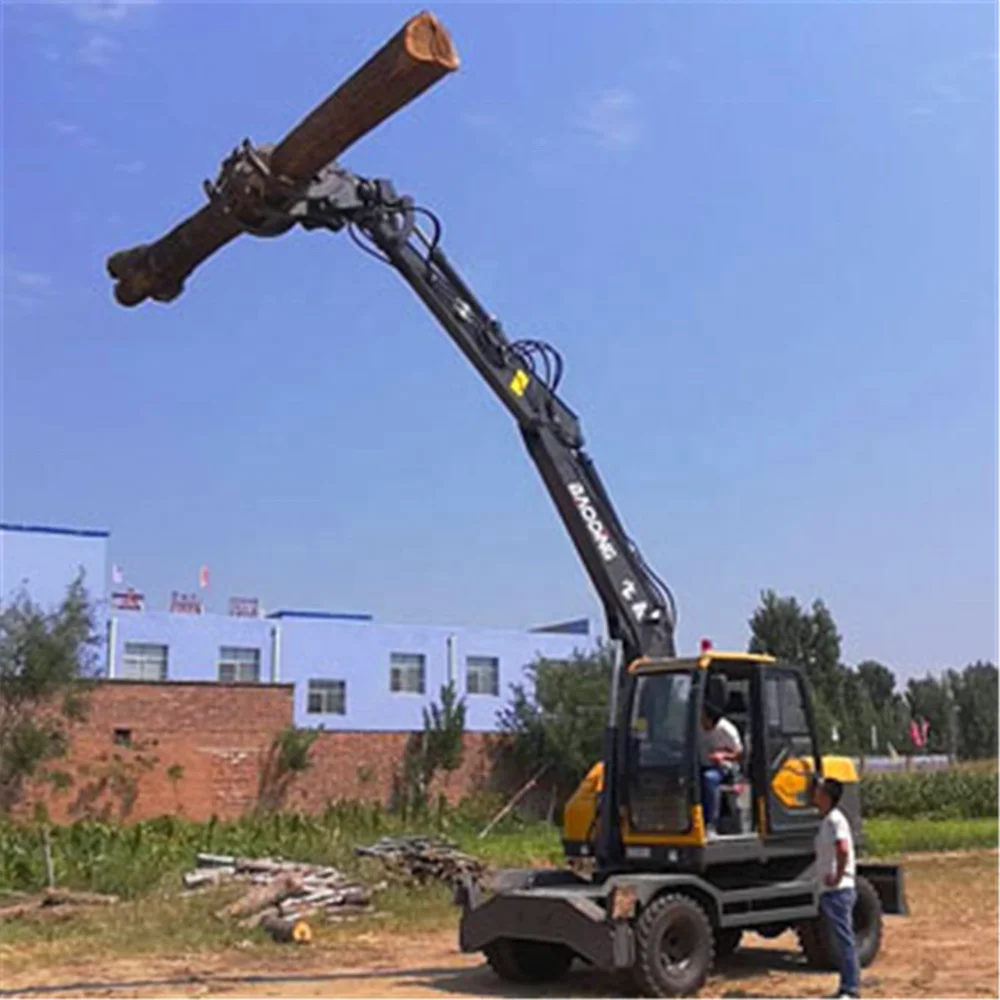

BAODING forest loader machine log loader can use for agriculture and engineering project,such as Logs/timber/wood sugarcane loading unloading,earthmoving,drilling,rock breaking,scrap iron/straw graspping etc.A multifutional machine to save cost and create biggest profits for users
Specification
Min. Swing radius | 2045mm | Tail swing radius | 1850mm |
Max. Digging depth | 3450mm | Max. loading rang | 7200mm |
Max. Dumping height | 5100mm | Bucket capacity | 0.4m3 |
Max loading weight | 1500kgs | Length of movable arm | 3700mm |
Length of bucket arm | 2300mm | Grapple size | 700*380*1300mm |
Gripper weight | 400kgs±10% | Engine model | Yunnei engine |
Power output | 65KW/88HP | Peak Torque | 238.75N.M |
Displacement | 2.2L | Number of Cylinders | 4 |
Aspiration | Turbocharging | Transmission Type | Mechanical |
Number of Speeds,fwd | 5 | Number of Speeds,rev | 1 |
Max Travel speed | 35km/hr | Maximum Travel speed,rev | 7km/hr |
Differential Front Type | Gear type | Differential Rear Type | Gear type |
Steering Configuration | Hydraulic steering | Steering Relief Pressure | 12mpa |
Service Brake Type | Air brake | Service Brake Actuation | Air brake |
Parking Brake Type | Mechanical brake | Parking Brake Actuation | Air brake |
Main pump type | Axial variable piston pump | Main Relief pressure | 23.5mpa |
Wheel type | 8 wheel, type 825-16 | Wheel base | 1670mm |
Shaft base | 2330mm | Fuel Tank | 150L |
Hydraulic Reservoir | 170L | Ground clearance | 280mm |
Machine weight | 7800kgs | Overall size(L*W*H) | 6630*2120*2900mm |
