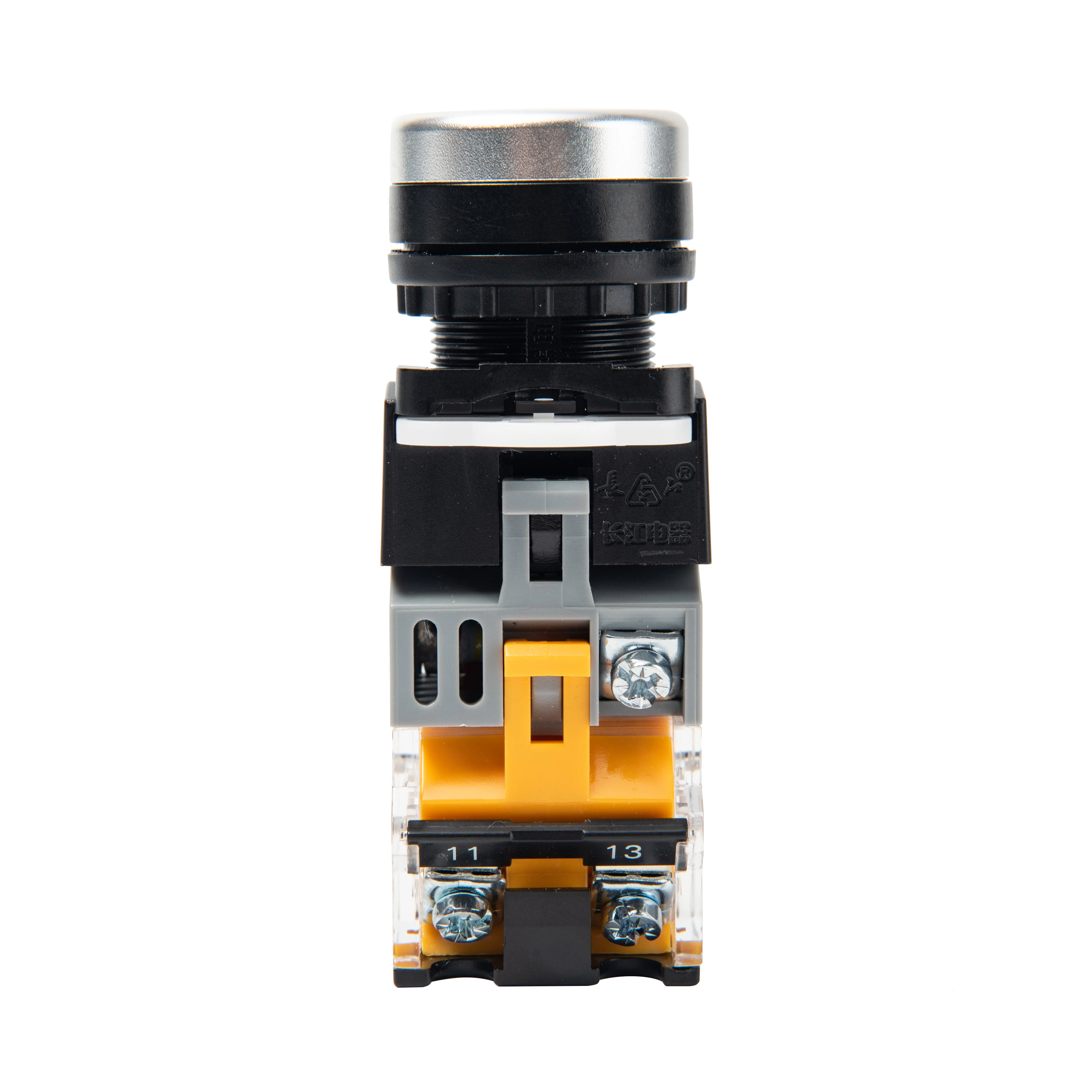

LA38 22mm waterproof 12V 24V 48V illuminated on off push button switch
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60815289359):
Product Overview
Description
Product Overview
LA38 series push button switch
LA38 Series Button Switch is used for remote control in electromagnetic starters,contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.

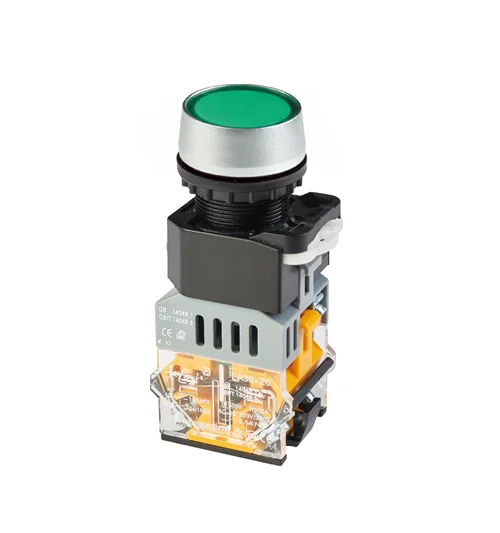

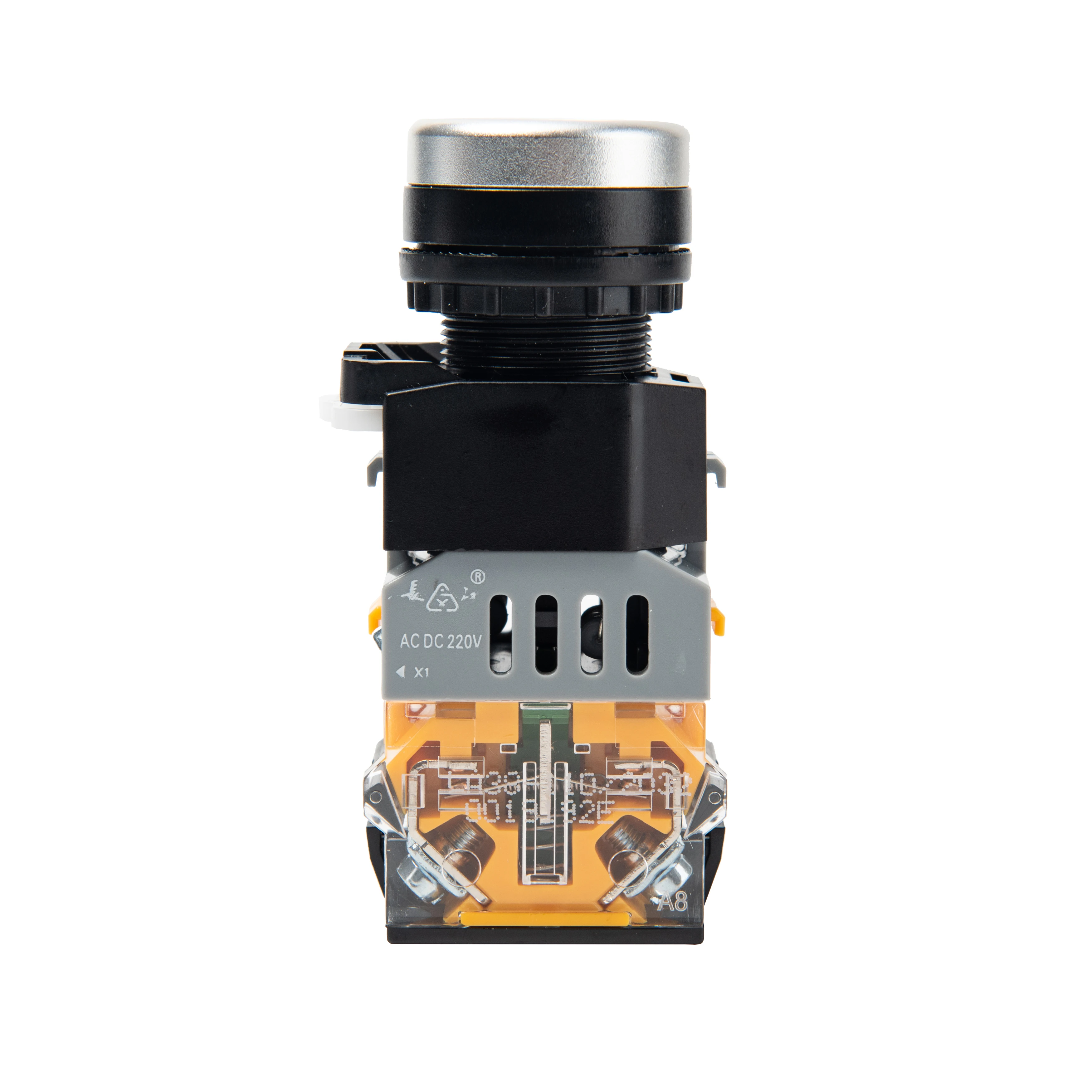

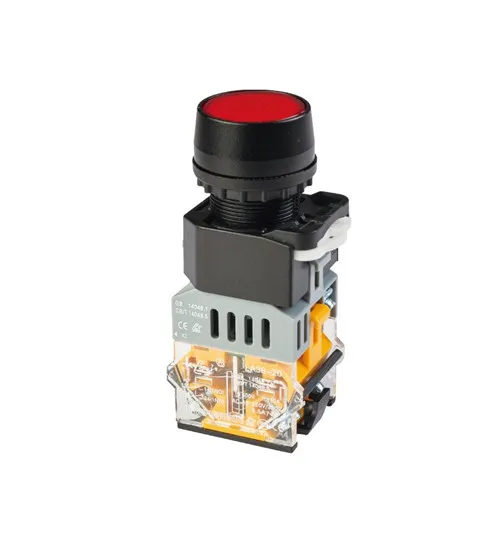

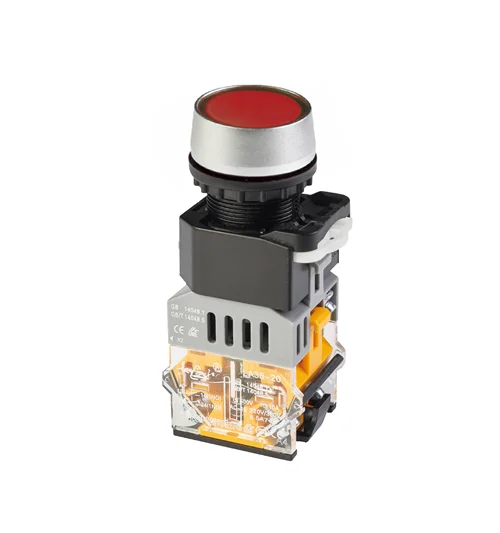

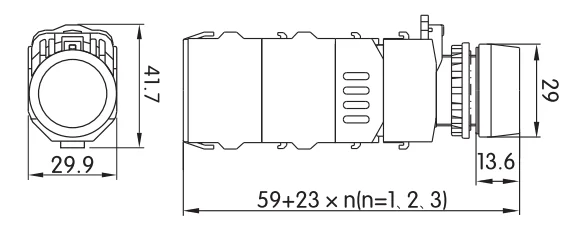

Details Images
Product Parameter
Type specification | LA38-**D/209B (**means contact,10:1NO, 01:1NC, 11:1NO+1NC, 20: 2NO, 02: 2NC,6 pairs of contacts at most ) | ||||||||||
Product Name | push button switch | ||||||||||
Products Standard | GB/T 14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | Common parameter | Rated insulated Voltage | 500V | ||||||||
Rated shock withstand voltage | 4000V | ||||||||||
Insulation resistance | ≥50MΩ | ||||||||||
Front panel protection degree | IP54，IP65 customizable | ||||||||||
power frequency withstand voltage | 1.89KV/5S | ||||||||||
Button parameters | Resistive current | 10A | |||||||||
Contact Resistance | ≤50mΩ | ||||||||||
Rated working Voltage /Current | AC-15 | DC-13 | |||||||||
380V/4A | 220V/5.5A | 110V/1A | 220V/0.45A | ||||||||
Electrical life | 500,000 times | ||||||||||
Mechanical life | 1000,000 times | ||||||||||
Lamp parameters | Rated working Voltage/Current | AC DC(V) | AC(V) | ||||||||
6~220 | 220~380 | ||||||||||
≤15±3mA | ≤15±3mA | ||||||||||
Life of signal lamps | ≥30000h | ||||||||||

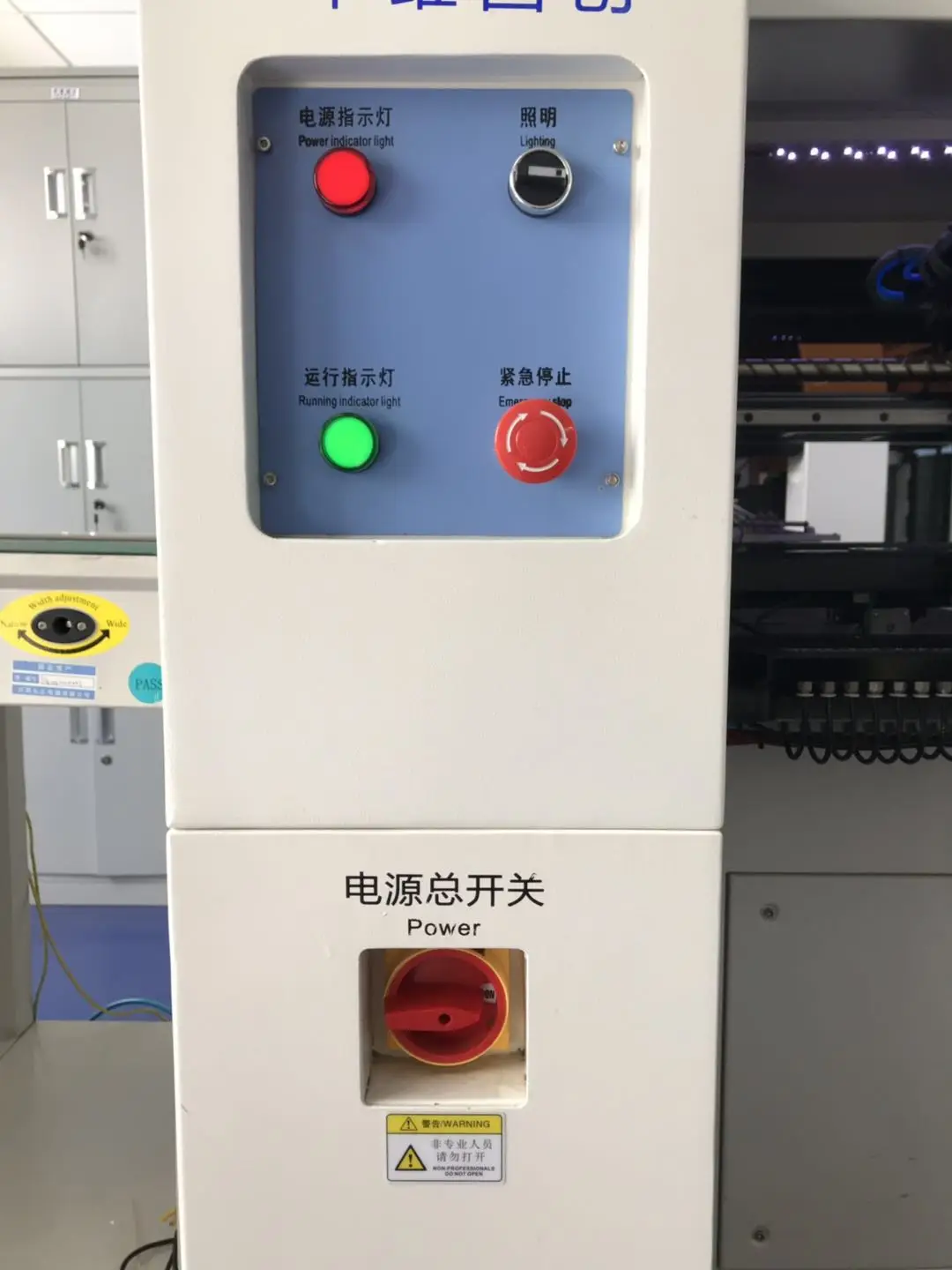

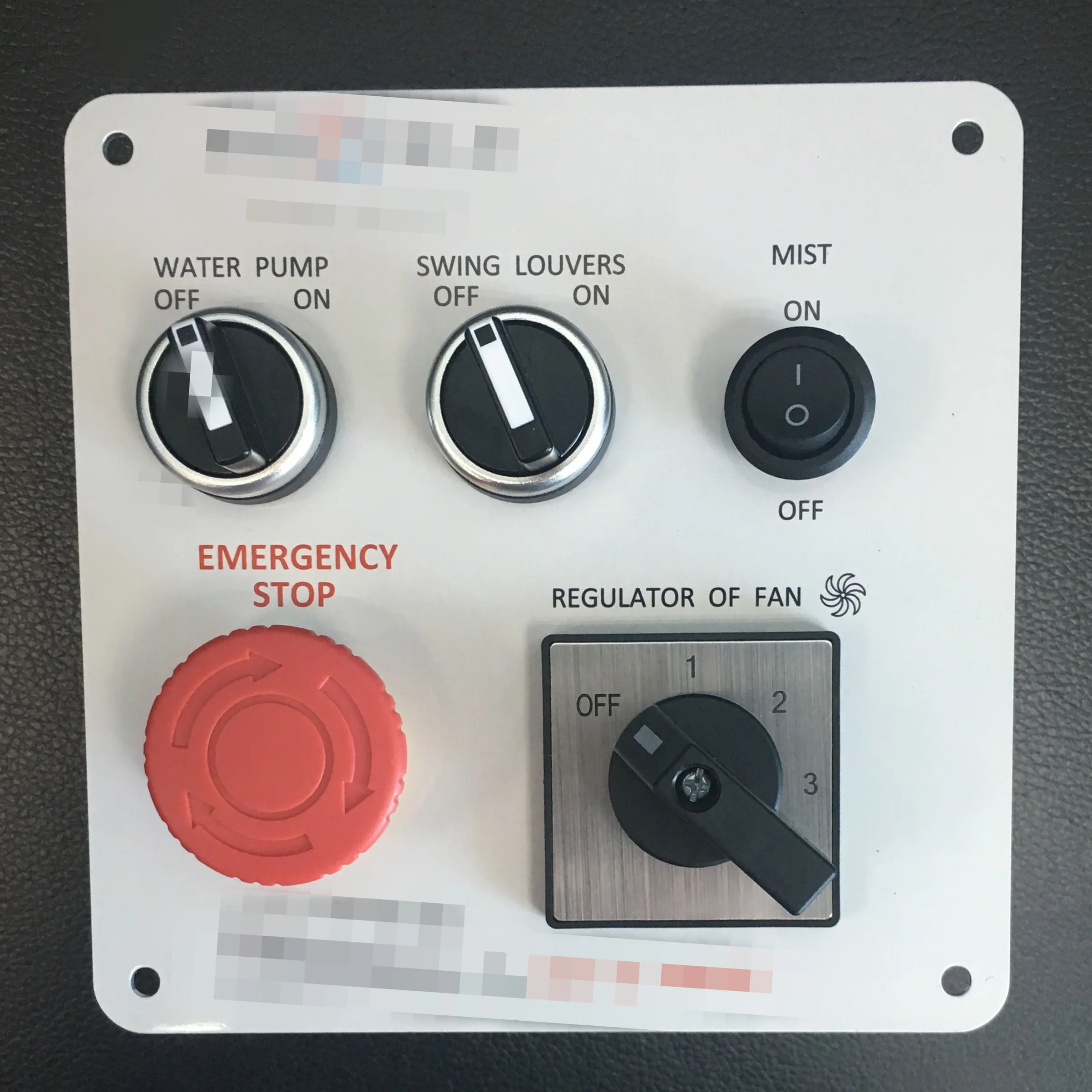

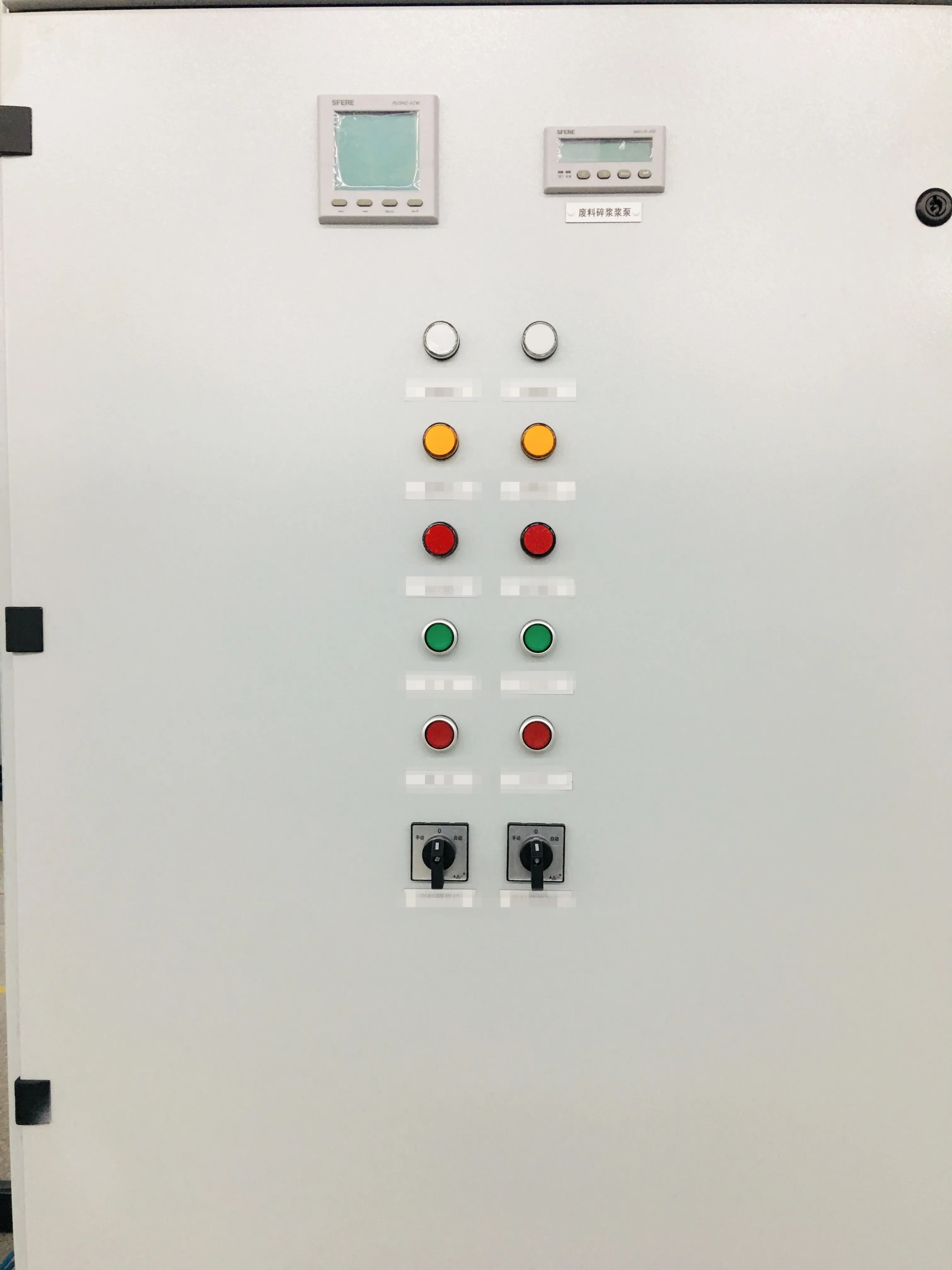

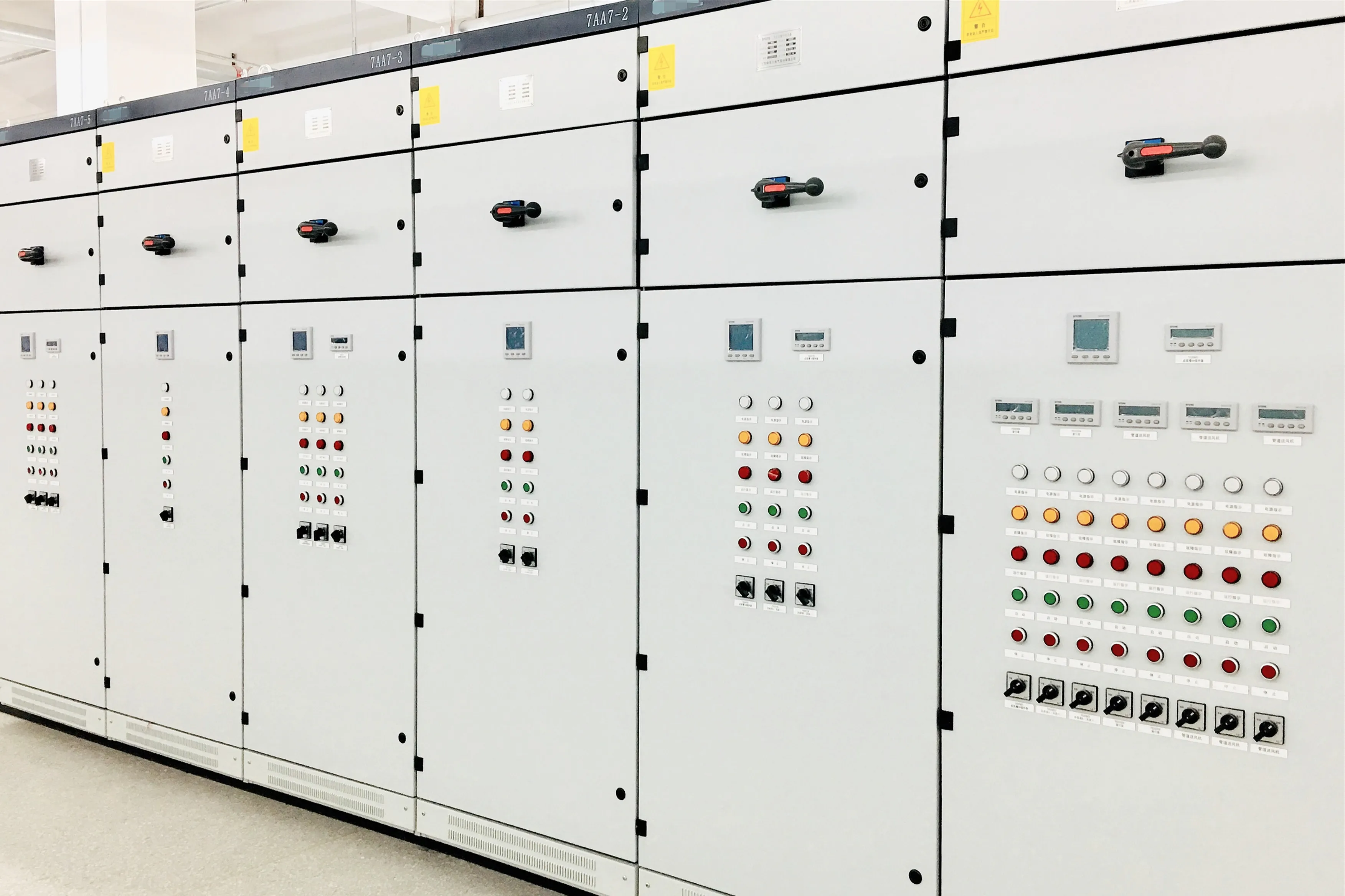

Successful Application
