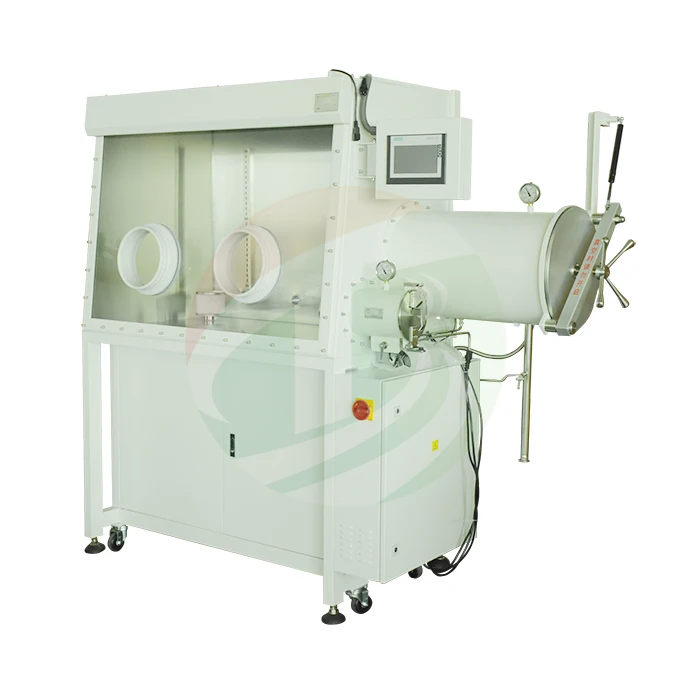

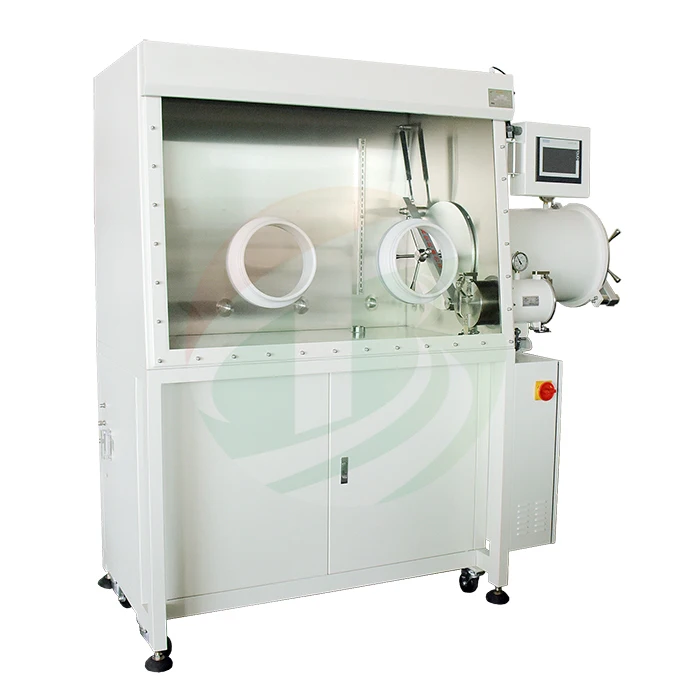

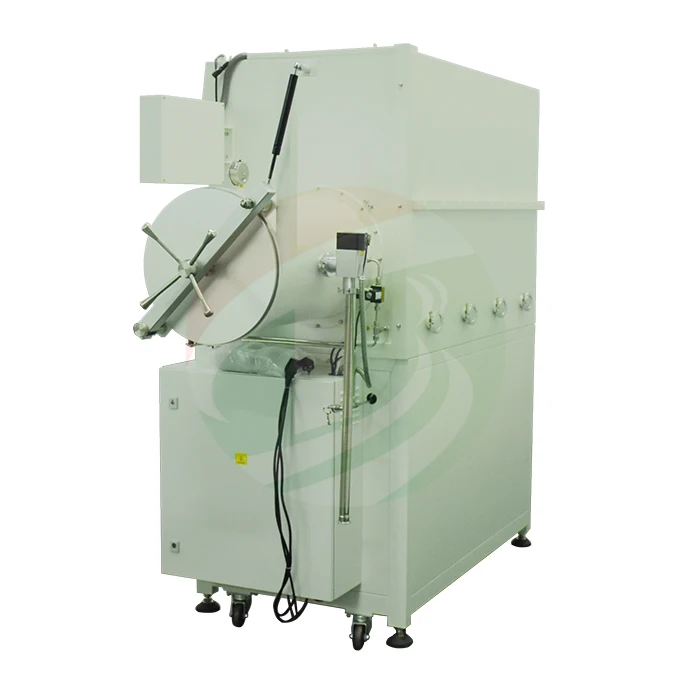

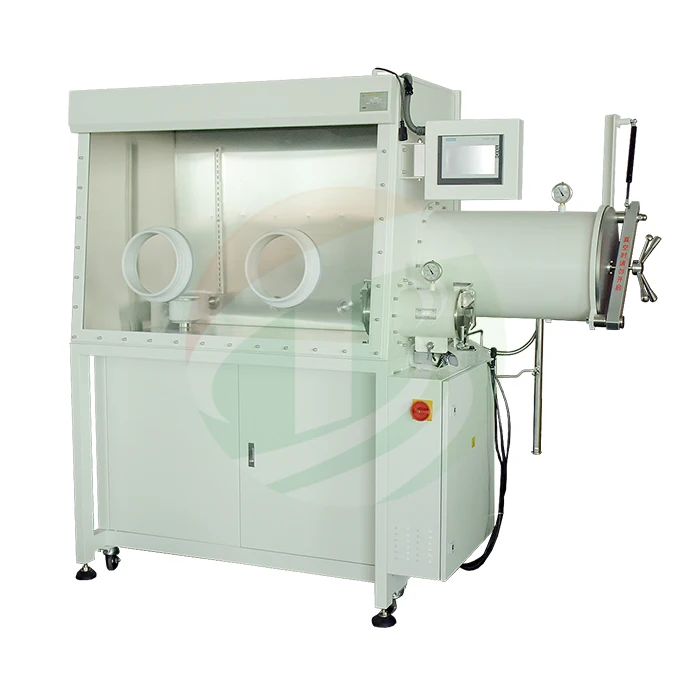

Laboratory Glove Box For Lithium Battery
- Category: >>>
- Supplier: Xiamen Tob New Energy Technology Co. Ltd.
Share on (60815292320):
Product Overview
Description

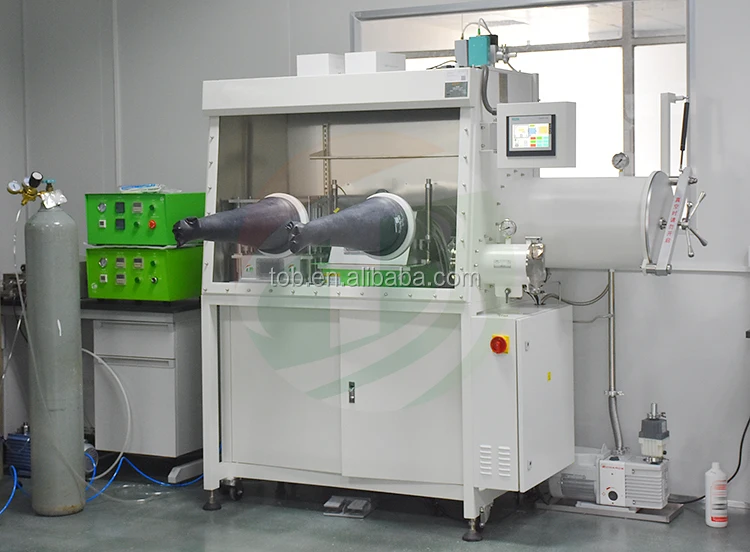

Battery Laboratory Glove Box For Lithium Ion Batteries Cell
SPECIFICATION
1. Model
Super(1220/750)
Single station, single operation, integrated with a single column purification unit, PLC touch screen operation control, vacuum pump, bracket, a closed box, with operating surface tilt and detachable safety glass front window. Under normal conditions, namely the 20℃ constant temperature, a standard atmosphere, inert gas 99.999%,water and oxygen index less than 1 ppm.
2. Basic configuration
* 1 set 304 stainless steel box, acid-resisting, thickness : 3mm
* 1 stainless steel Vacuum transitional chamber, φ360*600mm
* 1 small stainless steel transitional chamber,φ150*300mm.
* 1 window with 2 glove mouth .
* 1 pairs of butyl rubber gloves.
* 1 sets of lighting system
* 1 the power interface
* 3 KF40 backup interface
* 1 sets of high-performance circulating fan 90m3/h, installation of frequency
* 1 vacuum pump
* 1 sets of water analyzer
* 1 sets of oxygen analyzer
* 1 sets of organic solvent adsorber
* 1 bracket and trundle
* 1 foot pedal
3. Technology parameters
Name | Glove box TOB-GB-1220 |
Box size | (L*W*H)=1220×750×900mm |
Box material | stainless steel 304, With 3 KF40 backup interface and 1 power interface With two layers of shelves. |
Box bracket | Height:900mm |
Main pipe | Stainless steel material, DN40 |
Cycle valve | Electronically controlled pneumatic vacuum bellows sealed valve, DN40 |
Bigger transitive cabin | φ360*600mm, Automatic valve control air extracting and inflating |
Smaller transitive cabin | φ150*300mm, Manual valve to control the pumping and inflating |
Box window | Transparent toughened glass, thickness of 8mm |
Gloves interface | Stainless steel, diameter : 200mm. |
Gloves | Butyl rubber material, 7B1532. |
Vacuum pump | With oil mist filter, RV8 |
circulating fan | Flow90 m3/h, |
Purifier material | Import from Germany |
Water analyzer | testing range:0-500ppm, Especially for the lithium battery manufacturing and metal organic users, can be washed and reused. |
Oxygen analyzer | testing range: 0-1000ppm,The ZrO2 sensor, avoid the fuel battery life short, not exposed in the air of the problem. |

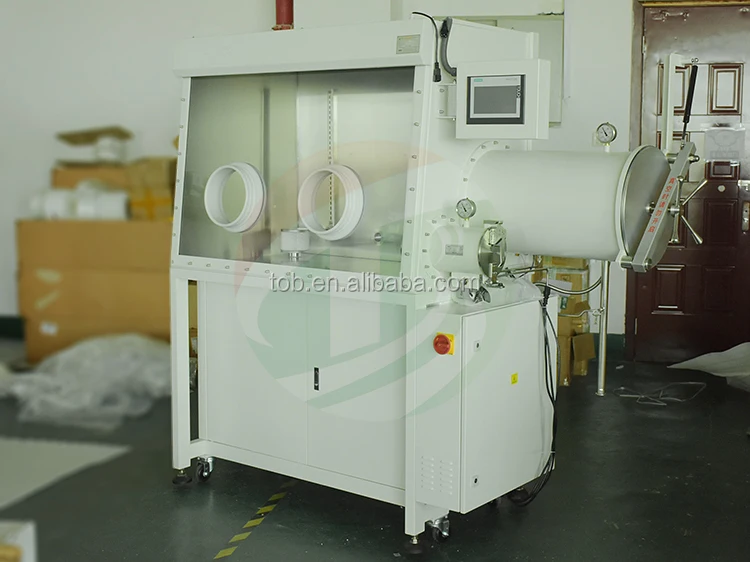

Vacuum Glove Box For Lithium Ion Batteries
Packing of Glove Box
We supply a full set of technology support for battery design, research and producing.
