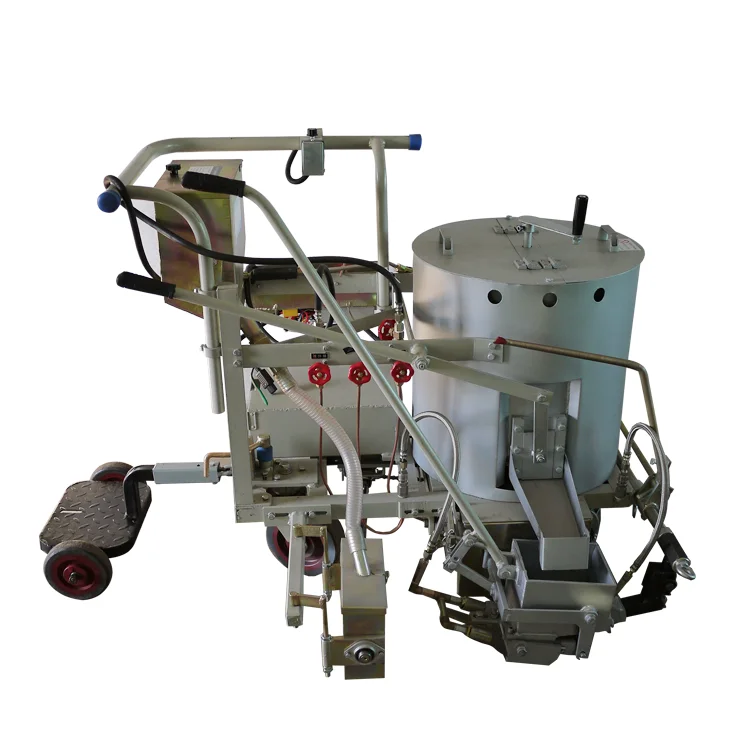

Self Driving Thermoplastic Paint Road Marking Machine
- Category: >>>
- Supplier: Shenyang Modern Traffic Facility Co. Ltd.
Share on (60815303020):
Product Overview
Description
Self Driving Thermoplastic Paint Road Marking Machine
Related Products
Products Specication
Equipment Measurment:1200×900×1100mm
Coating(Painit) Capacity:100kgs
Marking Line Width:100,150,200,250,300,400,450mm
Marking Line Speed:500-1000m/h
Completer Machine Weight:120kgs
Products Description
XDRJ-S100/150/200/300 Hand-moving thermoplastic marking machine is a special road marking equipment for various reflective lines, such as road centerlines, lane dviders and marking lines at the place like airport, such as straight lines, dotted lines, curve line, directional arrows, words writing.
A variety of marking lines, such as straight lines, dotted lines, curves, guiding arrows, and writing, can be marked with reflective road centerlines, lane dividers and airports.
This marking machine could match different coating bucket of 100mm,150mm,200mm 300mm,400mm,450mm as per the width.

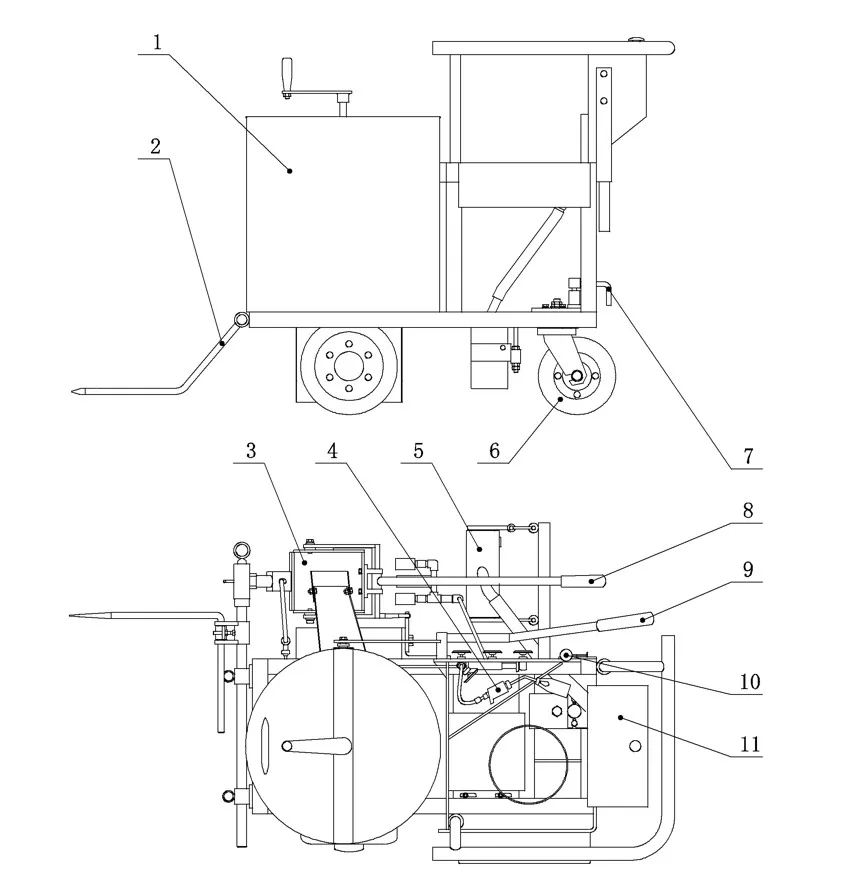

Products Structure
Instructions:
1,Coating Bucket
2,Surveyor's Rod
3,Coating Bucket
4,Buring Torch
5,The Glass Beads Sowing Device
6,Tail Wheel
7,Tail Wheel Locating Pin
8,Bucket Handle
9,Discharge Port Valve Handle
10,Glass Bead Gate Spanner
11,Glass Beads Box

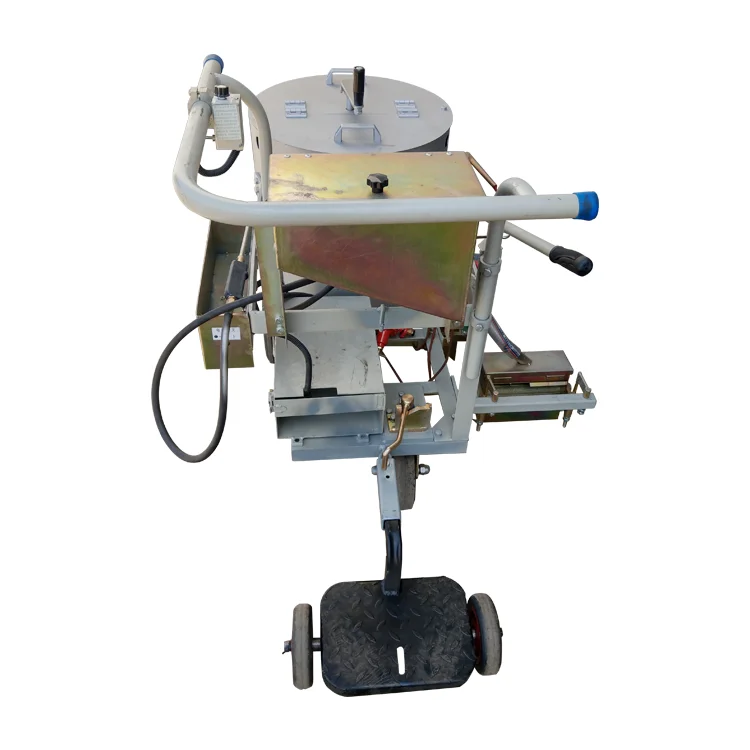

Products Picture
