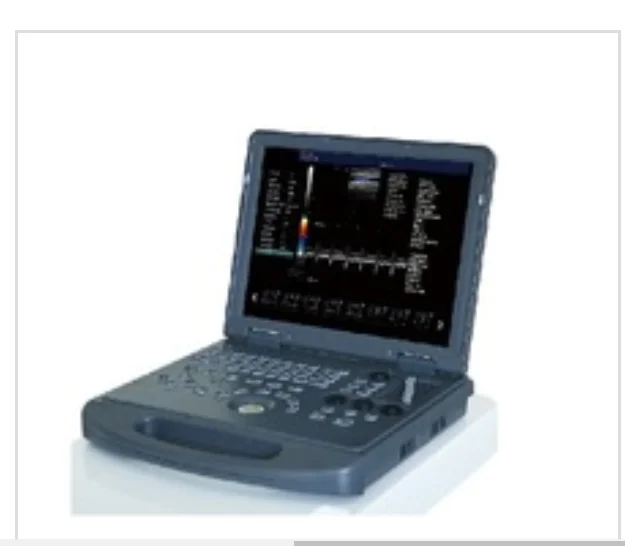

ISO 9001 test wholesale price ultrasound system

 Main features:

With high precision digital beam forming and Doppler ultrasonic imaging technology, Pro incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to acquire better image. Special measurement software packages, flexible configuration and ergonomical design greatly increase operators clinical diagnosis accuracy and analysis efficiency.

Application:

Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

Displaying mode:

B, 2B, 4B, left & right, B|M, B|D, PW, M, B mode, part zoom, B|C|D, B|C|M, B|C, duplex, PW, CFM, CPA

Signal processing:

Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing

Image processing:

THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composit processing of tissue and blood flow image

General measurement:

B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram

M mode: cardiac rate, time, distance, speed.

Measurement & report packages:

GYN (four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc

Storage function:

Probe parameter, image, cine loop, measurement data and report

Cine loop:

Operated by automatically and manually, speed optional, searching cine loop, forward/ backward cine loop

Input/output interface:

VGA, network, USB, VIDEO, parallet communication port, serial communication port

Standard configuration:

Main unit, 3.5MHz convex probe, 15" LCD monitor, one probe connector, USB port, DICOM3.0

Optional configuration:

7.5Mhz (2.0-10.0Mhz) linear probe

7.0MHz (2.0-10.0Mhz) trans-vaginal probe

2.0MHz (2.0-10.0Mhz) Micro-convex probe

Thermal printer

laser printer

Trolley
