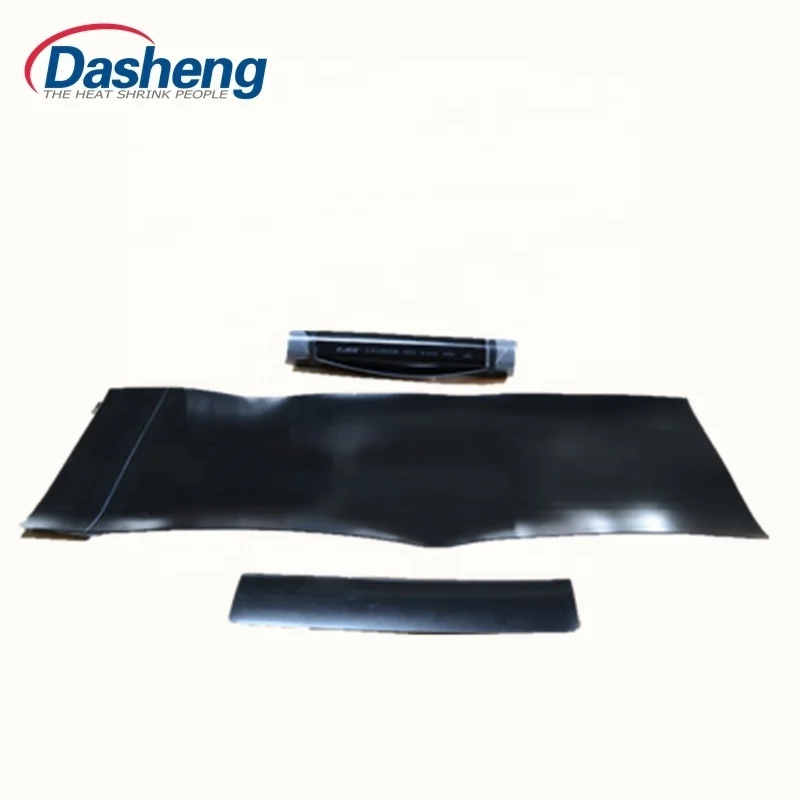

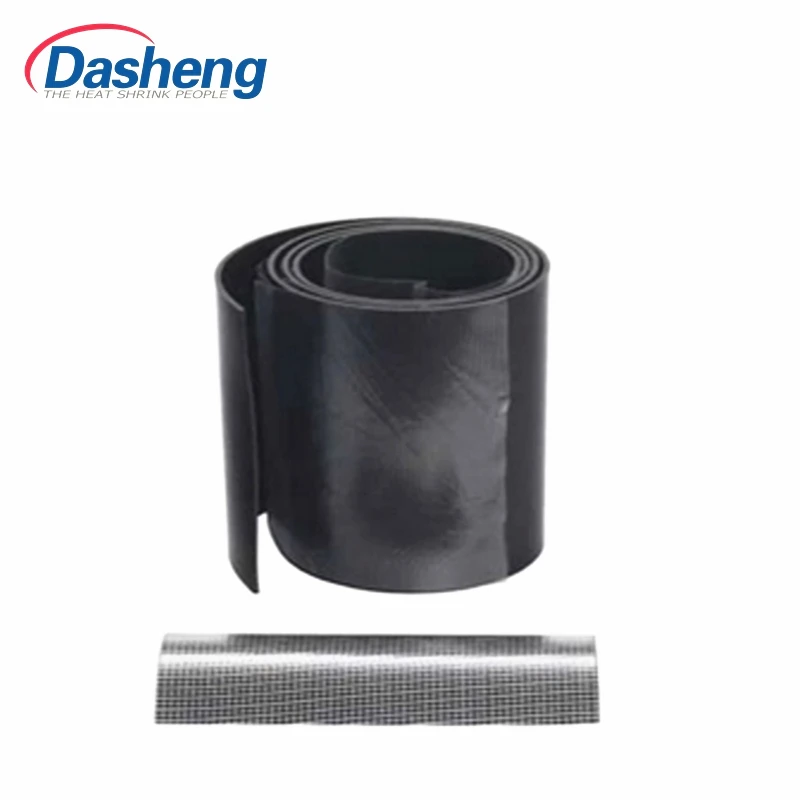

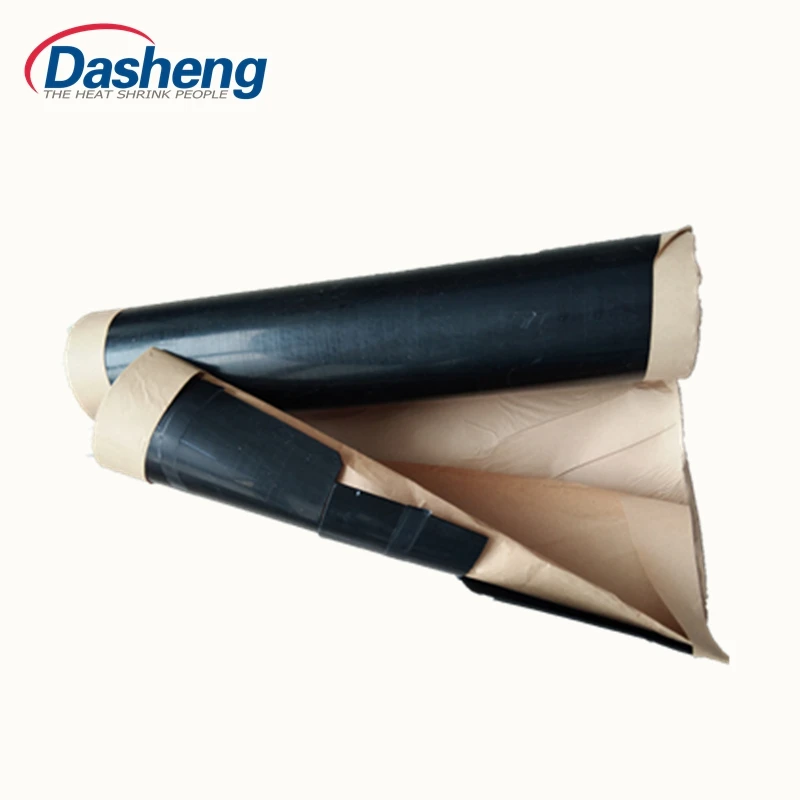

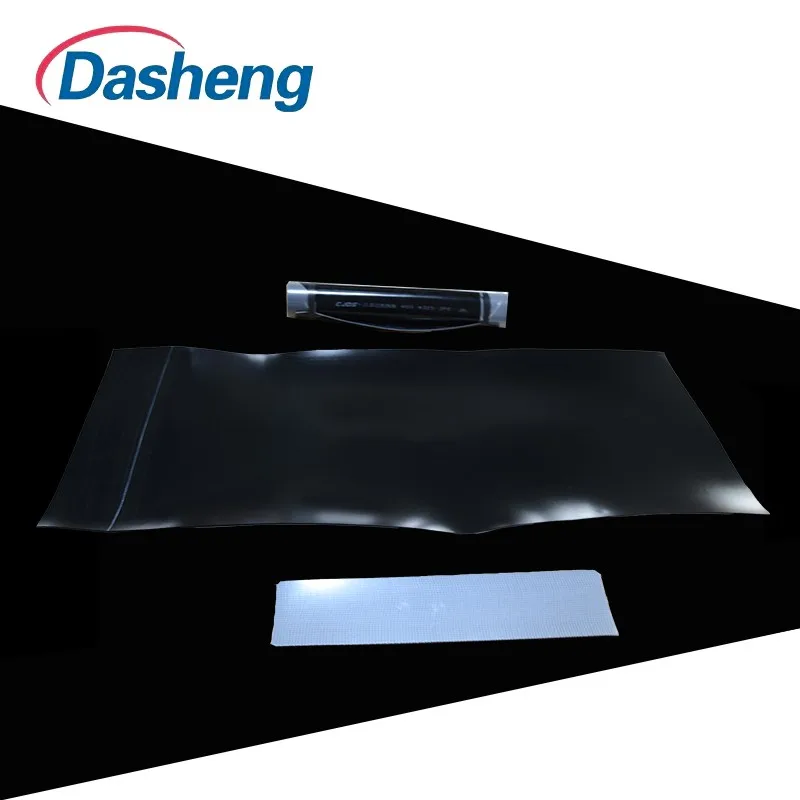

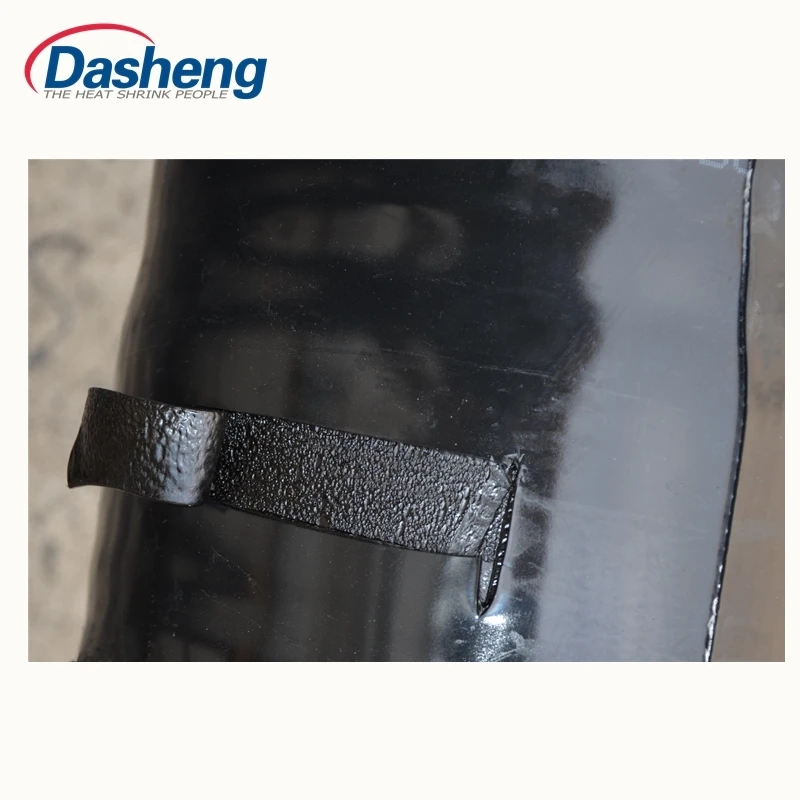

Pipeline 3LPE Heat Shrink Wrap around Sleeve with Closure Patches
- Category: >>>
- Supplier: Suzhou Dasheng Heat Shrinkable Material Co. Ltd.
Share on (60815326191):
Product Overview
Description
Product Description
3PE Heat Shrink Wrap around Sleeves with Separate Closure for Pipes Anti-corrosion and Sealing
Installation:
During installation, the epoxy primer is applied to the prepared pipe surface and the heat-shrinkable sleeve is immediately wrapped around the joint over the wet epoxy. Heat is then applied to the sleeve which shrinks to form a tight fit around the joint. While curing, the epoxy forms strong mechanical and chemical bonds to the pipe surface & to the copolymer adhesive layer. The radiation cross-linked outer layer forms a tough barrier against mechanical damage and moisture transmission.
Product features/benefits:
• Excellent multifunctional adhesive allows for lower installation pre-heat temperature and super bonding to PE, PP and FBE, offer fully resistant to shear forces induced by soil and thermal movements.
•Superior cathodic disbondment and hot water immersion resistance offers the optimum barrier long-term protection against corrosion.
•Saves time & cost by lower preheat temperature, wet epoxy primer application.
Product selection guide： | ||||||||||||
Mastic (MWSS60) | Mastic (MWSS80) | WSS60 | WSS80 | |||||||||
Max operating temperature | 60℃ | 85℃ （185℉） | 70℃ （158℉） | 85℃ （185℉） | ||||||||
Compatible line coatings | PE, FBE, PP | PE, FBE, PP | PE, FBE, PP | PE, FBE, PP | ||||||||
Min. Preheat temperature | 65℃ | 85℃（185℉） | 75℃（185℉） | 85℃（185℉） | ||||||||
Recommended pipe preparation | Sa2.5, St3.0 | Sa2.5, St3.0 | Sa2.5, St3.0 | Sa2.5, St3.0 | ||||||||
Product properties: | ||||||||||||
Property | Test Method | WSS60 | WSS80 | |||||||||
Backing | ||||||||||||
Tensile Strength | ASTM D638 | 3000 psi （20Mpa） | 3300 psi （22.8Mpa） | |||||||||
Elongation at break | ASTM D638 | 600% | 660% | |||||||||
Design temperature | ≥60℃ | ≥ 80°C. | ||||||||||
Shrink Force | ASTM D638@150℃ (302℉) | 35 psi | 35 psi | |||||||||
Dielectric Strength | ASTM D149 | 900 volts/mil (35kV/mm) | 900 volts/mil (35kV/mm) | |||||||||
Water Absorption | ASTM D 570 | < 0.05% (Wt) | < 0.05% (Wt) | |||||||||
Volume Resistivity | ASTM D570 | 1x 1016 Ω-cm | 1x 1016 Ω-cm | |||||||||
Adhesive | ||||||||||||
Softening Point | ASTM E28 | 103ºC (217℉) | 110ºC (230℉) | |||||||||
Lap Shear | DIN EN 12068 | 20 N/cm²@60ºC(140℉) | 20N/cm² @80ºC(176℉) | |||||||||
Installed Product | ||||||||||||
Peel Strength | DIN EN 12068 | 7N / mm | 9N / mm | |||||||||
Impact Resistance | ASTM G-14 DIN EN 12068 Class C | 75 in-lbs | 75 in-lbs | |||||||||
DIN30672 Class C | ≥15J | ≥15J | ||||||||||
No holiday | No holiday | |||||||||||
Indentation Resistance | DIN EN 12068 Class C | > 2.5mm @ 60ºC(140℉) | > 3.1mm @ 80ºC(176℉) | |||||||||
Cathodic Disbandment | DIN EN 12068 | < 15mm rad. | < 15mm rad. | |||||||||
Resistance to thermal Aging | DIN EN 12068 | After 100 days @ 100ºC | After 100 days @ 100ºC | |||||||||
-Tensile strength ratio | 0.9 | 0.9 | ||||||||||
-Elongation ratio | 0.8 | 0.8 | ||||||||||
Specific Coating Resistance | DIN 30672(100 days immersion) | 6*108Ω.m2 | 6*108Ω.m2 | |||||||||
Resistance to UV radiation | EN12068 | Reduction in bursting strength <25% of the original value | Reduction in bursting strength <25% of the original value | |||||||||
Service Life: More than 30 years
Normal Packing: Carton (Maximum 45kg)
Storage Condition:
● To ensure maximum performance, store Dasheng products in a dry, ventilated area.
● Keep products sealed in original cartons and avoid exposure to direct sunlight, rain, snow, dust or other adverse environmental elements.
● Avoid prolonged storage at temperatures above 40°C or below -20°C.
● Product installation should be done in accordance with local health and safety regulations.
Shelf Life: 2 years, under correct storage condition.
