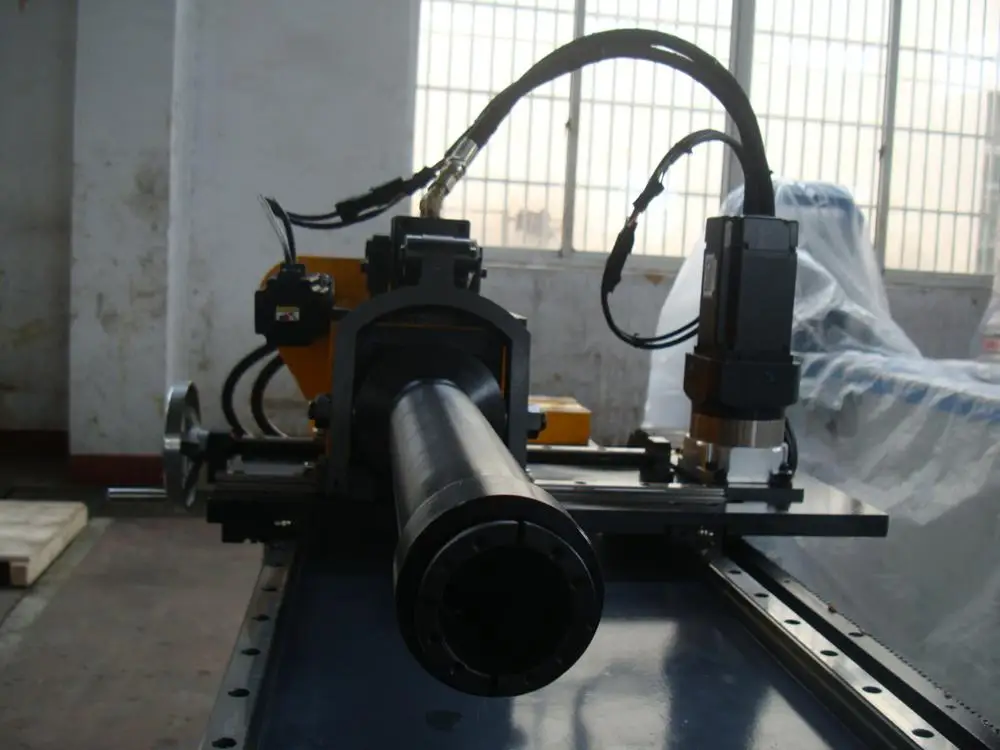

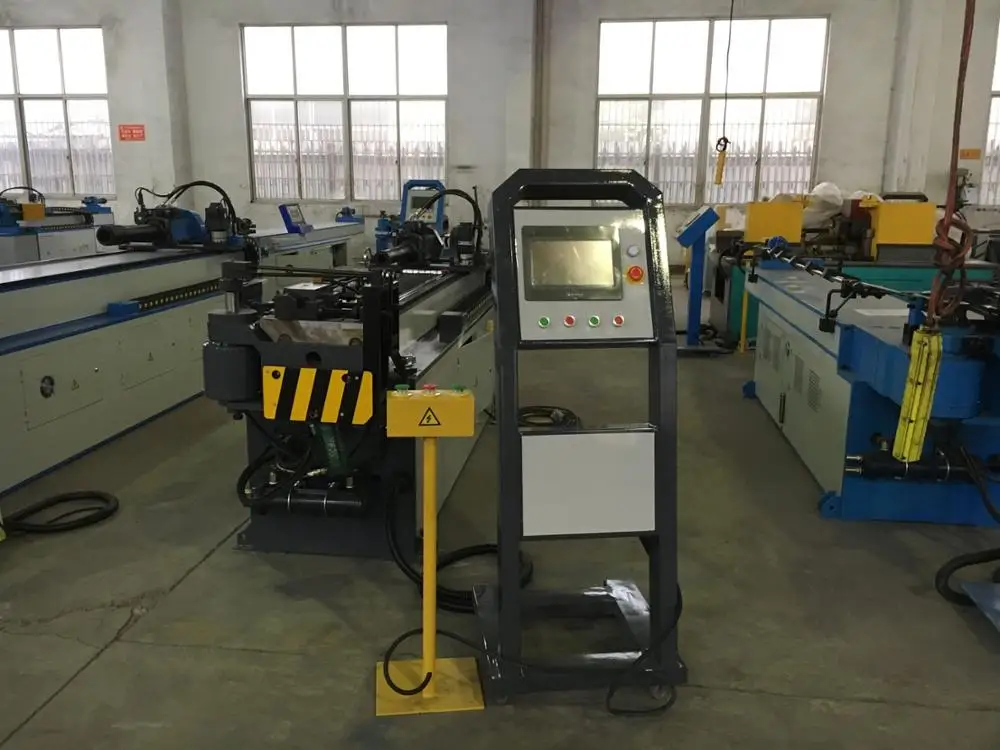

SB-SB-38CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating(B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic.
Ø Main Technical Parameter
Name
Unit
Parameter
Max. Bending Capacity
mm
38*2
Bending Radius Range
mm
20-200
Max. Bending Angle
°
190°
Bending Speed
°/sec
60
Turning Speed
°/sec
200
Feeding Speed
mm/sec
1000
Bending Precision
°
±0.10
Turning Precision
°
±0.10
Feeding Precision
mm
±0.10
Turning Servomotor Power
kW
0.4
Feeding Servomotor Power
kW
0.75
Though Effective Distance
mm
3200
System Motor Power
kW
4
Max. Pressure
Mpa
16
Oil Pump Delivery Volume
L
14
L*W*H (Packaging Dimension)
mm
3500*700*1300
Weight
T
2.0

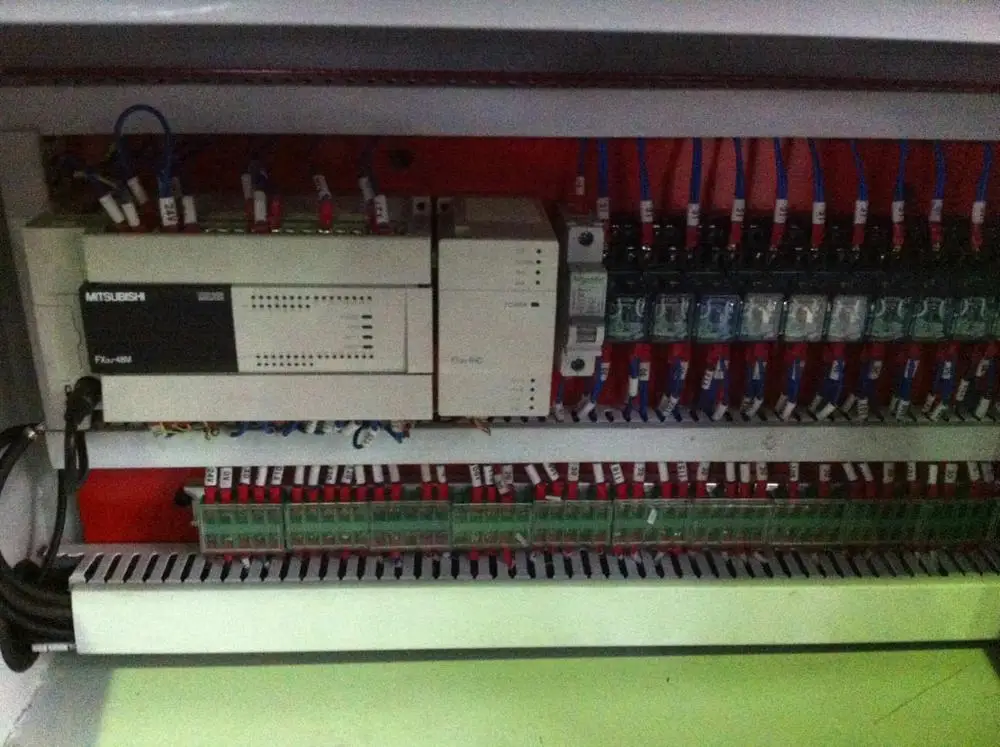

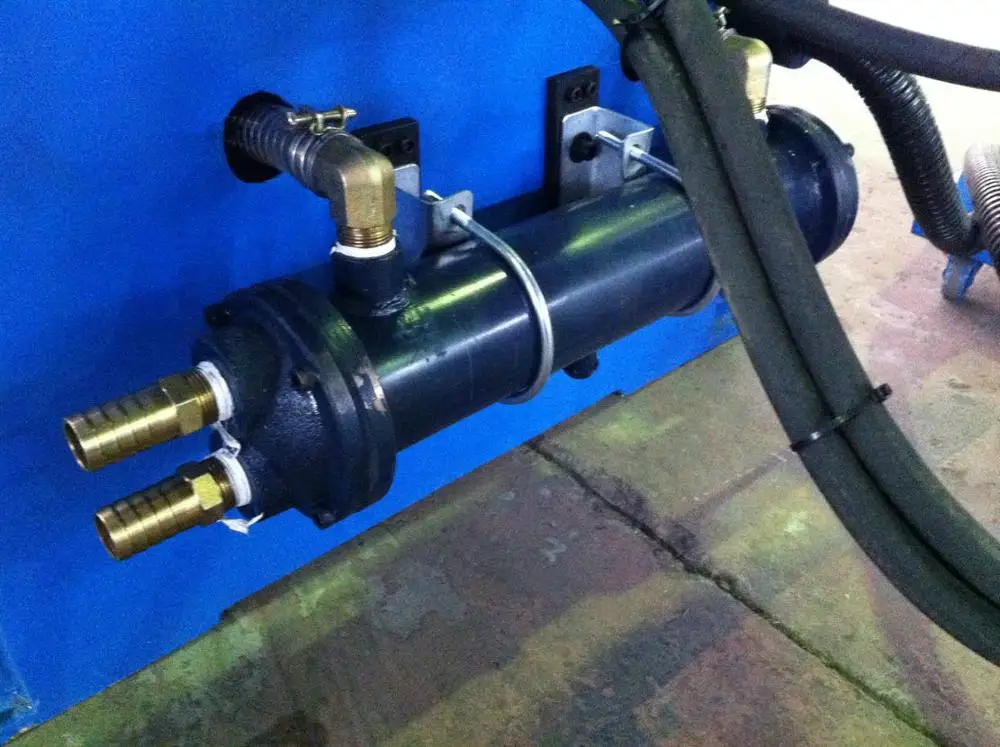

Ø Configuration of Hydraulic and Electronic Control System
