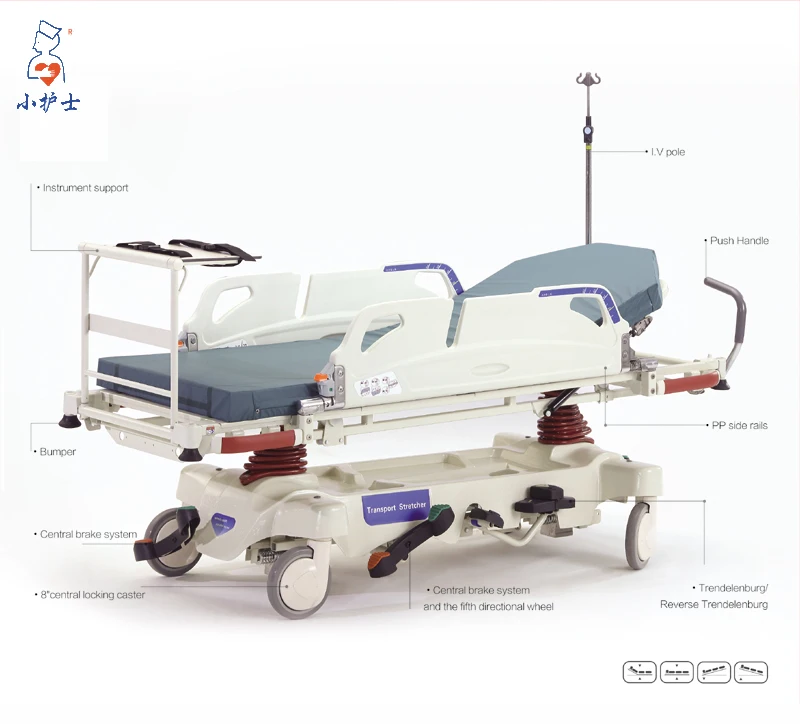

E 8 Hospital medical stretcher Hospital hydraulic emergency patient transfer stretcher

Share on (60815361093):


Price:

Quantity:


Product Overview

Description


Type A3 Hospital medical stretcher, Hospital hydraulic emergency patient transfer stretcher



Product Description

















































Technical parameter







Overall length



2110mm



Overall width(side rail up)



750mm



Lowerst position-floor to platform



520mm



Highest position-floor to platform



845mm



Side rail height above mattress platform



300mm



Maximum backrest



0~80 degrees



Maximum kneerest



0~16 degrees



Mattress size



1880*660*80mm



Maximum loading capacity



200Kg







 Standard configuration
1.Central brake system: Equipped with four brake pedals on all sides of the bed make the brakes at the optimal position effectively and conveniently.Using the imported castors with high-quality bearings make the brakes more flexible and life span longer.
2.Multi-function instrument support: The instrument support can put the monitor and can also be used as a headboard to prevent accidental slippage of the patient.
3.Push Handle: Reducing the workload and preventing the injuries.
4.High quality mattress: The European standard waterproof cloth with the smooth surface of the mattress, easy to clean and not misplaced .
5.Large diameter wheel: Using the imported 8-inch silent caster make it flexible and durable.
6.The fifth wheel: The fifth wheel can provide a smaller radius of gyration. The telescopic collapse design can slide smoothly even on the rough surface or obstacles such as the elevator sill, reducing effectively the damage caused by transport to patients.
7.PP side rails: The three-stopped function side rail provides more convenient operation for transferring the patient and avoids postoperative instrument damage and occupational injury of the nurse.
8.High-strength carbon steel structure and spray procedure: The high quality carbon steel and robot welding guarantee the mechanical strength. The spray surface treatment is easy to clean and guarantees a longer life.
9.Rapid lifting hydraulics: The imported dual-pressure lifting system can be used to quickly lift the bed or the push handle for 2 seconds in an emergency, and the bed will automatically locate the height to form a special body position for quick and timely disposal of the patient.
