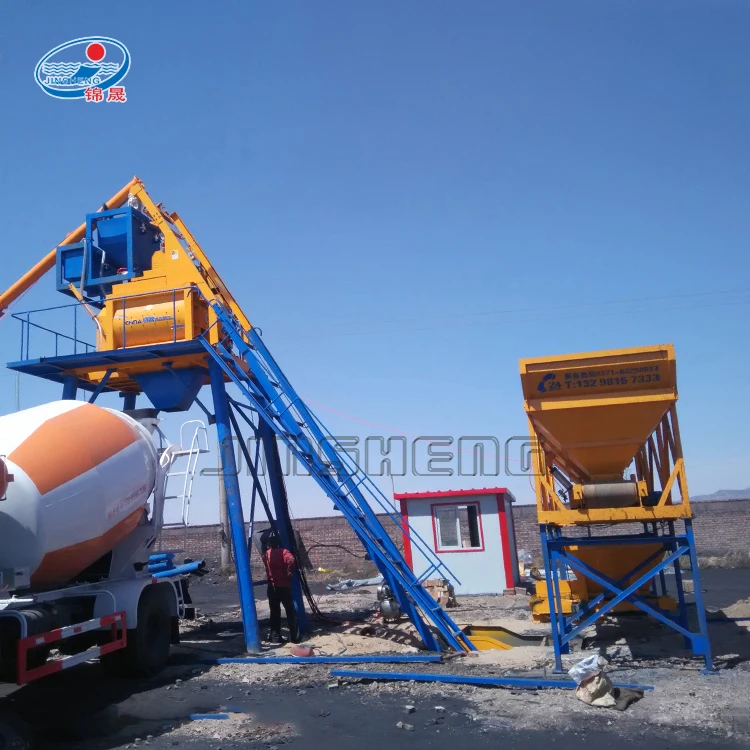

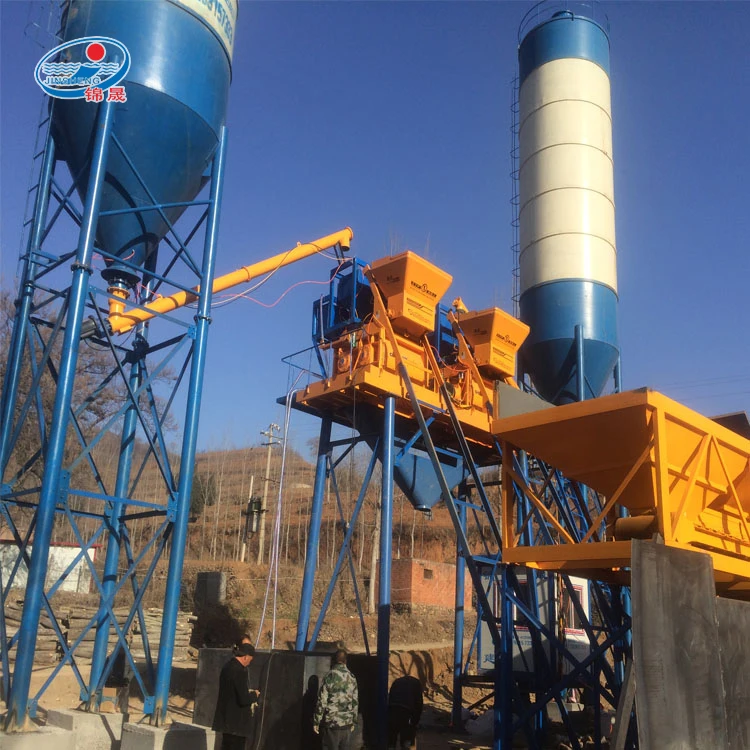

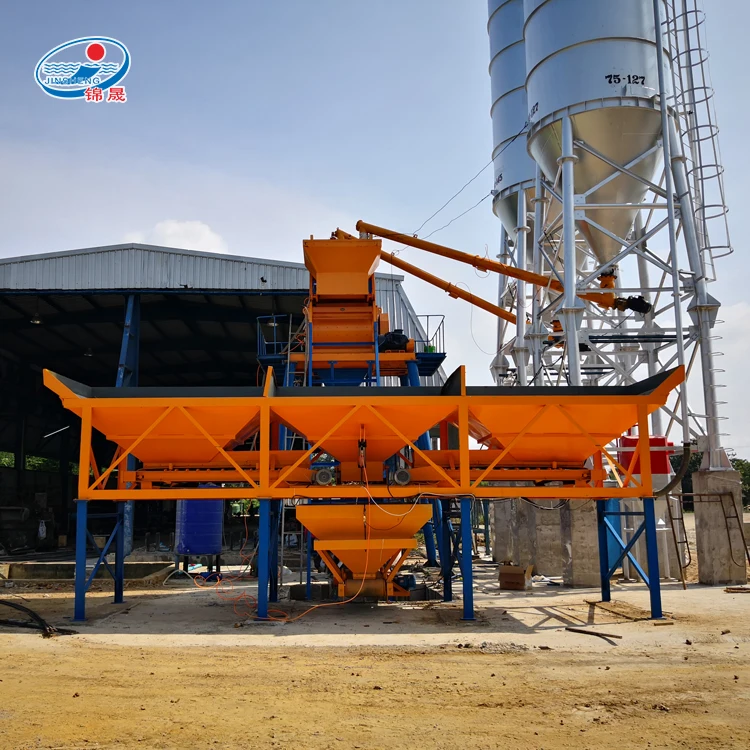

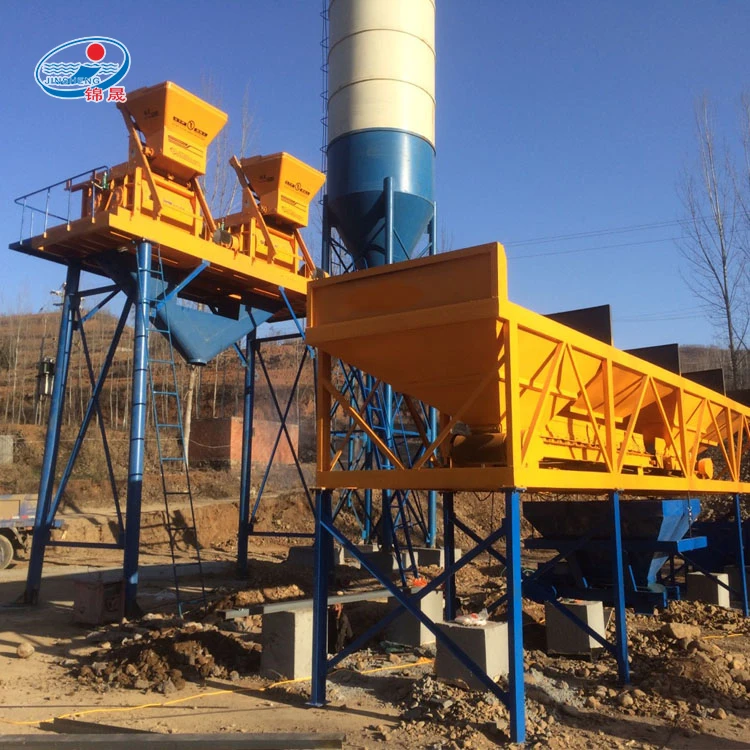

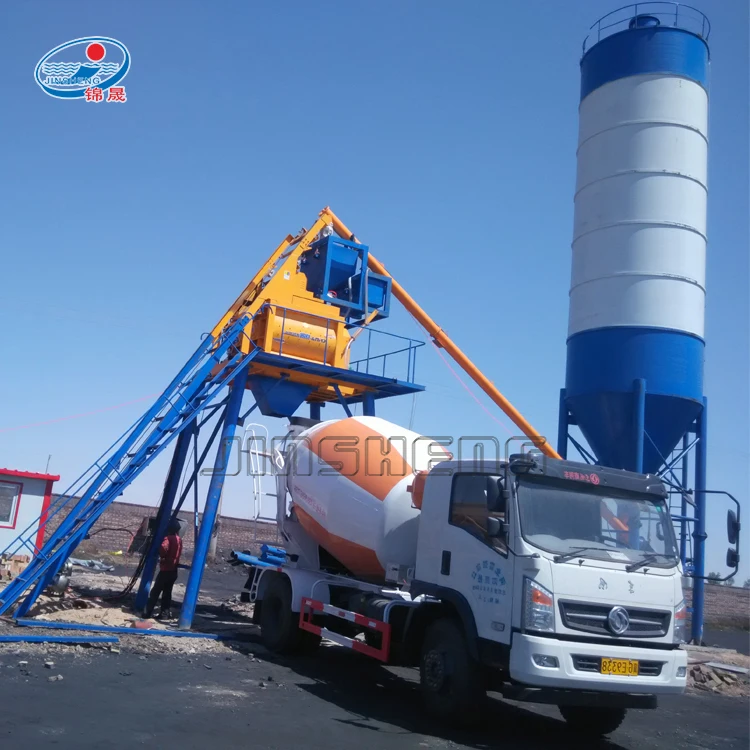

China Ready Mix Concrete Mixing Batching Plant Cement Sand 35cbm





Product Description

Concrete Mixer Machine Bg


I   PRODUCT DESCRIPTION



Applications:


It is widely used for building bridges, dams, ports, wharfs and water conservancy facilities; It is also applicable for small and medium-sized manufacturing factories for concrete pre-cast elements;




Brief introduction:



  1. Horizontal twin shaft compulsory mixer has the strong mixing ability with uniform mixing and big production output. The admixtures are widely mixed by the shafts.

  2. The mixing shafts adopt anti-binding technology to prevent the cement from binding on the shafts.

  3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace. at the same time,improves the machines durability and reliability.

  4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;

  5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators.

  6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

  7. HZS35 concrete plant has composite structure,modular unit and its very convenient to install and move.






Specifications

























4 .jpg







Concrete Mixing System






1. Model: Js750 twin shaft concrete mixer
2. Capacity:35m3/h
3. Charging Volume: 1200L
4. Discharging Volume: 750L
5.Max of Aggregate: 60-80mm
6. Mixing Time: 60s













Weighing System





1.Cement Weighing: 1 unit.


2.Weighing Precision Error: ≤1%.
3.Water Weighing: 1 unit.
4.Weighing Precision Error: ≤1%.
5.Fly Ash Weighing: 1 unit.
6.Additive Weighing: 1 unit.


PLD1200 .jpg







Aggregate Batching System





1.Aggregate Batcher: PLD1200
2.Weighing Hopper: 1.2m³.
3.Mixing motor power:15kw*2/30kw*1
4.Batching Accuracy Error: ≤1%.






Control Room



1.Computer, color display,printer.
2.Control cabinet, load cell, accessories.
3.Thermal protection and insulation control room, etc.


4.Manuel and Auto Control are freely changeable.


.jpg




Cement Silo





1.Cement Silo: 3sets or Optional.
2.Cement Silo Capacity: 50t / 60t /80t / 100t/ 100t,etc.
3.Cement Screw Conveyor: 3sets or Optional.
4.Cement Screw Conveyor Diameter: 219mm / 273mm or Customized.





I   SPECIFICATIONS














































ModelHZS35
Rated Productivity35m 3/h
Main MixerJS750
Powerof Main Mixer30KW
Max. Aggregate Diameter80mm
Delivery Capacity0.75m 3
Feeding ModeLift Hopper
Batching UnitPLD1200
Measuring Scope & Accuracy of Aggregate2200Kg ± 2%
Measuring Scope & Accuracy of Cement450Kg± 1%










Features


Concrete Mixer Machine


Concrete Mixer Machine





  1. Manufacturer,Factory direct sale makes price more competitive.

  2. Over 30 years' production and design experience. We have rich experience in manufacturing construction machines.

  3. Integrated QC System is implemented in every aspect of production.We can offer products quality certificates.We also have CE,ISO,BV and SGS certificate.

  4. Fast Delivery,We promise the goods can be shipped out on the delivery date after confirmation of the order.

  5. Professional after-sale service. We have a 7/24 after-sale service team and can respond promptly to your problems.





Certifications


Concrete Mixer Machine Certifications




<



Packaging & Shipping



Company


Concrete Mixer Machine Company


Zhengzhou Jinsheng Construction Machinery Co., Ltd, founded in 1983, is a high-tech enterprise specialized in manufacturing construction machinery. Jinsheng has modern production base of over 65,000 square meters, independent R&D institution and professional techonology team.

Zhengzhou Jinsheng Construction Machinery Co., Ltd, covering concrete mixer, concrete batching plant, screw conveyor, concrete batching machine, stabilized soil mixing station various concrete mixer truck etc.




I   SPECIFICATIONS


1. Do you provide after-sale service?
Yes, The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and Thoroughly solve your problems. So After-sales Service was Provided and Engineers available to service machinery overseas.

2. How about the quality of your products?
We are factory with more than 33 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery.You can also use Trade Assurance by Alibaba for products quality protection,on-time shipment protection payment protection.

3. How about the price?
We are manufactory,not dealer,so we can give you a lower price than those trade companies can.

4. What kind of Concrete Mixers or Construction Machinery do you manufacture?
Concrete Mixer(JZM series, JS series, JZC series, JZR series, BHS Mixer, Planetary Gearbox Mixer), Concrete batching plant (Batching machine, Screw conveyor, Cement Silo etc.)
Foam concrete brick machine.

5. Can I only buy concrete mixer without weighing system?
Yes, and the price will be cheaper. We can provide you with the customized concrete mixer to meet your demands.


6. Can you put our logo on the machine?
Yes,it is available.LOGO and color are usually as per customer's requirement.
