turnkey milk Butter margarine Making Machine

Product Overview

Description

turnkey milk Butter margarine Making Machine



Cangreen is a solution provider in engineering design of process and equipment in the food industry. We are in business for 10 years, pround to serve food processing industries including margarine, shortening, puff pastry margarine, ghee, peanut butter, tomato paste, dipping sauce and flavor spreads etc.

  Sold over 100 margarine/shortening production lines in China, including brand names like Unilever China, Fuji Oils China and China Cereals and Oils.

  Sold oversea countries including US, New Zealand, Russia, Indonesia, Vietnam and Easten Block countries.

   We provide one-stop shopping in equipment, engineering, field installation and startup services.









Individual Margarine Equipment



The crystallization takes place in the Scraped Surface Heat Exchanger (SSHE) which is the heart of the crystallization line . Our chilling unit (A unit) is modeled after the Votator type of heat exchanger combined with the European modifications to enhance the overall performance .The efficiency is 3 to 5 times higher than other similar products .The basic design consists of a pipe-in-pipe cylinder with inner pipe for product and outer pipe for cooling refrigerant .A rotating shaft is concentrically mounted within the cylinder and has 4 rows of floating type scraper blades (PEEK / POM ) in an optimum configuration .

The kneading machine (C unit) consists of a hot water jacketed cylinder with a row of fixed static pins (optional 3 rows) and a concentric shaft carrying pins in a helical or straight pattern . By kneading and working the product ,the pin worker is able to optimize the product texture for ideal results.







 The resting tube unit (B unit) consists of multi-sections of jacketed cylinders to provide the desired retention time for proper crystal growth. Internal orifice plates are provided to extrude and worked the product to modify the crystal structure with desired physical properties. The custom extruder is required to produce sheet puff pastry or block margarine and is adjustable for thickness.

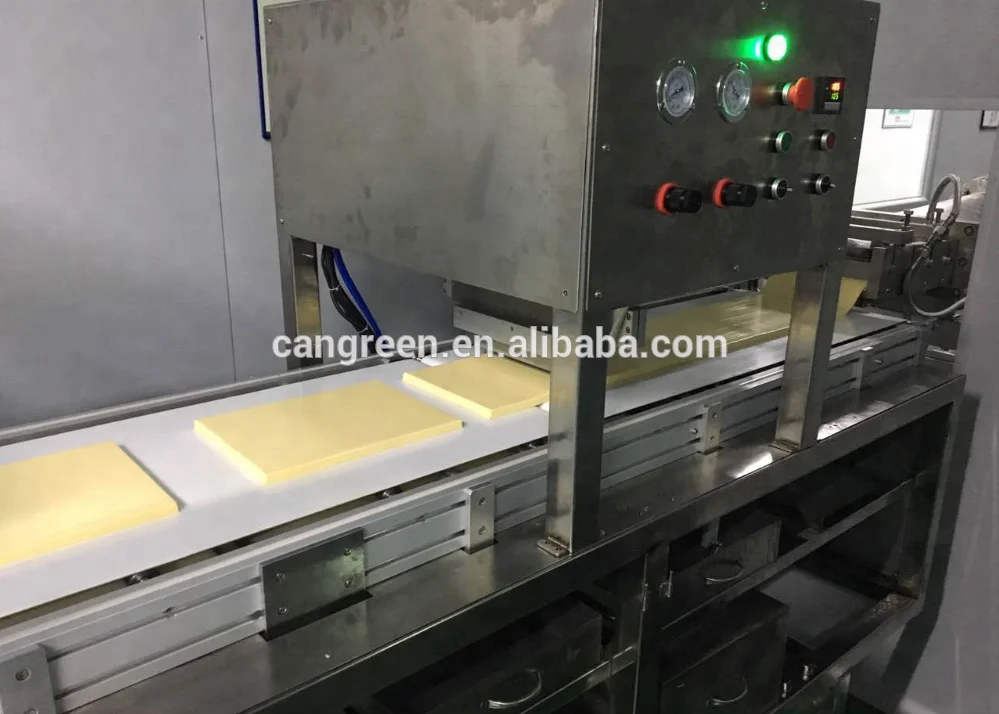

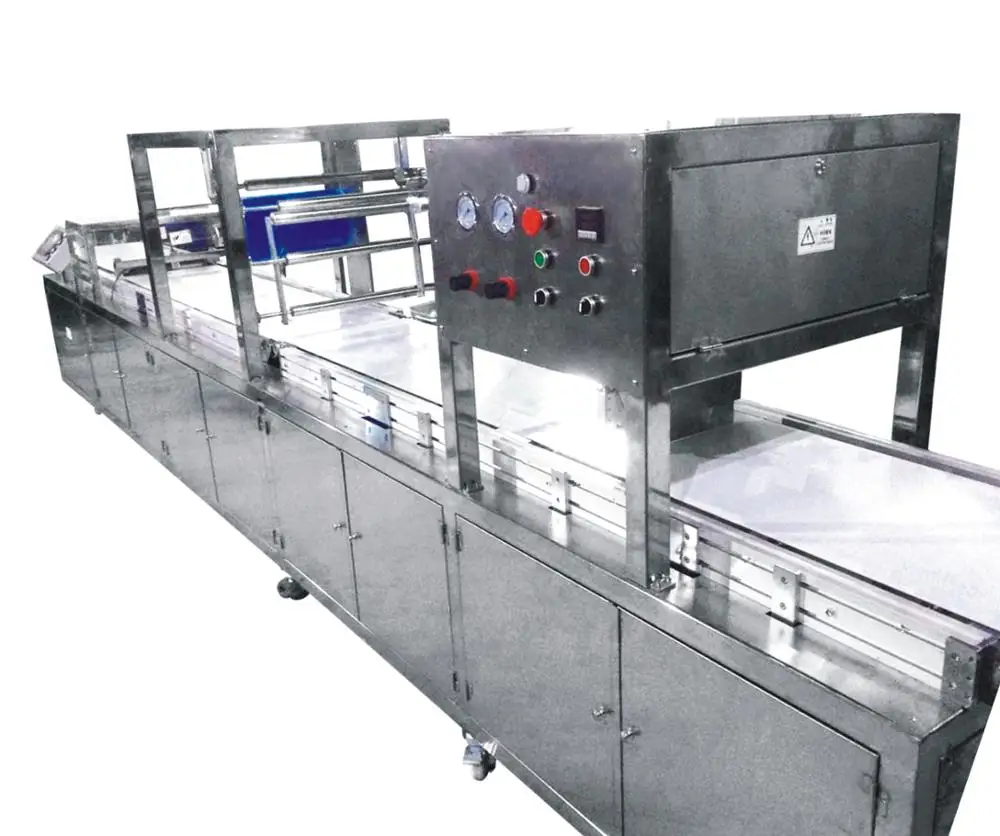

Puff Pastry Automatic Packaging Line is perfect for 1-2kg sheet puff pastry margarine. The packaging line consists of automatic hot wire cutting, film covering and folding, film trasportation and automatic stacking. There is optional weigh check system available. The complete line is cunstom designed, developed and fabricated in house to meet our specific customer need.







All major equipment are manufactured by advanced and dedicated CNC, computer controlled automatic machineries.



Cangreen Production Lines









Quality of Margarine





Company Profile



Customer Focus

• Turnkey complete line for one-stop shopping and complete guarantee of all items supplied.
• All major equipments are manufactured to meet customer requirements.
• We provide you with technical and expert support to help ensure the product QUANTITY & QUALITY.
• The complete line will be layout and set up in our China factory available for customer’s factory acceptance test at no extra charge.
• Changes and modifications will be made prior to shipping to customers.
•  A complete one year warranty to our equipment with free replacement.

Welcome your inquiry anytime





Jack

Sales Representative

jack(at)cangreen.com.cn
