TALOS 65 Pile driver hammer/ side grip vibro hammer /vibro hammer for excavators

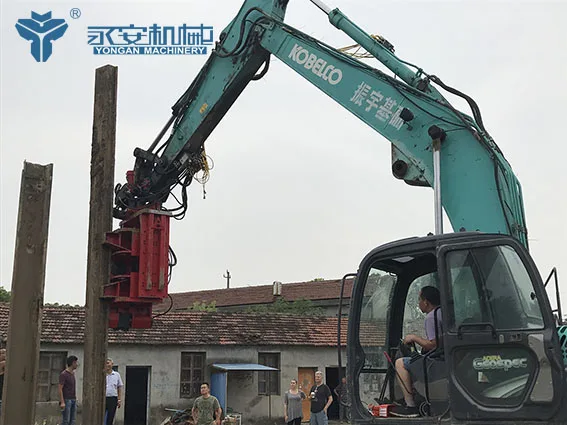

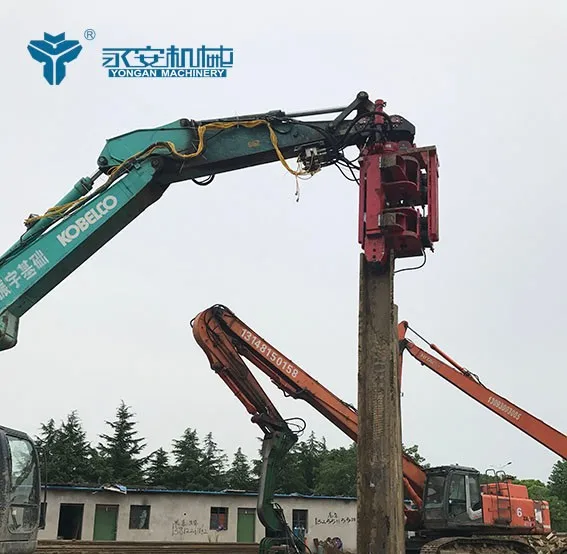

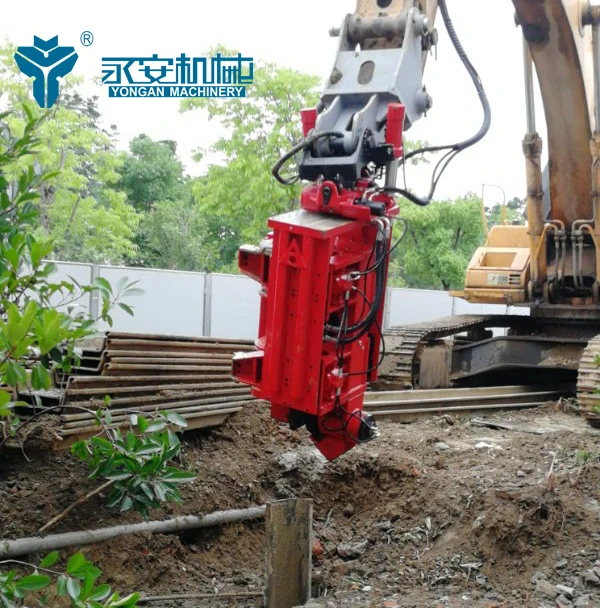

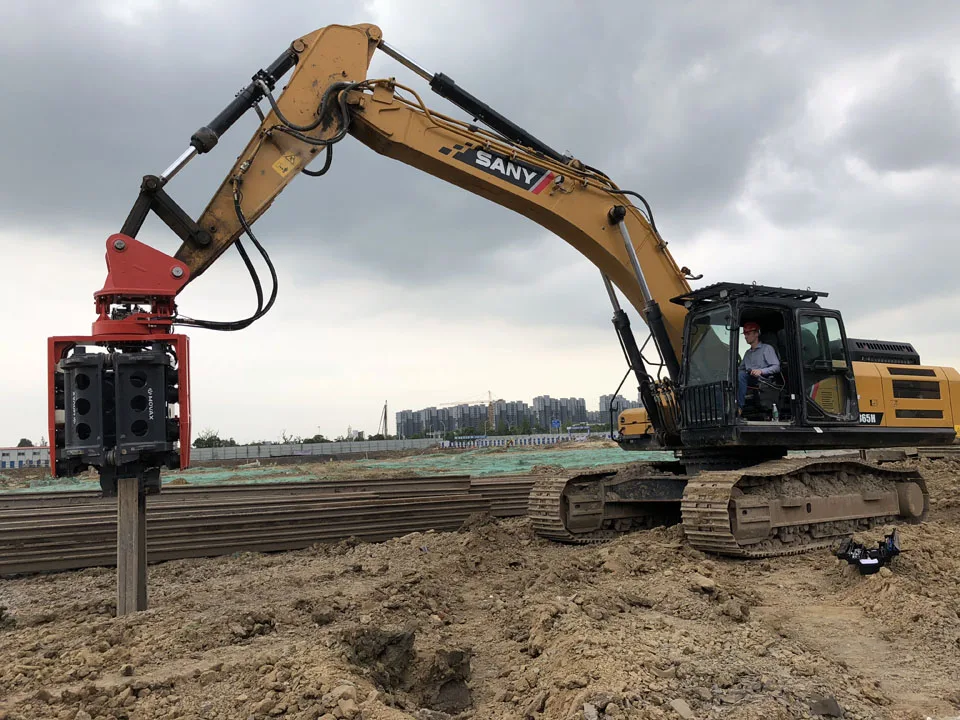

Side grip vibro hammer TALOS 65 is a quick attachment of excavator, a new kind of pile driver, newest developed by Yongan Machinery. It is suitable to drive and extract sheet piles for different geological situation except the hard rock layer. It is the optimum solution in limited space and sensitive environment. With its innovative features, this side grip vibro increase your excavator's profitability, and reduces your operation expensations. It is proved to be a useful and reliable tool in piling industry.

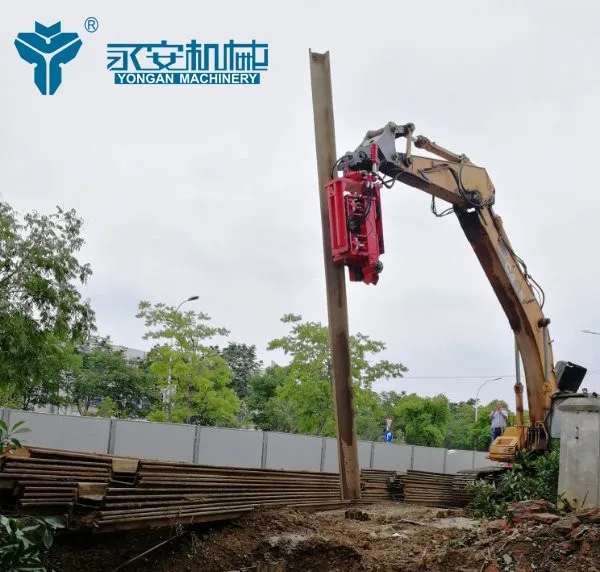

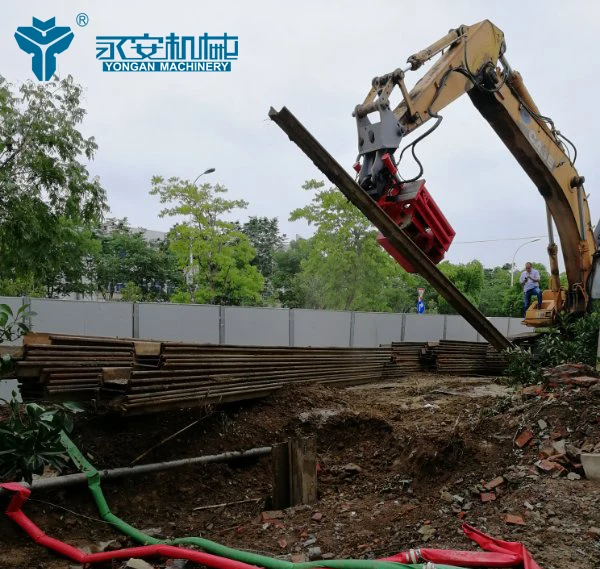

It is very easy to be installed in the excavator, just take off the bucket and install the hammer, connect the pipeline, then it can work. It can drive the sheet piles both from the side and the top, no lifting height limit of the excavator boom, no need to prolong the boom to drive long piles, thus can drive 6m piles, 12m piles, or even 18m pile. It will save you a lot in prolong boom cost and also local transportation cost.


\t
Model
\t
TALOS 55
\t
TALOS 65
\t
TALOS 75
\t
Eccentric Moment (kgm)
\t
5.5
\t
6.5
\t
7.5
\t
Centrifugal Force (KN) max
\t
545
\t
643
\t
742
\t
Frequency (rpm)
\t
2300-3000
\t
2300-3000
\t
2300-3000
\t
Bottom Clamp Force(KN)
\t
306
\t
336
\t
336
\t
Side clamp Force (KN)
\t
416
\t
456
\t
456
\t
Size (L*W*H)  (mm)
\t
1109*1124*2470
\t
1122*1129*2510
\t
1122*1129*2510
\t
Throat Width (mm)
\t
870
\t
920
\t
920
\t
Weight (KG)
\t
2555
\t
2655
\t
2755
\t
Rotate/Tilt angle  (︒)
\t
360/±40
\t
360/±40
\t
360/±40
\t
Excavator Class  (T)
\t
20-30
\t
30-40
\t
40-50
\t
Engine Power min (KW)
\t
110
\t
150
\t
180
\t
Pressure Setting (bar)
\t
320
\t
320
\t
320
\t
Return Pressure max (bar)
\t
5
\t
5
\t
5
\t
Pile Length (m)
\t
6-12
\t
6-15
\t
8-18
Certifications

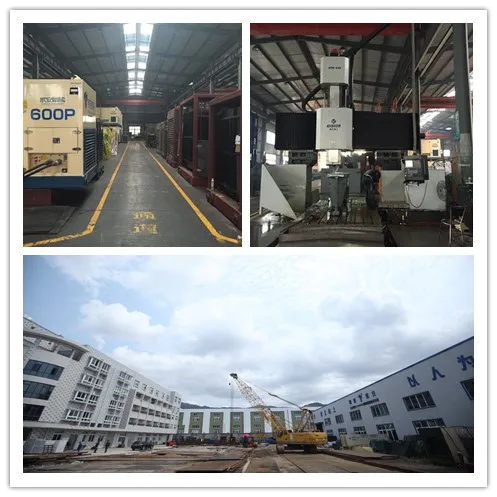

Our Factory
