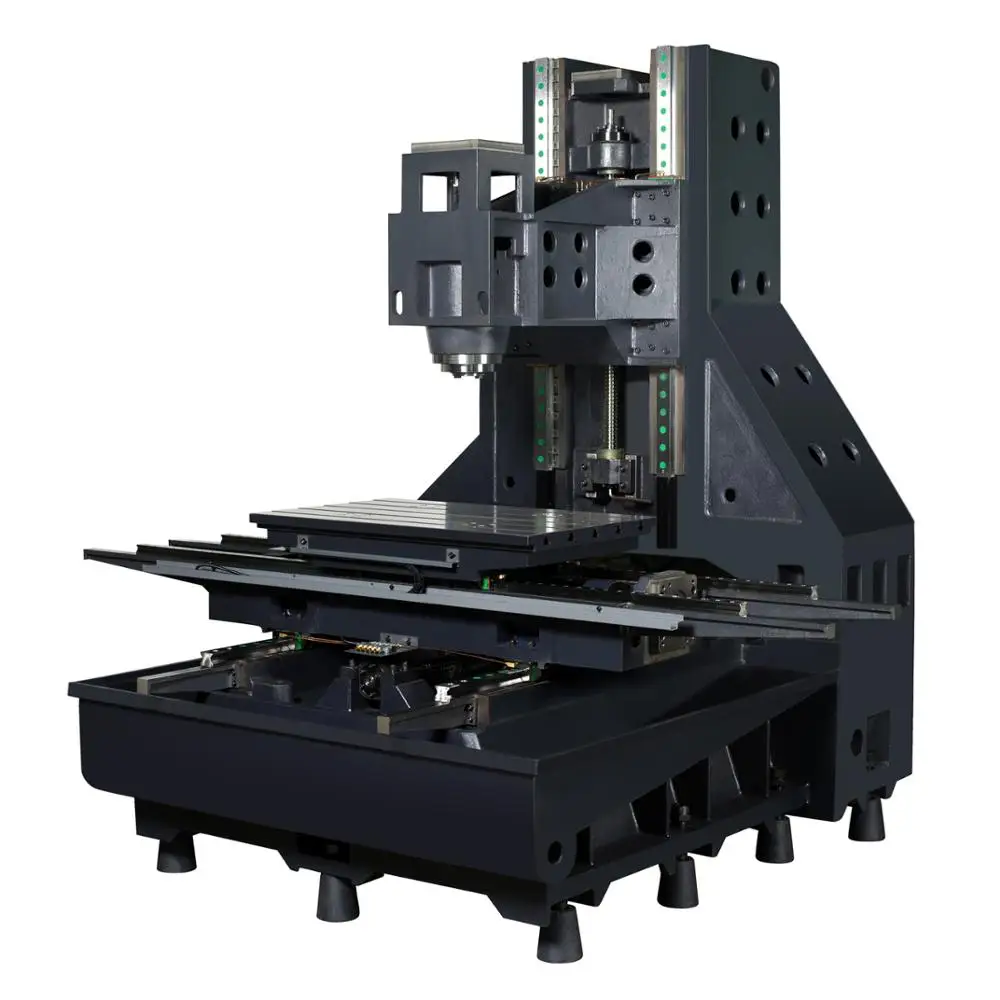

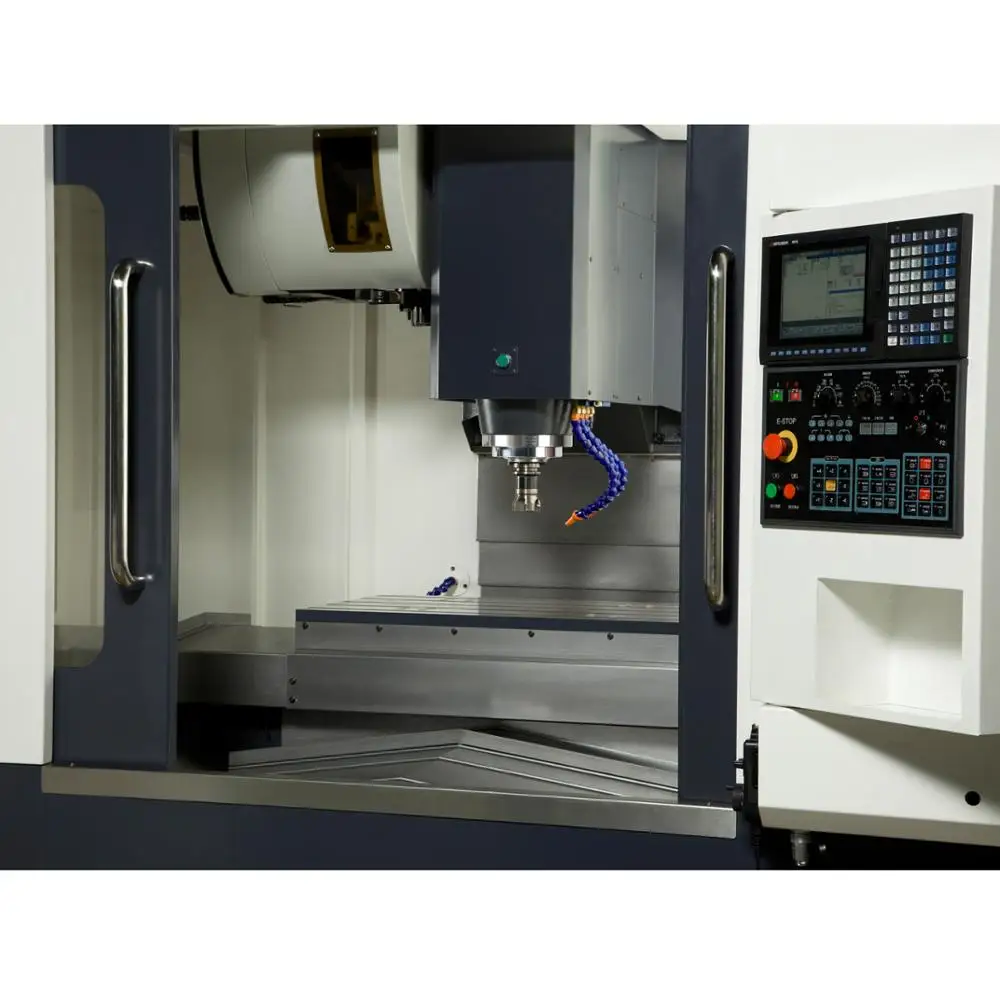

Biga High Precoision 3 axis MV 855 Vertical Milling Machine CNC Vertical Machining Center

Product Overview

Description

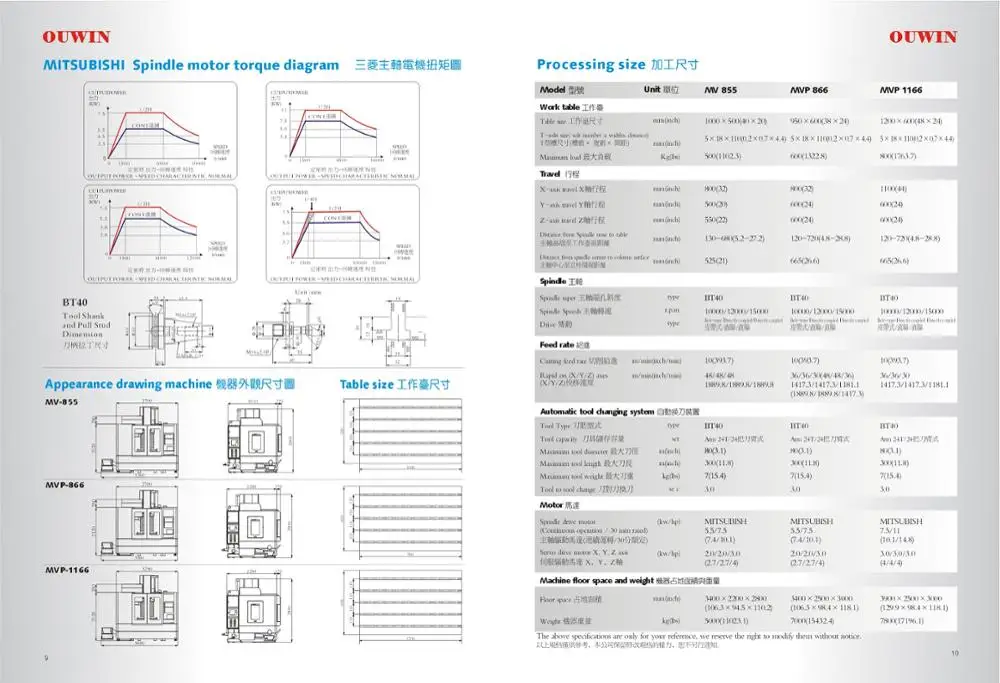

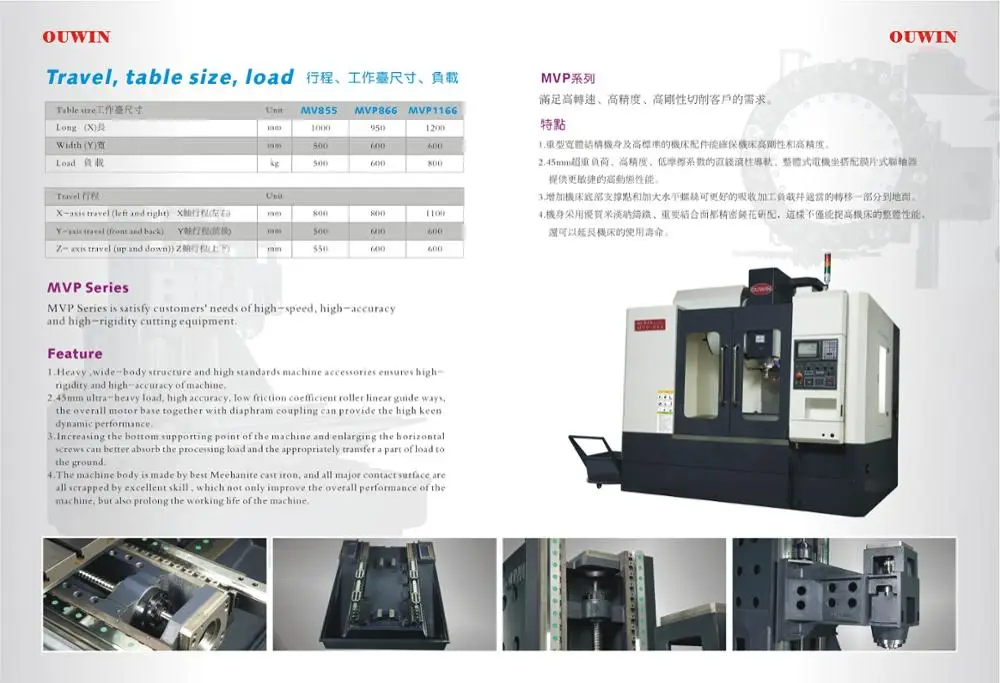

Parameters of VMC 850:

Model		Unit	VMC850
Travel	X	mm	800
	Y	mm	500
	Z	mm	550
	Spindle nose to work table	mm	105-655
Work table	Work table size	mm	1050*500
	Max. load of worktable	kg	600
	T-slot No./width/distance(mm)	mm	5*18*90
Spindle	Spindle taper		BT40
	specifications		BT40 45°
	Max. speed of spindle	rpm	8000
	The motor Power	kw	7.5
	The transmission way		Belt
Precision	Measuring accuracy	mm	±0.005
	Repeat  accuracy	mm	±0.003
Feed	X/Y/Z Motor Power	kw	2.0/2.0/2.0
	X/Y/Z Rapid Feed Speed	m/min	12/12/12
	X/Y/Z Max Cutting Feed Speed	m/min	10/10/10
	X/Y/Z Guideway		rectangular guidewy
Automatic tool changer device	Tools Type		arm
	Tools capacity	PCS	24
	Tools Max diameter/length/weight	mm/mm/kg	100/200/8
	Tools Max diameter(no tool neighboring)	mm	150
	Tools exchange time	S	3
Others	Controler		Mitsubishi M70
	Net Weight	kg	5000
	pneumatic pressure	Kg/cm2	5-7
	Total power capacity	KVA	15
	Overall dimension (L×W×H)	mm	2500*2250*2400

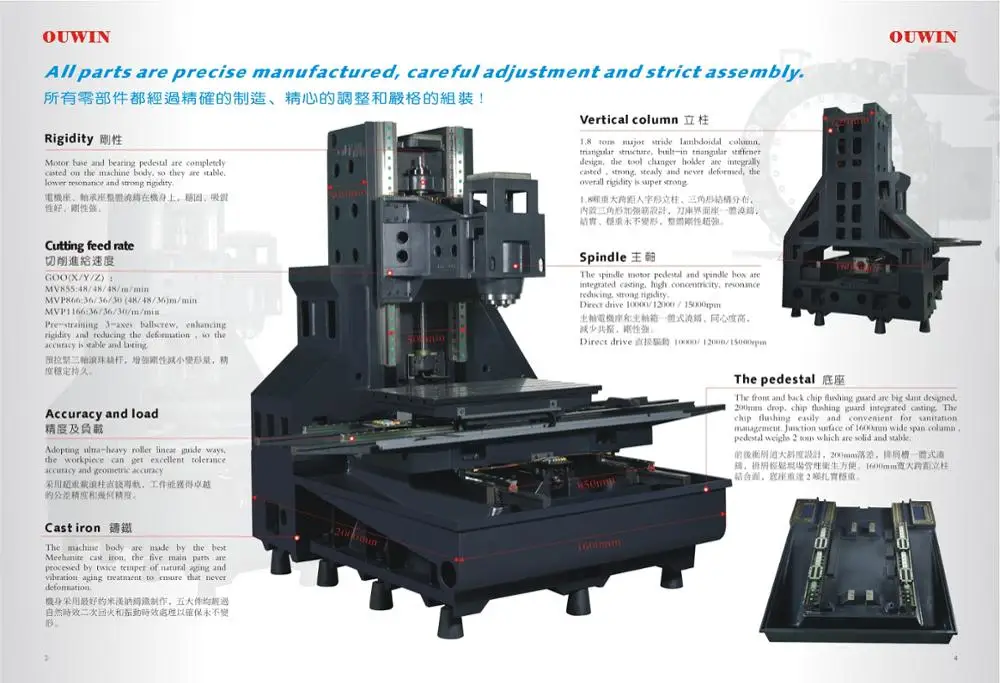

Feature of VMC 850:



1.Rigidity:

Motor base and bearing pedestal are completely casted on the machine body, so they are stable, lower resonance and strong rigidity.



2.Cutting Feed Rate:

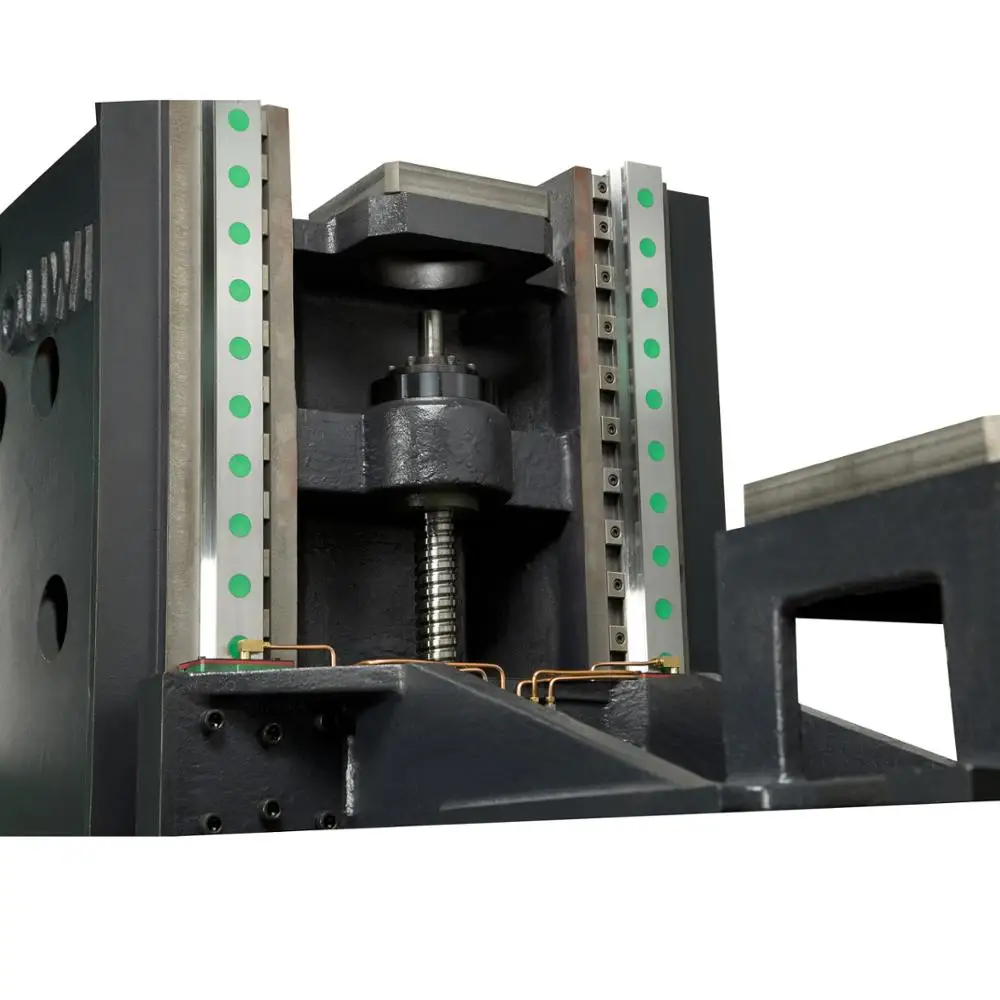

Pre-starining 3-axes ballscrew, enhancing rigidity and  reducing deformation, so the accuracy is stable and lasting.



3.Accuracy And Load:

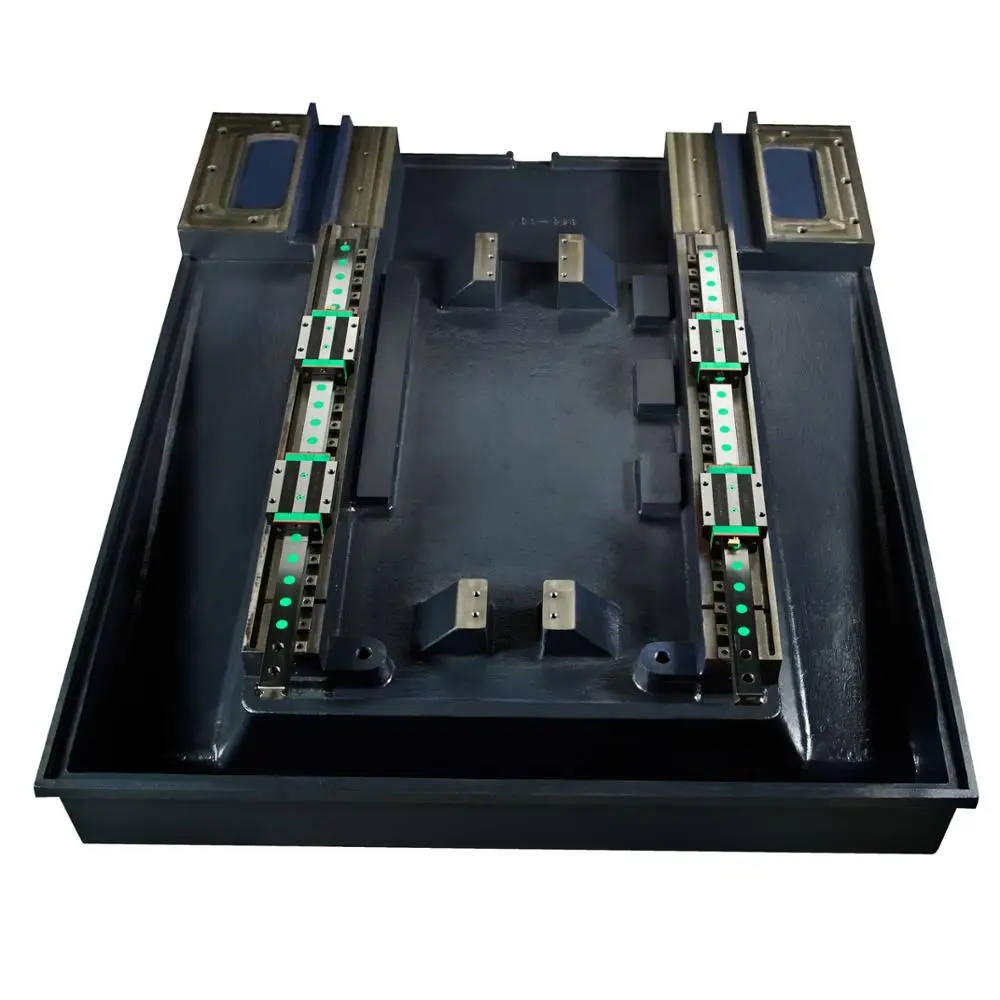

Adopting ultra-heavy roller linear guide ways, the workpiece can get excellent tolerance accuracy and geometric accuracy.



4.Cast Iron:

The machine body are made by the best Meehanite cast iron, the five main parts are processed by twice temper of natural aging and vibration aging treatment to ensure that never deformation.



5. Vertical Column:

1.8 tons major stride labodonial column, triangular structure, built -in traingular stiffener design, the tool changer holder are intergrally casted, strong , steady and never deformed, the overall rigidity is super strong.



6. Spindle:

The spindle motor pedestal and spindle box are integrated casting, high concentricity, resonance reducing, strong rigidity .



Detailed Information of VMC 850:
